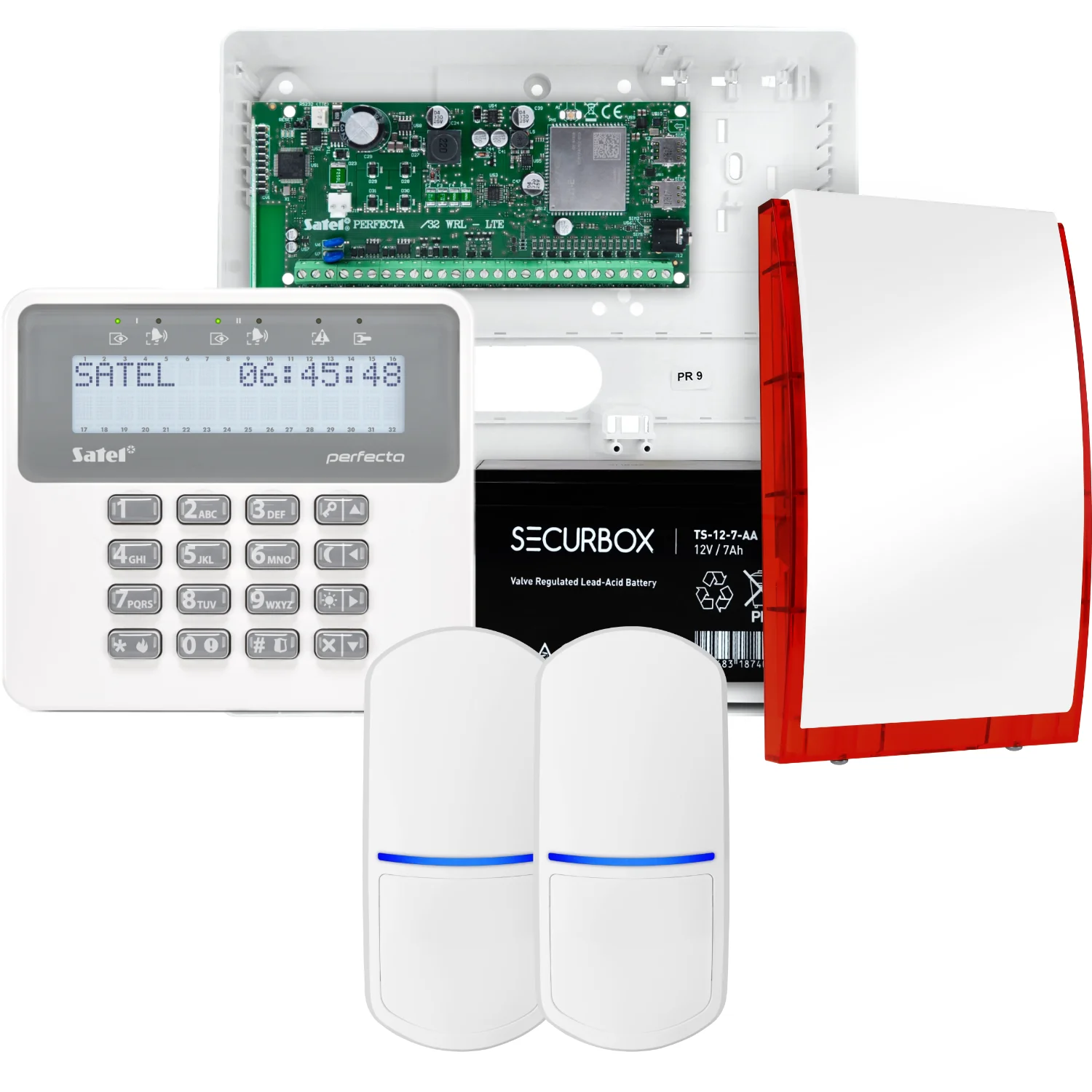

SATEL PERFECTA 32-WRL LTE alarm set, 2x detector, siren, keypad

Main features of the set:

• System based on modern control panel with LTE communication - fast and reliable notification.
• All necessary components in one set - from power supply to detectors and siren.
• Possibility of remote operation via mobile application - alarm control from anywhere.
• External and internal protection - motion detection and acoustic-optical alarm.
• Easy system expansion with additional sensors, modules and automation functions.

The set includes:

• 1x SATEL PERFECTA 32-WRL LTE control panel
• 1x OPU-4 P enclosure
• 1x LTE antenna ANT-LTE-I
• 1x AWT150 TRP 40VA/16V/18V transformer

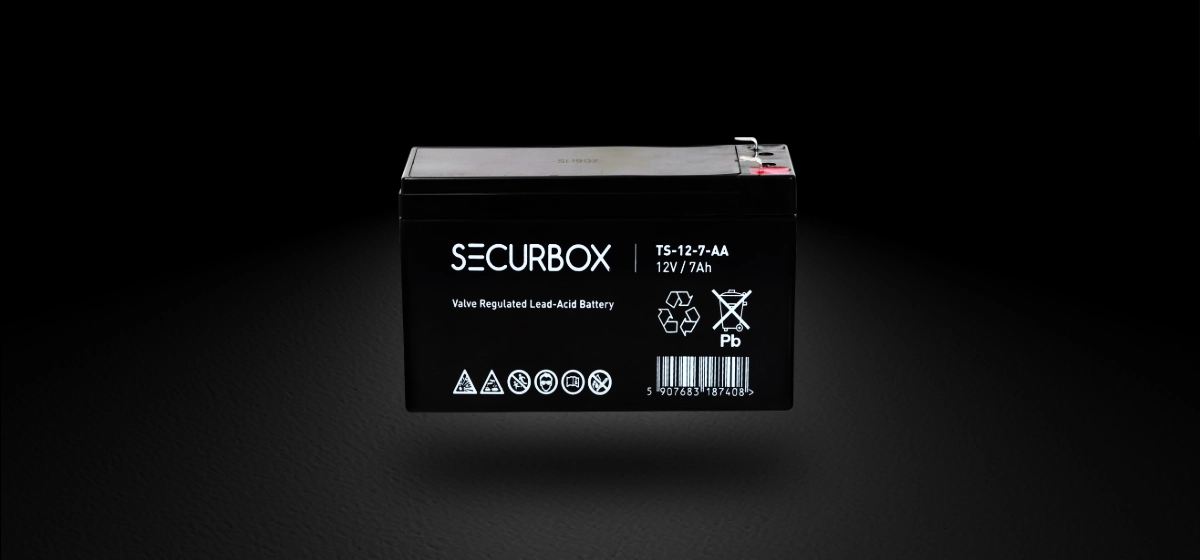

• 1x Rechargeable battery 12V/7Ah
• 1x MSP-300 R optical and acoustic siren
• 1x PRF-LCD-WRL keypad
• 1x SATEL MPD-310 motion detector

Remote access from your phone SATEL systems allow you to configure, control and view using the PERFECTA application, which will provide you with constant access to your alarm system from any place on earth with Internet access. PREFECTA allows you to: Check the status of individual devices Control relays Read data from sensors Arm / Disarm the alarm Receive event notifications

LTE communication - instant notifications The set allows instant SMS and PUSH notifications thanks to the built-in LTE module. In the event of a system breach, the user is immediately notified of the event, regardless of location.

Emergency power supply - continuity of operation TRP transformer and 12V/7Ah battery guarantee uninterrupted system operation even during a power outage. The system monitors the status of the power supply and informs you of any problems.

Effective signaling of danger The MSP-300 R siren informs of an alarm with a high intensity sound and an intense LED flash light. Mounting on the façade effectively deters potential intruders.

Flexible configuration of zones and users

The PERFECTA 32-WRL LTE control panel allows the system to be divided into two independent zones, which makes it possible, for example, to secure the house and garage separately. You can also assign different rights to individual users, which increases security and convenience.

High resistance to interference The system is designed for stable operation even in harsh conditions. The LTE antenna used and good cable shielding help minimize the risk of false alarms or communication interference.

Possibility of integration with home automation The set can be the basis for creating a simple automation system - for example, switching on the lighting, the entrance gate or sprinklers when the alarm is armed. This increases the comfort and functionality of the entire solution.

Aesthetic and compact appearance of the components

The OPU-4 P housing and MPD-310 detectors were designed with modern interiors in mind. Their small size and minimalist form make them unobtrusive and blend well with the interior design.

Main features of the control panel:

• EN 50131 Grade 2 compliance
• 8 to 32 wired programmable inputs:
• Choice of configurations: NO, NC, EOL, 2EOL/NO, 2EOL/NC
• Capable of operating rolling shutter and vibration detectors
• 4 to 12 programmable wired outputs
• 2 power outputs on the main board
• Additional 4 wireless outputs to support MSP-300 wireless sirens
• Support for encrypted wireless communication
• System division into 2 zones
• 3 surveillance modes in each zone
• Possibility to assign a zone to two zones
• Control by user or with timers
• Communication bus for connecting keypads (PRF-LCD), expansion modules (INT-E, INT-O, INT-ORS)
• 15 user passwords
• 1 service password
• Edit names (users, zones, zones, outputs and modules) to facilitate system control and supervision
• 8 timers with possibility of setting exceptions
• Memory of 3584 events
• Automatic diagnostics of basic system components
• Built-in switching power supply
• Overload protection
• Protection against complete battery discharge
• Battery charging current adjustment
• Programming of control panel settings
• Locally - keypad or computer with PERFECTA Soft program installed, connected to RS-232 (TTL) port of the control panel
• Remotely - computer with PERFECTA Soft program installed, connecting to the control panel using cellular network data transmission*.

Main features of the keypad:

• Cooperation with PERFECTA series control panels
• Large, easy-to-read LCD display
• LEDs indicating partition and system status
• Quick activation of the selected arming mode using function keys
• Panic, FIRE, AID alarms called from keypad
• Backlighting of the display and keys
• Audible signaling of selected events in the system
• Signaling loss of communication with the control panel

The PRF-LCD keypad is used for everyday operation of PERFECTA series control panels. The device meets the safety requirements of Grade 2 as defined by the EN 50131 standard. Large keys, LCD display and LEDs indicating system status make system operation convenient and clear for all users. In addition to numeric keys, the keypad also has buttons for quickly activating the selected surveillance mode (day, night, full) and triggering three alarms: robbery, fire, help. The attractive appearance of the PRF-LCD keypad makes it able to blend in with the decor of the interiors protected by the system.

Main features of the housing:

• Cooperation: VERSA, INTEGRA, PERFECTA, CA series.
• Application: indoor
• Mounting: surface mounted
• Material: plastic
• Complies with EN50131 Grade 3 standard
• Possibility to install wireless devices with antennas inside the housing
• Optional HOLDER A or HOLDER A2 bracket
• Weight: 0.92kg
• Dimensions: 266x286x100mm (W/H/D)
• Warranty: 24 months

Main features of the optical alarm device:

• Cooperation with MTX-300 controller
• Optical and acoustic signaling independently triggered via radio
• Optical signaling: super bright LEDs
• Acoustic signaling: piezoelectric transducer
• Possibility to trigger one of several acoustic signals
• Advanced radio circuitry for optimized communication with low power consumption
• Remote configuration
• Powered by a powerful BAT-ER-3.6 battery with 13 Ah capacity and a wide operating temperature range
• Operation in temperatures from -40°C to +55°C
• Tamper protection against opening the housing and detachment from the ground

The MSP-300 wireless outdoor siren is designed to work with the MTX-300 controller, operating at 433 MHz. The siren uses a state-of-the-art SPIRIT1 radio chip with optimized power management, which ensures long operation of the device in harsh conditions. Trouble-free operation of the MSP-300 is also ensured by a highly efficient BAT-ER-3.6 battery, which is used in specialized applications, including military and medical.
