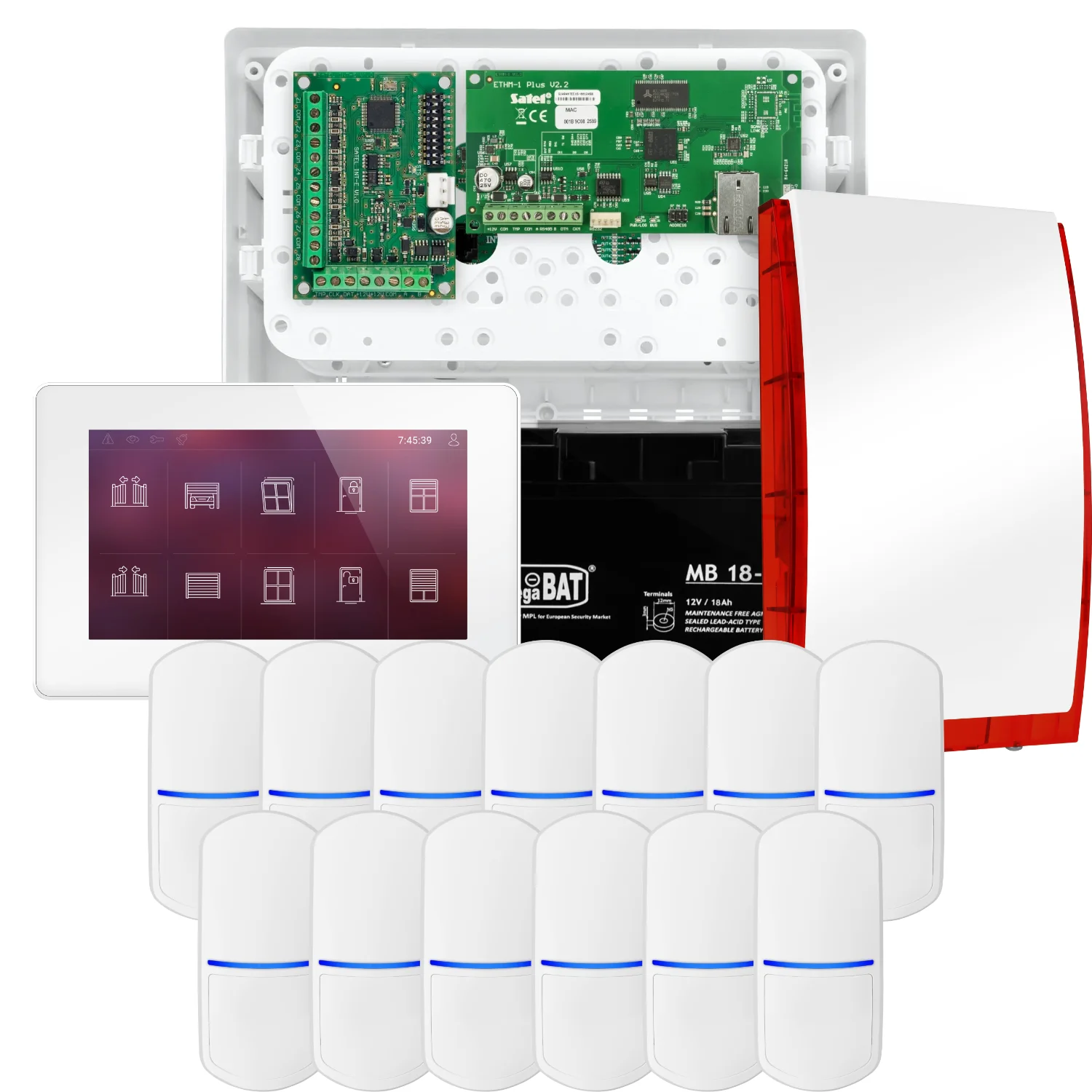

SATEL INTEGRA 32 Alarm Set, 13x PET Detector, Siren, White INT-TSH2-W Keypad

Main features of the set:

• System based on modern control panel with IP communication - fast and reliable notification.
• All necessary components in one set - from power supply to detectors and siren.
• Possibility of remote operation via mobile application - alarm control from anywhere.
• External and internal protection - motion detection and acoustic-optical alarm.
• Easy system expansion with additional sensors, modules and automation functions.

The set includes:

• 1x SATEL INTEGRA 32 control panel
• 1x OPU-3P enclosure
• 1x AWT-682 transformer
• 1x 12V/18Ah battery
• 1x SP-4001 R optical and acoustic siren
• 1x INT-TSH2-W 7" keypad
• 1x RS RJ/PIN5 port connection cable
• 1x ETHM-1 Plus Ethernet communication module
• 1x INT-E zone expander
• 13x SATEL SLIM-PIR-PET motion detector

INTEGRA CONTROL application is SATEL's mobile tool for remote management of INTEGRA and INTEGRA Plus series alarm systems. It allows users to control security and home automation from anywhere in the world.

Expanded site protection The INTEGRA 32 control panel allows you to create an advanced alarm system, supporting up to 32 inputs, with the possibility of expanding with additional modules. It is ideal for medium and large facilities, providing flexibility in configuration.

High quality motion detection SLIM-PIR-PET detectors are characterized by precise motion detection and high resistance to false alarms. Small size allows for discreet installation in any room.

Intuitive operation with a touch keypad The INT-TSH2-W keypad offers a modern, touch-screen interface for quick access to zones, devices and alarm functions. The clear display makes daily use of the system easy.

Reliable emergency notification

The SP-4001 siren provides loud audible and visual signaling when a threat is detected. This increases the chances of quickly noticing an alarm both inside and outside the facility.

Stable and emergency power supply The system, based on the AWT-682 power supply and 18Ah battery, guarantees continuous operation even during a power outage. This is a key safeguard in case of prolonged power outages.

Easy system expandability With the INT-E expander, the set allows you to quickly increase the number of supported detectors and devices. This allows you to adapt the system to your changing needs without having to replace the control panel.

Aesthetic and compact design of the components

The OPU-3P housing and SLIM-PIR-PET detectors were designed with modern interiors in mind. Their small size and minimalist form make them unobtrusive and blend well with the interior design.

Main features of the control panel:

• Support for 8 to 32 zones
• Ability to divide the system into 16 zones, 4 partitions
• Support for 8 to 32 programmable outputs
• Communication buses for connecting keypads and expansion modules
• Built-in telephone communicator with monitoring, voice notification and remote control functions
• System operation using LCD keypads, partition keypads, keyfobs and proximity cards, and remotely using a computer or cell phone
• 32 independent timers for automatic control
• Access control and home automation functions
• Memory of 899 events with print function
• Support for up to 64+4+1 users
• RS-232 port - RJ socket
• Possibility to update software via computer
• Built-in 1.2 A switching power supply with battery charging and diagnostic functions

Main features of the keypad:

• Cooperation with control panels of the series:
• INTEGRA (Firmware v1.14 or later),
• INTEGRA Plus (Firmware v1.14 or later),
• VERSA (Firmware v1.06 or later),
• VERSA Plus (Firmware v1.06 or later),
• 7" capacitive touchscreen responsive to light touch
• Resolution of 1024x600, display of 16.7 million colors (true color)
• Multi-level customizable graphical interface
• MAKRO functions to facilitate control of the alarm system and home automation components (supported by INTEGRA and INTEGRA Plus control panels only)
• Customizable status screen
• 2 zones (supported by INTEGRA and INTEGRA Plus control panels only)
• Capability to activate panic, FIRE, and AID alarms
• Built-in microSD memory card reader (storing photos for photo frame, background of additional screens, sounds for zone violations - chimes)

SATEL INT-TSH2-W keypad in a white housing. It is designed to control and manage the INTEGRA, INTEGRA Plus, VERSA and VERSA Plus family of alarm control panels. The device is equipped with a capacitive touchscreen used instead of traditional buttons, and a large 7" widescreen LCD display. The INT-TSH2 series keypad provides quick and easy access to information about the current system status. Thanks to the large, easy-to-read widgets and the ability to define the information indicated in the status screen mode, a single glance at the device's screen is all it takes to find out what's happening in the protected premises. In addition, it is also possible to run a photo show on the keypad.

Main features of the housing:

• Meets EN50131 Grade 3 requirements.
• Anti-tamper protection
• Removable mounting plates for easy system installation and maintenance
• Possibility to install wireless devices with antennas inside the enclosure
• Dimensions: 324 x 382 x 108 mm
• Space for transformer: 40 or 60 VA

Main features of the optical alarm device:

• Acoustic signaling: piezoelectric transducer
• Optical: super bright LEDs
• Tamper protection: against opening, detachment from the ground
• Internal cover made of galvanized sheet metal
• High impact polycarbonate housing
• Selectable alarm signal - 3 acoustic signals
• Electronics protected from weather conditions
• Dimensions: 148x254x64mm (W/H/D)
• Available colors: red,blue or orange
• Warranty: 24 months

SP-4001 R is an optic-acoustic siren designed for outdoor installation, equipped with super-bright LEDs and a piezoelectric transducer. There is a choice of one of three types of modulated 120 dB sound signaling. The sounder's housing is made of polycarbonate, which ensures high mechanical strength and an aesthetic appearance of the device that remains unchanged despite the passage of years.
