Dahua IP Kit 6x IPC-HDW2649TM-S-IL-0280B, AI, Smart Dual Light, Color Full

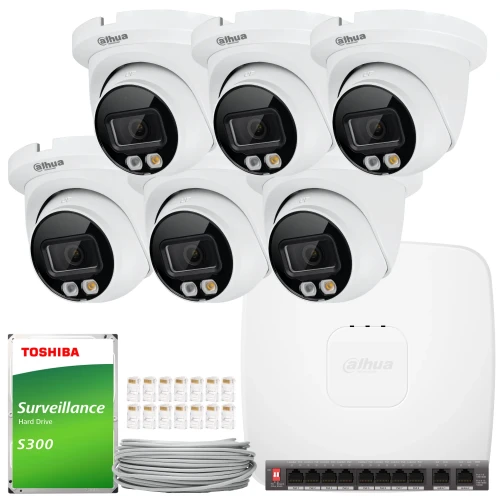

Kit contents:

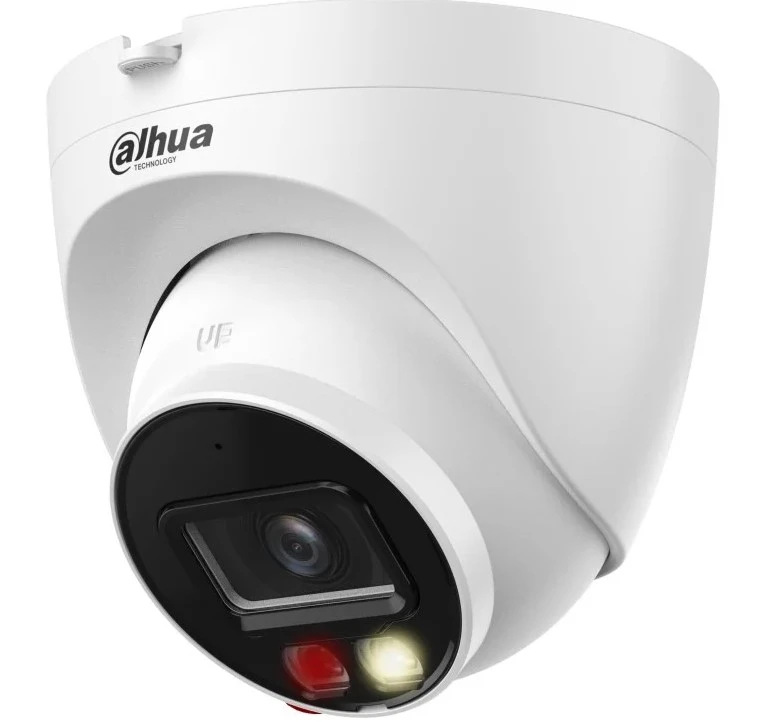

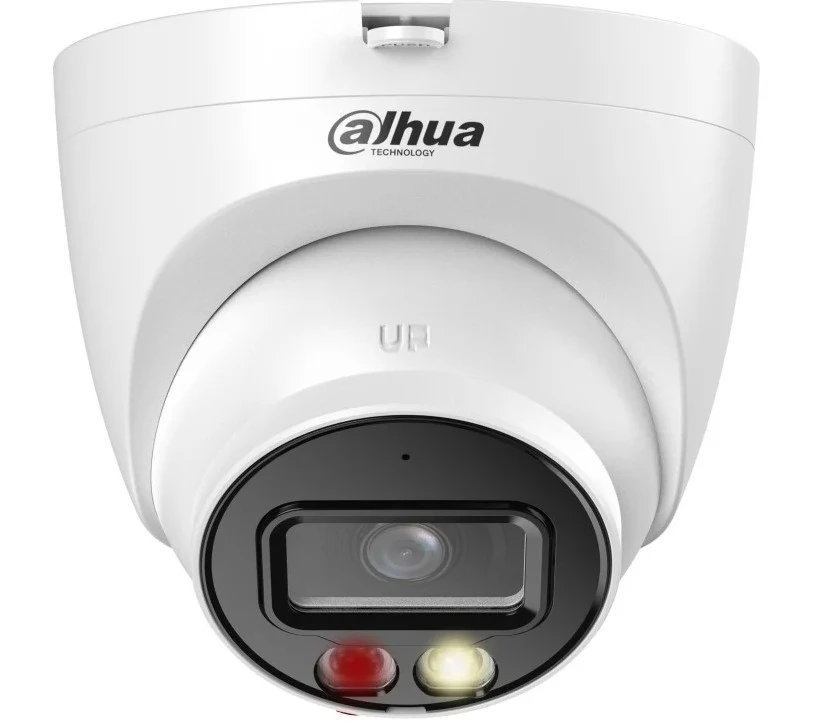

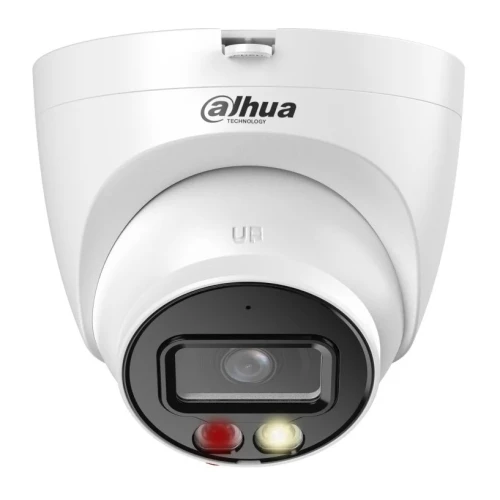

• 6x IPC-HDW2649TM-S-IL-0280B outdoor dome camera.
• 1x Dahua NVR2108-4KS3 DVR ( 1pc ).
• 1x Toshiba S300 1TB hard drive from Surveillance series, dedicated to CCTV solutions ( 1pc ).
• 1x PoE 8-port switch ( 1pc ).
• UTP cat.5e cable ( 30m )
• Sticker "Attention Object Monitored" ( 1pc ).
• Set of RJ45 plugs

Main features of the set:

• Complete monitor kit with 6 cameras, recorder and all necessary accessories.
• Video footage is recorded in high resolution 6 Mpx.
• Possibility of remote monitoring via web browser, PC application and mobile device application.
• P2P (cloud) support - a feature that allows remote access without port forwarding and public IP address
• Toshiba S300 1TB hard drive from Surveillance series, dedicated to CCTV solutions.
• Audio recording with a microphone built into the cameras.
• Built-in web server, operation via CMS or mobile client.
• A wide range of AI functions.
• High-powered Dual Lights that will accurately illuminate the space of your property.
• In addition to the image, the camera also captures the audio track.
• The camera is IP67-rated, which means it can work in the harshest conditions.

Main product features:

• Image sensor: 1/2.7" 6MP CMOS with high sensitivity, low light requirements
• Resolution: 3288×1850 (6 Mpx) at 20 fps
• Network interface: 1× RJ45 (10/100 Mbps, PoE 802.3af)
• Video compression: H.265+, H.265, H.264+, MJPEG
• Sensitivity: 0.007 lux (F1.6), 0 lux with IR or LED active
• Lens: fixed focal length 2.8mm
• Smart Dual Light illuminator
• Image features: AWB, AGC, BLC, HLC, 3D NR, WDR 120 dB, RoI
• Smart Dual Light - intelligent switching of illumination
• Full-Color - color image 24/7
• Audio: built-in microphone
• Protocol and support: ONVIF, CGI, RTSP, RTMP, P2P
• IVS - perimeter protection
• Object classification: human / vehicle
• SMD+ - advanced false alarm filtering
• Memory: support for microSD/SDHC/SDXC cards up to 256 GB
• Housing: metal, IP67 resistance
• Power supply: 12V DC or PoE 48V (802.3af)
• Warranty: 36 months

Main features of the DVR:

• Video inputs: 8 IP channels
• Video outputs: 1x VGA, 1x HDMI (4K UHD)
• Maximum recording resolution: 12 Mpx / 8 Mpx (with AI features)
• Maximum bitrate: 80 Mbps (input), 80 Mbps (recording), 60 Mbps (output)
• Compression formats: H.265+, H.265, H.264+, H.264, MJPEG
• Audio input/output: 1x RCA (input), 1x RCA (output)
• Network interface: Ethernet RJ45 10/100 Mbps
• Disk support: 1x SATA HDD (up to 20 TB)
• AI functions: object classification (human/vehicle) on 4 channels
• SMD+: classification with false alarm filtering
• Audio recording: from up to 8 IP cameras
• Arming and disarming: one click
• Supported protocols: ONVIF, CGI, SDK, P2P

Toshiba S300 Surveillance 1TB drive features

• The Toshiba S300 Surveillance 1TB drive is designed for surveillance, providing reliable storage space.
• It is available in a 3.5-inch format, making it easy to install in standard enclosures.
• It features a SATA 6 Gbps interface for fast data transfer.
• It operates at 5,700 RPM, which optimizes its performance in monitoring systems.
• The drive has a 64MB cache (buffer), which speeds up read and write operations.
• It was designed specifically for use in monitoring systems and supports simultaneous recording from up to 64 high-definition cameras.
• The drive is designed for continuous operation, which means reliable 24/7 operation.
• Dynamic Cache technology allows for optimal cache management in the data read and write cycle.

Smart Dual Light- customize the lighting of a scene to suit your needs. Smart Dual Light is an advanced lighting technology used in surveillance cameras that combines two types of LEDs: IR LEDs - infrared LEDs for nighttime surveillance in black and white mode, White LEDs - visible light emitting diodes for capturing full color video even in the dark.

Automatic day/night mode Adapted to work in all lighting conditions IPC-HDW2649TM-S-IL-0280B with visibility up to 30m even in total darkness. In addition, the Day/Night sensor switches the video mode automatically based on the amount of light reaching the lens.

Capture the widest possible area

The 2.8mm lens provides a wide field of view, ideal for monitoring large areas. The IPC-HDW2649TM-S-IL-0280B camera can capture a wide scene with minimal blind spots. This configuration is particularly useful in areas requiring wide surveillance, such as parking lots, warehouses or public spaces, where it is important to capture as much of the environment as possible without the need for multiple cameras.

High-quality image The light-sensitive sensor and high-quality sensor combined with advanced optics deliver high-quality images with excellent sharpness. The IPC-HDW2649TM-S-IL-0280B records at 6Mpx resolution, giving it a significant advantage over typical FullHD models. It guarantees that even the smallest detail will be captured on the footage. A: 1280x720p ( 1Mpx ) B: 1920x1080p ( 2Mpx ) C: 2048x1536p ( 3Mpx ) D: 2560x1440p ( 4Mpx ) E: 2560x1960p ( 5Mpx ) F: 3288x1850p ( 6Mpx )

IP67 weatherproof design This housing protects the IPC-HDW2649TM-S-IL-0280B camera from external factors such as dust, dirt and moisture, which is especially important in industrial or dusty environments. IP67-enclosed cameras can be installed in a variety of locations, from industrial to marine, without worrying about environmental damage.

Microphone - a more complete picture of the situation

The IPC-HDW2649TM-S-IL-0280B camera is equipped with a built-in microphone, which allows it to record ambient sound and transmit it simultaneously with the image. This allows not only visual monitoring, but also auditory monitoring, providing a more complete picture of the situation. This feature is particularly useful in places requiring detailed surveillance, such as building entrances, stores or offices, where sound can provide additional information about events and improve the effectiveness of surveillance.

Have continuous access to your cameras DMSS is a mobile application for viewing video and managing Dahua DVRs and cameras on smartphones and tablets. It allows you to remotely operate your devices, including: ✅ Live viewing of surveillance cameras ✅ PTZ control - pan, zoom and angle of view adjustment ✅ Two-way audio support ✅ Recording of recordings and taking screenshots (snapshot) ✅ Recordings management and archive playback The DMSS application provides convenient and intuitive access to monitoring from anywhere, enhancing the control and security of Dahua systems.

People and vehicle detection Motion detection with silhouette recognition of people and vehicles in IPC-HDW2649TM-S-IL-0280B cameras is an advanced feature that allows to increase the precision and efficiency of monitoring systems. It allows the camera to classify notifications according to the type of silhouette detected. At the same time providing more detailed information, but also completely filtering out irrelevant ones such as: Moving trees and bushes.

Wide Dynamic Range - That is, high quality in difficult conditions

• Improved image quality: With clear details in both dark and bright parts of the image, WDR 120 dB technology eliminates the problem of so-called "burn-in" and "underexposure."
• Increased monitoring efficiency: Facilitates recognition of faces, license plates and other important elements, which is crucial for security analysis.
• Reduced need for backlighting: Less need for additional lighting, which can lead to energy savings and cost reductions.

How does ROI work?

The ROI function allows you to define one or more areas in the field of view of the IPC-HDW2649TM-S-IL-0280B camera that are particularly important to monitor, such as entrances, cash registers, or high-traffic areas. In these designated regions, the camera can capture images at a higher resolution and bitrate, providing more detail. The rest of the frame, less important to the user, can be recorded at a lower resolution, saving bandwidth and disk space.

Hide what shouldn't be visible

Privacy masks are a feature that allows you to tailor the operation of the surveillance system to the specific spatial conditions and security needs of the area. Using privacy masks, you can freely designate areas in the frame that will not be covered by video surveillance, providing greater privacy protection.

Audiovisual recording on a memory card

Efficient storage

H.265+ encoding, also known as High Efficiency Video Coding (HEVC+), is an advanced video compression technology used in modern surveillance systems. It is an extension of the H.265/HEVC standard, providing even higher compression efficiency than its predecessors. The main features of H.265+ coding in surveillance DVRs are:

• Higher Compression Efficiency: H.265+ makes it possible to significantly reduce the size of video files while maintaining the same image quality. This saves disk space and increases the storage time of recordings.
• Energy Savings: More efficient compression reduces the CPU load, resulting in lower power consumption of surveillance equipment.

Technical specifications of the camera:
