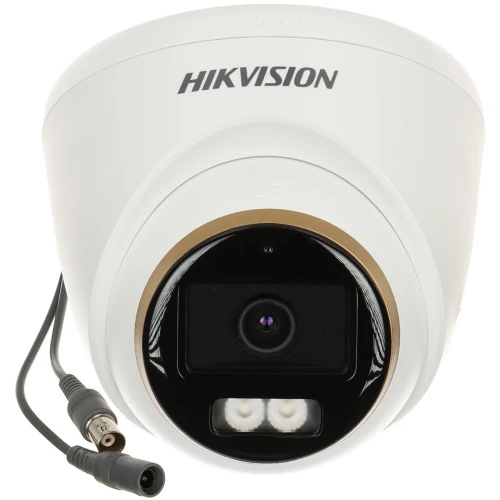

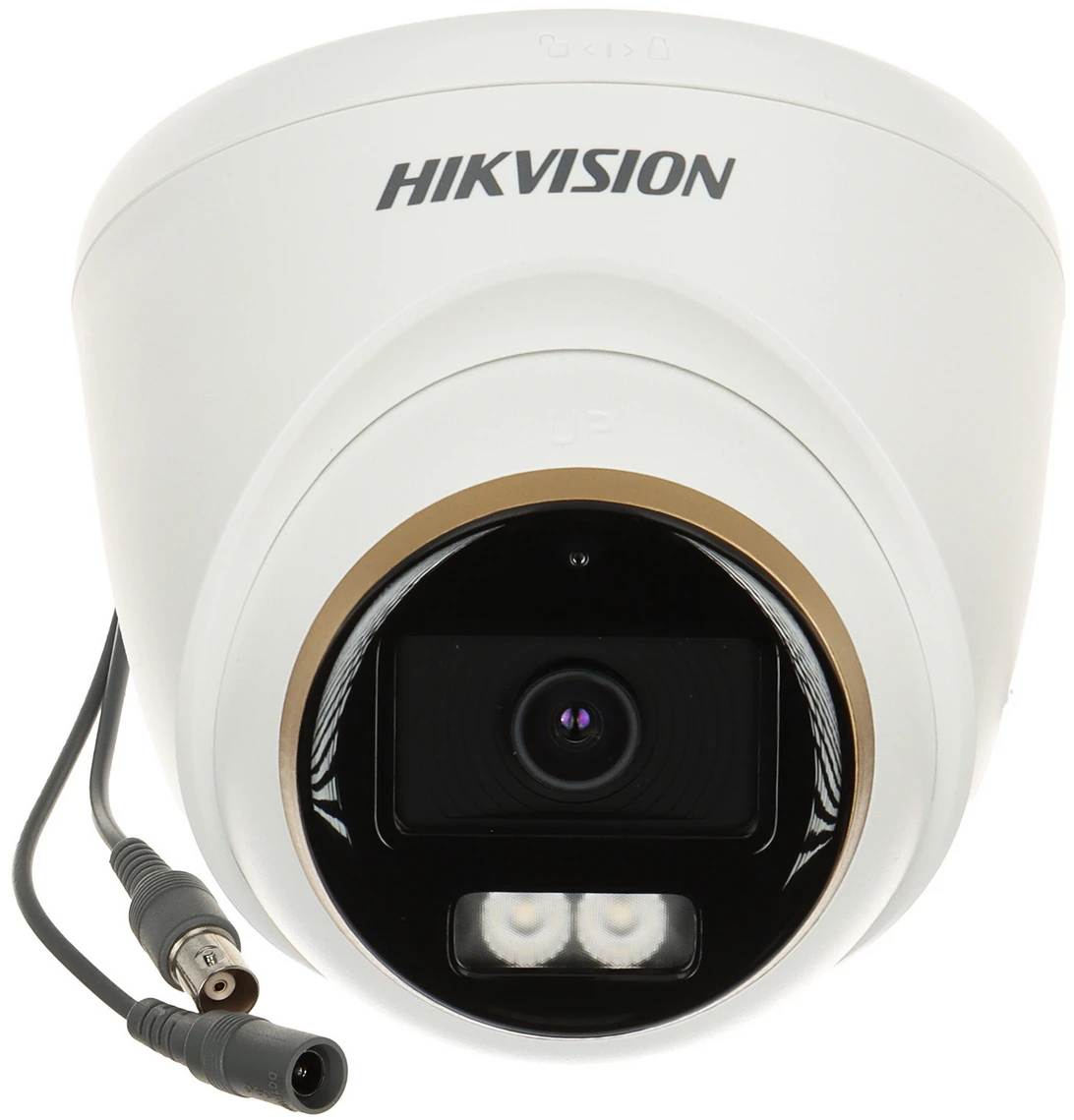

Hikvision IP Camera DS-2CE72KF3T-LE (2.8mm) Smart Hybrid Light ColorVu 3K

The DS-2CE72KF3T-LE(2.8mm)camera also comes with useful instructions and mounting accessories to speed up the entire camera installation process.

Kit contents:

• 1x 5 Mpx dome camera - DS-2CE72KF3T-LE(2.8mm)
• Template - Small size template with mounting holes for the camera
• Screws and mounting studs - Everything you need to mount the camera
• Sealing kit - A set of accessories to protect the camera's connectors from moisture

Hikvision products are devices that focus on ease of use, literally anyone can handle their installation and configuration thanks to the included instructions.

Main product features:

• Video transmission standard: TVI
• Sensor: 3K CMOS
• Lens: 2.8mm @ F1.0
• Smart Hybrid Light function: automatic switching between IR and white light
• ColorVu technology: 24h color image
• Image functions: AWB, AGC, BLC, HLC, HLS, 2D/3D DNR, WDR 130 dB
• Systems: motion detection, privacy zones
• Housing: dome (ball) - metal, handle and ring - plastic
• OSD menu: available from the DVR thanks to CoC support
• Power supply: 12V DC or PoC.at (Power over Coaxial)
• Lighting modes: IR only / LED only / Smart (IR + LED)
• Protection class: IP67
• Warranty: 36 months
• 2x smart IR LEDs (range up to 40m)
• 2x smart white light LEDs (range up to 40 m)
• Sensitivity: 0.0005 lux @ F1.0 (AGC ON), 0 lux (IR/LED ON)
• Lens: 2.8 mm @

Smart Hybrid Light - customize the illumination of the scene. Smart Hybrid Illuminator is a lighting mode on the DS-2CE72KF3T-LE(2.8mm) camera that activates white light only when a person or vehicle is detected in the detection zone. When the subject leaves the monitored area, the LED illuminator automatically switches to infrared (IR) after one minute. The user can also select other illumination modes: LED (white light only for color images at night), IR (infrared only), or turn off the illuminator completely. The illuminator mode can be easily configured in the camera's menu, which can be accessed via a web browser.

Automatic day/night mode Adapted to work in all lighting conditions DS-2CE72KF3T-LE(2.8mm)with visibility up to 40m even in total darkness. In addition, the Day/Night sensor switches the video mode automatically based on the amount of light reaching the lens.

Active deterrence

With built-in audible alarms, light signals and smart features, the camera reacts immediately when suspicious activity is detected. When an intruder enters the device's field of view, he or she is alerted by a loud alarm signal or flashing light, effectively deterring him or her from further action.

Capture the largest possible area

The 2.8mm lens provides a wide field of view, ideal for monitoring large areas. The DS-2CE72KF3T-LE(2.8mm) camera can capture a wide scene with minimal blind spots. This configuration is particularly useful in areas requiring wide surveillance, such as parking lots, warehouses or public spaces, where it is important to capture as much of the environment as possible without the need for multiple cameras.



High-quality image The light-sensitive sensor and high-quality sensor combined with advanced optics deliver high-quality images with excellent sharpness. The DS-2CE72KF3T-LE(2.8mm) records at 5Mpx resolution, giving it a significant advantage over typical FullHD models. It guarantees that even the smallest detail will be captured on the footage. A: 1280x720p ( 1Mpx ) B: 1920x1080p ( 2Mpx ) C: 2048x1536p ( 3Mpx ) D: 2560x1440p ( 4Mpx ) E: 2560x1960p ( 5Mpx ) F: 3200×1800p ( 6Mpx )





Have continuous access to your cameras The Hik-Connect mobile app was created to allow end users to conveniently manage security devices, such as cameras and DVRs, using smartphones or tablets. Its main advantage is the ability to remotely access live view, recordings and many additional features. The process of adding devices is simple and intuitive - it can be done through a web browser or by scanning QR codes. In addition to the Hik-Connect app, you can also use other apps, listed at the bottom: Hik-ProConnect is a comprehensive cloud-based solution designed for Hikvision installers and system integrators. This tool allows you to effectively manage the services you provide to your customers and grow your business in a subscription model. (paid application) The iVMS-4200 software is designed for easy and comprehensive configuration and management of Hikvision devices such as switches, DVRs and NVRs, IP cameras, alarm systems, access control and storage devices. (Free application) The SADP (Search Active Devices Protocol) application provides a user-friendly and installation-free software tool for online device search. It searches for active online devices in your subnet and displays information about those devices. (Free application) HikCentral Professional is security systems integration software designed to manage a variety of security challenges on a single, intuitive platform. It enables both the management of individual systems, such as video surveillance, access control, and alarm systems, and the linking of multiple systems within an integrated architecture. (paid application)

People and vehicle detection Motion detection with silhouette recognition of people and vehicles in DS-2CE72KF3T-LE(2.8mm) cameras is an advanced feature that allows to increase the precision and efficiency of surveillance systems. It allows the camera to classify notifications according to the type of silhouette detected. At the same time providing more detailed information, but also completely filtering out irrelevant ones such as: Moving trees and bushes.

Wide Dynamic Range - That is, high quality in difficult conditions

WDR (Wide Dynamic Range) 120 dB is an advanced technology used in video surveillance cameras such as the DS-2CE72KF3T-LE(2.8mm) to capture clear images in high contrast lighting conditions, where both bright and dark areas can occur simultaneously in the same scene. WDR 120 dB is a technology that combines two or more frames with different exposures into a single image. In practice, the camera captures two images - one with a short exposure time, which captures details in bright areas, and another with a longer exposure time, which captures details in dark areas. The camera's software then combines these images to produce a single, well-balanced frame in which all details are visible.

Benefits of 120dB WDR

• Better image quality: With crisp detail in both dark and bright parts of the image, WDR 120 dB technology eliminates the problem of so-called "burn-in" and "underexposure."
• Increased monitoring efficiency: Facilitates recognition of faces, license plates and other important elements, which is crucial for security analysis.
• Reduced need for backlighting: Less need for additional lighting, which can lead to energy savings and cost reductions.
