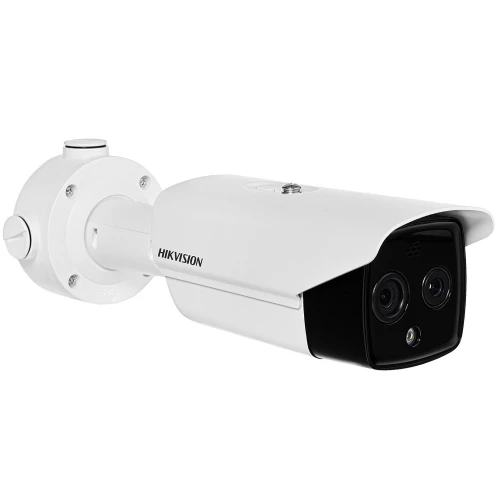

Hikvision IP Camera DS-2TD2628-3/QA AcuSense, Live Guard, AI Features
Photo gallery
-
Manufacturer
-
Product Code
DS-2TD2628-3/QA
-
Warranty
36 miesięcy
- Technology: IP
- Resolution: 4Mpx
- Enclosure: Tube
- Night visibility: up to 30m
- Connectivity: Wired
- Audio: Yes
- Color: White
Ask about this product show form
Related products
Product Description
The DS-2TD2628-3/QAcamera also comes with useful instructions and mounting accessories to speed up the entire camera installation process.
Kit contents:
- 1x 4 Mpx dome camera - DS-2TD2628-3/QA
- Template - A small-sized template with mounting holes for the camera
- Screws and mounting studs - Everything you need to mount the camera
- Sealing kit - A set of accessories to protect the camera connectors from moisture
Hikvision products are devices that focus on ease of use, literally anyone can handle their installation and configuration with the included instructions.
Main product features:
Video module (optical):
Sensor: 1/2.7" 4MP Progressive Scan CMOS
Resolution: 2688×1520 @ 25/30 fps
Sensitivity: 0.0089 lux @ F1.6, 0 lux (IR ON)
Selectable lenses: 4.3mm / 6.4mm / 8mm
Image features: AWB, ATW, AGC, BLC, HLC, 3D DNR, WDR 120 dB, RoI, PiP
Thermal imaging module:
Sensor: uncooled Vox FPA
Resolution: 256×192, 12μm pixels
Sensitivity: <40mK @ F1.0 (25°C)
Selectable lenses: 3.6mm / 6.9mm / 9.7mm
Image features: AGC, 3D DNR, DDE, Fusion mode
IR LED with up to 30m range
Video compression: H.265 / H.264 / MJPEG
Support for microSD cards up to 256 GB (microSD / SDHC / SDXC)
Temperature measurement range: -20°C ~ +150°C (accuracy ±8°C)
AcuSense: object classification with false alarm filtering
Live Guard: active deterrence - flashing LED (white light) + audio signal (message or alarm)
Ability to upload your own audio file (command / alarm)
AI functions:
Perimeter protection
Fire detection with alarm
Temperature exception detection
Object classification: human / vehicle
Automatic day/night modeAdapted to work in all lighting conditions DS-2TD2628-3/QA(O-STD) with visibility up to 30m even in total darkness. In addition, the Day/Night sensor switches the video mode automatically based on the amount of light reaching the lens. |  |
Active deterrence
With built-in audible alarms, light signals and smart features, the camera reacts immediately when suspicious activity is detected. When an intruder enters the device's field of view, he or she is alerted by a loud alarm signal or flashing light, effectively deterring him or her from further action.
Capture the largest possible area
The lens provides a wide field of view, ideal for monitoring large areas. The DS-2TD2628-3/QA(O-STD) camera can capture a wide scene with minimal blind spots. This configuration is particularly useful in areas requiring wide surveillance, such as parking lots, warehouses or public spaces, where it is important to capture as much of the environment as possible without the need for multiple cameras.
High-quality imageThe light-sensitive sensor and high-quality sensor combined with advanced optics deliver high-quality images with excellent sharpness. The DS-2TD2628-3/QA(O-STD) records at 12Mpx resolution, giving it a significant advantage over typical FullHD models. It guarantees that even the smallest detail will be captured on the footage. |  |
LiveGuardLiveGuard is an advanced active deterrent system used in modern HIKVISION brand cameras. Its task is to immediately react to the presence of unwanted people - intruders, burglars or vandals - by emitting sound and/or light signals even before or at the moment of entering the surveillance zone. The camera can trigger flashing LED lights and voice messages or audible alarms played through a built-in speaker. This function acts as an optical and acoustic threat alert, effectively discouraging further action. In addition, the system provides instant notifications to a smartphone and enables two-way audio communication, allowing direct intervention from within the app. | |
| AcuSense AcuSense is an intelligent image analysis technology used in Hikvision cameras that allows recognition of people and vehicles and effectively eliminates false alarms caused, for example, by leaf or animal movement. As a result, the system responds only to real threats, providing precise notifications and better protection of the monitored area. In addition, the feature allows to quickly search through recordings by automatically flagging events involving people or vehicles. | |
IP67 weatherproof designThis housing protects the DS-2TD2628-3/QA(O-STD) camera from external elements such as dust, dirt and moisture, which is especially important in industrial environments or dusty locations. Cameras with IP67 housings can be installed in a variety of locations, from industrial to marine, without worrying about environmental damage.
|  |
Have continuous access to your camerasThe Hik-Connect mobile app was created to allow end users to conveniently manage security devices, such as cameras and DVRs, using smartphones or tablets. Its main advantage is the ability to remotely access live view, recordings and many additional features. The process of adding devices is simple and intuitive - it can be done through a web browser or by scanning QR codes. In addition to the Hik-Connect app, you can also use other apps, listed at the bottom:
|  |
People and vehicle detectionMotion detection with silhouette recognition of people and vehicles in DS-2TD2628-3/QA(O-STD) cameras is an advanced feature that allows to increase the precision and efficiency of monitoring systems. It allows the camera to classify notifications according to the type of silhouette detected. At the same time providing more detailed information, but also completely filtering out irrelevant ones such as: Moving trees and bushes. |  |
Wide Dynamic Range - That is, high quality in difficult conditions
WDR (Wide Dynamic Range) 120 dB is an advanced technology used in video surveillance cameras such as the DS-2TD2628-3/QA(O-STD) to capture clear images in high contrast lighting conditions, where both bright and dark areas can occur simultaneously in the same scene. WDR 120 dB is a technology that combines two or more frames with different exposures into a single image. In practice, the camera captures two images - one with a short exposure time, which captures details in bright areas, and another with a longer exposure time, which captures details in dark areas. The camera's software then combines these images to produce a single, well-balanced frame in which all details are visible.
Benefits of 120dB WDR
- Better image quality: With crisp detail in both dark and bright parts of the image, WDR 120 dB technology eliminates the problem of so-called "burn-in" and "underexposure."
- Increased monitoring efficiency: Facilitates recognition of faces, license plates and other important elements, which is crucial for security analysis.
- Reduced need for backlighting: Less need for additional lighting, which can lead to energy savings and cost reductions.
Reduce unnecessary noise
3D DNR (3D Digital Noise Reduction) is an advanced noise reduction technology used in video surveillance cameras such as the DS-2TD2628-3/QA(O-STD), which improves image quality in difficult lighting conditions, especially at night or in low light. By eliminating noise, the technology produces clearer and more detailed images, which is crucial in situations that require accurate video analysis. 3D DNR works by analyzing consecutive video frames and comparing pixels between them to detect and remove noise from the image. Unlike traditional two-dimensional noise reduction (2D DNR), which only analyzes noise within a single frame, 3D DNR takes into account both information from a single frame and differences between adjacent frames. This additional temporal analysis allows for more effective noise recognition and removal, while preserving image detail.
- Enhanced image clarity: 3D DNR technology significantly improves image quality in low-light conditions, reducing grain and blur that often appears in video recordings. The result is a clearer and more readable image.
- Better compression and smaller file size: Noise in video can lead to larger file sizes through compression, as more data must be saved. 3D DNR, by reducing noise, allows for better compression and smaller file sizes, which is beneficial for long-term storage.
- Improved visibility of details: By reducing noise at night or in low-light conditions, 3D DNR helps identify fine details such as faces, license plates and other key elements, which is invaluable for evidence analysis.
- Minimizing ghosting: Unlike simpler noise reduction methods, 3D DNR minimizes the appearance of artifacts in the image, such as "ghosting" (the ghosting effect of objects moving in the frame). By analyzing multiple frames at once, the technology does a better job of eliminating these unwanted effects.
How does ROI work?
The ROI function allows you to define one or more areas in the field of view of the DS-2TD2628-3/QA(O-STD) camera that are particularly important to monitor, such as entrances, cash registers, or high-traffic areas. In these designated regions, the camera can capture images at a higher resolution and bitrate, providing more detail. The rest of the frame, less important to the user, can be recorded at a lower resolution, saving bandwidth and disk space.
| Thermal imaging module | |
|---|---|
| Transducer | Uncooled Vanadium Oxide |
| Resolution | 256 × 192 pixels |
| Pixel size | 12 μm |
| Aperature | F1.0 |
| Digital zoom | 2x, 4x |
| Spectral range | 8 μm ~ 14 μm |
| Thermal sensitivity | <40 mK (25°C, F1.0) |
| Vision module (main) | |
| Sensor | 1/2.7" Progressive Scan CMOS |
| Resolution | 2688 × 1520 pixels |
| Sensitivity | Color: 0.0089 Lux @ (F1.6, AGC ON), 0 Lux (LED ON) |
| Illuminator | IR LED, range up to 30 m |
| Shutter | 1 s ~ 1/100,000 s |
| Lens focal length | 4.3 mm / 6.4 mm / 8 mm |
| Field of view | 84° × 43,1° / 53° × 28° / 39,4° × 22,1° |
| Aperature | F1.6 |
| WDR | 120 dB |
| Video | |
| Main stream | Thermal: 25 fps @ 1280×720 / 704×576 / 640×512 / 320×240 Video: 25/30 fps @ 2688×1520 / 1920×1080 / 1280×720 |
| Auxiliary stream | Thermal: 25 fps @ 704×576 / 640×512 / 320×240 Video: 25/30 fps @ 704×576 / 352×288 / 352×240 |
| Compression | H.265 / H.264 (primary), MJPEG (secondary) |
| Audio | |
| Codecs | G.722.1, G.711ulaw/alaw, MP2L2, G.726, PCM |
| Sampling | 8 / 16 / 32 / 44.1 / 48 kHz |
| Noise filtering | Yes |
| Built-in speaker | Yes |
| Networking | |
| Archiving | NAS (NFS, SMB/CIFS), ANR |
| Protocols | IPv4/IPv6, HTTP, HTTPS, FTP, SMTP, UPnP, SNMP, DNS, DDNS, NTP, RTSP, etc. |
| Users | Up to 32 users, 3 access levels |
| Live display | Up to 20 users simultaneously |
| Security | Passwords, MAC, HTTPS, IEEE 802.1x, access control |
| APIS | ONVIF (S, G), ISAPI, SDK |
| Remote support | iVMS-4200, Hik-Connect, Hik-Central |
| Web browsers | IE 11 (plug-in), Chrome/Firefox (no plug-in) |
| Smart features | |
| VCA | 8 rules (line crossing, intrusion, input/output) |
| Temperature measurement | 3 types, up to 21 rules (10 points, 10 areas, 1 line) |
| Temperature range | -20°C ~ +150°C |
| Accuracy | ±8°C |
| Active deterrence | |
| Warning light | 1x LED white, flashing, adjustable |
| Audible | 2 predefined alerts 6 of your own to import |
| Notifications | Push, quick arming/disarming |
| Interface | |
| Networking | 1x RJ-45 10/100 Mbps |
| Audio | 1x input, 1x output (3.5 mm jack) |
| Alarm | 2x input, 2x output |
| RS-485 | 1x (half duplex) |
| Memory | microSD/SDHC/SDXC up to 256 GB |
| Power supply | 1x terminal, DC / AC / PoE |
| Reset | 1x button |
| Other | |
| Languages | 32 (see datasheet for details) |
| Protection class | IP67 |
| Mechanical resistance | IK10 |
| Power supply | 12 V DC (±25%) 24 V AC (±25%) PoE 802.3af (class 3) |
| Power consumption | DC: max 8.5 W AC: max 8.5 W PoE: max 8.5 W |
| Humidity | <95% (non-condensing) |
| Operating temperature | -40°C ~ +65°C |
| Material | Metal body |
| Weight | 1.55 kg |
| Dimensions | Without can: 321.3×106.1×107 mm With box: 358.3×113.5×115.2 mm |
| Warranty | 36 months |
