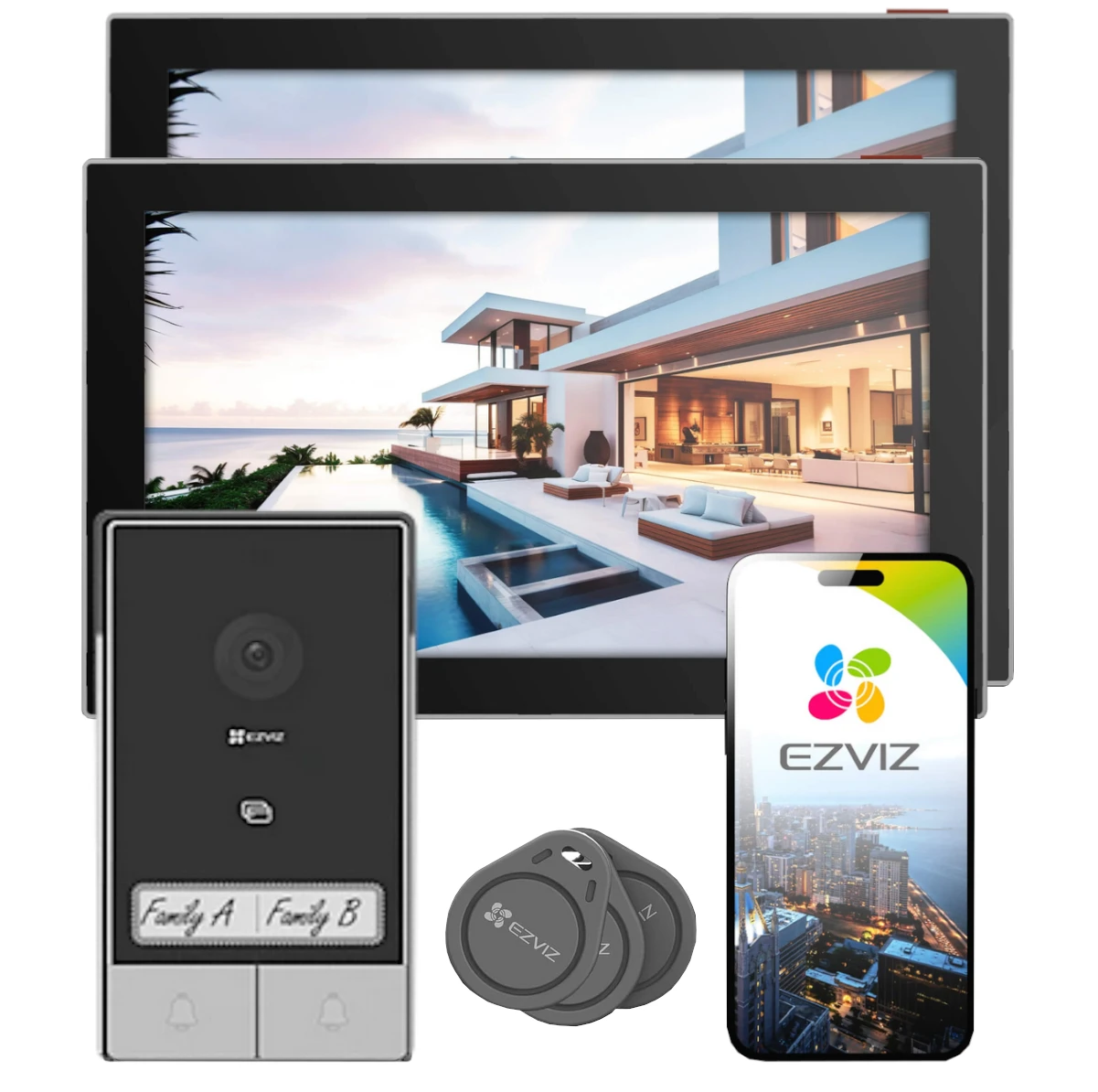

EZVIZ HP7 Video Intercom for Two Families, 2-Wire, WiFi, 2 Monitors, Reader
Photo gallery
-
Manufacturer
-
Product Code
CS-HP7 (3MP,2-Family Kit)
-
Warranty
24 miesiące
Ask about this product show form
Files attached to the product show files
Related products
Product Description
Key features:
- 2K Resolution
- Color 2x 7" Touch Screen
- Remote Door/Gate Opening
- Intelligent Human Silhouette Detection
- Two-way conversation (voice change option)

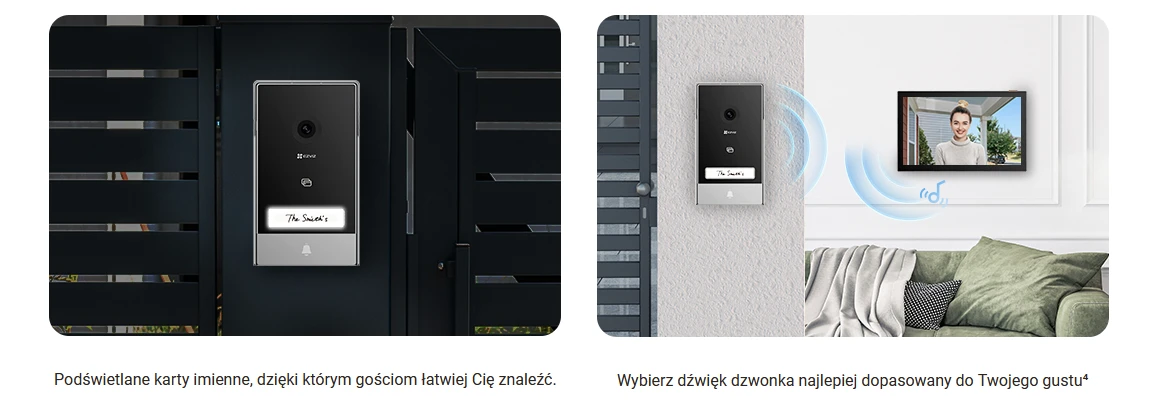

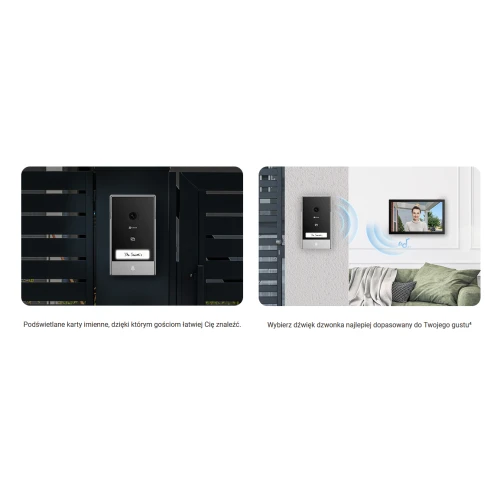

- Built-in doorbell with selectable melody
- Intelligent Opening with RFID proximity reader (3 key fobs included)
- Waterproof housing
- Supports two Wi-Fi 6 bands (2.4 and 5 GHz)
- MicroSD card support (up to 512 GB)
- EZVIZ CloudPlay cloud recording
It's time to upgrade your old intercom with Internet connectivity, remote access and app-based control. EZVIZ's first-ever HP7 video intercom provides homeowners with complete convenience, allowing them to view, talk to and control the entrance for guests, even when they're not at home. It also enhances home security, as the 2-in-1 camera and intercom combination allows not only 2K video recording, but also human silhouette detection with real-time notifications.
Dual utility, shared peace of mind

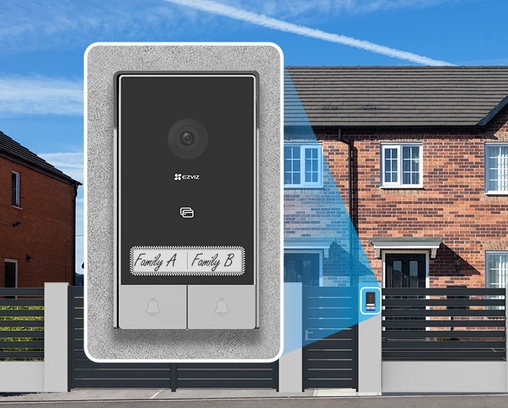

The HP7 two-family set is a convenient solution for two families using one entrance. A visitor can choose which house he or she wants to call by selecting one of two buttons on the external intercom, which also acts as a camera that records video and detects human motion - so residents receive notifications to their phone even before the visitor presses the bell.
The HP7 two-family set is a convenient solution for two families using one entrance. A visitor can choose which house he or she wants to call by selecting one of two buttons on the external intercom, which also acts as a camera that records video and detects human motion - so residents receive notifications to their phone even before the visitor presses the bell.
Separate control monitors for freedom of operation

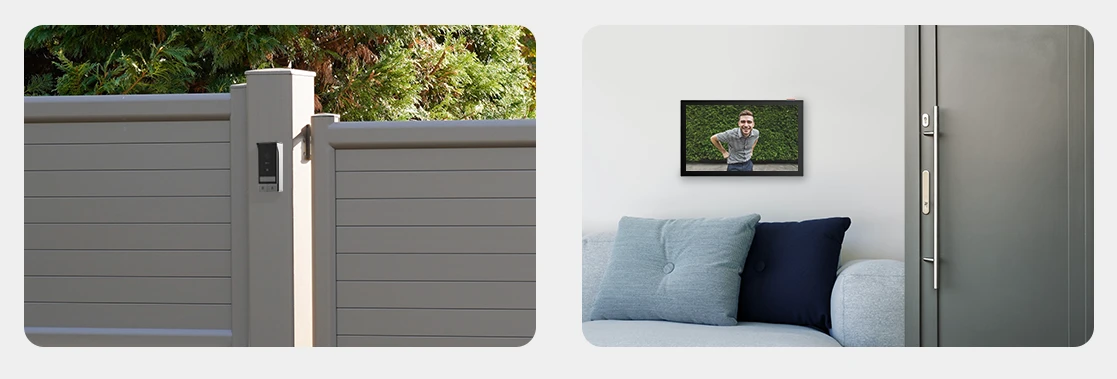

Despite the shared entrance to the homes, each family freely controls the intercom through its own interior touch screen. Both families can watch guests before they enter, manage access and settings, and play back recordings independently of each other.
Despite the shared entrance to the homes, each family freely controls the intercom through its own interior touch screen. Both families can watch guests before they enter, manage access and settings, and play back recordings independently of each other.
Reliable performance for homes and villas
The HP7 two-family kit is designed for families sharing the entrance to their homes, wanting to maintain privacy and the convenience of operating the entrance. The kit supports 2-wire installation, making installation relatively simple.
The HP7 two-family kit is designed for families sharing the entrance to their homes, wanting to maintain privacy and the convenience of operating the entrance. The kit supports 2-wire installation, making installation relatively simple.
Receive a guest wherever you are
Visibility no matter what time it is
The HP7 generates a wide, crystal-clear 2K image. After dark, the device switches to black and white IR recording mode. HP7 is your private gatekeeper plinating entrances around the clock.
The HP7 generates a wide, crystal-clear 2K image. After dark, the device switches to black and white IR recording mode. HP7 is your private gatekeeper plinating entrances around the clock.
Improved visitor detection for both families
Thoughtful solutions for added convenience
Good first impression
The HP7 two-family set has a sophisticated, minimalist design, in solid, glossy black. The HP7 stands out visually against traditional intercoms, satisfying modern tastes in stylish homes. In addition, the internal screen features a maximized touch area, greatly enhancing user convenience.
The HP7 two-family set has a sophisticated, minimalist design, in solid, glossy black. The HP7 stands out visually against traditional intercoms, satisfying modern tastes in stylish homes. In addition, the internal screen features a maximized touch area, greatly enhancing user convenience.
Stable connection for greater efficiency
To guarantee an optimal connection between devices, the indoor monitor can be connected to a 2.4 or 5 GHz Wi-Fi band. Enjoy strong Wi-Fi with lower latency, higher bandwidth and a stable signal.
Greater convenience with smaller video files
Compared to the commonly used H.264 video compression technology, H.265 technology provides a clearer experience when watching recorded video. You no longer have to worry about large files taking up too much disk space - H.265 technology reduces the size of the recording by up to 50%
Compared to the commonly used H.264 video compression technology, H.265 technology provides a clearer experience when watching recorded video. You no longer have to worry about large files taking up too much disk space - H.265 technology reduces the size of the recording by up to 50%
High-capacity, secure storage options you can trust
You can store your recorded videos on a local microSD card of up to 512GB, or subscribe to EZVIZ's CloudPlay service for fully encrypted cloud storage.
You can store your recorded videos on a local microSD card of up to 512GB, or subscribe to EZVIZ's CloudPlay service for fully encrypted cloud storage.
We go to great lengths to protect your data and privacy
We have designed our product to respectfully protect your data and privacy. You have the option to set a no-filming zone to make sure you only record when it's appropriate and allowed.
We have designed our product to respectfully protect your data and privacy. You have the option to set a no-filming zone to make sure you only record when it's appropriate and allowed.
Technical specifications:
| Technical specifications | |
|---|---|
| Model | CS-HP7-R100-1W2TFC |
| External panel | |
| Image sensor | 1/2.7" CMOS progressive scan (Low light sensitivity) |
| Lens | 2.0 mm @ F2.2, viewing angle: 162° (diagonal) |
| Day/night mode | Infrared filter with automatic switching, 850 nm infrared light × 2 (max. 6 m) |
| Max resolution | 2K (2048 × 1296) |
| DNR | 2D/3D DNR |
| Video compression | H.265 / H.264 |
| Frame rate | Max. 15 frames per second; auto-adaptation during network transmission |
| External panel interface | |
| Audio input | Built-in high-sensitivity microphone |
| Audio output | Built-in high-power speaker |
| Bell button | 2 ringer buttons assigned to corresponding families |
| Name card | 3 name cards included (one card is pre-installed on the unit) |
| Terminal | Two ports for the screen, two for the gateway, two for the hook-up board |
| Features | |
| Intelligent alarm | Intelligent detection of human movement |
| Tamper alarm | Supported |
| Video intercom | Two-way remote video communication |
| Communications | |
| Connection method | Wired connection (2-wire, 4-wire option), digital signal transmission |

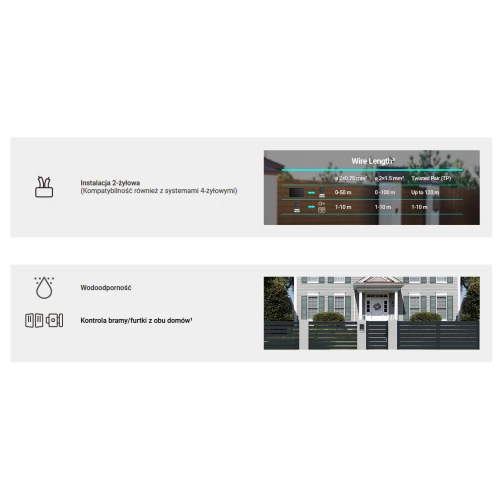

| Transmission distance | Φ 2x0.75 mm²: max. 50 m; Φ 2x1.5 mm²: max. 100 m; Twisted pair: max. 120 m |
| Gate opening | Supports 2 ports; distance 1-10 m; 12V/2A "dry" output |
| Gate opening | Supports 2 ports; distance 1-10 m; up to 12V/1.1A |
| Opening methods | RFID, application, internal monitor, QR code |
| General data (outdoor panel) | |
| Operating conditions | From -30°C to 60°C, humidity up to 95% (non-condensing) |
| IP rating | Waterproof with cover |
| Power supply | 24V DC from the screen |
| Indoor monitors | |
| Display size | 7-inch touch screen |
| Resolution | 1024 × 600 px |
| Audio input/output | Built-in microphone and speaker |
| Buttons | Screen on/off |
| Terminal | Two ports for external panel |
| MicroSD card | Supports up to 512 GB |
| Network parameters | |
| Protocol | Proprietary EZVIZ Cloud |
| Wi-Fi parameters | |
| Wi-Fi standard | IEEE802.11b/g/n/ac |
| Frequency range | 2.4 GHz ~ 2.4835 GHz; 5.15 GHz ~ 5.25 GHz |
| Bandwidth | 20 MHz support |
| Security | 64/128-bit WEP, WPA/WPA2, WPA-PSK/WPA2-PSK |
| Transmission speed | 11b: 11 Mbps; 11g: 54 Mbps; 11n: 150 Mbps; 11ac: 433.3 Mbps |
| Monitor functions | |
| Ringtone | 20 options |
| Features | Viewing, playback, two-way conversation, video call |
| General data (indoor monitor) | |
| Operating conditions | From -10°C to 45°C, humidity up to 95% (non-condensing) |
| Power supply | 24V DC / 1A, adapter (100-240V AC) |
| Power consumption | 8 W, max 24 W |
| General data | |
| Weight | Net weight: 1010 g |
| Size | Screens: 180×111×15 mm; Panel: 161×87×22 mm |
| Package contents | |
| Monitor ×2, bracket ×2, power supply ×2, template ×2, panel with cover, template, screwdriver, badges ×6, screws ×3, name card ×2, cables ×2, power cable ×2, legal information ×2, quick start guide ×2 | |
| Certifications | CE/REACH/WEEE/RoHS |
