Monitoring kit 8x BCS-L-EIP16FCR3L3-Ai1, 6MP, IR 30m, NightColor, WDR 120dB

Manufacturer
BCS
Product Code

ZM35451
Warranty

24 miesiące

Technology: IP
Resolution: 6Mpx
Enclosure: Dome
Number of cameras: 4
Memory card slot: Yes
Color: White

see description

Ask about this product show form

Save -15%

Availability: in stock Shipping 24h

Price (Incl. VAT):

1 125,45 € 1 321,57 €

Add to Watchlist

Do you represent a budgetary unit?
Check out the deferred payment option.

Product Description

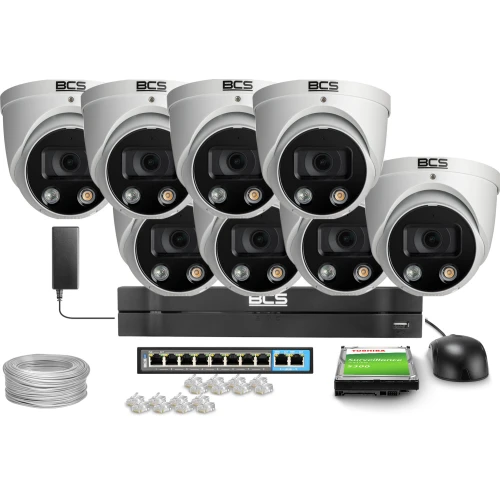

Set of 8 Wi-Fi cameras with DVR

Kit contents:

8x BCS-L-EIP16FCR3L3-Ai1
1x BCS-L-NVR0801-4KE(2L) DVR
1x Toshiba S300 1TB hard drive from Surveillance series, dedicated to CCTV solutions
1x Switch BCS-B-SP0802
A set of necessary accessories, needed to run the system
Sticker "ATTENTION MONITORED OBJECT".

The products are devices that focus on ease of use, literally anyone can cope with their installation and configuration thanks to the instructions included in the kit.

Advantages of the set:

Wi-Fi dome type cameras with 1/2.7" CMOS sensor and 6 Mpx resolution
2.8mm lens with wide angle of view - as wide as 132° (D)
NightColor mode - color images even at night thanks to white LED lighting
Built-in microphone and two-way audio support
Advanced H.265+ compression - smaller recording size while maintaining quality
Support for motion detection (SMD Plus) and smart detection zones
Power supply via PoE or 12V DC, metal housing with waterproof rating IP67
DVR for 8 cameras, support for viewing via mobile apps and browser
1TB Toshiba drive included - ready to operate immediately after installation
Compatibility with ONVIF, HTTPS, RTSP, encryption and security certifications
Easy installation and setup - ideal for home and business users

Camera BCS-L-EIP16FCR3L3-Ai1:

Camera type: Dome (dome), BCS LINE product line
Resolution: 6 Mpx (3288×1850), 1/2.7'' CMOS sensor, progressive scanning
Lens: Fixed 2.8 mm, F1.6, viewing angle: H: 112°, V: 61°, D: 132°
Night illumination: IR LED and white light (WhiteLight), range up to 30m, NightColor mode
Sensitivity: 0.007 Lux (color), 0.0007 Lux (B/W), 0 Lux (IR)
Audio: Built-in microphone, G.711A / G.711Mu / G.726 / PCM compression
Video: H.265 / H.264 / MJPEG, bitrate up to 8192 Kbps, two streams
Image features: WDR 120 dB, 3D DNR, BLC/HLC, AGC, white balance (auto/manual), mirror/flip (corridor mode)
Day/night mode: Mechanical ICR filter
Memory: MicroSD slot up to 256 GB, NAS/FTP/SFTP support
Compatibility: ONVIF (S/G/T), extensive network protocol support
Security: Transmission encryption, IP/MAC filtering, support for X.509, HTTPS, 802.1x
Power supply: 12V DC or PoE (802.3af), power consumption max. 5.7 W
Housing: Metal, white, IP67 rating, dimensions Ø106×94 mm, weight 0.39 kg.
Operating conditions: -40°C to +55°C, humidity up to 95%
Software: Web Service, CMS BCS Manager (Windows/Linux/macOS), mobile application (iOS/Android)
Extras: 4 motion detection zones, 4 privacy masks, 16× digital zoom, RAM 256 MB, ROM 128 MB
Perimeter protection (intrusion, line crossing)
Person/vehicle recognition (false alarm reduction)
SMD Plus - intelligent motion detection

8 channel DVR BCS-L-NVR0801-4KE(2L)

8 IP channels, up to 12 Mpx recording, 4K HDMI output
Support for 1 HDD up to 20 TB
AI: SMD Plus, perimeter protection, face detection, people counting
Codecs H.265+/H.265/H.264+, audio G.711A/U, G.726, PCM
Remote access: mobile app, CMS, browser, ONVIF

Reduce unnecessary noise

3D DNR (3D Digital Noise Reduction) is an advanced noise reduction technology used in video surveillance cameras such as the BCS-L-EIP16FCR3L3-Ai1, which improves image quality in difficult lighting conditions, especially at night or in low light. By eliminating noise, the technology produces clearer and more detailed images, which is crucial in situations requiring accurate video analysis. 3D DNR works by analyzing consecutive video frames and comparing pixels between them to detect and remove noise from the image. Unlike traditional two-dimensional noise reduction (2D DNR), which only analyzes noise within a single frame, 3D DNR takes into account both information from a single frame and differences between adjacent frames. This additional temporal analysis allows for more effective noise recognition and removal, while preserving image detail.

Main advantages:

Enhanced image clarity: 3D DNR technology significantly improves image quality in low-light conditions, reducing grain and blur that often appears in video recordings. The result is a clearer and more readable image.
Better compression and smaller file size: Noise in video can lead to larger file sizes through compression, as more data must be saved. 3D DNR, by reducing noise, allows for better compression and smaller file sizes, which is beneficial for long-term storage.
Improved visibility of details: By reducing noise at night or in low-light conditions, 3D DNR helps identify fine details such as faces, license plates and other key elements, which is invaluable for evidence analysis.
Minimizing ghosting: Unlike simpler noise reduction methods, 3D DNR minimizes the appearance of artifacts in the image, such as "ghosting" (the ghosting effect of objects moving in the frame). By analyzing multiple frames at once, the technology does a better job of eliminating these unwanted effects.

Wide Dynamic Range - That is, high quality in difficult conditions

WDR (Wide Dynamic Range) 120 dB is an advanced technology used in video surveillance cameras such as the BCS-L-EIP16FCR3L3-Ai1 to capture clear images in high contrast lighting conditions, where both bright and dark areas can occur simultaneously in the same scene. WDR 120 dB is a technology that combines two or more frames with different exposures into a single image. In practice, the camera captures two images - one with a short exposure time, which captures details in bright areas, and another with a longer exposure time, which captures details in dark areas. The camera's software then combines these images to produce a single, well-balanced frame in which all details are visible.

Benefits of WDR 120dB

Improved image quality: With clear details in both dark and bright parts of the image, WDR 120 dB technology eliminates the problem of so-called "burn-in" and "underexposure."
Increased monitoring efficiency: Facilitates recognition of faces, license plates and other important elements, which is crucial for security analysis.
Reduced need for backlighting: Less need for additional lighting, which can lead to energy savings and cost reductions.

D.O.R.I.

The DORI (Detection, Observation, Recognition, Identification) parameter is used to determine the ability of video systems, such as BCS-L-EIP16FCR3L3-Ai1 cameras, to detect, observe, recognize and identify objects or people at specific distances. The values given for each of these four elements determine the effective range at which the system can perform each of these activities:

Detection (64m): The system is able to detect the presence of an object or person at a distance of up to 64 meters. This means that at this distance you can tell that something is within the camera's range of view, but you can't necessarily determine what it is.
Observation (25m): At distances of up to 25 meters, the system can not only detect an object, but also provide enough detail for the observer to get an idea of the general shape and perhaps some of the characteristics of the object, but without exact recognition.
Recognition (13m): Recognition at a distance of up to 13m enables the system to provide enough detail for the observer to determine the type of object, for example, to distinguish whether it is a person, car or other object.
Identification (6m): At a distance of up to 6 meters, the system is able to provide a highly detailed image to identify specific features of an object or person, such as a face, vehicle license plate, etc., enabling accurate identification.

Detection of people and vehicles

Motion detection with silhouette recognition of people and vehicles in BCS-L-EIP16FCR3L3-Ai1 cameras is an advanced feature that allows to increase the precision and efficiency of surveillance systems. It allows the camera to classify notifications according to the type of silhouette detected. At the same time providing more detailed information, but also completely filtering out irrelevant ones such as: Moving trees and bushes.

Automatic day/night mode

Adapted to work in all lighting conditions with visibility up to 30m even in total darkness. In addition, the Day/Night sensor switches the video mode automatically based on the amount of light reaching the lens.

Capture the widest possible area

The 2.8mm lens provides a wide field of view, ideal for monitoring large areas. The BCS-L-EIP16FCR3L3-Ai1 camera can capture a wide scene with minimal blind spots. This configuration is particularly useful in areas that require extensive monitoring, such as parking lots, warehouses or public spaces, where it is important to capture as much of the environment as possible without the need for multiple cameras.

High-quality image

The light-sensitive sensor and high-quality sensor combined with advanced optics deliver high-quality images with excellent sharpness. The BCS-L-EIP16FCR3L3-Ai1 records at 6Mpx resolution, giving it a significant advantage over typical FullHD models. It guarantees that even the smallest detail will be captured on the footage.

A: 1280x720p ( 1Mpx )
B: 1920x1080p ( 2Mpx )
C: 2048x1536p ( 3Mpx )
D: 2560x1440p ( 4Mpx )
E: 3288×1850p ( 6Mpx )
F: 3840x2160p ( 8Mpx )

MicroSD card slot

The BCS-L-EIP16FCR3L3-Ai1 camera has a built-in microSD card slot that allows local storage of video recordings on media up to 256GB. This solution allows you to store a large amount of footage without the need for external recording devices, which is ideal in case of emergency situations, network problems or when long-term archiving of recordings directly on the device is required.

IP67 weatherproof design

This housing protects the BCS-L-EIP16FCR3L3-Ai1 camera from external elements such as dust, dirt and moisture, which is especially important in industrial environments or dusty locations. Cameras with IP67 housing can be installed in a variety of locations, from industrial to marine, without worrying about environmental damage.

Microphone - a more complete picture of the situation

The BCS-L-EIP16FCR3L3-Ai1 camera is equipped with a built-in microphone, which allows it to record ambient sound and transmit it simultaneously with the image. This allows not only visual monitoring, but also auditory monitoring, providing a more complete picture of the situation. This feature is particularly useful in places that require detailed surveillance, such as building entrances, stores or offices, where sound can provide additional information about events and improve the effectiveness of surveillance.

Technical specifications of the camera:

Device Name	BCS-L-EIP16FCR3L3-Ai1
Product line	BCS LINE
Camera type	Dome
Resolution	6 Mpx
Sensor	1/2.7'' CMOS
Scanning system	Progressive Scan
Pixels	3288(H)×1850(V)
RAM	256 MB
ROM	128 MB
Lens	Fixed
Focal length	2.8 mm
Aperture	F1.6
Focus	Fixed
Iris	Fixed
Digital zoom	16×
Viewing angle	H: 112°, V: 61°, D: 132°
DORI	Detect 64m / Observe 25m / Recognize 13m / Identify 6m
Sensitivity of the camera	0.007Lux (Color), 0.0007Lux (B/W), 0Lux (IR)
S/N ratio	56 dB
White balance (AWB)	Auto / manual
WDR	120 dB
Backlight compensation	BLC / HLC / WDR (120 dB)
Shutter	Auto / manual 1/3~1/100000s
Gain control (AGC)	Auto / manual
Noise reduction	3D DNR
Image rotation	Mirror, Flip 0°/90°/180°/270° (corridor mode)
Number of streams	2
Resolutions	6M (3288×1850 / 3200×1800), 5M (2880×1620), 4M (2688×1520), 3M (2048×1536 / 2304×1296), 1080p (1920×1080), 1.3M (1280×960), 720p (1280×720), D1 (704×576 / 704×480), VGA (640×480), CIF (352×288 / 352×240)
Main stream	3288×1850@(1-20 fps) / 2688×1520@(1-25/30 fps)
Second stream	704×576@(1-25 fps) / 704×480@(1-30 fps)
Bitrate	H.264: 32 Kbps~8192 Kbps, H.265: 12 Kbps~8192 Kbps
Video compression	H.265 / H.265+ / H.264 / H.264+ / MJPEG
Day/Night	ICR - mechanical infrared filter
Illuminator type	IR LED + WhiteLight
IR range	30 m
WhiteLight range	30 m
NightColor	Yes
Microphone	Yes
Audio compression	G.711A / G.711Mu / G.726 / PCM
Storage	FTP, SFTP, NAS
Memory card slot	microSD up to 256 GB
Support	Web Service, CMS BCS Manager (Windows/Linux/MAC), Mobile App (iOS, Android)
Motion detection	4 zones
Privacy masks	4
Networking	RJ-45 10/100 Mbps
Compatibility	ONVIF (S/G/T)
Protocols	IPv4, IPv6, HTTP, TCP, UDP, ARP, RTP, RTSP, RTCP, RTMP, SMTP, FTP, SFTP, DHCP, DNS, DDNS, QoS, UPnP, NTP, Multicast, ICMP, IGMP, NFS, PPPoE, P2P, Bonjour, Auto Registration
Security	Video/Firmware/Configuration encryption, Digest, WSSE, Account lockout, Security logs, IP/MAC filtering, X.509 certificates, syslog, HTTPS, 802.1x, Trusted boot/execution/upgrade
Power supply type	12VDC / PoE (802.3af)
Power consumption	max 5.7 W
Housing color	White
IP protection class	IP67
Operating conditions	-40°C ~ +55°C, max 95% RH
Dimensions	Ø106 × 94 mm
Weight	0.39 kg
Housing	Metal
Ai - Intelligent functions	Built-in image recognition and analysis algorithms
Ai - Perimeter protection	Intrusion into an area, crossing a line
Ai - Object recognition	Person/vehicle recognition - false alarm reduction
Ai - SMD	SMD Plus - intelligent motion detection

DVR Technical Specification:

Technical specifications:

Technical Specification - BCS-L-NVR0801-4KE(2L)
Device name	BCS-L-NVR0801-4KE(2L)
Product line	BCS LINE
System	IP
Pentaplex function	Live viewing / recording / playback / archiving / remote access
Number of channels	8
Number of disks	1
Max. disk capacity	20 TB
Recording modes	Continuous, manual, alarm, motion detection, schedule, AI
Max. recording resolution	12 Mpx
Input bandwidth	80 Mbps
Output bandwidth	60 Mbps
Recording bandwidth	80 Mbps
Display performance	AI Off: 1×12M@30fps, 2×8M, 3×5M, 4×4M, 8×1080p AI On: 1×12M, 1×8M, 2×5M, 3×4M, 7×1080p
Supported recording resolutions	12M / 8MP / 6MP / 5MP / 4MP / 3MP / 1080p / 960p / 720p / D1 / CIF / QCIF
Video compression	H.265+ / H.265 / H.264+ / H.264 / MJPEG
HDMI output	4K
VGA output	Yes
HDMI resolution	With VGA: up to 3840×2160, without VGA: up to 1920×1080
VGA resolution	1920×1080 / 1280×1024 / 1280×720
Image splitting	1/4/8/9
Recording types	Heavy, motion detection (pre/post), alarm (pre/post), cyclic, AI
Playback	1/4/8
Archiving	USB FLASH, USB HDD
USB ports	2× USB 2.0
Audio input/output	1 / 1
Audio compression	G.711A / G.711U / G.726 / PCM
Supported alarms	Motion detection, signal loss, tampering, scene change, PIR, IPC, AI, offline, HDD, IP, MAC, login
System support	Local, Web, CMS BCS Manager (Win/Linux/MAC), mobile application
Network interface	RJ-45 10/100Mbps
Compatibility	ONVIF (S/G/T), cameras from other manufacturers
PTZ support	Intelligent 3D positioning with BCS LINE cameras
Network protocols	HTTP, HTTPS, TCP/IP, IPv4/IPv6, UDP, NTP, DHCP, DNS, SMTP, UPnP, FTP, DDNS, SNMP, P2P, etc.
Power supply	12V DC
Power consumption	Max. 10W (without disks)
Operating conditions	-10°C ~ +55°C, max. 93% RH
Enclosure	1U
Dimensions	260 × 232.5 × 47.6 mm
Weight	0.81 kg (without drives)
AI - from the DVR	SMD Plus (intelligent motion detection)
AI - from cameras	Face detection/identification, perimeter protection (person/vehicle), SMD Plus, people counting, heat map
AI - perimetry from cameras	6 channels
AI - face detection from cameras	6 channels
AI - face identification	6 channels
AI - SMD (DVR)	4 channels (person/vehicle)
AI - SMD (cameras)	6 channels
