Monitoring kit 6x BCS-L-EIP14FCL3-Ai1-G, 4MP, IR 30m, NightColor, WDR 120dB
Photo gallery
-
Manufacturer
-
Product Code
ZM35453
-
Warranty
24 miesiące
- Technology: IP
- Resolution: 4Mpx
- Enclosure: Dome
- Number of cameras: 6
- Memory card slot: Yes
- Color: Black
Ask about this product show form
Product Description
Set of 6 Wi-Fi cameras with DVR

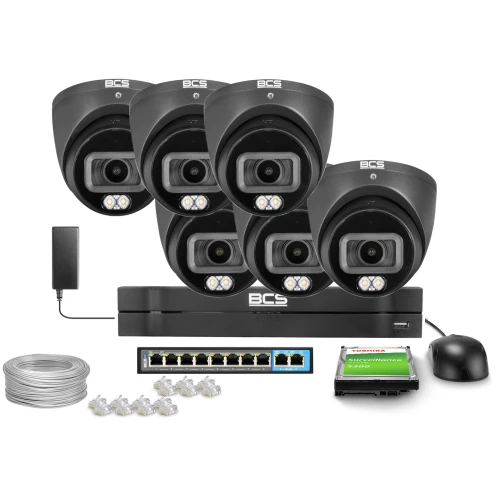

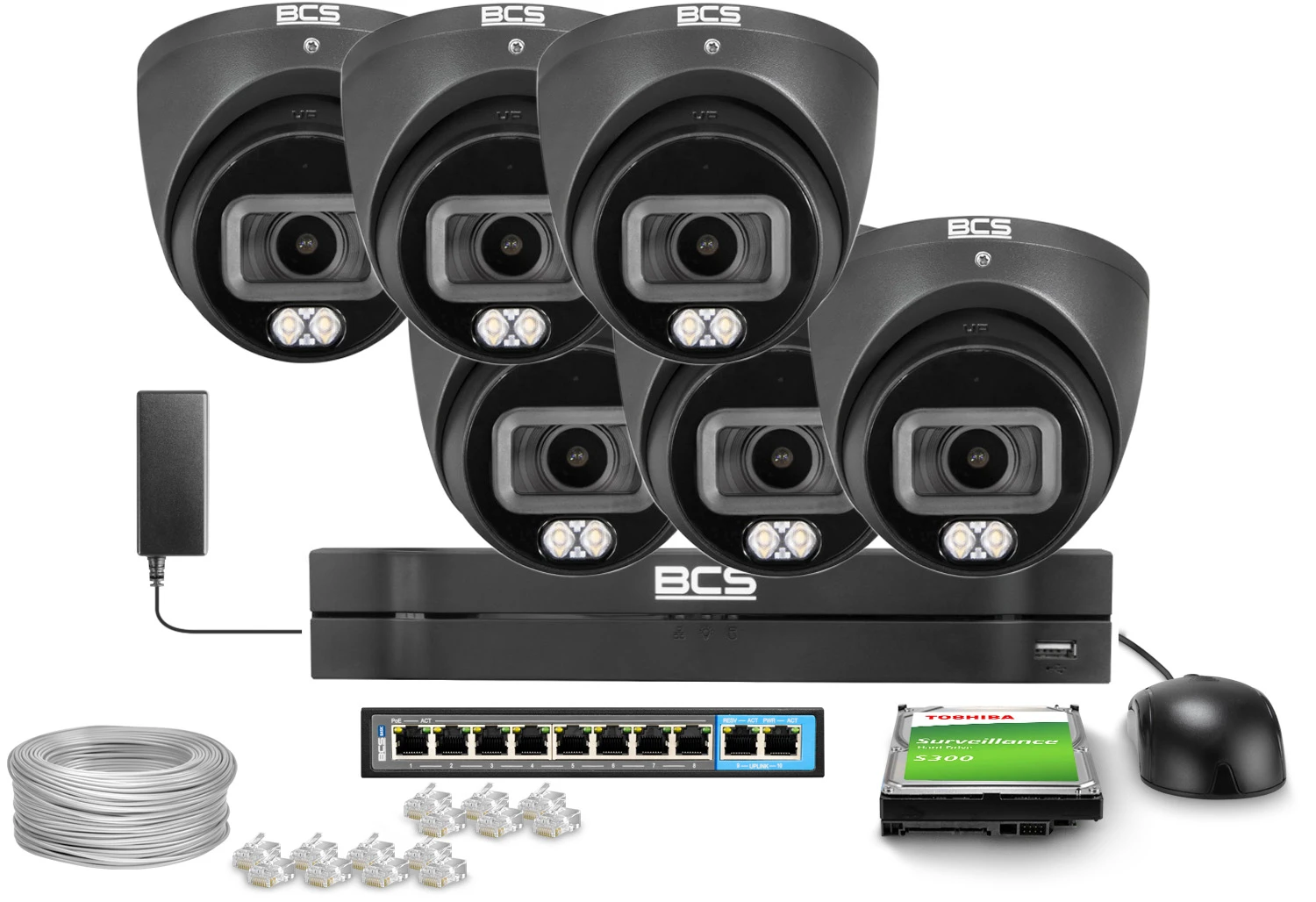

Kit contents:
The products are devices that focus on ease of use, literally anyone can cope with their installation and configuration thanks to the instructions included in the set.
Kit contents:
- 6x BCS-L-EIP14FCL3-Ai1-G
- 1x BCS-L-NVR0801-4KE(2L) DVR
- 1x Toshiba S300 2TB hard drive from Surveillance series, dedicated to CCTV solutions
- 1x Switch BCS-B-SP0802
- 30m of UTP cat.5e cable
- A set of necessary accessories needed to run the system
- "ATTENTION MONITORED OBJECT" sticker
The products are devices that focus on ease of use, literally anyone can cope with their installation and configuration thanks to the instructions included in the set.
Advantages of the set:
- Wi-Fi 4Mpx (2688×1520) dome cameras with 1/1.8" CMOS sensor and wide viewing angle H: 112°
- Very high sensitivity - 0.0005 Lux, providing images even in near total darkness
- NightColor 2.0 - color images at night thanks to LED illuminator with up to 30m range
- Advanced AI features - people/vehicle detection, perimeter protection, SMD Plus
- Built-in microphone, G.711A / G.711Mu / G.726 / PCM audio compression
- Support for microSD cards up to 256 GB, FTP, SFTP, NAS storage capability
- PoE 802.3af or 12V DC power supply, IP67 metal housing, operating range -40°C ~ +60°C
- Compatibility with ONVIF, RTSP, HTTPS, P2P, support for mobile applications
- DVR for 8 cameras, support for HDD up to 16TB, viewing via browser and apps
- H.265+ compression - less space consumption while maintaining high quality recordings
- Includes 2TB Toshiba drive and PoE switch, ready set to start monitoring

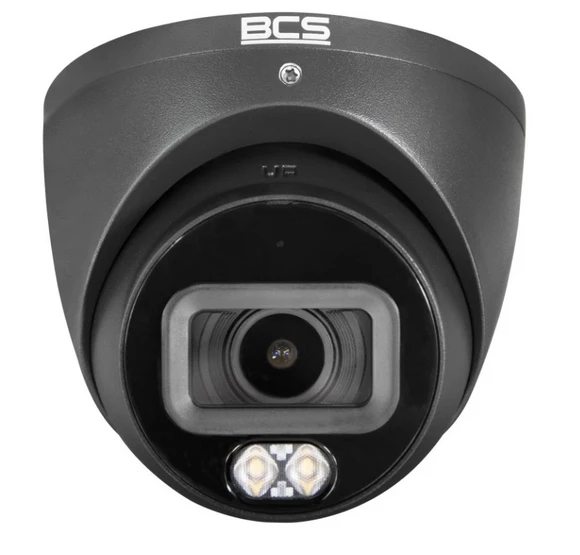

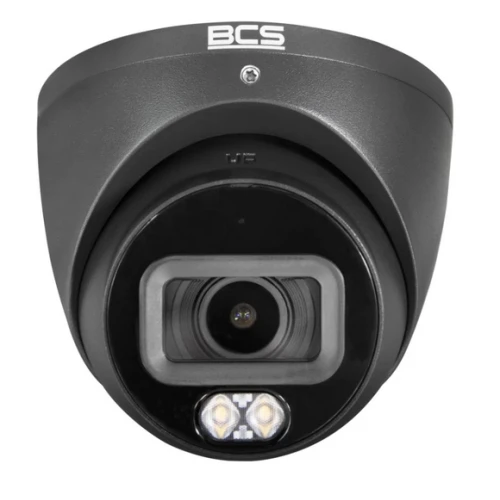

Camera BCS-L-EIP14FCL3-Ai1-G:
- BCS LINE dome camera with 4 Mpx (2688×1520) resolution, 1/1.8'' CMOS sensor, progressive scanning
- Fixed lens 2.8 mm (F1.0) with viewing angle H: 112°, V: 60°, D: 134°
- Extremely high sensitivity - 0.0005 Lux @F1.0 allows recording images in almost total darkness
- Built-in microphone, audio compression: G.711A / G.711Mu / G.726 / PCM
- NightColor 2.0 technology and WhiteLight illuminator with a range of up to 30 m provide color images at night
- WDR 120 dB, 3D DNR, BLC, HLC, LDC (distortion correction), RoI, flip/mirror/corridor mode functions
- Intelligent image analysis: perimeter protection (intrusion, line), person/vehicle recognition, SMD Plus
- MicroSD card support up to 256 GB, FTP, SFTP, NAS storage
- Video compression: H.265 / H.265+ / H.264 / H.264+ / MJPEG, bitrate up to 6144 Kbps, two streams
- ONVIF (S/G/T) compatibility, RJ-45 10/100 Mbps, multi-protocol support (RTSP, HTTPS, P2P, etc.).
- Advanced security: data encryption, IP/MAC filtering, X.509, 802.1x, Trusted boot
- Power supply 12V DC or PoE (802.3af), power consumption up to 6.4W
- Metal housing, graphite color, IP67 rating, operating temperature range: -40°C ~ +60°C
8 channel DVR BCS-L-NVR0801-4KE(2L)
- 8 IP channels, up to 12 Mpx recording, 4K HDMI and VGA outputs
- Support for drives up to 20 TB
- Intelligent AI: SMD Plus, face detection, perimeter protection, people counting
- Support for H.265+/H.265/H.264+/H.264 codecs, G.711A/U, G.726, PCM audio
- Remote access: mobile app, CMS, browser, ONVIF compliance
Reduce unnecessary noise
3D DNR (3D Digital Noise Reduction) is an advanced noise reduction technology used in video surveillance cameras such as the BCS-L-EIP14FCL3-Ai1-G, which improves image quality in difficult lighting conditions, especially at night or in low light. By eliminating noise, the technology produces clearer and more detailed images, which is crucial in situations requiring accurate video analysis. 3D DNR works by analyzing consecutive video frames and comparing pixels between them to detect and remove noise from the image. Unlike traditional two-dimensional noise reduction (2D DNR), which only analyzes noise within a single frame, 3D DNR takes into account both information from a single frame and differences between adjacent frames. This additional temporal analysis allows for more effective noise recognition and removal, while preserving image detail.
Main advantages:
- Enhanced image clarity: 3D DNR technology significantly improves image quality in low-light conditions, reducing grain and blur that often appears in video recordings. The result is a clearer and more readable image.
- Better compression and smaller file size: Noise in video can lead to larger file sizes through compression, as more data must be saved. 3D DNR, by reducing noise, allows for better compression and smaller file sizes, which is beneficial for long-term storage.
- Improved visibility of details: By reducing noise at night or in low-light conditions, 3D DNR helps identify fine details such as faces, license plates and other key elements, which is invaluable for evidence analysis.
- Minimizing ghosting: Unlike simpler noise reduction methods, 3D DNR minimizes the appearance of artifacts in the image, such as "ghosting" (the ghosting effect of objects moving in the frame). By analyzing multiple frames at once, the technology does a better job of eliminating these unwanted effects.
Wide Dynamic Range - That is, high quality in difficult conditions
WDR (Wide Dynamic Range) 120 dB is an advanced technology used in video surveillance cameras such as the BCS-L-EIP14FCL3-Ai1-G to capture clear images in high contrast lighting conditions, where both bright and dark areas can occur simultaneously in the same scene. WDR 120 dB is a technology that combines two or more frames with different exposures into a single image. In practice, the camera captures two images - one with a short exposure time, which captures details in bright areas, and another with a longer exposure time, which captures details in dark areas. The camera's software then combines these images to produce a single, well-balanced frame in which all details are visible.
Benefits of WDR 120dB
WDR (Wide Dynamic Range) 120 dB is an advanced technology used in video surveillance cameras such as the BCS-L-EIP14FCL3-Ai1-G to capture clear images in high contrast lighting conditions, where both bright and dark areas can occur simultaneously in the same scene. WDR 120 dB is a technology that combines two or more frames with different exposures into a single image. In practice, the camera captures two images - one with a short exposure time, which captures details in bright areas, and another with a longer exposure time, which captures details in dark areas. The camera's software then combines these images to produce a single, well-balanced frame in which all details are visible.
Benefits of WDR 120dB
- Improved image quality: With clear details in both dark and bright parts of the image, WDR 120 dB technology eliminates the problem of so-called "burn-in" and "underexposure."
- Increased monitoring efficiency: Facilitates recognition of faces, license plates and other important elements, which is crucial for security analysis.
- Reduced need for backlighting: Less need for additional lighting, which can lead to energy savings and cost reductions.
D.O.R.I.
The DORI (Detection, Observation, Recognition, Identification) parameter is used to determine the ability of video systems, such as BCS-L-EIP14FCL3-Ai1-G cameras, to detect, observe, recognize and identify objects or people at specific distances. The values given for each of these four elements determine the effective range at which the system can perform each of these activities:
The DORI (Detection, Observation, Recognition, Identification) parameter is used to determine the ability of video systems, such as BCS-L-EIP14FCL3-Ai1-G cameras, to detect, observe, recognize and identify objects or people at specific distances. The values given for each of these four elements determine the effective range at which the system can perform each of these activities:
- Detection (64m): The system is able to detect the presence of an object or person at a distance of up to 64 meters. This means that at this distance you can tell that something is within the camera's range of view, but you can't necessarily determine what it is.
- Observation (25m): At distances of up to 25 meters, the system can not only detect an object, but also provide enough detail for the observer to get an idea of the general shape and perhaps some of the characteristics of the object, but without exact recognition.
- Recognition (13m): Recognition at a distance of up to 13m enables the system to provide enough detail for the observer to determine the type of object, for example, to distinguish whether it is a person, a car or another object.
- Identification (6m): At a distance of up to 6 meters, the system is able to provide a highly detailed image that can identify specific features of an object or person, such as a face, vehicle license plate, etc., enabling accurate identification.
Detection of people and vehicles
Motion detection with silhouette recognition of people and vehicles in BCS-L-EIP14FCL3-Ai1-G cameras is an advanced feature that allows to increase the precision and efficiency of monitoring systems. It allows the camera to classify notifications according to the type of silhouette detected. At the same time providing more detailed information, but also completely filtering out irrelevant ones such as: Moving trees and bushes.
Motion detection with silhouette recognition of people and vehicles in BCS-L-EIP14FCL3-Ai1-G cameras is an advanced feature that allows to increase the precision and efficiency of monitoring systems. It allows the camera to classify notifications according to the type of silhouette detected. At the same time providing more detailed information, but also completely filtering out irrelevant ones such as: Moving trees and bushes.
Automatic day/night mode
Adapted to work in all lighting conditions with visibility up to 30m even in total darkness. In addition, the Day/Night sensor switches the video mode automatically based on the amount of light reaching the lens.
Capture the widest possible area
The 2.8mm lens provides a wide field of view, ideal for monitoring large areas. The BCS-L-EIP14FCL3-Ai1-G camera can capture a wide scene with minimal blind spots. This configuration is particularly useful in areas that require extensive monitoring, such as parking lots, warehouses or public spaces, where it is important to capture as much of the environment as possible without the need for multiple cameras.
High-quality image
A light-sensitive sensor and a high-quality sensor combined with advanced optics deliver high-quality images with excellent sharpness. The BCS-L-EIP14FCL3-Ai1-G records at 4Mpx resolution, giving it a significant advantage over typical FullHD models. It guarantees that even the smallest detail will be captured on the footage.
- A: 1280x720p ( 1Mpx )
- B: 1920x1080p ( 2Mpx )
- C: 2048x1536p ( 3Mpx )
- D: 2560x1440p ( 4Mpx )
- E: 3288×1850p ( 6Mpx )
- F: 3840x2160p ( 8Mpx )
MicroSD card slot
The BCS-L-EIP14FCL3-Ai1-G camera has a built-in microSD card slot that allows local storage of video recordings on media up to 256GB. This solution allows you to store a large amount of footage without the need for external recording devices, which is ideal in case of emergencies, network problems or when long-term archiving of recordings directly on the device is required.
IP67 weatherproof design
This housing protects the BCS-L-EIP14FCL3-Ai1-G camera from external elements such as dust, dirt and moisture, which is especially important in industrial environments or dusty locations. Cameras with IP67 housing can be installed in a variety of locations, from industrial to marine, without worrying about environmental damage.
Microphone - a more complete picture of the situation
The BCS-L-EIP14FCL3-Ai1-G camera is equipped with a built-in microphone, which allows it to record ambient sound and transmit it simultaneously with the image. This allows not only visual monitoring, but also auditory monitoring, providing a more complete picture of the situation. This feature is particularly useful in places that require detailed surveillance, such as building entrances, stores or offices, where sound can provide additional information about events and improve the effectiveness of surveillance.
Technical specifications of the camera:
| Device Name | BCS-L-EIP14FCL3-Ai1-G |
|---|---|
| Product line | BCS LINE |
| Camera type | Dome |
| Resolution | 4 Mpx |
| Sensor | 1/1.8'' CMOS |
| Scanning system | Progressive Scan |
| Pixels | 2688(H)×1520(V) |
| RAM | 256 MB |
| ROM | 128 MB |
| Lens | Fixed |
| Focal length | 2.8 mm |
| Aperture | F1.0 |
| Focus | Fixed |
| Iris | Fixed |
| Digital zoom | 16× |
| Viewing angle | H: 112°, V: 60°, D: 134° |
| DORI | Detect 58m / Observe 23m / Recognize 12m / Identify 6m |
| Camera sensitivity | 0.0005 Lux @F1.0 |
| S/N ratio | 56 dB |
| White balance (AWB) | Auto / manual |
| WDR | 120 dB |
| Backlight compensation | BLC / HLC / WDR (120 dB) |
| Shutter | Auto / manual 1/3~1/100000s |
| Gain control (AGC) | Auto / manual |
| Noise reduction | 3D DNR |
| LDC | Lens Distortion Correction |
| RoI | Region of Interest |
| Image rotation | Mirror, Flip 0°/90°/180°/270° (corridor mode) |
| Number of streams | 2 |
| Resolutions | 4M (2688×1520 / 2560×1440), 3M (2304×1296), 1080p (1920×1080), 1.3M (1280×960), 720p (1280×720), D1 (704×576 / 704×480), VGA (640×480), CIF (352×288 / 352×240) |
| Main stream | 2688×1520@(1-20 fps) / 2560×1440@(1-25/30 fps) |
| Second stream | 704×576@(1-25 fps) / 704×480@(1-30 fps) |
| Bitrate | H.264: 32 Kbps~6144 Kbps, H.265: 12 Kbps~6144 Kbps |
| Video compression | H.265 / H.265+ / H.264 / H.264+ / MJPEG |
| Illuminator type | WhiteLight |
| WhiteLight range | 30 m |
| NightColor | NightColor 2.0 |
| Microphone | Yes |
| Audio compression | G.711A / G.711Mu / G.726 / PCM |
| Storage | FTP, SFTP, NAS |
| Memory card slot | microSD up to 256 GB |
| Support | Web Service, CMS BCS Manager (Windows/Linux/MAC), Mobile App (iOS, Android) |
| Motion detection | 4 zones |
| Privacy masks | 4 |
| Networking | RJ-45 10/100 Mbps |
| Compatibility | ONVIF (S/G/T) |
| Protocols | IPv4, IPv6, HTTP, TCP, UDP, ARP, RTP, RTSP, RTCP, RTMP, SMTP, FTP, SFTP, DHCP, DNS, DDNS, QoS, UPnP, NTP, Multicast, ICMP, IGMP, NFS, PPPoE, P2P, Bonjour, Auto Registration |
| Security | Video/Firmware/Configuration encryption, Digest, WSSE, Account lockout, Security logs, IP/MAC filtering, X.509 certificates, syslog, HTTPS, 802.1x, Trusted boot/execution/upgrade, Session security |
| Power supply type | 12VDC / PoE (802.3af) |
| Power consumption | max 6.4 W |
| Housing color | Graphite |
| IP protection class | IP67 |
| Operating conditions | -40°C ~ +60°C, max 95% RH |
| Dimensions | Ø106 × 95 mm |
| Weight | 0.42 kg |
| Housing | Metal |
| Ai - Intelligent functions | Built-in image recognition and analysis algorithms |
| Ai - Perimeter protection | Intrusion into an area, crossing a line |
| Ai - Object recognition | Person/vehicle recognition - false alarm reduction |
| Ai - SMD | SMD Plus - intelligent motion detection |
DVR technical specification:
| Technical specification - BCS-L-NVR0801-4KE(2L) | |
|---|---|
| Device name | BCS-L-NVR0801-4KE(2L) |
| Product line | BCS LINE |
| System | IP |
| Pentaplex function | Live viewing / recording / playback / archiving / remote access |
| Number of channels | 8 |
| Number of disks | 1 |
| Max. disk capacity | 20 TB |
| Recording modes | Continuous, manual, alarm, motion detection, schedule, AI |
| Max. recording resolution | 12 Mpx |
| Input bandwidth | 80 Mbps |
| Output bandwidth | 60 Mbps |
| Recording bandwidth | 80 Mbps |
| Display performance | AI Off: 1×12M@30fps, 2×8M, 3×5M, 4×4M, 8×1080p AI On: 1×12M, 1×8M, 2×5M, 3×4M, 7×1080p |
| Supported resolutions | 12M / 8MP / 6MP / 5MP / 4MP / 3MP / 1080p / 960p / 720p / D1 / CIF / QCIF |
| Video compression | H.265+ / H.265 / H.264+ / H.264 / MJPEG |
| HDMI output | 4K |
| VGA output | Yes |
| HDMI resolution | With VGA: up to 3840×2160, without VGA: up to 1920×1080 |
| VGA resolution | 1920×1080 / 1280×1024 / 1280×720 |
| Image splitting | 1 / 4 / 8 / 9 |
| Recording types | Heavy, motion detection (pre/post), alarm (pre/post), cyclic, AI |
| Playback | 1 / 4 / 8 |
| Archiving | USB FLASH, USB HDD |
| USB ports | 2× USB 2.0 |
| Audio input/output | 1 / 1 |
| Audio compression | G.711A / G.711U / G.726 / PCM |
| Supported alarms | Motion detection, signal loss, tampering, scene change, PIR, IPC, AI, offline, HDD, IP, MAC, login |
| System support | Local, Web, CMS BCS Manager (Win/Linux/MAC), mobile application |
| Network interface | RJ-45 10/100Mbps |
| Compatibility | ONVIF (S/G/T), cameras from other manufacturers |
| PTZ support | Intelligent 3D positioning with BCS LINE cameras |
| Network protocols | HTTP, HTTPS, TCP/IP, IPv4/IPv6, UDP, NTP, DHCP, DNS, SMTP, UPnP, FTP, DDNS, SNMP, P2P, etc. |
| Power supply | 12V DC |
| Power consumption | Max. 10W (without disks) |
| Operating conditions | -10°C ~ +55°C, max. 93% RH |
| Enclosure | 1U |
| Dimensions | 260 × 232.5 × 47.6 mm |
| Weight | 0.81 kg (without drives) |
| AI - from the DVR | SMD Plus (intelligent motion detection) |
| AI - from cameras | Face detection/identification, perimeter protection (person/vehicle), SMD Plus, people counting, heat map |
| AI - perimetry from cameras | 6 channels |
| AI - face detection from cameras | 6 channels |
| AI - face identification | 6 channels |
| AI - SMD (DVR) | 4 channels (person/vehicle) |
| AI - SMD (cameras) | 6 channels |
