Surveillance Kit 8x IPC-HFW3849T-ZAS-IL-27135, 8MP, IR 60m, WDR 120dB
Photo gallery
-
Manufacturer
-
Product Code
ZM35458
-
Warranty
36 miesięcy
- Technology: IP
- Resolution: 8Mpx
- Enclosure: Tube
- Number of cameras: 8
- Memory card slot: Yes
- Color: White
Ask about this product show form
Product Description

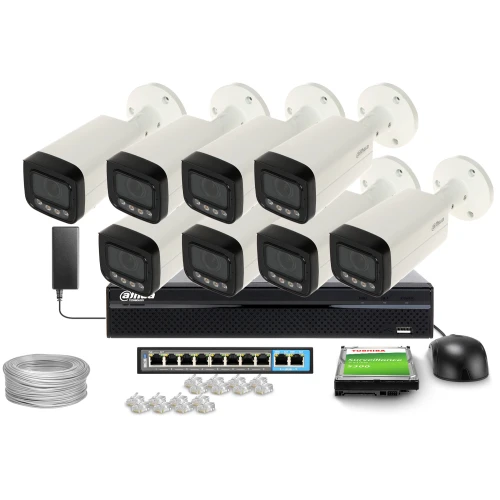

Kit contents:

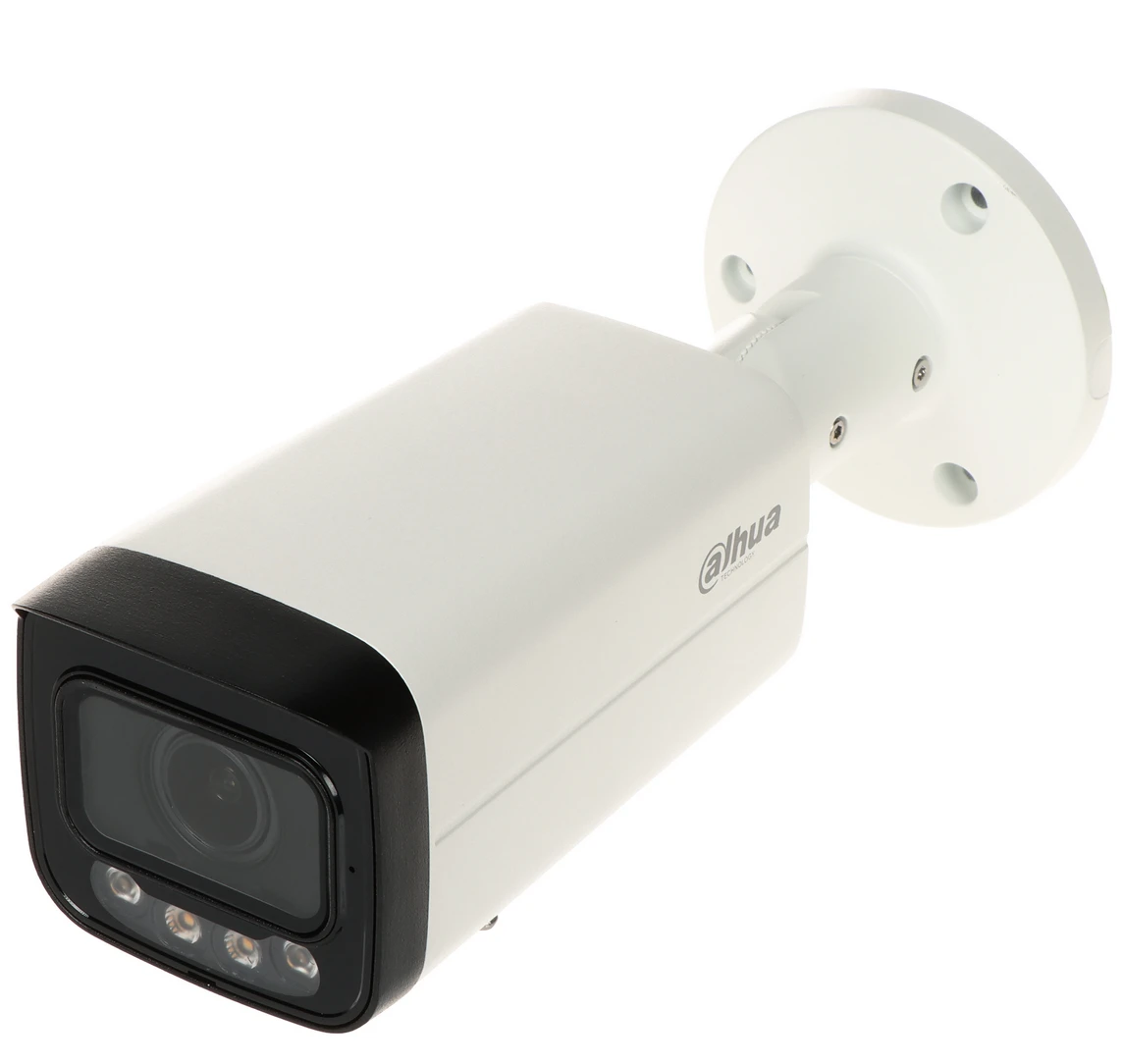

- 8x Camera - IPC-HFW3849T-ZAS-IL-27135

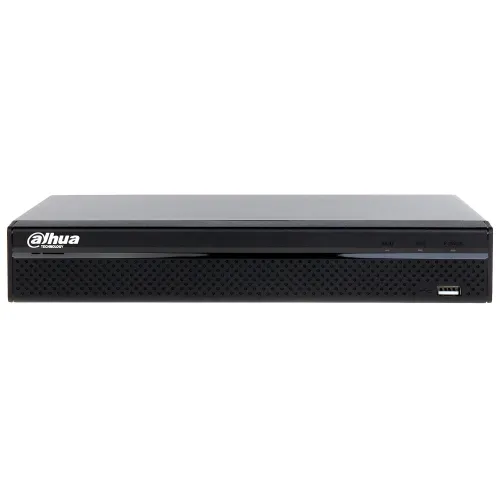

- 1x DVR - NVR4108HS-4KS3
- 1x 8-port Switch
- 1x Toshiba S300 1TB hard drive from Surveillance series, dedicated to CCTV solutions
- 40 meters of UTP cat.5e cable
- Set of signal connectors
- 8MP (3840x2160) cameras with Smart Dual IR+LED illuminator and Full-Color image mode even at night
- Motozoom 2.7-13.5mm with autofocus - conveniently adjust the angle of view
- Advanced image features: 120dB WDR, EIS, BLC, HLC, 3D NR, E-defog
- AI functions: perimeter protection (IVS), object classification (human/vehicle), SMD 4.0, AcuPick
- Built-in microphone and audio support via RCA connectors (audio input/output)
- Support for microSD cards up to 512 GB - local recording without the need for a DVR
- DVR with support for up to 4K resolution (up to 8MP), remote access via apps and browsers
- Compatibility with ONVIF, RTSP, P2P, integration with Smart PSS, DSS, DMSS software
- Power supply for cameras PoE or 12V DC - flexible mounting solutions
- Robust IP67 metal housing - resistant to outdoor conditions
- Ready-to-use set - includes 2TB drive, PoE switch, mounting accessories and sticker
- 8MP (3840x2160) resolution at 25/30 fps
- 1/2.7" HD CMOS sensor with high sensitivity: 0.007 lux / 0 lux with IR
- 2.7-13.5mm motozoom lens with autofocus
- Smart Dual Light illuminator - IR + LED (range up to 60 m)
- 4 lighting modes: IR only, LED only, Smart (IR+LED), schedule
- Full-Color technology - color images around the clock
- Advanced image features: 120dB WDR, 3D NR, EIS, BLC, HLC, AWB, RoI, E-defog
- Built-in microphone and audio input/output (RCA)
- AI functions: IVS (perimeter protection), people/vehicle classification, AI SSA, SMD 4.0, AcuPick
- Support for microSD cards up to 512 GB
- Network interface: 1x RJ45 10/100 Mbps, PoE (802.3af) support
- Compatibility with ONVIF, RTSP, RTMP, CGI, P2P
- Viewing via applications: Smart PSS, DSS, DMSS and browsers: IE, Firefox, Chrome
- Metal housing with IP67 protection class
- Power supply: 12V DC or PoE (Dual Power Backup)
Main features of the DVR:
- Support for IP cameras up to 12 Mpx (4000x3000 px)
- Video outputs: HDMI 4K and VGA
- Supports 8 channels of camera audio and two-way audio
- Smart H.265+, H.265, Smart H.264+, H.264 compression
- Support for 1 SATA drive up to 20TB
- Archiving to external USB storage devices
- Advanced recording search (Smart Playback, event analysis, playback of up to 8 cameras simultaneously)
- Support for advanced AI functions (SMD PLUS, perimeter protection, face detection, people counting, heat map)
- Built-in web server, full support over the network
- Network protocols: TCP/IP, IPv4/IPv6, HTTP, HTTPS, DHCP, DNS, FTP, SNMP, P2P and more
- ONVIF 22.12, support for IP PTZ cameras
- Mobile access via DMSS app (Android, iOS)
- Power supply 12V DC / 2A (power adapter included)
- Operating temperature: -10°C to +55°C
Reduce unnecessary noise
3D DNR (3D Digital Noise Reduction) is an advanced noise reduction technology used in video surveillance cameras such as the IPC-HFW3849T-ZAS-IL-27135, which improves image quality in difficult lighting conditions, especially at night or in low light. By eliminating noise, the technology produces clearer and more detailed images, which is crucial in situations that require accurate video analysis. 3D DNR works by analyzing consecutive video frames and comparing pixels between them to detect and remove noise from the image. Unlike traditional two-dimensional noise reduction (2D DNR), which only analyzes noise within a single frame, 3D DNR takes into account both information from a single frame and differences between adjacent frames. This additional temporal analysis allows for more effective noise recognition and removal, while preserving image detail.
Main advantages:
- Enhanced image clarity: 3D DNR technology significantly improves image quality in low-light conditions, reducing grain and blur that often appears in video recordings. The result is a clearer and more readable image.
- Better compression and smaller file size: Noise in video can lead to larger file sizes through compression, as more data must be saved. 3D DNR, by reducing noise, allows for better compression and smaller file sizes, which is beneficial for long-term storage.
- Improved visibility of details: By reducing noise at night or in low-light conditions, 3D DNR helps identify fine details such as faces, license plates and other key elements, which is invaluable for evidence analysis.
- Minimizing ghosting: Unlike simpler noise reduction methods, 3D DNR minimizes the appearance of artifacts in the image, such as "ghosting" (the ghosting effect of objects moving in the frame). By analyzing multiple frames at once, the technology does a better job of eliminating these unwanted effects.
WDR (Wide Dynamic Range) 120 dB is an advanced technology used in video surveillance cameras such as the IPC-HFW3849T-ZAS-IL-27135 to capture clear images in high contrast lighting conditions, where both bright and dark areas can occur simultaneously in the same scene. WDR 120 dB is a technology that combines two or more frames with different exposures into a single image. In practice, the camera captures two images - one with a short exposure time, which captures details in bright areas, and another with a longer exposure time, which captures details in dark areas. The camera's software then combines these images to produce a single, well-balanced frame in which all details are visible.
Benefits of WDR 120dB
- Improved image quality: With clear details in both dark and bright parts of the image, WDR 120 dB technology eliminates the problem of so-called "burn-in" and "underexposure."
- Increased monitoring efficiency: Facilitates recognition of faces, license plates and other important elements, which is crucial for security analysis.
- Reduced need for backlighting: Less need for additional lighting, which can lead to energy savings and cost reductions.
Motion detection with silhouette recognition of people and vehicles in IPC-HFW3849T-ZAS-IL-27135 cameras is an advanced feature that allows to increase the precision and efficiency of surveillance systems. It allows the camera to classify notifications according to the type of silhouette detected. At the same time providing more detailed information, but also completely filtering out irrelevant ones such as: Moving trees and bushes.
Automatic day/night mode
Adapted to work in all lighting conditions with visibility up to 60m even in total darkness. In addition, the Day/Night sensor switches the video mode automatically based on the amount of light reaching the lens.
Capture the largest possible area
The lens provides a wide field of view, ideal for monitoring large areas. The IPC-HFW3849T-ZAS-IL-27135 camera can capture a wide scene with minimal blind spots. This configuration is particularly useful in areas that require wide surveillance, such as parking lots, warehouses or public spaces, where it is important to capture as much of the environment as possible without the need for multiple cameras.
High-quality image
The light-sensitive sensor and high-quality sensor combined with advanced optics deliver high-quality images with excellent sharpness. The IPC-HFW3849T-ZAS-IL-27135 records at 8Mpx resolution, giving it a significant advantage over typical FullHD models. It guarantees that even the smallest detail will be captured on the footage.
- A: 1280x720p ( 1Mpx )
- B: 1920x1080p ( 2Mpx )
- C: 2048x1536p ( 3Mpx )
- D: 2560x1440p ( 4Mpx )
- E: 3288×1850p ( 6Mpx )
- F: 3840x2160p ( 8Mpx )
MicroSD card slot
The IPC-HFW3849T-ZAS-IL-27135 camera has a built-in microSD card slot that allows you to locally store video recordings on media up to 512GB. This solution allows you to store a large amount of footage without the need for external recording devices, which is ideal in case of emergency situations, network problems or when long-term archiving of recordings directly on the device is required.
IP67 weatherproof design
This housing protects the IPC-HFW3849T-ZAS-IL-27135 camera from external elements such as dust, dirt and moisture, which is especially important in industrial environments or dusty locations. Cameras with IP67 housing can be installed in a variety of locations, from industrial to marine, without worrying about environmental damage.
Microphone - a fuller picture of the situation
The IPC-HFW3849T-ZAS-IL-27135 camera is equipped with a built-in microphone, which allows it to record ambient sound and transmit it simultaneously with the image. This allows not only visual monitoring, but also auditory monitoring, providing a more complete picture of the situation. This feature is particularly useful in places that require detailed surveillance, such as building entrances, stores or offices, where sound can provide additional information about events and improve the effectiveness of surveillance.
Technical specifications of the camera:
| Technical specifications | |
|---|---|
| Sensor | 1/2.7" 8MP HD CMOS |
| Resolution | 3840x2160 (8Mpx) |
| RAM / ROM | 1GB / 128MB |
| Scanning | Progressive |
| Shutter | 1/3s ~ 1/100000s |
| Signal / Noise | >56dB |
| Minimum illumination | 0.007 Lux / 0.0007 Lux / 0 Lux (IR LED) |
| Position adjustment | Pan: 0°~360°, Tilt: 0°~90°, Rotation: 0°~360° |
| Illuminator | 4 Multi-core LEDs: IR + LED (range up to 60m) |
| Illumination modes | IR, Warm Light, Smart Dual Light, Schedule |
| Lens | Motozoom 2.7-13.5mm (F1.4), H angle: 114°-32° |
| DORI | Up to 280m (Detection), 28m (Identification) |
| Video compression | H.265 / H.264 / MJPEG, AI H.265 / AI H.264 |
| Number of streams | 3 |
| Resolutions | 8MP, 6MP, 5MP, 4MP, 3MP, 1080p, 960p, 720p, D1, CIF, VGA |
| Bitrate | 3Kbps ~ 16384Kbps |
| Image features | WDR 120dB, 3D NR, BLC, HLC, EIS, AWB, SSA, RoI, E-defog, AFSA |
| Day/Night mode | ICR, color, black and white |
| Audio | Built-in microphone, 1x RCA in/out, G.711, G.726, PCM |
| AI functions | IVS (lines/intruders), AI SSA, SMD 4.0, AcuPick |
| Card support | microSD/SDHC/SDXC up to 512GB |
| Interface | 1x RJ45 10/100 Mbps, 1x alarm I/O, 1x RCA in/out |
| Power supply | 12V DC or PoE 802.3af, Dual Power Backup |
| Power consumption | Max. 12.5W (PoE), 9.9W (DC) |
| Housing | Metal, IP67 |
| Operating temperature | -30°C ~ +60°C |
| Humidity | 0 ~ 95% (non-condensing) |
| Dimensions | 90.7 x 238.5 x 90.7 mm |
| Weight | 835g |
| Support | ONVIF (S/T/G), CGI, P2P, Smart PSS, DMSS, DSS, Chrome, Firefox |
| Warranty | 36 months |
