IP Surveillance Kit 8x BCS-L-EIP14FSR3L3, 4MP, SkyLight, IR 30m, WDR 120dB
Photo gallery
-
Manufacturer
-
Product Code
ZM35488
-
Warranty
36 miesięcy
- Technology: IP
- Resolution: 4Mpx
- Enclosure: Dome
- Night visibility: up to 30m
- Number of cameras: 8
- Connectivity: Wired
- Memory card slot: No
- Audio: Yes
- Color: White
Ask about this product show form
Related products
Product Description
Set of 8 IP cameras with DVR:

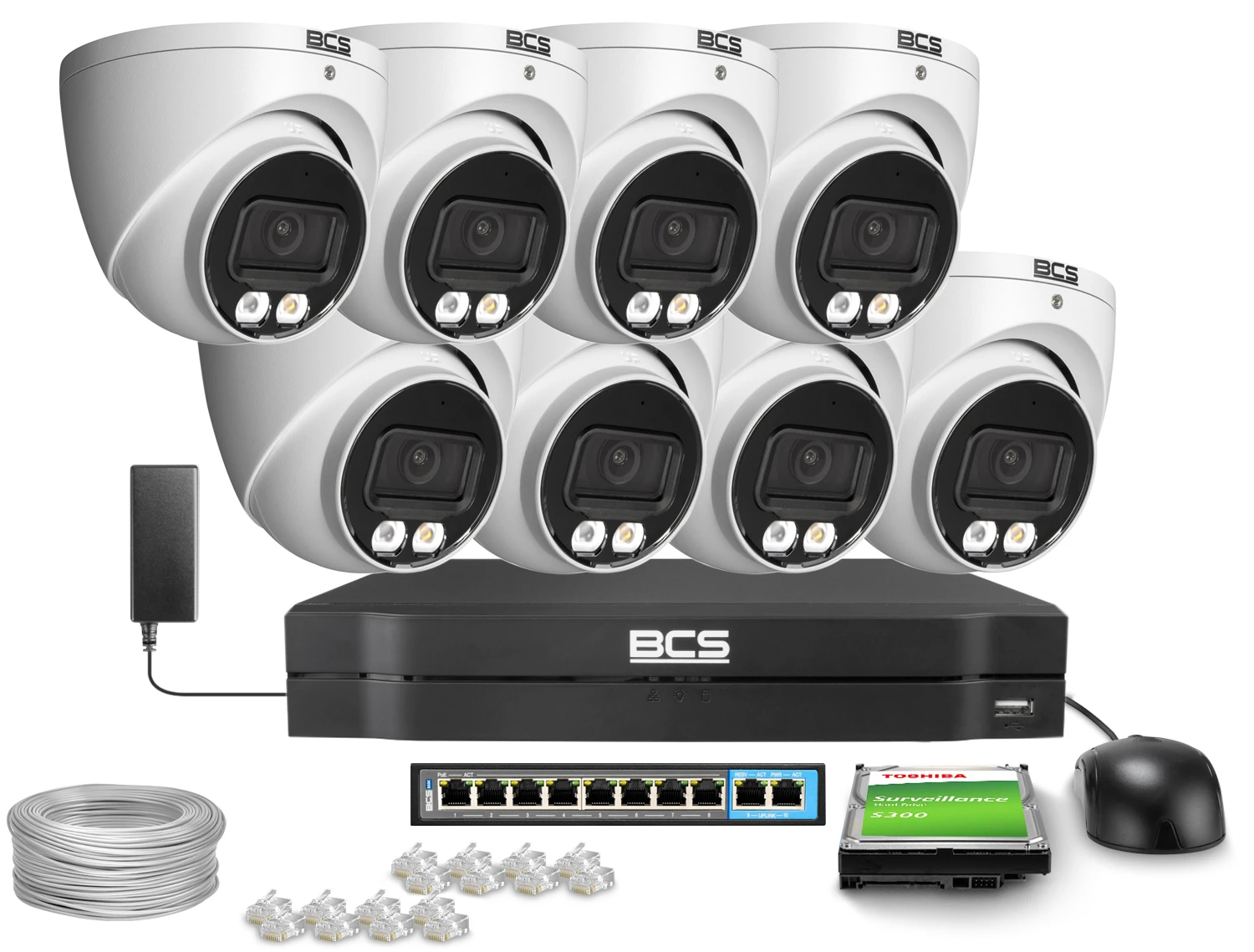

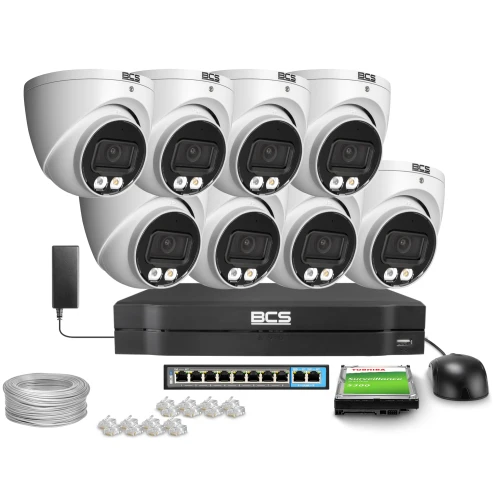

Kit contents:
The products are devices that focus on ease of use, literally anyone can cope with their installation and configuration thanks to the instructions included in the set.
Kit contents:
- 8x IP dome camera BCS-L-EIP14FSR3L3
- 1x DVR BCS-L-NVR0801-4KE(2)
- 1x Toshiba S300 2TB hard drive from Surveillance series, dedicated to CCTV solutions
- 1x Switch BCS-B-SP0802
- 40m of cat.5e UTP cable
- A set of necessary accessories, needed to run the system
- Sticker "ATTENTION MONITORED OBJECT".
The products are devices that focus on ease of use, literally anyone can cope with their installation and configuration thanks to the instructions included in the set.
Features of the set:
- 4 Mpx (2560×1440 px) camera resolution - detailed and clear images.
- Wide viewing angle (H: 94°, V: 52°, D: 111°) - effective surveillance of a wide area.
- IR and white light range of up to 30m - night surveillance in both IR and color modes.
- WDR 120 dB, BLC, HLC and 3D DNR - better image quality in difficult lighting conditions.
- Built-in microphone - audio recording without additional equipment.
- H.265+ / H.264+ compression - saving disk space and bandwidth.
- IP67 housing - water and dust resistant, suitable for outdoor installation.
- PoE (802.3af) or 12VDC power supply - installation flexibility.
- Remote viewing and management via CMS BCS Manager, mobile app and browser.
- 8-channel DVR with up to 16 Mpx recording resolution - high quality recordings.
- Support for local viewing via HDMI or VGA - convenient system management.
- Included 2TB Toshiba S300 surveillance-class drive - suitable for continuous operation 24/7.
- The kit includes a PoE switch and a set of necessary accessories - ready for immediate installation.
- Compact camera design (Ø106×94 mm) and low weight (0.33 kg) - easy installation even in difficult places.
- "ATTENTION MONITORED OBJECT" sticker. - deterring potential intruders.
BCS-L-EIP14FSR3L3 camera:
- 4 Mpx (2560×1440 px) resolution provides detailed images.
- Wide viewing angle (H: 94°, V: 52°, D: 111°) enables effective surveillance of large areas.
- The built-in microphone allows you to record audio without additional equipment.
- Range of infrared (IR) and white light up to 30 m - effective monitoring also at night.
- Advanced image features: WDR 120 dB, 3D DNR, BLC, HLC - high quality recordings in difficult conditions.
- Mechanical ICR filter provides day/night mode switching.
- Support for H.265+ / H.264+ / MJPEG compression - saving disk space.
- Possibility of remote operation via browser, mobile application and CMS BCS Manager.
- IP67 protection class - water and dust resistance, for outdoor applications.
- PoE (802.3af) or 12VDC power supply - flexibility in installation.
- Compact dimensions (Ø106×94 mm) and low weight (0.33 kg) - easy installation even in less accessible places.
BCS-L-NVR0801-4KE(2) 8 channel DVR:
- Product: BCS Line IP NVR.
- Features: Pentaplex - live viewing, recording,
playback, archiving, remote access. - Channels: 8 IP channels.
- Capacity: Support for 1 drive up to 16 TB.
- Resolution: Up to 16 Mpx of recording.
- Bandwidth: 80Mbps input/output.
- Compression: H.265+, H.265, H.264+, H.264, MJPEG.
- Video output: HDMI 4K, VGA.
- AI functions: face detection and identification,
perimeter protection, SMD Plus. - Network support: ONVIF, various protocols, mobile apps,
compatibility with third-party cameras.
Toshiba S300 2TB drive:
- 2TB capacity - dedicated to video surveillance systems.
- Supports up to 64 cameras and 8 drives - ideal for CCTV recorders.
- Rotational speed of 5400 rpm and 128MB buffer - ensures stable operation with continuous data recording.
- Maximum data transfer rate: 184 MB/s - efficient handling of multiple video streams.
- MTTF: 1,000,000 hours, 180 TB/year load - high reliability and durability for 24/7 operation.
- Shock sensor and RoHS compliance - ruggedness and safe operation in harsh environments.
- SMR (Shingled Magnetic Recording) technology - optimized for long-term recording.
Capture the largest possible area
The 2.8mm lens provides a wide field of view, ideal for monitoring large areas. The BCS-L-EIP14FSR3L3 camera can capture a wide scene with minimal blind spots. This configuration is particularly useful in areas that require extensive monitoring, such as parking lots, warehouses or public spaces, where it is important to capture as much of the environment as possible without the need for multiple cameras.
The 2.8mm lens provides a wide field of view, ideal for monitoring large areas. The BCS-L-EIP14FSR3L3 camera can capture a wide scene with minimal blind spots. This configuration is particularly useful in areas that require extensive monitoring, such as parking lots, warehouses or public spaces, where it is important to capture as much of the environment as possible without the need for multiple cameras.
High-quality image
A light-sensitive sensor and a high-quality sensor combined with advanced optics deliver high-quality images with excellent sharpness. The BCS-L-EIP14FSR3L3 records at 4Mpx resolution, giving it a significant advantage over typical FullHD models. It guarantees that even the smallest detail will be captured on the footage.
A light-sensitive sensor and a high-quality sensor combined with advanced optics deliver high-quality images with excellent sharpness. The BCS-L-EIP14FSR3L3 records at 4Mpx resolution, giving it a significant advantage over typical FullHD models. It guarantees that even the smallest detail will be captured on the footage.
- A: 1280x720p ( 1Mpx )
- B: 1920x1080p ( 2Mpx )
- C: 2048x1536p ( 3Mpx )
- D: 2560x1440p ( 4Mpx )
- E: 2560x1960p ( 5Mpx )
- F: 3840x2160p ( 8Mpx )
IP67 weatherproof design
This housing protects the BCS-L-EIP14FSR3L3 camera from external factors such as dust, dirt and moisture, which is especially important in industrial environments or dusty locations. Cameras with IP67 housings can be installed in a variety of locations, from industrial to marine, without worrying about environmental damage.
This housing protects the BCS-L-EIP14FSR3L3 camera from external factors such as dust, dirt and moisture, which is especially important in industrial environments or dusty locations. Cameras with IP67 housings can be installed in a variety of locations, from industrial to marine, without worrying about environmental damage.
Wide Dynamic Range - That is, high quality in difficult conditions
WDR (Wide Dynamic Range) 120 dB is an advanced technology used in video surveillance cameras such as the BCS-L-EIP18FCR3L3-AI1 to capture clear images in high contrast lighting conditions, where both bright and dark areas can occur simultaneously in the same scene. WDR 120 dB is a technology that combines two or more frames with different exposures into a single image. In practice, the camera captures two images - one with a short exposure time, which captures details in bright areas, and another with a longer exposure time, which captures details in dark areas. The camera's software then combines these images to produce a single, well-balanced frame in which all details are visible.
Benefits of WDR 120dB
WDR (Wide Dynamic Range) 120 dB is an advanced technology used in video surveillance cameras such as the BCS-L-EIP18FCR3L3-AI1 to capture clear images in high contrast lighting conditions, where both bright and dark areas can occur simultaneously in the same scene. WDR 120 dB is a technology that combines two or more frames with different exposures into a single image. In practice, the camera captures two images - one with a short exposure time, which captures details in bright areas, and another with a longer exposure time, which captures details in dark areas. The camera's software then combines these images to produce a single, well-balanced frame in which all details are visible.
Benefits of WDR 120dB
- Improved image quality: With clear details in both dark and bright parts of the image, WDR 120 dB technology eliminates the problem of so-called "burn-in" and "underexposure."
- Increased monitoring efficiency: Facilitates recognition of faces, license plates and other important elements, which is crucial for security analysis.
- Reduced need for backlighting: Less need for additional lighting, which can lead to energy savings and cost reductions.
Remote access from phone and desktop computer
BCS systems allow you to configure, control and view via apps that will provide you with constant access to monitoring from anywhere on earth with internet access. The above programs allow you to:
BCS systems allow you to configure, control and view via apps that will provide you with constant access to monitoring from anywhere on earth with internet access. The above programs allow you to:
- Access video preview and play back recorded footage
- Save parts of the video to your smartphone's memory
- Configure time frames for motion detection
- Receive notifications from motion detection or other events
- Share your device with other smartphones with the mobile app, such as family members or employees
D.O.R.I.
The DORI (Detection, Observation, Recognition, Identification) parameter is used to determine the ability of video systems, such as BCS-L-EIP14FSR3L3 cameras, to detect, observe, recognize and identify objects or people at specific distances. The values given for each of these four elements determine the effective range at which the system can perform each of these activities:
The DORI (Detection, Observation, Recognition, Identification) parameter is used to determine the ability of video systems, such as BCS-L-EIP14FSR3L3 cameras, to detect, observe, recognize and identify objects or people at specific distances. The values given for each of these four elements determine the effective range at which the system can perform each of these activities:
- Detection (64m): The system is able to detect the presence of an object or person at a distance of up to 64 meters. This means that at this distance you can tell that something is within the camera's range of view, but you can't necessarily determine what it is.
- Observation (25m): At distances of up to 25 meters, the system can not only detect an object, but also provide enough detail for the observer to get an idea of the general shape and perhaps some of the characteristics of the object, but without exact recognition.
- Recognition (13m): Recognition at a distance of up to 13m enables the system to provide enough detail for the observer to determine the type of object, for example, to distinguish whether it is a person, a car or another object.
- Identification (6m): At a distance of up to 6 meters, the system is able to provide a highly detailed image to identify specific features of an object or person, such as a face, vehicle license plate, etc., enabling accurate identification.
Reduce unnecessary noise
Key benefits:
3D DNR (3D Digital Noise Reduction) is an advanced noise reduction technology used in video surveillance cameras such as the BCS-L-EIP14FSR3L3, which improves image quality in difficult lighting conditions, especially at night or in low light. By eliminating noise, the technology produces clearer and more detailed images, which is crucial in situations requiring accurate video analysis. 3D DNR works by analyzing consecutive video frames and comparing pixels between them to detect and remove noise from the image. Unlike traditional two-dimensional noise reduction (2D DNR), which only analyzes noise within a single frame, 3D DNR takes into account both information from a single frame and differences between adjacent frames. This additional temporal analysis allows for more effective noise recognition and removal, while preserving image detail.
Key benefits:
- Enhanced image clarity: 3D DNR technology significantly improves image quality in low-light conditions, reducing grain and blur that often appears in video recordings. The result is a clearer and more readable image.
- Better compression and smaller file size: Noise in video can lead to larger file sizes through compression, as more data must be saved. 3D DNR, by reducing noise, allows for better compression and smaller file sizes, which is beneficial for long-term storage.
- Improved visibility of details: By reducing noise at night or in low-light conditions, 3D DNR helps identify fine details such as faces, license plates and other key elements, which is invaluable for evidence analysis.
- Minimizing ghosting: Unlike simpler noise reduction methods, 3D DNR minimizes the appearance of artifacts in the image, such as "ghosting" (the ghosting effect of objects moving in the frame). By analyzing multiple frames at once, the technology does a better job of eliminating these unwanted effects.
Microphone - a more complete picture of the situation
The BCS-L-EIP14FSR3L3 camera is equipped with a built-in microphone, which allows recording ambient sound and transmitting it simultaneously with the image. This allows not only visual monitoring, but also auditory monitoring, providing a more complete picture of the situation. This feature is particularly useful in areas requiring detailed surveillance, such as building entrances, stores or offices, where audio can provide additional information about events and improve the effectiveness of surveillance.
The BCS-L-EIP14FSR3L3 camera is equipped with a built-in microphone, which allows recording ambient sound and transmitting it simultaneously with the image. This allows not only visual monitoring, but also auditory monitoring, providing a more complete picture of the situation. This feature is particularly useful in areas requiring detailed surveillance, such as building entrances, stores or offices, where audio can provide additional information about events and improve the effectiveness of surveillance.
Automatic day/night mode
Adapted to work in all lighting conditions with visibility up to 30m even in total darkness. In addition, the Day/Night sensor switches the video mode automatically based on the amount of light reaching the lens.
Adapted to work in all lighting conditions with visibility up to 30m even in total darkness. In addition, the Day/Night sensor switches the video mode automatically based on the amount of light reaching the lens.
Technical specifications
| Product details - BCS-L-EIP14FSR3L3 | |
|---|---|
| Device name | BCS-L-EIP14FSR3L3 |
| Product line | BCS LINE |
| Camera type | Dome |
| Resolution | 4 Mpx (2560×1440) |
| Sensor | 1/2.9'' CMOS |
| Scanning system | Progressive Scan |
| RAM / ROM | 128MB / 128MB |
| Lens | Fixed, 2.8mm, F1.6 |
| Viewing angle | H: 94°, V: 52°, D: 111° |
| DORI | Detect 64m / Observe 25m / Recognize 13m / Identify 6m |
| Sensitivity | 0.006Lux (color) / 0.0006Lux (B/W) / 0Lux (IR) |
| Signal to noise ratio (S/N) | 56 dB |
| White balance | Auto / Manual (AWB) |
| WDR | 120 dB |
| Backlight compensation | BLC / HLC / WDR |
| Shutter | Auto / manual 1/3~1/100000s |
| Gain control | Auto / Manual (AGC) |
| Noise reduction | 3D DNR |
| Region of Interest (RoI) | Yes |
| Image rotation | Mirror, Flip 0°/180° |
| Number of streams | 2 |
| Resolutions | 4M, 3M, 2M, 1.3M, 720P, D1, VGA, CIF |
| Main stream | 2560×1440 (1~25/30fps) |
| Second stream | 704×576 (1~25fps), 704×480 (1~30fps) |
| Bitrate | H.264: 32-4096 kbps, H.265: 12-4096 kbps |
| Video compression | H.265, H.265+, H.264, H.264+, MJPEG |
| Day/Night | ICR - mechanical infrared filter |
| Illuminator | IR LED + WhiteLight |
| IR / WhiteLight range | 30 m / 30 m |
| Microphone | Yes |
| Audio compression | G.711A, G.711Mu, G.726, PCM |
| Support | Web, CMS BCS Manager (Windows/Linux/MAC), Mobile App (iOS, Android) |
| Motion detection / Privacy masks | 4 / 4 |
| Networking | RJ-45 10/100 Mbps |
| Compatibility | ONVIF (S/T) |
| Protocols | IPv4, IPv6, HTTP, TCP, UDP, ARP, RTP, RTSP, RTCP, RTMP, SMTP, FTP, DHCP, DNS, DDNS, NTP, Multicast, ICMP, IGMP |
| Power supply | 12VDC / PoE (802.3af) |
| Power consumption | max 5.7W |
| Housing color | White |
| Degree of protection | IP67 |
| Operating conditions | -40°C ~ +60°C, max 95% RH |
| Dimensions | Ø106×94 mm |
| Weight | 0.33 kg |
Technical specification of the DVR:
| BCS-L-NVR0801-4KE(2) | |
|---|---|
| Device name | BCS-L-NVR0801-4KE(2) |
| Product Line | BCS Line |
| System | IP |
| Pentaplex function | Live viewing / recording / playback / archiving / remote access |
| Channels | 8 |
| Drives | 1 (not included) |
| Disk capacity | 16 TB |
| Max recording resolution | 16 Mpx |
| Input bandwidth | 80 Mbps |
| Output bandwidth | 80 Mbps |
| Display capacity | 2×16M(30fps) / 2×12M(30fps) / 4×8M(30fps) / 6×5M(30fps) / 8×4M(30fps) / 1×16M Ai(30fps) / 2×12M Ai(30fps) / 3×8M Ai(30fps) / 4×5M Ai(30fps) / 6×4M Ai(30fps) / 8×2M Ai(30fps) |
| Recording resolution | 16M / 12M / 8M / 6M / 5M / 4M / 3M / 2M / 1.3M / 720P / D1 / CIF |
| Video compression | H.265+ / H.265 / H.264+ / H.264 / MJPEG |
| Video outputs | HDMI 4K / VGA |
| HDMI resolution | 3840×2160 / 1920×1080 / 1280×1024 / 1280×720 / 1024×768 |
| VGA resolution | 1920×1080 / 1280×1024 / 1280×720 / 1024×768 |
| Output split | 1 / 4 / 8 / 9 |
| Playback | 1 / 4 / 8 / 9 |
| Archiving | Ripping of material to USB FLASH media, USB HDD |
| Audio input | 1 |
| Audio output | 1 |
| Audio compression | G.711A / G.711U / G.726 / PCM |
| Support | Local, Web Service, CMS BCS Manager (Windows/Linux/MAC), Mobile App (iOS, Android) |
| Networking | RJ-45 10/100 Mbps |
| Compatibility | ONVIF(S/G/T), support for third-party cameras |
| Protocols | HTTP, HTTPS, TCP/IP, IPv4/IPv6, UPnP, SNMP, UDP, SMTP, NTP, DHCP, DNS, IP Filter, PPPoE, DDNS, FTP, Alarm Server, IP Search, P2P, auto register |
| Power supply | 12V DC |
| Power consumption (without drives) | max 10W |
| Operating conditions | -10°C ~ +55°C, max 93% RH |
| Housing | 1U |
| Dimensions (W×D×H) | 260×232.5×50.3 mm |
| Weight (without drives) | 0.84 kg |
| AI - Functions from the recorder | Face detection, face identification, perimeter protection (person/vehicle), SMD Plus |
| AI - Functions from cameras | As above + person counting, ARTR, heat map |
| AI - Perimeter protection | 2 channels from DVR, 10 rules per channel / 8 channels from cameras |
| AI - Face detection | 1 channel from DVR (12 images/s), 8 channels from cameras, attributes: gender, age, glasses, expression, mask, facial hair |
| AI - Face identification | 8 detection channels from cameras + identification from DVR (12 images/s) 1 detection channel + identification from DVR (12 images/s) 8 identification channels from cameras up to 10 face databases, 20,000 images, up to 2.5 GB |
| AI - SMD | 4 channels from DVR / 8 channels from cameras |
Szczegóły dotyczące zgodności produktu z przepisami: Osoba odpowiedzialna za produkt
Odpowiedzialność za produkt
BCS Sp.z o.o.
ul. Modularna 11 (Hala IV)
02-238 Warszawa
info@bcs.pl
Similar products in this category
Quick online quote
Use our calculators for a quote. Fill in the form - Our consultants will prepare a dedicated offer
-
Quote form
Use our tool for a monitoring quote, provide basic information and receive the offer directly to your email
See
-
Quote form
Check how much the installation of an alarm costs, provide basic information and receive the offer directly to your email
See
-
Quote form
Quote an access control system in any facility. to specific zones and areas using any identification
See
-
Quote form
Get a quote for the costs of a double-leaf, sliding, garage gate for your building or property
See
Our recommendations
- City monitoring
- Home monitoring
- Estate monitoring
- Shop monitoring
- Pharmacy monitoring
- Parking monitoring
- Office monitoring
- School monitoring
- Warehouse monitoring
- Gas station monitoring
- Hard drive capacity calculator
- Lens focal length calculator
- Comprehensive expert support
- Efficient order processing
- Competitive prices, promotions, and discounts
- 17 years on the market
