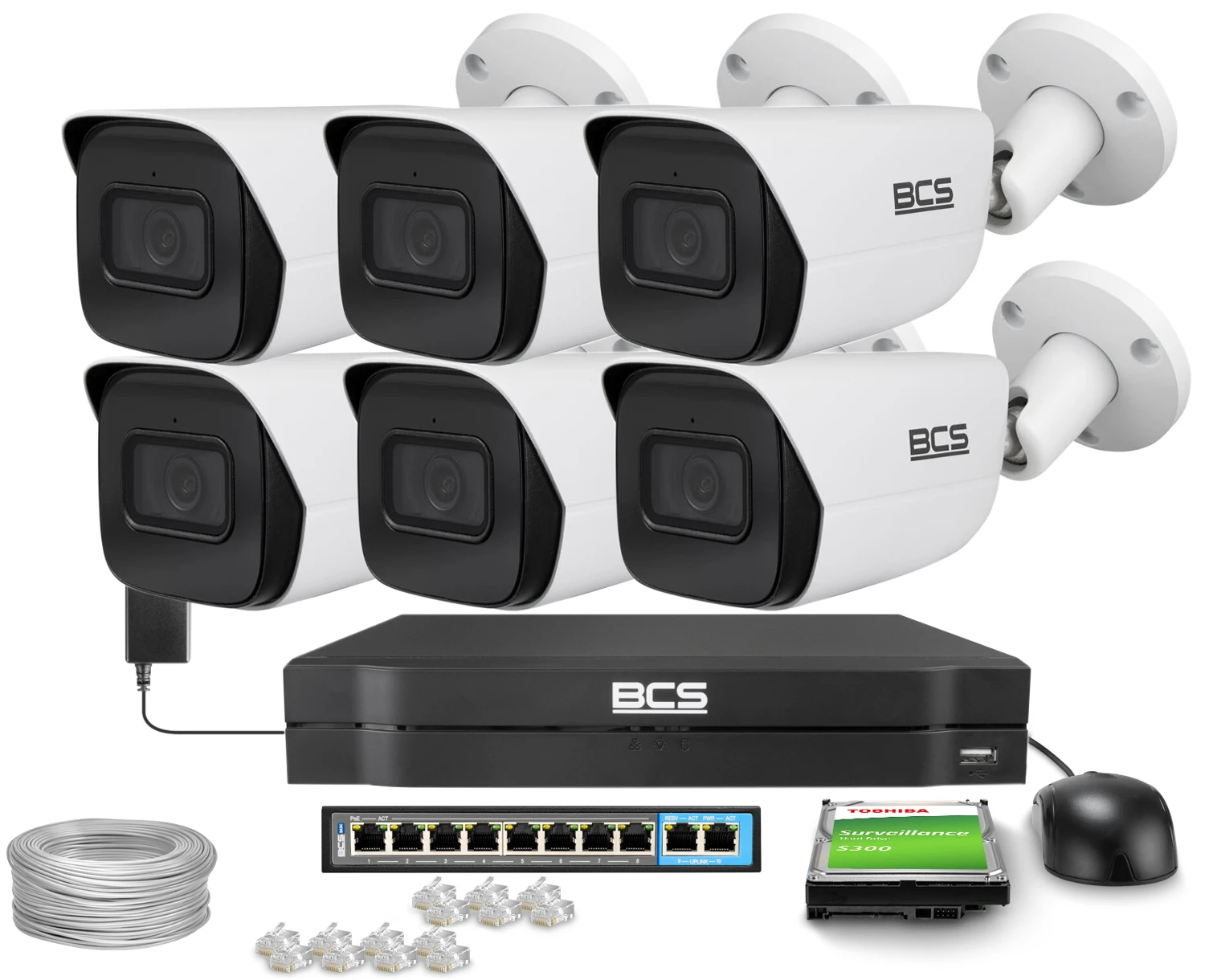

Zestaw do monitoringu IP 6x BCS-L-TIP25FSR5-AI2 5Mpx, AcuPick, SkyLight, funkcje inteligentne
Photo gallery
-
Manufacturer
-
Product Code
ZM35530
-
Warranty
36 miesięcy
- Technology: IP
- Resolution: 5Mpx
- Enclosure: Tube
- Night visibility: up to 50m
- Number of cameras: 6
- Connectivity: Wired
- Memory card slot: Yes
- Audio: Yes
- Color: White
Ask about this product show form
Product Description
Main features:
|
|
The BCS-L-TIP25FSR5-Ai2 camera is an advanced device with 5 Mpx resolution, 16x digital zoom, and wide viewing angle. It features intelligent image analysis functions, motion detection, face detection, vehicle detection and more. H.265+ compression saves network bandwidth. Weatherproof (IP67) and supports microSD card up to 512GB.
Technical specifications:
| Device Name | BCS-L-TIP25FSR5-Ai2 |
| Product line | BCS Line |
| Camera type | Tube |
| Resolution | 5 Mpx |
| Sensor | 1/2.7'' |
| Scanning system | Progressive Scan |
| Pixels | 2960(H)×1668(V) |
| RAM | 1GB |
| ROM | 4GB |
| Lens | fixed |
| Focal length | 2.8mm |
| Aperture | F1.6 |
| Focus | Fixed |
| Iris | Fixed |
| Digital zoom | 16× |
| Viewing angle | H: 111° V: 58° D: 132° |
| DORI | Detect 64m/ Observe 25m/ Recognize 13m/ Identify 6m |
| Sensitivity of camera | 0.0009Lux(F1.6,30IRE) 0.0005Lux(F1.6,B/W,30IRE) 0Lux(IR) |
| S/N ratio | 56dB |
| White balance | (AWB) Auto / manual |
| WDR | 120dB |
| Backlight compensation | BLC / HLC / WDR(120dB) |
| Shutter | Auto / manual 1/3~1/100000s |
| Gain control | (AGC) Auto / manual |
| Noise reduction | 3D DNR |
| Image rotation | Mirror, Flip 0°/90°/180°/270° |
| Number of streams | 4 |
| Resolutions | 5M(2960×1668)(2880×1620) / 4M(2688×1520)(2560×1440) / 3M(2048×1536)(2304×1296) / 2M(1920×1080) / 1.3M(1280×960) / 720P(1280×720) / D1(704×576/704×480) / VGA(640×480) / CIF(352×288/352×240) |
| Main stream | 2960×1668(1~25/30fps) |
| Second stream | 704×576/704×480(1~25/30fps) |
| Third stream | 1920×1080(1~25/30fps) |
| Fourth stream | 1280×720(1~25/30fps) |
| Bitrate | H264: 32Kbps~16384Kbps H265: 12Kbps~11776Kbps |
| Video compression | H.265+ / H.265 / H.264+ / H.264 / MJPEG / Ai Coding |
| Day/Night | ICR |
| Illuminator type | IR |
| Illuminator | 50m |
| Microphone | Yes |
| Audio input | 1 |
| Audio output | 1 |
| Audio compression | G.711A / G.711Mu / G.723 / G.726 / PCM |
| Alarm input | 1 |
| Alarm output | 1 |
| Memory card slot | microSD 512GB |
| Support | Web Service, CMS BCS Manager (Windows/Linux/MAC), Mobile App(iOS, android) |
| Motion detection | 4 |
| Privacy masks | 8 |
| Networking | RJ-45 10/100 Mbps |
| Compatibility | ONVIF(S/G/T) |
| Protocols | IPv4, IPv6, HTTP, TCP, UDP, ARP, RTP, RTSP, RTCP, RTMP, SMTP, FTP, SFTP, DHCP, DNS, DDNS, QoS, UPnP, NTP, Multicast, ICMP, IGMP, NFS, SAMBA, PPPoE, SNMP, P2P |
| Power supply type | 12VDC / PoE(802.3af) / ePoE |
| Power consumption | max. 8.3W |
| Housing color | White |
| IP protection class | IP67 |
| Operating conditions | -40°C~+60°C max 95% RH |
| Dimensions | 192.7×70.5×66.4mm |
| Weight | 0.59 kg |
| Ai - Built-in intelligent functions | Built-in intelligent image recognition and analysis algorithms |
| Ai - Perimeter protection | Area intrusion, line crossing, rapid movement, loitering, crowd detection, parking detection |
| Ai - Object recognition | Person/vehicle recognition for area intrusion, line crossing and rapid movement reduces false alarm triggering. |
| Ai - Intelligent object detection | Intelligent detection of lost/left objects |
| Ai - Face detection | Face detection and tracking, face photo, facial attribute and expression recognition |
| Ai - People counting | People counting for line trespassing/intrusion into an area, entry, exit and stay counting, monitoring and management of people queue, generation and export of reports in time periods. |
| Ai - Metadata | Person attributes (gender, clothing, color, bag, headgear, umbrella), facial attributes (gender, age, expression face, glasses, mask, beard), vehicle attributes (type, color, logo, seat belts, smoking, phone) |
| Ai - Heat map | Recording movement of objects over a period of time, temporal density statistics of movement presented graphically in red/blue color shades |
| Ai - SMD | SMD 3.0 |
