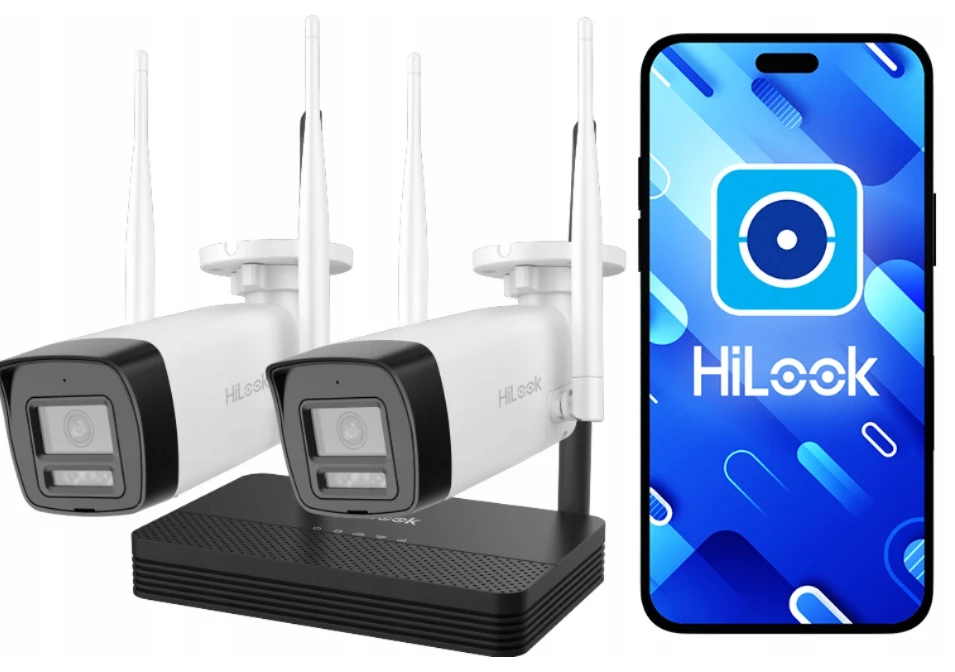

HiLook by Hikvision EasyLink Wi-Fi Monitoring Kit WIFIKIT-B4-4CH

Set of 2 Wi-Fi cameras with NVS HiLook by Hikvision EASYLINK WIFIKIT-B4-4CH DVR

✅ 4Mpx ✅ Hybrid Light ✅ Microphone ✅ Silhouette detection ✅

Kit contents:

• 2x HiLook by Hikvision WIFICAM-B4 camera
• 1x HiLook By Hikvision NVS DVR
• 2x power supply for the cameras
• 1x power supply for the DVR

The system can only be expanded with WiFi cameras compatible with the NVS DVR, such as models: WIFICAM-B2, WIFICAM-B4, WIFICAM-T2, WIFICAM-T4 and WIFICAM-PT4. The device does not include a memory card in the kit.

Main features of EASYLINK WIFIKIT-B4-4CH HiLook by Hikvision sets:

• High-quality recordings - 4 Mpx (2560x1440p) cameras at 25 fps provide detailed images.
• Wide Viewing Angle - a field of view of approximately 94° ensures excellent visibility and wide coverage.
• Smart Link function - automatic configuration of Wi-Fi cameras with NVS DVR, simplifying the installation process.
• Wireless installation - quick and easy without the need to run wires.
• SD card recording - support for cards up to 512 GB (card sold separately).
• Intelligent AI features - such as Smart-hybrid Light and human silhouette detection, increase monitoring efficiency.
• Remote viewing and configuration - access via Hik-Connect and IVMS-4200 apps.
• Infrared and color recording - Smart-hybrid Light technology provides excellent illumination at night.
• Motion detection - automatic notifications and recording of key events.
• Two-way audio transmission - cameras can record audio and broadcast voice messages.
• Wi-Fi 6 support - increased speed and stability of data transmission.
• Light signal function - additional element to deter intruders.
• Built-in microphone and speaker - sound recording and voice communication.
• System expandable up to 4 cameras - flexibility to expand as needed.
• Weatherproof - IP66-rated housing allows both indoor and outdoor installation.
• Ready-to-use - units are pre-configured and ready for use immediately out of the box.
• Energy efficient and quiet operation - the NVS unit operates extremely quietly, saving recordings to a microSD card with minimal power consumption.

New wireless quality

Wi-Fi 6 (802.11ax) in surveillance systems offers higher bandwidth and stable connections, allowing high-definition video to be transmitted with lower latency, even with a large number of connected devices. In addition, Wi-Fi 6 improves energy efficiency, which can reduce their power requirements.

Remote access from desktops and smartphones The mobile app is a quick and easy way to operate your property's video surveillance system, allowing you to:   ✅Access the video preview and play back the recorded footage ✅Save parts of the video to your smartphone memory ✅Configure time frames for motion detection ✅Receive notifications from motion detection or other events ✅Share your devices with other smartphones with the mobile app, such as family members or employees



CAMERAS



Camera	WIFICAM-B4
Camera
Image sensor	1/2.7" CMOS Progressive Scan
Maximum resolution	2560 x 1440
Minimum illumination	Color: 0.005 Lux (at F1.6, AGC ON), B/W: 0 Lux with IR
Shutter time	1/3 s to 1/100,000 s
Day & Night Mode	IR filter
Angle adjustment	Pan: 0° to 360°, Tilt: 0° to 90°, Rotation: 0° to 360°
Lens
Lens type	Fixed lens, 2.8
Focal Length & Field of View (FOV)	2.8 mm, horizontal FOV 94°, vertical FOV 49°, diagonal FOV 114°.
Aperture	F1.6
Lens mount	M12
Aperture type	Fixed
Depth of field	2.8 mm: 1.3 m to ∞
DORI (Detection, Observation, Recognition, Identification)
DORI	D: 68m, O: 27m, R: 13m, I: 5m
Illumination
Auxiliary light type	IR, White light
IR wavelength	850 nm
Range of auxiliary light	Up to 30 m
Intelligent auxiliary light	Yes
Video
Main beam	50 Hz: 20 fps (2560 × 1440, 1920 × 1080, 1280 × 720) 60 Hz: 20 fps (2560 × 1440, 1920 × 1080, 1280 × 720)
Secondary stream	50 Hz: 20 fps (768 × 432) 60 Hz: 20 fps (768 × 432)
Video compression	Main stream: H.265/H.264 Secondary stream: H.265/H.264/MJPEG
Video bit rate	32 Kbps to 8 Mbps
H.264 Type	Baseline Profile, Main Profile, High Profile
Type H.265	Main Profile
Bit rate control	CBR, VBR
Region of Interest (ROI)	1 fixed region for the main stream
Audio
Audio type	Mono audio
Audio compression	G.711(ulaw)/ (AAC-LC)
Audio bit rate	64 Kbps (G.711ulaw)/16 to 64 Kbps (AAC-LC)
Audio sampling	8 kHz/16 kHz
Environmental noise filtering	Yes
Networking
Security	Password protection, complex password, watermark, basic and digest authentication for HTTP, WSSE and digest authentication for Open Network Video Interface, security audit, log, host authentication (MAC address)
Simultaneous live viewing	Up to 6 channels
API
API	ONVIF (Profile S, Profile G, Profile T), ISAPI, SDK
Protocol
Protocols	TCP/IP, ICMP, DHCP, DNS, HTTP, HTTPS, RTP, RTCP, RTSP, NTP, IGMP, IPv4, IPv6, UDP, QoS, UPnP
User/Host
Users	Up to 32 users
User levels	Administrator, operator and user
Client
Client	iVMS-4200, Hik-Connect
Web browser
Browser	Local services: IE 11, Chrome 57.0+, Firefox 52.0+, Edge 89+
Wi-Fi
Wi-Fi protocol	IEEE802.11b, IEEE802.11g, IEEE802.11n
Frequency range	2.4 GHz to 2.4835 GHz
Channel bandwidth	20/40 MHz
Modulation	802.11b: CCK, QPSK, BPSK 802.11g: QPSK, BPSK,16QAM, 64QAM 802.11n: QPSK, BPSK,16QAM, 64QAM
Transfer speed	11n: up to 300 Mbps
Image parameter switch	Yes
Wide Dynamic Range (WDR)	Digital WDR
SNR	≥ 52 dB
Day/Night switch	Day, Night, Auto, Schedule
Image enhancement	BLC, HLC, 3D DNR
Image settings	Saturation, brightness, contrast, sharpness, gain, white balance, adjustable via client software or web browser
Privacy mask	4 programmable polygonal masks
Interface
Built-in microphone	Yes
Reset button	Yes
Ethernet interface	1 RJ45 10 M/100 M self-adaptive Ethernet port
Events
Basic event	Motion detection (support for alarm triggering by specific types of targets such as human and vehicle), exceptions
Links	Monitoring center notification, emailing, recording trigger, capture trigger, warning sound
General
Power supply	12 VDC ± 25%, 0.5 A, max. 6 W, 5.5 mm coaxial plug, reverse polarity protection (*power adapter included)
Material	Base: Plastic Front cover: Metal Rear cover: Plastic
Dimensions	260.9 mm × 113.9 mm × 67.4 mm (10.3" × 4.5" × 2.7")
Packaging dimensions	300 mm × 130 mm × 100 mm (5.1" × 4.9" × 4.9")
Weight	310 g (0.68 lb.)
Weight with packaging	Approximately 550 g (1.21 lb.)
Storage conditions	-30 °C to 60 °C (-22 °F to 140 °F), Humidity 95% or less (non-condensing)
Commissioning and operating conditions	-30 °C to 60 °C (-22 °F to 140 °F), Humidity 95% or less (non-condensing)
Language	Polish
General functions	Heartbeat, damage protection, mirror, password protection

NVS



DVR
Video and Audio
IP video input	4-channel
Incoming/outgoing bandwidth	20 Mbps/20 Mbps
Decoding
Video resolution	6 MP/5 MP/4 MP/3 MP/1080p/UXGA/720p/VGA/4CIF/DCIF/2CIF/CIF/QCIF
Synchronous playback	1-channel
Network
Network interface	1, RJ45 10/100M Ethernet
Wi-Fi
Frequency band	2.4 GHz
Antenna structure	High gain antenna
Transmission speed	150 Mbps
Transmission standard	IEEE 802.11b/g/n/ax
Additional interface
SD card	32GB/64GB/128GB/256GB/512GB
General
Power supply	12 VDC
Power consumption	(without HDD and PoE disabled): ≤ 6 W
Operating temperature	-10 °C to 55 °C (14 °F to 131 °F)
Operating humidity	10% to 90%
Dimensions (S x G x W)	163 x 125 x 26 mm (6.4" x 4.9" x 1.0")
Weight	(without hard disk): ≤ 500 g
