Kamera do monitoringu IP Dahua IPC-HDW1839T-A-IL-0280B-S6 Smart Dual Light 8 Mpx 2.8mm Dahua

Manufacturer
Product Code

ZM35644
Warranty

24 miesiące

Technology: IP
Resolution: 8Mpx
Enclosure: Dome
Night visibility: up to 30m
Number of cameras: 4
Connectivity: Wired
Color: White

see description

Ask about this product show form

Save -67%

Availability: in stock Shipping 24h

Price (Incl. VAT):

84,77 € 258,44 €

Add to Watchlist

Do you represent a budgetary unit?
Check out the deferred payment option.

Product Description

Kit contents:

4x 6Mpx dome camera - IPC-HFW1639TC-A-IL-0280B-S6
1x IP DVR with 4 video channels - NVR2104-4KS3 Dahua
1x Toshiba S300 1TB hard drive from Surveillance series, dedicated to CCTV solutions
1x 4 port PoE switch
UTP cat.5e cable ( 20m )
Sticker "Attention Object Monitored" ( 1pc ).
Set of RJ45 plugs
Template - Small size template with camera mounting holes
Screws and mounting studs - Everything you need to mount the camera
Sealing kit - A set of accessories to protect the camera connectors from moisture

Dahua products focus on ease of use, literally anyone can handle the installation and configuration with the included instructions.

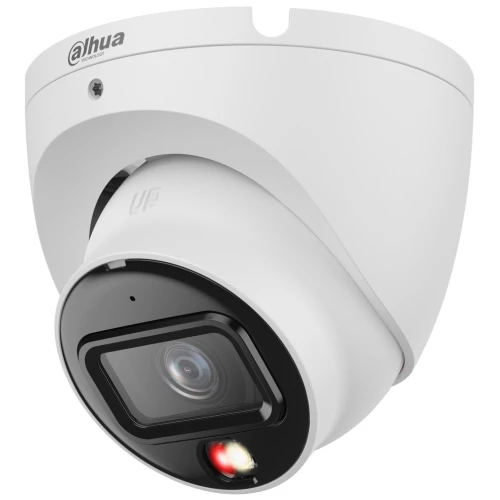

Main features of the camera:

Standard: IP
Image resolutions:
3200 x 1800 (6 Mpx)
2880 x 1620 (4.7 Mpx)
2688 x 1520 (4 Mpx)
2048 x 1536 (3 Mpx)
2304 x 1296 (3 Mpx)
1920 x 1080 (1080p)
1280 x 960 (1.3 Mpx)
1280 x 720 (720p)
Sensor: 1/2.7" Progressive Scan CMOS
Lens: 2.8 mm
Viewing angle: 110°
Illuminator range:
IR: 30 m
White light (LED): 30 m
Audio:
Built-in microphone
Audio transmission over the network
Audio detection
Intelligent image analysis functions:
Human detection
Smart Dual Light (automatically turns on white light when object is detected)
Motion detection (4 configurable zones)
Privacy zones (max. 4)
Additional image features:
D-WDR (wide dynamic range lighting)
3D-DNR (digital noise reduction)
ROI (enhancement of selected parts of the image)
BLC/HLC (backlight/strength compensation)
Power supply:
PoE (802.3af)
12 V DC

IP camera with efficient H.264 / H.265 image compression algorithm for cleaner and smoother video transmission at a maximum resolution of 6 Mpx. The device is equipped with Smart Dual Light technology, which gives the user a choice of white light mode and IR (infrared) mode.

When Smart Dual Light is active, the white light will automatically turn on only when an object is detected in the monitored area, effectively improving image quality.

The possibility of PoE power supply, according to the 802.3af standard, makes the device even more versatile and easier to install

Capture the largest possible area

The 2.8mm lens provides a wide field of view, ideal for monitoring large areas. With a 111° viewing angle, the IPC-HDW2849TM-S-IL-0280B camera can capture a wide scene with minimal blind spots. This configuration is particularly useful in areas requiring wide surveillance, such as parking lots, warehouses or public spaces, where it is important to capture as much of the environment as possible without the need for multiple cameras.

High-quality image

The light-sensitive sensor and high-quality sensor combined with advanced optics deliver high-quality images with excellent sharpness. The IPC-HFW1639TC-A-IL-0280B-S6 records at 6Mpx resolution, giving it a significant advantage over typical FullHD models. It guarantees that even the smallest detail will be captured on the footage.

A: 1280x720p ( 1Mpx )
B: 1920x1080p ( 2Mpx )
C: 2048x1536p ( 3Mpx )
D: 2560x1440p ( 4Mpx )
E: 2560x1960p ( 5Mpx )
F: 3200 x 1800 ( 6 Mpx )
G: 3840x2160p ( 8Mpx )

Main features of the DVR:

Video inputs: 4 IP channels
Video outputs: 1x VGA, 1x HDMI (4K UHD)
Maximum recording resolution: 12 Mpx / 8 Mpx (with AI features)
Maximum bitrate: 80 Mbps (input), 80 Mbps (recording), 60 Mbps (output)
Compression formats: H.265+, H.265, H.264+, H.264, MJPEG
Audio input/output: 1x RCA (input), 1x RCA (output)
Network interface: Ethernet RJ45 10/100 Mbps
Disk support: 1x SATA HDD (up to 20 TB)
AI functions: object classification (human/vehicle) on 4 channels
SMD+: classification with false alarm filtering
Audio recording: from up to 4 IP cameras
Window splitting in local mode: 1 or 4
Arming and disarming: one click
Supported protocols: ONVIF, CGI, SDK, P2P

IP DVR with 4 video channels, VGA and HDMI (4K UHD) outputs, supporting up to 12 Mpx recording. Equipped with AI (object classification, SMD+) functions, audio recording from 4 cameras, and support for SATA drive up to 20 TB. H.265+/H.265/H.264+/H.264/MJPEG compression, ONVIF, CGI, SDK and P2P protocols.

Features of Toshiba S300 Surveillance 1TB drive.

The Toshiba S300 Surveillance 1TB drive is designed for surveillance, providing reliable storage space.
It is available in a 3.5-inch format, making it easy to install in standard enclosures.
It features a SATA 6 Gbps interface for fast data transfer.
It operates at 5,700 RPM, which optimizes its performance in monitoring systems.
The drive has a 64MB cache (buffer), which speeds up read and write operations.
It was designed specifically for use in monitoring systems and supports simultaneous recording from up to 64 high-definition cameras.
The drive is designed for continuous operation, which means reliable 24/7 operation.
Dynamic Cache technology allows for optimal cache management in the data read and write cycle.

IP67 weatherproof design

This housing protects the IPC-HDW2849TM-S-IL-0280B camera from the elements, such as dust, dirt and moisture, which is especially important in industrial or dusty environments. IP67-enclosed cameras can be installed in a variety of locations, from industrial to marine, without worrying about environmental damage.

Microphone - a fuller picture of the situation

The IPC-HFW1639TC-A-IL-0280B-S6 camera is equipped with a built-in microphone, which allows it to record ambient sound and transmit it simultaneously with the image. This allows not only visual monitoring, but also auditory monitoring, providing a more complete picture of the situation. This feature is particularly useful in areas requiring detailed surveillance, such as building entrances, stores or offices, where audio can provide additional information about events and improve the effectiveness of surveillance.

Have continuous access to your cameras

Dahua systems allow you to configure, control and view using DMSS and SmartPSS applications that will provide you with continuous access to your surveillance from anywhere on earth with internet access. The above programs allow you to:

Access video previews and play back recorded footage
Save portions of the video to your smartphone's memory
Configure time frames for motion detection
Receive notifications from motion detection or other events
Share your device with other smartphones with the mobile app, such as family members or employees

Motion detection

Motion detection in IPC-HFW1639TC-A-IL-0280B-S6 cameras is an advanced feature that allows to increase the precision and efficiency of monitoring systems. It allows the camera to classify notifications according to the type of silhouette detected. At the same time providing more detailed information, but also completely filtering out irrelevant ones such as: Moving trees and bushes.

Wide Dynamic Range - That is, high quality in difficult conditions

WDR (Wide Dynamic Range) 120 dB is an advanced technology used in video surveillance cameras such as the IPC-HFW1639TC-A-IL-0280B-S6 to capture clear images in high contrast lighting conditions, where both bright and dark areas can occur simultaneously in the same scene. WDR 120 dB is a technology that combines two or more frames with different exposures into a single image. In practice, the camera captures two images - one with a short exposure time, which captures details in bright areas, and another with a longer exposure time, which captures details in dark areas. The camera's software then combines these images to produce a single, well-balanced frame in which all details are visible.

Benefits of WDR 120dB

Improved image quality: With clear details in both dark and bright parts of the image, WDR 120 dB technology eliminates the problem of so-called "burn-in" and "underexposure."
Increased monitoring efficiency: Facilitates recognition of faces, license plates and other important elements, which is crucial for security analysis.
Reduced need for backlighting: Less need for additional lighting, which can lead to energy savings and cost reductions.

Reduce unnecessary noise

3D DNR (3D Digital Noise Reduction) is an advanced noise reduction technology used in video surveillance cameras such as the IPC-HFW1639TC-A-IL-0280B-S6, which improves image quality in difficult lighting conditions, especially at night or in low light. By eliminating noise, the technology produces clearer and more detailed images, which is crucial in situations that require accurate video analysis. 3D DNR works by analyzing consecutive video frames and comparing pixels between them to detect and remove noise from the image. Unlike traditional two-dimensional noise reduction (2D DNR), which only analyzes noise within a single frame, 3D DNR takes into account both information from a single frame and differences between adjacent frames. This additional temporal analysis allows for more effective noise recognition and removal, while preserving image detail.

Main advantages:

Enhanced image clarity: 3D DNR technology significantly improves image quality in low-light conditions, reducing grain and blur that often appears in video recordings. The result is a clearer and more readable image.
Better compression and smaller file size: Noise in video can lead to larger file sizes through compression, as more data must be saved. 3D DNR, by reducing noise, allows for better compression and smaller file sizes, which is beneficial for long-term storage.
Improved visibility of details: By reducing noise at night or in low-light conditions, 3D DNR helps identify fine details such as faces, license plates and other key elements, which is invaluable for evidence analysis.
Minimizing ghosting: Unlike simpler noise reduction methods, 3D DNR minimizes the appearance of artifacts in the image, such as "ghosting" (the ghosting effect of objects moving in the frame). By analyzing multiple frames at once, the technology does a better job of eliminating these unwanted effects.

How does ROI work?

The ROI function allows you to define one or more areas in the field of view of the IPC-HFW1639TC-A-IL-0280B-S6 camera that are particularly important to monitor, such as entrances, cash registers, or high-traffic areas. In these designated regions, the camera can capture images at a higher resolution and bitrate, providing more detail. The rest of the frame, less relevant to the user, can be recorded at a lower resolution, saving bandwidth and disk space.

Hide what shouldn't be visible

Privacy masks are a feature that allows you to tailor the operation of the surveillance system to the specific spatial conditions and security needs of the area. Using privacy masks, you can freely designate areas in the frame that will not be covered by video surveillance, providing greater privacy protection.

Efficient storage

H.265+ encoding, also known as High Efficiency Video Coding (HEVC+), is an advanced video compression technology used in modern surveillance systems. It is an extension of the H.265/HEVC standard, providing even higher compression efficiency than its predecessors. The main features of H.265+ coding in surveillance DVRs are:

Higher Compression Efficiency: H.265+ makes it possible to significantly reduce the size of video files while maintaining the same image quality. This saves disk space and increases the storage time of recordings.
Energy Savings: More efficient compression reduces the CPU load, resulting in lower power consumption of surveillance equipment.

Technical specifications:

Standard:	IP
Resolution:	3200 x 1800 - 6 Mpx, 2880 x 1620 - 4.7 Mpx, 2688 x 1520 - 4 Mpx, 2048 x 1536 - 3 Mpx, 2304 x 1296 - 3 Mpx, 1920 x 1080 - 1080p, 1280 x 960 - 1.3 Mpx, 1280 x 720 - 720p
Sensor:	1/2.7 " Progressive Scan CMOS
Lens:	2.8 mm
Viewing angle:	110 °
IR illuminator range:	30 m
White light (LED) illuminator range:	30 m
Signal-to-noise ratio (S/N):	> 56 dB
Memory card slot:	No
Video compression method:	H.265+ / H .265 / H.264+ / H. 264 / MJPEG
Alarm inputs / outputs:	No
Audio:	Built-in microphone Audio transmission over network Audio detection
Main stream bit rate:	20 fps @ 6 Mpx 25 fps @ 4 Mpx
Network interface:	10/100 Base-T (RJ-45)
WEB Server:	Built-in
Max. number of online users:	6
ONVIF:	Yes
Cell phone access:	Port: 37777 or access via cloud (P2P) Android: Free DMSS app iOS (iPhone): Free DMSS app
Default IP address:	192.168.1.108
Default admin login / password:	admin / - Administrator password should be set on first startup
Web access ports:	80, 37777
Access ports via PC application:	37777
Access ports via mobile app:	37777
ONVIF port:	80
RTSP URL:	rtsp://admin:hasło@192.168.1.108:554/cam/realmonitor?channel=1&subtype=0 - Main stream rtsp://admin:hasło@192.168.1.108:554/cam/realmonitor?channel=1&subtype=1 - Secondary stream
Intelligent image analysis:	Human detection
Selected features:	When Smart Dual Light is active, the white light will automatically turn on only when an object is detected in the monitored area, effectively improving image quality D-WDR - Wide dynamic range of illumination 3D-DNR - Digital noise reduction in the image ROI - improving the quality of selected parts of the image BLC/HLC - background light / strong light compensation Possibility to change resolution, quality and bandwidth Image rotation and mirroring Motion detection - up to 4 configurable zones Privacy zones - max. 4
Power supply:	PoE (802.3af), 12 V DC / 330 mA
Power consumption:	≤ 4 W @ 12 V DC ≤ 5.3 watts @ PoE
Housing:	Compact - Metal
Color:	White + Black
Protection class:	IP67
Mechanical protection class:	No
Operating temperature :	-40 °C ... 60 °C
Weight:	0.44 kg
Dimensions:	173 x 70 x 70 mm
Supported languages:	Polish, English, Czech, French, Spanish, Dutch, German, Russian, Portuguese, Romanian, Turkish, Ukrainian, Hungarian, Italian.
Manufacturer/Brand:	Dahua

Technical specification of the DVR:

Standard:	TCP/IP
Supported resolutions:	max. 12 Mpx - 4000 x 3000 px
Video outputs:	1 pcs. HDMI 4K 1 pcs. VGA
Audio support:	4 Channels - Audio from cameras Two-way audio support
Audio inputs:	1 pc. CINCH
Audio outputs:	1 pcs. CINCH
Video compression method:	Smart H.265+ / H.265 / Smart H.264+ / H.264 / MJPEG
Bitrate:	max. 80 Mbps
Supported hard drives:	1 x 20 TB SATA
Recording modes:	Manual, motion detection, schedule
Archiving to external media:	Archiving to USB drive (flash drive, external drive)
Search and playback of recordings:	Search for recordings by time and event type. Playback: forward, reverse, speed up, slow down the recording Advanced search (every second) Smart Playback function Simultaneous playback of recordings from up to 4 cameras
Network interface:	1 x RJ-45 10/100 Base-TX
Network functions:	Full network support, Remote copy of recordings, Built-in web server
Network protocols:	HTTP, HTTPS, TCP/IP, IPv4/IPv6, UPnP, SNMP, UDP, NTP, DHCP, DNS, SMTP, IP Filter, DDNS, IP Search, P2P, Auto Register
ONVIF:	22.12
Default IP address:	192.168.1.108
Default admin login / password:	admin / - Administrator password should be set on first startup
Access from cell phone:	Port: 37777 or access via cloud (P2P) Android: Free DMSS app iOS (iPhone): Free DMSS app See the video on how to set up P2P on Dahua DVRs and how to enable the mobile app
Web access ports:	80, 37777
Access ports via PC app:	37777
Access ports via mobile app:	37777
RTSP URL:	rtsp://admin:hasło@192.168.1.108:554/cam/realmonitor?channel=1&subtype=0 - Main stream rtsp://admin:hasło@192.168.1.108:554/cam/realmonitor?channel=1&subtype=1 - Auxiliary stream
USB:	2 pcs. USB 2.0
Serial ports:	No
Alarm inputs / outputs:	No
PTZ head control:	IP Speed Dome cameras.
Motion detection:	Yes
Intelligent Image Analysis:	Yes
Selected features:	SMD PLUS - search for object classified as: person, motor vehicle Filtering of false alarms based on recognition of people and vehicles Video tampering Functions implemented when the DVR cooperates with cameras supporting these functions : Advanced perimeter protection functions: intrusion, line crossing with separate rules for vehicles and pedestrians
Mouse operation:	Yes
IR remote control included:	No
PoE switch:	No
Power supply:	12 V DC / 1.5 A (power adapter included)
Power consumption:	max. 10 W (without HDD)
Operating temperature:	-10 °C ... 55 °C
Weight:	0.41 kg
Dimensions:	206 x 205 x 46 mm
Supported languages:	Polish, English
Manufacturer / Brand:	Dahua
