Not sure if the devices you have chosen are suitable? Click here and fill out the form, and our advisor will prepare an offer tailored to your requirements.

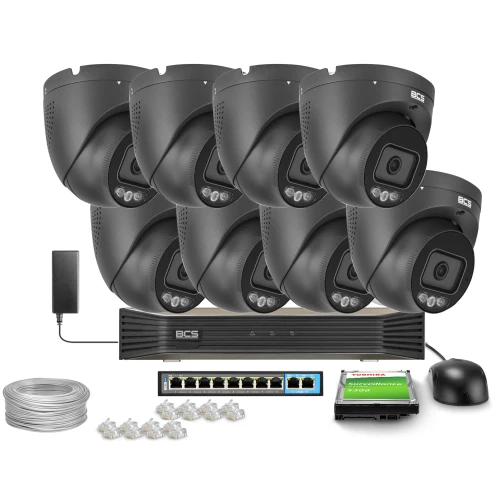

Zestaw do monitoringu IP 8x BCS-P-EIP25FSR3L3-AI2(2) Black 5 Mpx, WhiteLight, WDR130dB, NightColor
Photo gallery
-
Manufacturer
-
Product Code
ZM35650
-
Warranty
24 miesięcy
- Technology: IP
- Resolution: 5Mpx
- Enclosure: Dome
- Night visibility: up to 30m
- Number of cameras: 8
- Connectivity: Wired
- Memory card slot: Yes
- Audio: Yes
- Color: White
Ask about this product show form
Product Description
Main features:
- Sensor: 1/2.7" 5Mpx
- Resolution: 2880×1620
- Features: AWB, AGC, AES, BLC, HLC, ROI,WDR(120dB), 2D/3D DNR
- Lens: 2.8mm
- Field of view: H: 101.1° V: 55.3°
- IR illuminator range : up to 30 meters
- Protection class: IP67
- Built-in microphone and speaker
- Built-in Micro SD card input max 256GB
- Power supply: DC12V and PoE (802.3af)

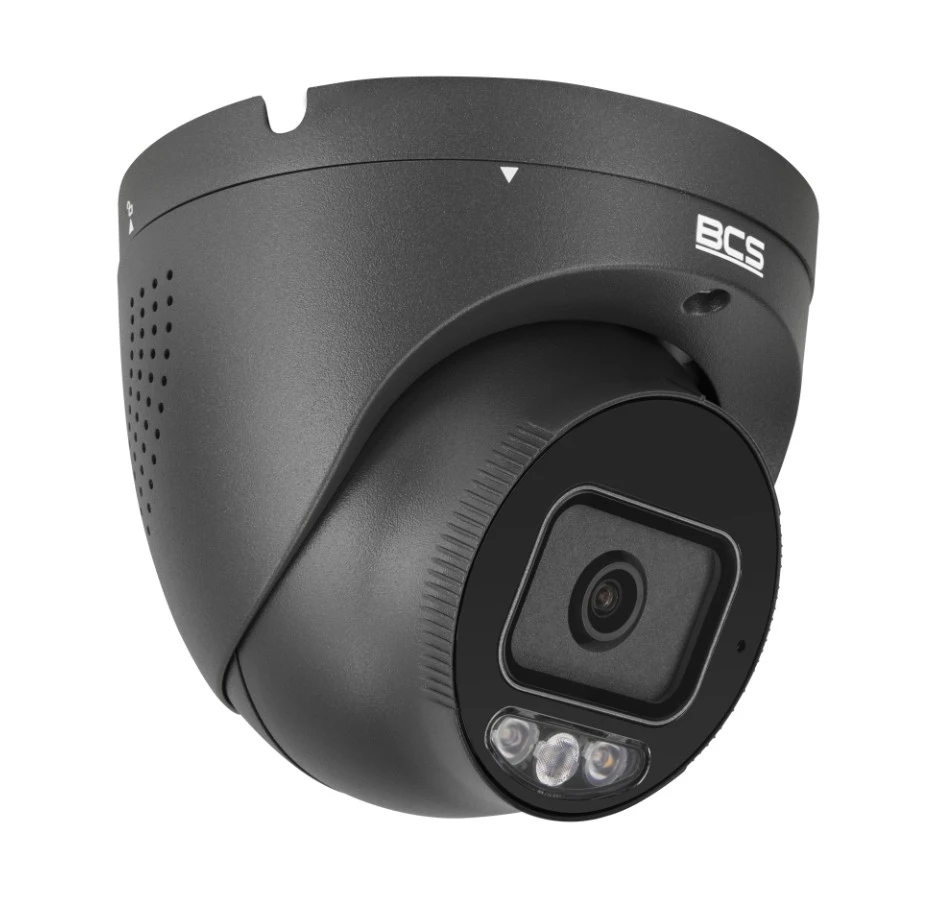

5Mpx dome camera with fixed 2.8mm lens. The 1/2.7" sensor provides excellent reproduction of the recorded image, including at night. It is equipped with an infrared illuminator with a range of up to 30m, which allows the camera to present good quality images in total darkness. The camera allows audio recording with a built-in microphone. The WDR function improves the dynamic range of the camera and brings out more details from a contrasting observation plan. It also features 3DNR digital noise reduction for higher quality images in low-light conditions. The ROI codec allows you to mark an area of video and improve the quality of a selected portion. The AWB function provides automatic white balance, while AGC is responsible for automatic signal enhancement when needed. BLC and HLC improve image quality in overexposed areas. The camera has intelligent functions such as Intruder, line crossing with human object classification, face detection, people count.
Built-in Micro SD card input max 256GB. The housing of the device is made to IP67 standard, which provides waterproofing and protection against dust and weather conditions. Built-in WEB Server, compatibility with BCS-NVR-Point, CMS (BCS Point Manager), P2P. Possibility to operate the device using a mobile application (Android,iOS). The camera is available in white or graphite (BCS-P-EIP25FSR3L2-AI2-G) color version.
Technical specifications:
| Device Name | BCS-P-EIP25FSR3L2-AI2 |
| Product line | BCS Point |
| Camera type | Dome |
| Resolution | 5 Mpx |
| Sensor | 1/2.7'' |
| Scanning system | Progressive Scan |
| Pixels | 2880(H)×1620(V) |
| Lens | fixed |
| Focal length | 2.8 mm |
| Aperture | F1.6 |
| Focus | Fixed |
| Iris | Fixed |
| Digital zoom | 16× |
| Viewing angle | H: 101.1° V: 55.3° |
| DORI | Detect 63m / Observe 25m / Recognize 13m / Identify 6m |
| Sensitivity of the camera | 0.003Lux(F1.6,AGC) 0Lux(B/W,IR) |
| S/N ratio | 56dB |
| White balance | (AWB) Auto / manual |
| WDR | 120dB |
| Backlight compensation | BLC / HLC / WDR(120dB) |
| Shutter | Auto / manual 1~1/100000s |
| Gain control | (AGC) Auto / manual |
| Noise reduction | 2D/3D DNR |
| Image rotation | Mirror, Flip 0°/90°/180°/270° |
| Number of streams | 3 |
| Resolutions | 5M(2880×1620) / 4M(2560×1440) / 3M(2304×1296) / 2M(1920×1080) / 720P(1280×720) / D1(704×576) / (640×360) / 2CIF(704×288) / CIF(352×288) |
| Main stream | 2880×1620/2560×1440/2304×1296/1920×1080/1280×720(30fps) |
| Second stream | 1280×720/704×576/640×360/704×288/352×288(30fps) |
| Third stream | 704×576/640×360/704×288/352×288(30fps) |
| Bitrate | 128Kbps~16Mbps |
| Video compression | H.265 / H.265+ / H.264 / H.264+ / MJPEG |
| Day/night | ICR |
| Illuminator type | IR + White Light |
| Illuminator | 30m |
| Microphone | Yes |
| Speaker | Yes |
| Audio compression | G.711 |
| Memory card slot | microSD 256GB |
| Support | Web Service, CMS BCS Manager (Windows/Linux/MAC), Mobile App(iOS, android) |
| Motion detection | 4 |
| Privacy masks | 8 |
| Networking | RJ-45 10/100Mbps |
| Compatibility | ONVIF(S/G/T) |
| Protocols | IPv4, IGMP, ICMP, ARP, TCP, UDP, DHCP, PPPoE, RTP, RTSP, RTCP, DNS, DDNS, NTP, FTP, UPnP, HTTP, HTTPS, SMTP, 802.1x, SNMP, QoS |
| Power supply type | 12VDC / PoE(802.3af) |
| Power consumption | max 7.5W |
| Housing color | White |
| IP protection class | IP67 |
| Operating conditions | -30°C~+60°C max 95% RH |
| Dimensions | Ø111×95mm |
| Weight | 0.42kg |
| Ai - Built-in intelligent functions | Yes |
| Ai - Perimeter protection | Yes |
| Ai - Object recognition | Yes |
| Ai - Face detection | Yes |
| Ai - People counting | Yes |
Szczegóły dotyczące zgodności produktu z przepisami: Osoba odpowiedzialna za produkt
Odpowiedzialność za produkt
BCS Sp.z o.o.
ul. Modularna 11 (Hala IV)
02-238 Warszawa
info@bcs.pl
