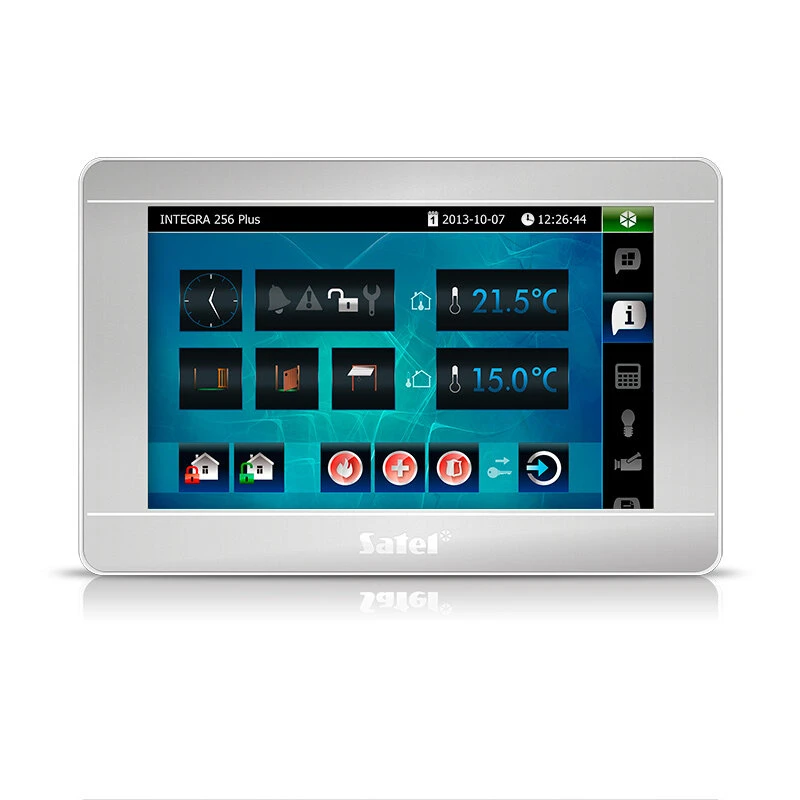

Manipulator INT-TSI-SSW - SILVER
Photo gallery
Product Description
- 7" capacitive touch screen for easy use of the system
- graphical, intuitive operating interface with the possibility of individual personalization for each user; possibility of choosing a flat design (v1.04 or later)
- MAKRO functionality allowing to execute a sequence of actions with a single command
- ability to preview images from IP cameras (MJPG after HTTP and in v1.04: MPEG-4, H.264)
- ability to work in MASTER/SLAVE mode (v1.04 or later)
- a wide range of dedicated widgets with different functions, including a weather widget for which the forecast is downloaded from openweathermap.org (v1.04 or later)
- scaling of the size of widgets (v1.04 or later)
- ability to present system status when the screensaver is displayed (v1.04 or later)
- ability to save user interface configurations directly from TSI Builder to the keypad via Ethernet (v1.04 or later)
- available in light (INT-TSI-SSW), dark (INT-TSI-BSB) and white (INT-TSI-WSW) colors
- AXIS: AXIS 216FD, AXIS 207
- BCS 3200
- Dahua: HCVR7204A-V2, IPC-HFW8301EP, IPC-HDBW8301P
- GRUNDIG: GCI-K0589-T, GCI-K1526D
- Hikvision: DS-2CD783F-E, DS-2CD2012-I
- IPC: IPC-HFW4300S-030B, IPC-HFW2300R-Z, IPC-HFW5502C, IPC-HFW5200C
- SAMSUNG: SNB6004
- VIVOTEK: IP7161, IP83XX, IP81XX, FD83XX, FD81XX
List of tested cameras:
http://www.SATEL.pl/files/bcs_cameras.pdf
Technical specifications:
| Power supply voltage (±15%) | 12 V DC |
| Operating temperature range | -10°C...+55°C |
| Standby current consumption | 500 mA |
| Maximum current consumption | 620 mA |
| Weight | 430 g |
| Maximum humidity | 93±3% |
| Environmental class as per EN50130-5 | II |
| Supported memory cards | microSD, micro SDHC |
| Housing dimensions (width x height x thickness) | 196 x 129 x 22 mm |
"Source: SATEL sp. z o.o., www.SATEL.pl".
