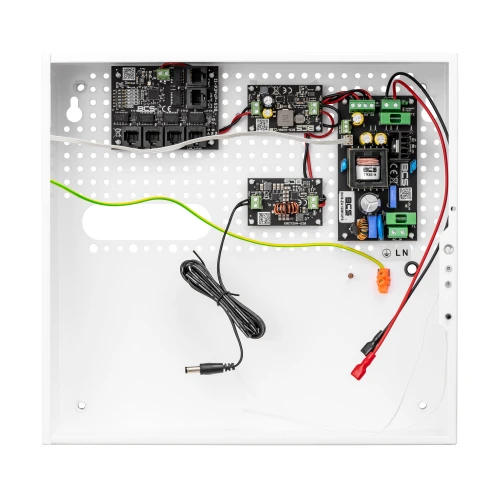

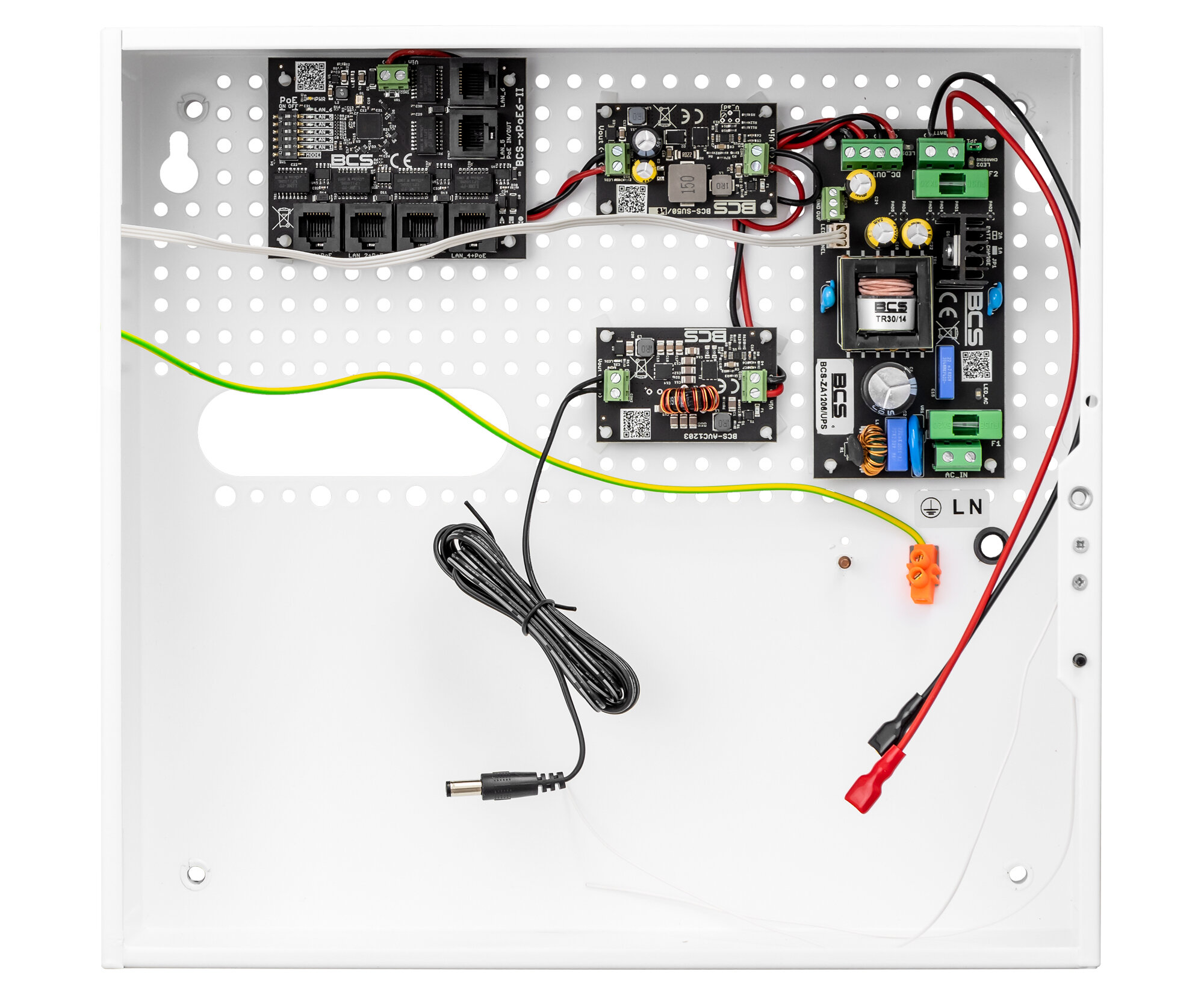

Buffer power supply for PoE cameras BCS-UPS/IP4/E-S
Photo gallery
Product Description
Features of the set:
- buffer power supply capability for 5 PoE 802.3at/af or PoE PASSIVE receivers
- space for 1 18 Ah battery
- up to 70W power on LAN_5 PoE IN/OUT port
- up to 40W power on other PoE ports
- up to 280m data transmission capability (in LONG RANGE mode)
- possibility to turn off power on selected PoE ports
- independent electronic fuses for each PoE channel (auto return)
- low internal heating thanks to high efficiency of the power supply (> 90%)
- easy and quick startup without configuring parameters
- easy system expansion by attaching additional switches
- possibility to keep a supply of cables inside the encl osure
The BCS-UPS/IP4/E-S set includes:
1x BCS-ZA1206/UPS
- Continuous power of the power supply 72W
- 12V output short circuit protection
- Electronic short circuit protection of the BATT output
- Protection against reverse battery connection
- Protection against excessive battery discharge
- Surge protection for 12V output and 230V input
- Wide range of output voltage
- Small dimensions
- Short circuit protection for each port separately
- Optical indication of transmission and power supply of each port
- Very low power consumption
- Low current consumption of the converter circuit
- Wide input voltage range typical for 12/24VDC buffer power supplies
- Thermal, overload, surge protection
1x IP21 internal enclosure (300x320x90mm), space for max 12V/17Ah battery
Technical specifications:
| BCS-ZA1206/UPS | |
| Power supply voltage | 230VAC +/- 10% |
| Nominal output voltage | 12VDC +/- 15% (takes battery operation into account) |
| Typical efficiency | Above 90% |
| Battery charging current | 1A or 2A (jumper selectable) |
| Battery | Lead-acid or dry SLA type |
| Current capacity of the power supply | 6A |
| Operating temperature | -10°C - 40°C |
| Housing dimensions (H X W X D) | Depending on the version |
| BCS-xPoE6 | |
| Power supply voltage | 10÷56 DC (Vin or PoE IN) |
| Output voltage for PoE devices | Uwy PoE = Uwe (10÷56V DC) |
| Number of LAN ports | 6 (4x LAN+PoE OUT; 1x LAN; 1x LAN / LAN+PoE IN) |
| Properties of LAN ports | Speed 10/100Mbps (autonegotiation) |
| Switching layer | 2 |
| MAC table size | 1k |
| PoE output protection | Polymer fuse 1.1A / Channel |
| PoE power supply type | Passive (4.5+) (7.8-) |
| Operating temperature | -10 oC ÷ +40 oC |
| Electrical board dimensions (W x L x H) | 85 x 69 x 19 mm |
| BCS-SU50/48 | |
| Power supply voltage | 8÷30VDC |
| Output voltage | 48V DC |
| Maximum output power | 50W (Uwe=12VDC) |
| Typical efficiency | 93% (Uwe=12VDC, Uwy=48VDC, Iwy=1A) |
| Current consumption of the converter circuit | 27mA (Uwe=12VDC) |
| Operating temperature | -10°C to 40°C |
| Housing | none, open design |
| Electrical board dimensions (W x L x H) | 40 x 61 x 16 mm |
