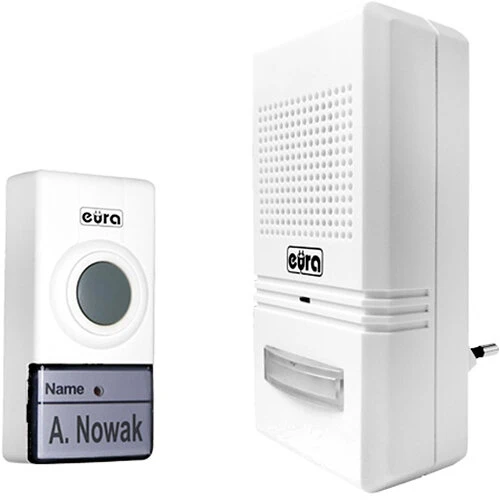

Wireless doorbell EURA WDP-15A3 SIMPLEX
Photo gallery
-
Manufacturer
-
Product Code
WDP-15A3
-
Warranty
24 miesiące
Ask about this product show form
Files attached to the product show files
Files for download
-
Size: 0,14 MB
-
Size: 1,67 MB
-
Size: 1,21 MB
Related products
Product Description
Main features:
- 230V/50Hz power supply directly from a household outlet
- no additional installation required push button battery power supply
- 16 sounds to choose from, sound selection via microswitch on the transmitter
- intelligent coding system of the bell and the button (EURABELL+ system)
- possibility of expanding the set with other elements
- easy operation and installation no cable connection required
- operating range min. 50m in open area
- optical signaling of ringing (button and receiver)
- optical signaling power supply (receiver)
- transmission does not interfere with other devices
- digital technology used in the bell button significantly extends battery life
- modern design
- low power consumption
- battery for button (transmitter) included
Press the button and check my melodies ▶.
Wireless bell consists of receiver and transmitter, signal carrier frequency: 433.92 MHz, 16 melodies to choose from, volume control, range: 50 meters, mains ~230V power supply for the receiver (plug directly into the wall socket) and the button (CR2032 type lithium battery). Special smart coding system (button inside the receiver) allows to expand the set (up to 4 transmitters can work with 1 receiver, unlimited number of receivers can work with 1 transmitter).
Technical specifications:
| Set: | |
| Working range | Max. up to 50 m |
| Operating frequency | 433.92 MHz |
| Possible expansion | Yes |
| Type of communication | Wireless |
| Transmitter: | |
| Number of chime melodies | 16 |
| Transmitter power supply voltage | 3 V DC |
| Transmitter power supply type | Battery (1 x CR2032 3V DC) |
| Signal power of the transmitter | 5 mW |
| Transmitter protection factor | IP44 |
| Temperature range of the transmitter | -10ºC ~ +35ºC |
| Transmitter dimensions (H x W x D) | 80 x 38 x 24 mm |
| Net weight of the transmitter | 30 g |
| Receiver: | |
| Receiver power supply voltage | 230V AC |
| Receiver power supply type | Direct plug into the mains socket |
| Max. volume level | 80 dB/ 1 m |
| Protection factor of the receiver | IP20 |
| Temperature operating range of the receiver | 0ºC ~ +35ºC |
| Receiver's dimensions (H x W x D) | 120 x 65 x 75 mm |
| Net weight of the receiver | 120 g |
| Logistics data: | |
| Package dimensions (W x SZ x G) | 233 x 183 x 79 mm |
| Gross weight | 220 g |
| Packaging type | Blister |
