Beninca KBOB5024E.PM swing gate kit
Photo gallery
-
Manufacturer
-
Product Code
KBOB5024E.PM
-
Warranty
24 miesiące
Ask about this product show form
Files attached to the product show files
Files for download
-
Size: 0,37 MB
-
Size: 2,12 MB
Product Description

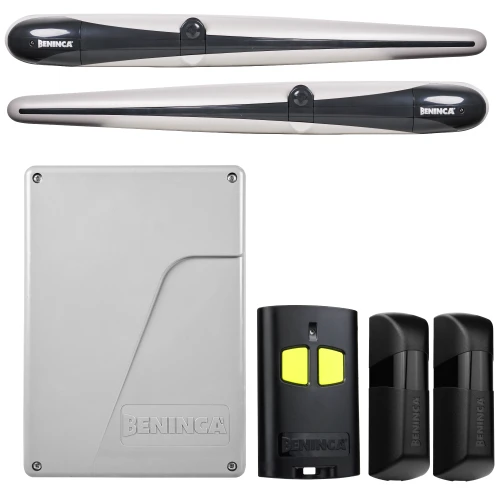

BENINCA KBOB5024E.PM set is designed to automate the operation of double-leaf gates with a maximum leaf length of 5.0 m, which includes:
- 2 x Electromechanical actuator "KBOB5024E"
- 1 x 24 Vdc external control panel "HEADY24"
- 1 x Pair of synchronization photocells "PUPILA"
- 1 x 2 channel remote control "TO.GO2A"
MAXIMUM LEAF LENGTH
KBOB5024E is able to operate gates with a maximum leaf length of 500cm.
Description of individual components of the set:

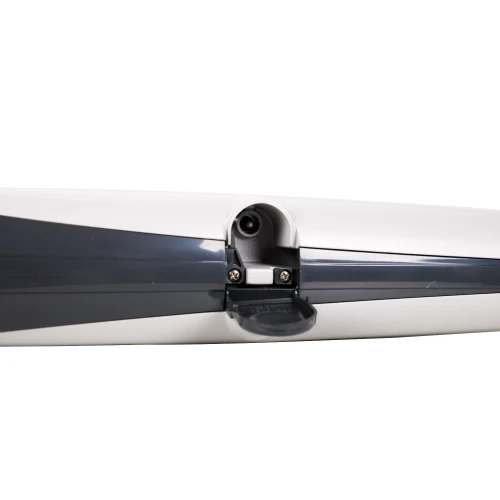

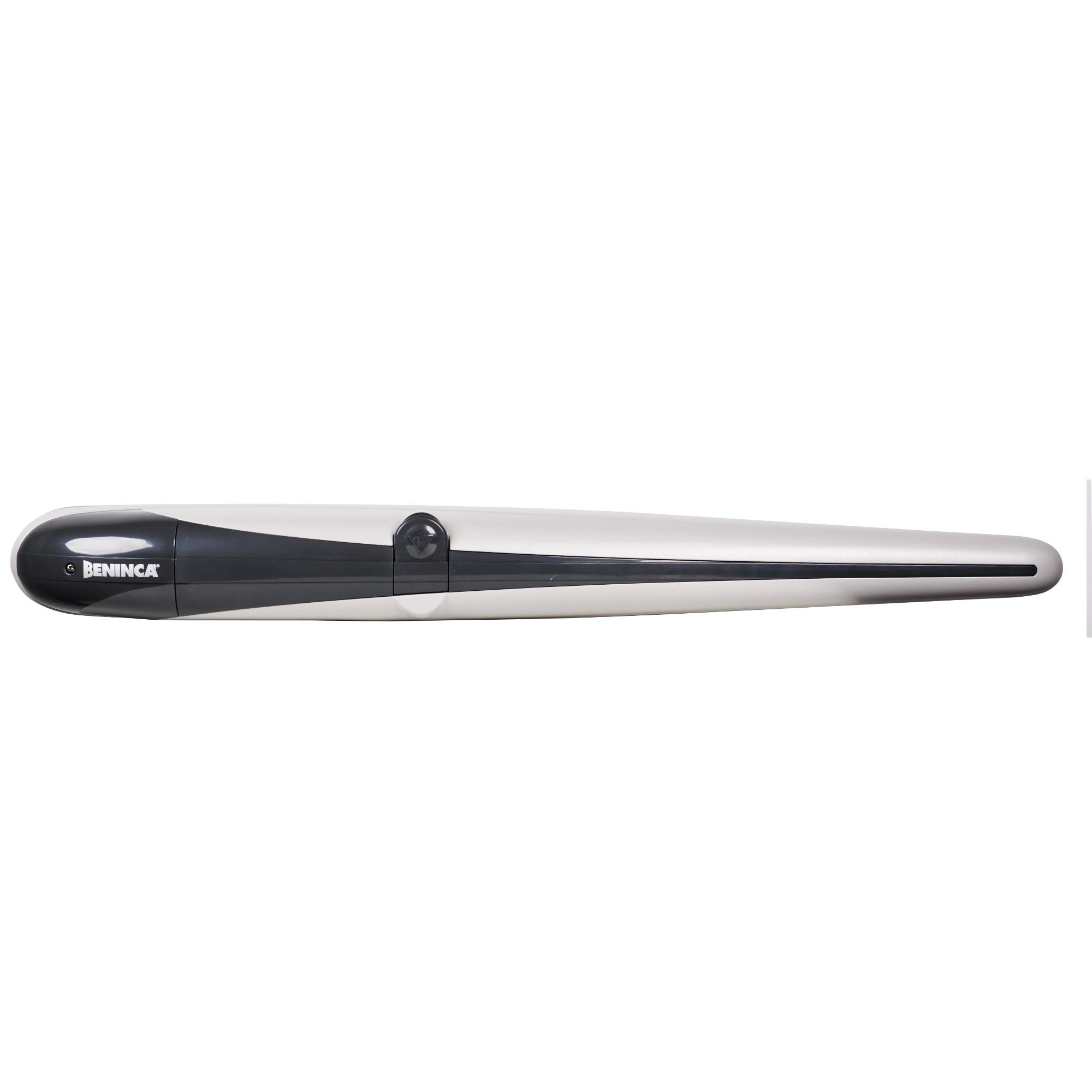

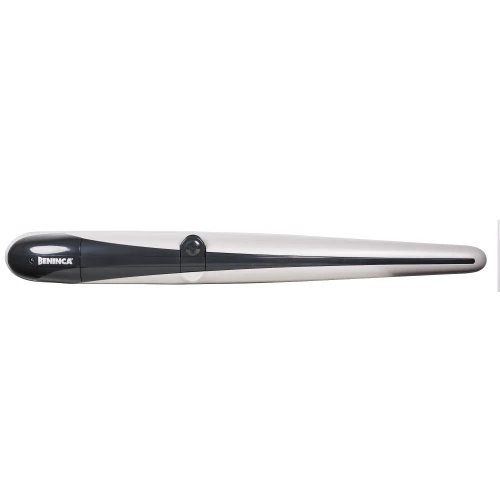

- BENINCA electromechanical actuator "KBOB5024E"
Reliable, quiet, easy and quick to install mechanical actuator. Equipped with two mechanical limit switches adjustable in the opening and closing phases.

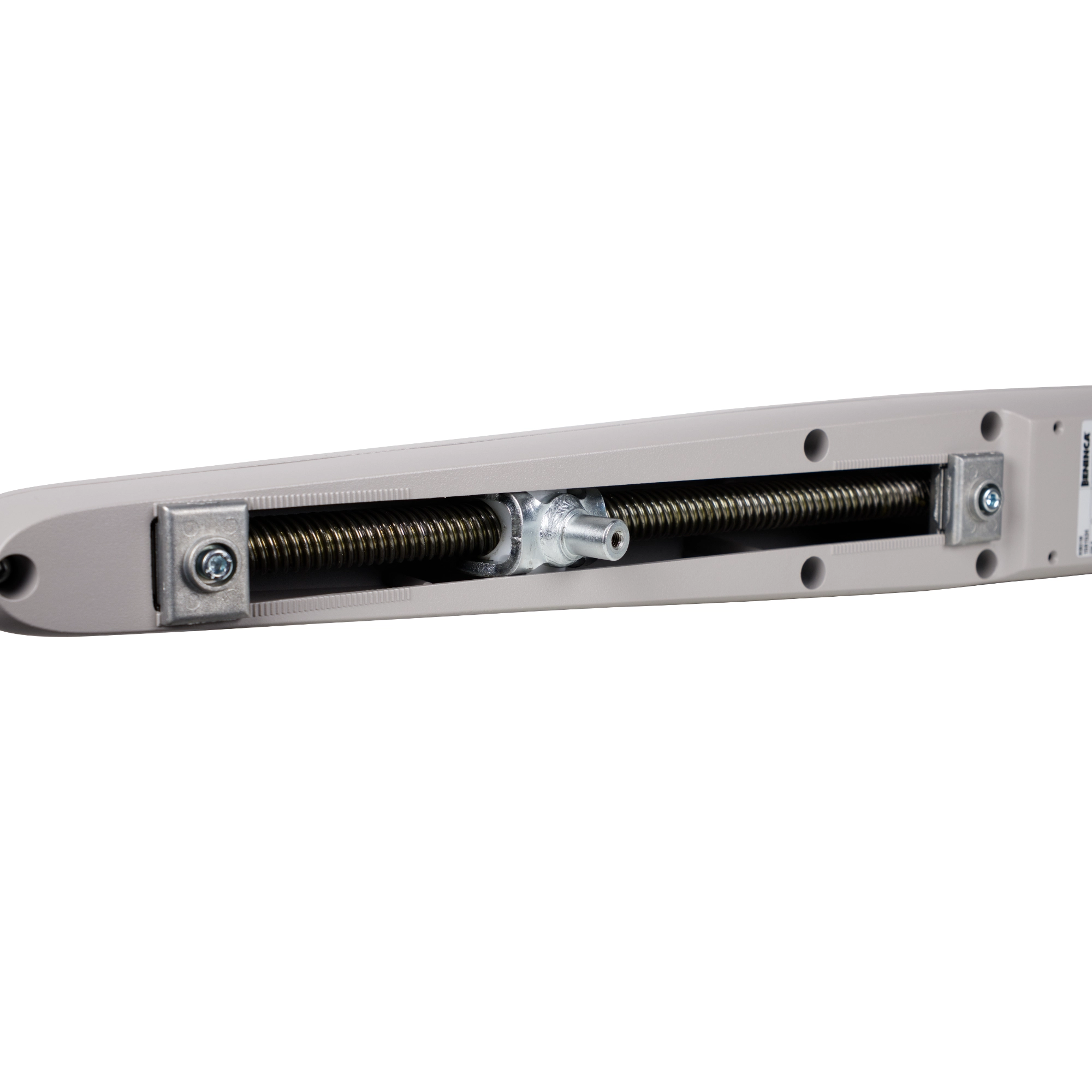

- Rolled worm gear with Ø20mm cross section.
- Non-reversible electromechanical actuator for 24 Vdc voltage.
Technical specifications:
| Technical specifications | KBOB5024E |
| Actuator code | 9591328 |
| Power supply | 230 Vac (50-60 Hz) |
| Motor power supply | 24 Vdc |
| Current | 6,7A |
| Maximal force | 2200N |
| Opening time | 21" |
| Duty cycle | Intensive use |
| Screw pitch | 455mm |
| Maximum screw pitch | 520mm |
| Degree of protection | IP44 |
| Encoder | YES |
| Working temperature | -20C/+50C |
| Maximum leaf length | 5.0m |
| Weight | 11.6kg |
- 24 Vdc external control panel "HEADY24"
- Application - 1 or 2 actuators for swing gates.
- Power supply of the control panel - 24 Vdc
Basic functions:
- Built-in LCD display.
- Built-in 433.92 MHz radio receiver. Ability to upload 64 fixed, variable or ARC codes.
- Terminal blocks easy to use (removable).
- Inputs for limit switches - separate for each actuator.
- Inputs: open, close and gate function (partial gate opening).
- Inputs for photocells open-close and open.
- Input for safety edge 8K2.
- Output for service light, gate position indicator, second radio channel and photocell test.
- Self-learning function.
- Electronic adjustment of parameters of individual actuators.
- Protection against crushing through the use of an amperometric sensor and encoder connection.
- Regulation of release in the closing and opening phases, independently for each actuator.
- Configuration of functions and management of remote controls via ADVANTOUCH.
- Possibility to check the current number of cycles.
- Password access to the programming of the control panel
- Pair of synchronization photocells "PUPILA"
- 24V/dc for surface mounting, 180° adjustment angle. (110X36X31mm).
- It is possible to synchronize up to 4 pairs of photocells.
- LED makes centering the beam easier and faster.
- 2 channel remote control "TO.GO2A"
- 433.92MHz 2 or 4 channel remote control, variable code. ARC code.
