Set for sliding gates Beninca KBULL10M.S.PM
Photo gallery
-
Manufacturer
-
Product Code
KBULL10M.S.PM
-
Warranty
24 miesiące
Ask about this product show form
Files attached to the product show files
Files for download
-
Size: 1,58 MB
-
Size: 0,72 MB
Related products
Product Description

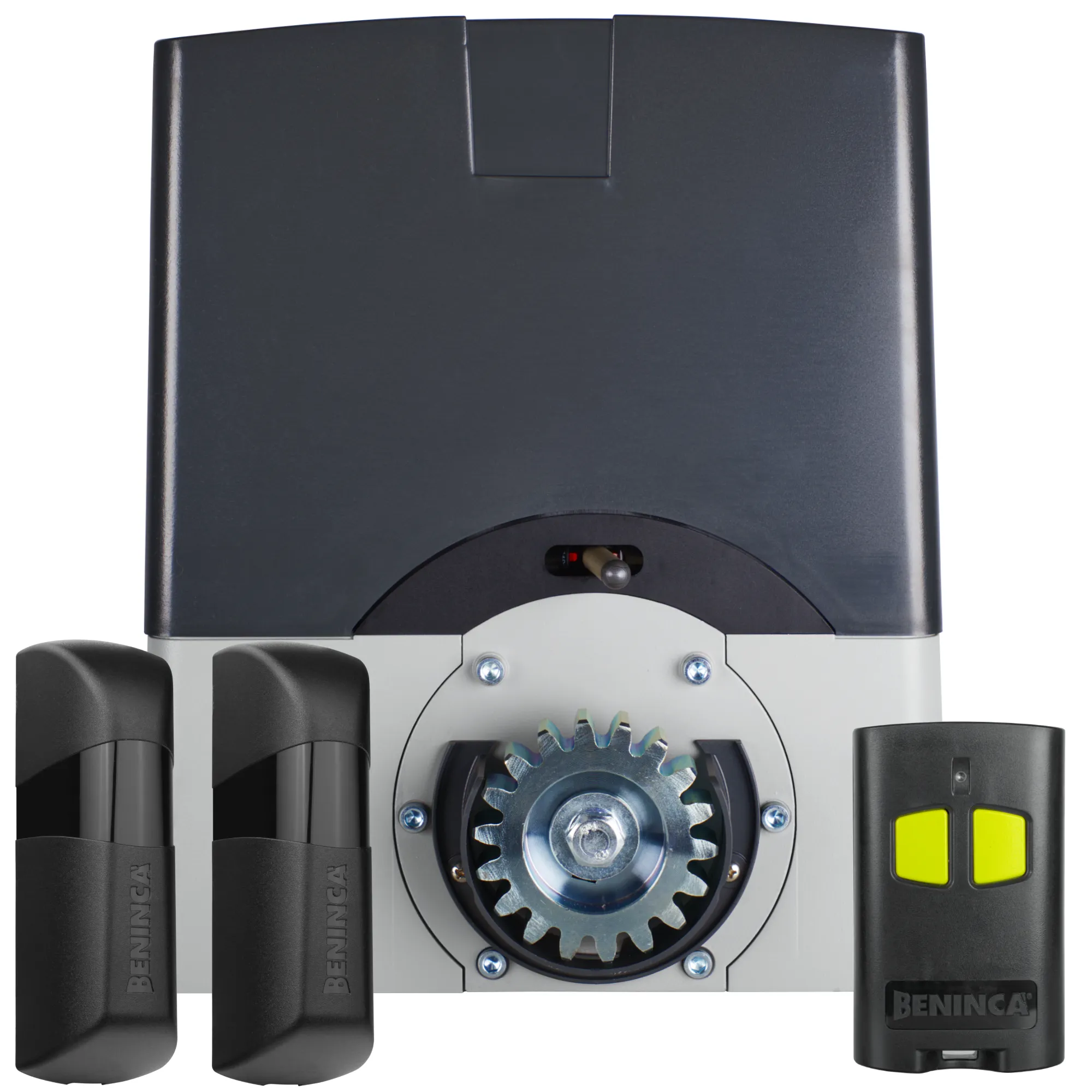

BENINCA KBULL10M.S.PM kit for sliding gates up to max 1000kg with magnetic switch
- 1 x Actuator with built-in control unit and receiver "KBULL10M.S"
- 1 x Pair of synchronization photocells "PUPILA"
- 1 x 2 channel remote control "TO.GO2A"
MAXIMUM LIFTING CAPACITY OF THE DRIVE
KBULL10M is able to work with gates with a maximum weight of 1000kg
Description of individual components of the set:

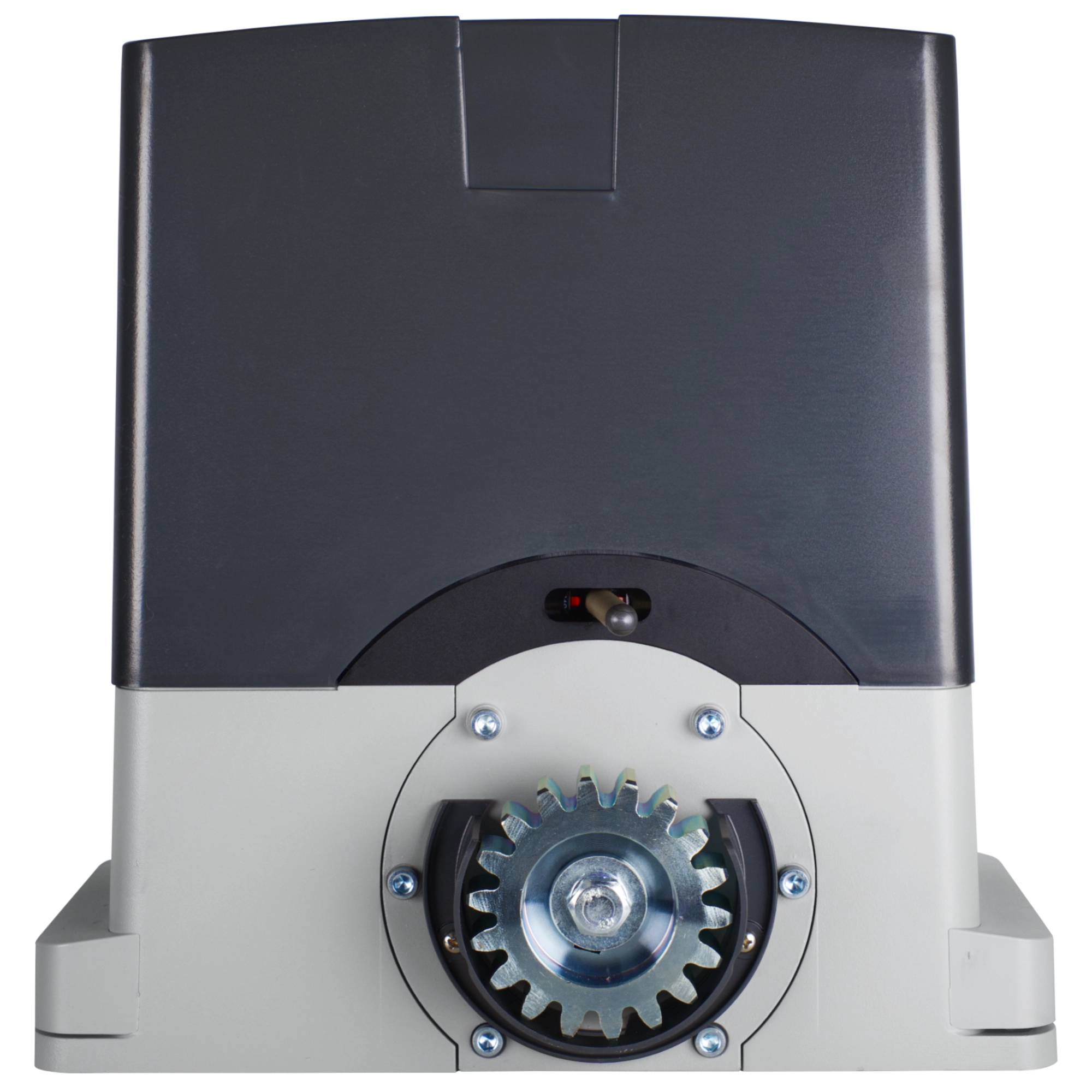

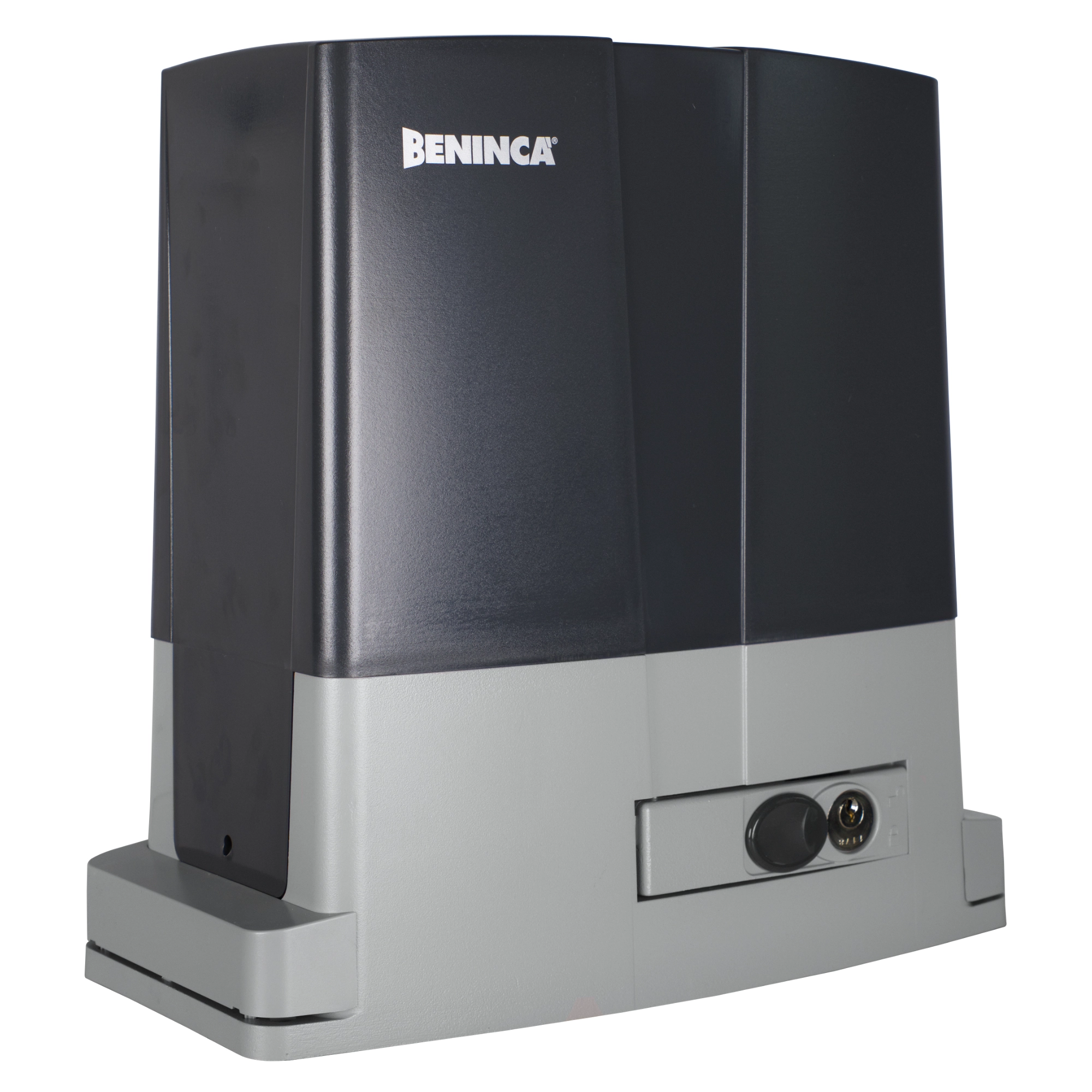

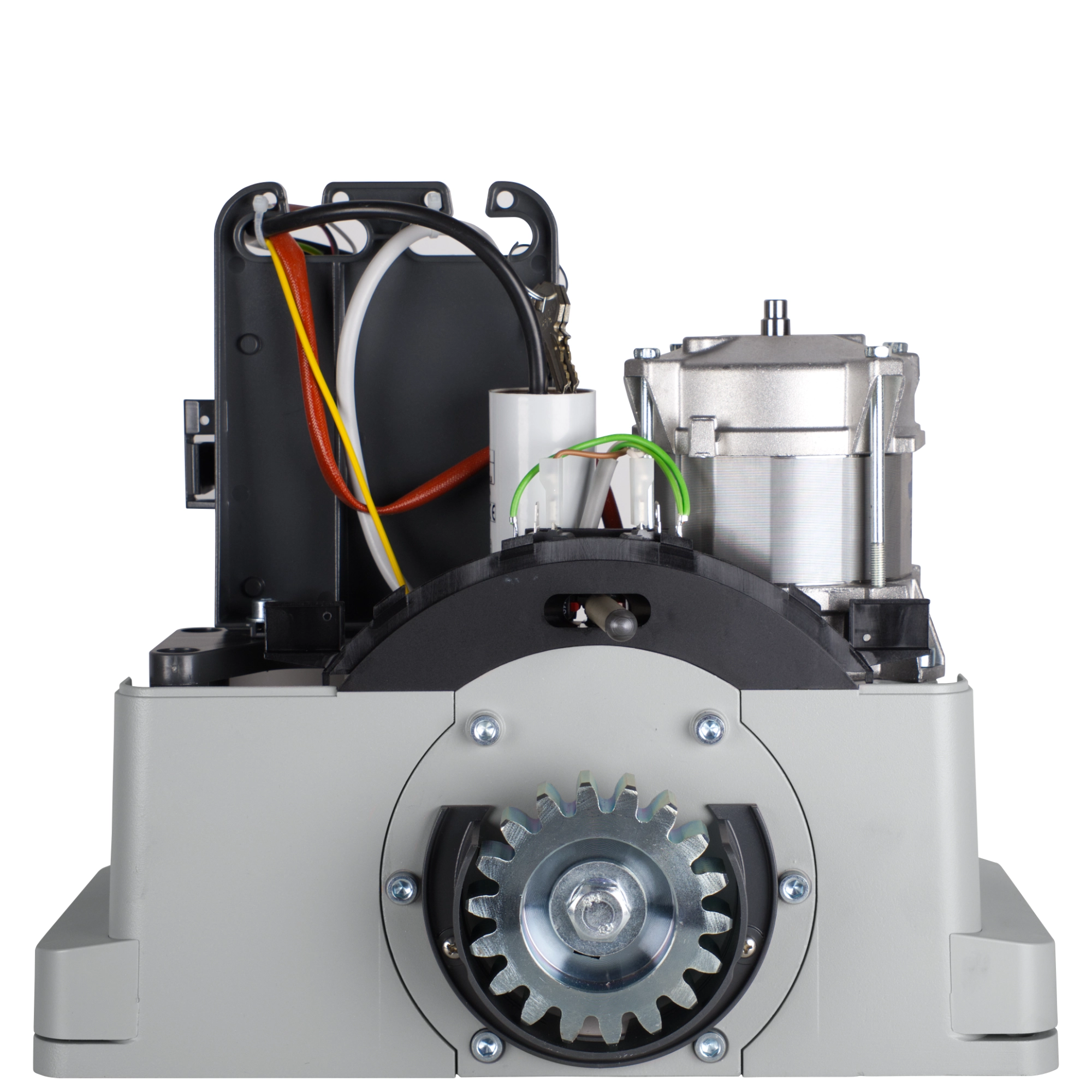

- Non-reversible electromechanical actuator equipped with an encoder. "KBULL10M.S"

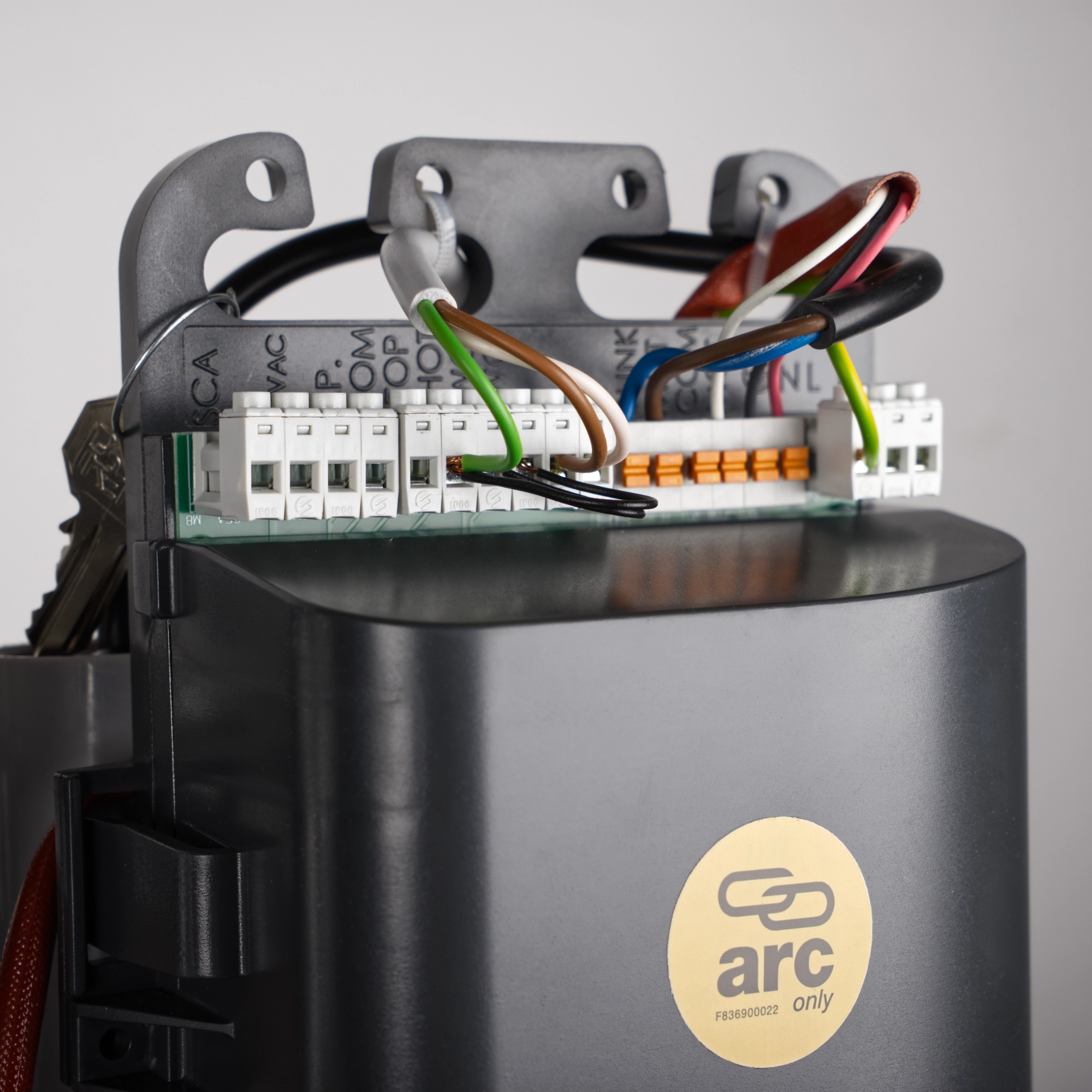

- 230 Vac electromechanical actuator with built-in control panel and encoder.
- The encoder ensures maximum safety and precision of the actuator.
- Ventilation system for intensive use.
- Version with magnetic limit switches
Technical specifications:
| Technical specifications | KBULL10M.S |
| Actuator code | 9591016 |
| Power supply | 230 Vac ( 50-60 Hz) |
| Power supply for the motor | 230 Vac |
| Current | 1,6 A |
| Maximal force | 1000N |
| Opening time | 10.5 m/min |
| Duty cycle | 40% |
| Degree of protection | IP44 |
| Magnetic switches | YES |
| Working temperature | -20C/+50C |
| Maximum door weight | 1000kg |

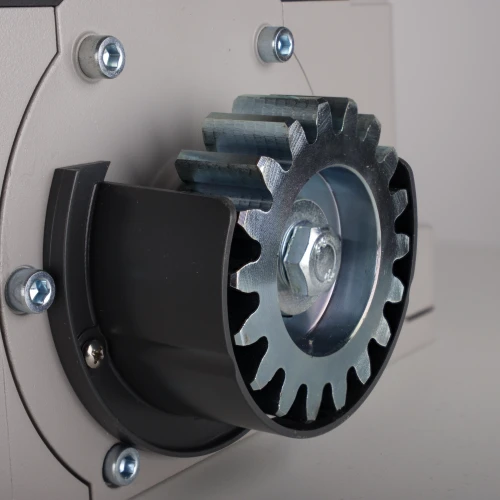

| Outer wheel module | M4 Z18 |
| Weight | 18.7kg |
- Pair of synchronization photocells "PUPILA"
- 24V/dc for surface mounting, 180° adjustment angle. (110X36X31mm).
- It is possible to synchronize up to 4 pairs of photocells.
- LED makes centering the beam easier and faster.
- 2 channel remote control "TO.GO2A"
- 433.92MHz 2 or 4 channel remote control, variable code. ARC code.
