Ropam APm-Aero Controller

A sleek, white rectangular electronic device with a smooth surface and a small indicator light on the front. The minimalist design is ideal for modern home automation systems.
The image shows a Ropam APm-Aero controller featuring a compact green circuit board with various electronic components, including connectors and a coiled antenna. The board is designed for integration into security and automation systems, offering advanced connectivity and control options.
The image features a black and white logo with a stylized wireless signal icon above the word "Aero." The design emphasizes connectivity and modern technology.

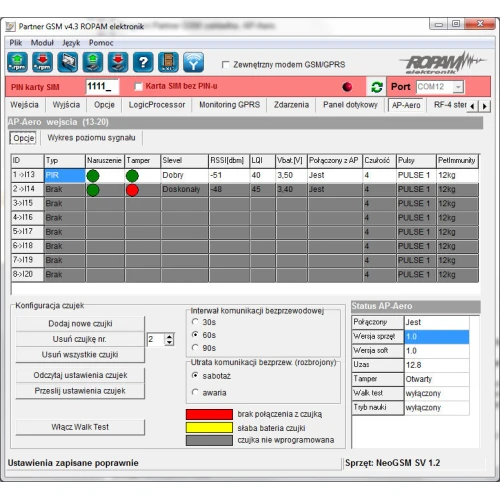

Screenshot of the ROPAM Partner GSM software interface displaying signal strength levels and configuration settings for a GSM access point controller. The interface includes tabs for inputs, outputs, and settings, with detailed signal and communication status indicators.
The image shows a software interface for a GSM access point controller, featuring a signal graph and various configuration options. The screen displays tabs for settings such as SIM card, GPRS, and signal level monitoring.

  • Manufacturer

    ROPAM

  • Product Code

    APm-Aero

  • Warranty

    24 miesiące

see description

Ask about this product show form

Do you have questions? Looking for answers? Are you interested?

  • Call
  • 34 341 16 30
  • We advise Mon - Fri 8 00 am to 4 00 pm
  • or send a message using the form below

Copy the code from the picture

weryfikator

Close

Files attached to the product show files

Files for download

Close

  • Availability: in stock Shipping 24h

Price (Incl. VAT):

51,45 €

Add to Watchlist

Najniższy koszt dostawy: 12,98 zł

Do you represent a budgetary unit?
Check out the deferred payment option.

CA Raty

Product Description

Controller, Access Point (AP) of the Aero system is designed to intergrate Aero wireless devices with Ropam Elektronik systems via RopamNET buses.

Main features:

  • Aero system controller (AP AccessPoint).
  • support for up to 16 detectors in NeoSGM-IP(-64), OptimaGSM systems
  • compliance with SSWiN PN-EN 50131-1 grade 2 standard
  • two-way encrypted (AES 128-bit) communication in ISM 868 MHz band
  • high RF sensitivity up to -110 dBm
  • automatic transmit power control, up to +10dBm, depending on the strength (RSSI) and transmission quality (LQI)
  • range of more than 300m in open area
  • RopamNET bus for system communication
  • programming and diagnostics of the controller and Aero devices from the control panel level
  • full supervision and transmission of statuses to Aero devices, control of presence, link quality, battery status
  • unique ID-Aero of each controller allows for proper operation within the range of another Aero system
  • non-volatile configuration memory
  • optical signaling of operation
  • power supply: 9V÷14V/DC
  • ABS surface-mounted housing white - dimensions: 80x80x25 [mm]
  • cooperation with systems: NeoGSM-IP(-64), OptimaGSM, NeoGSM (from v1.3 and up to 8 detectors)
  • in NeoGSM systems, Aero controller or EXP-I8 local expander can work
  • anti-sabotage protection of the controller

Application:

  • expansion of the control panel with wireless devices,
  • expansion of the control panel after using wired resources,
  • remote control of home automation,
  • protection of objects without the possibility of using a wired system.
