Input: VIDI-AC-F007-II voltage hold access control system

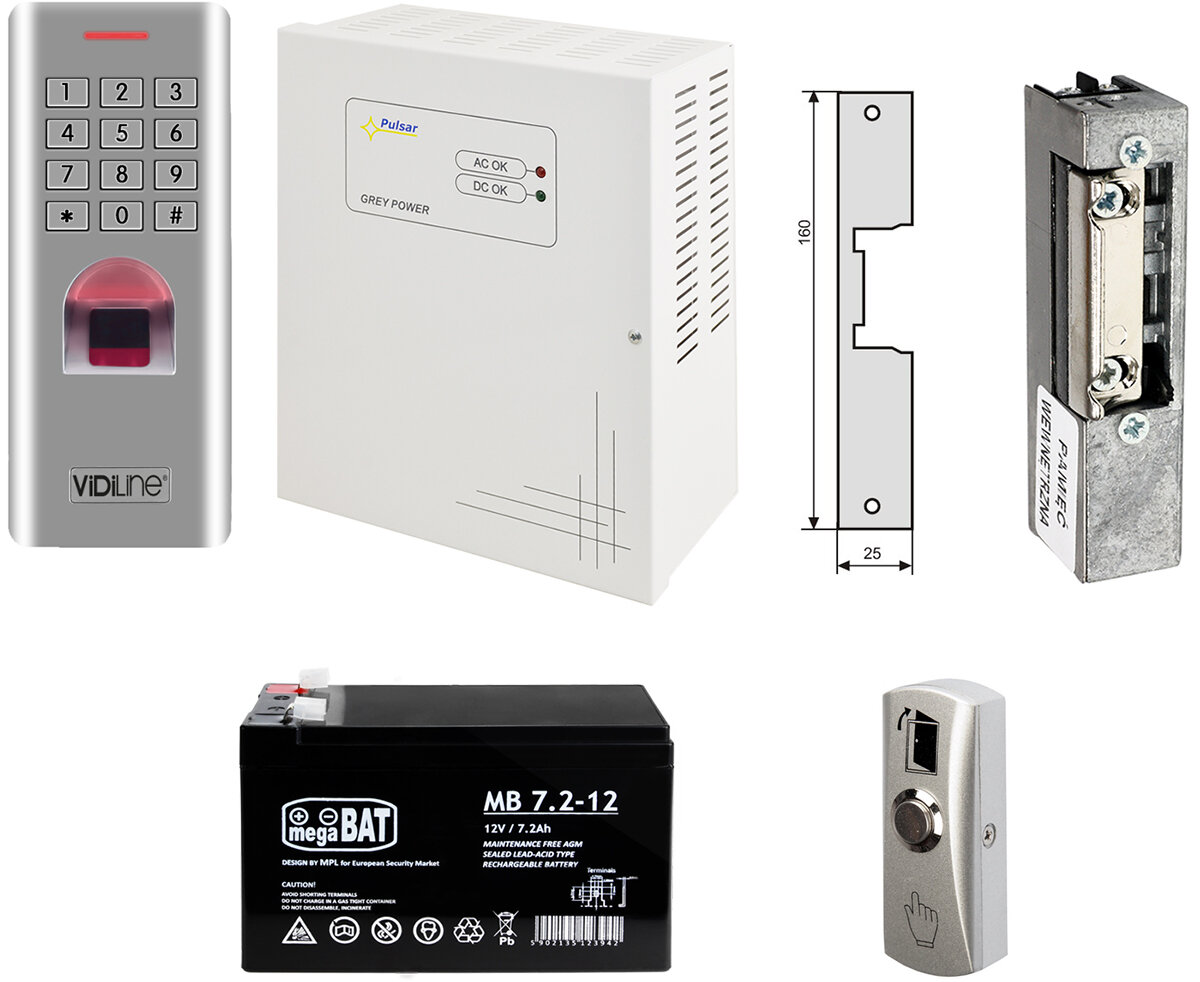

VIDI-AC-F007-II set with voltage backup.

Access control kit with keypad. The kit is ready to connect. In the event of a power outage, a buffer power supply with a battery guarantees correct uninterrupted system operation.


1x Fingerprint reader with keypad VIDI-AC-F007-II

VIDI-AC-F007-II - a waterproof metal standalone fingerprint reader with PIN keypad suitable for blind people and waterproof to IP66 standard, the device is ideal for outdoor installation. The slim case provides mounting options on the door frame. The device supports up to 1,000 fingerprints and 2,000 pre-programmed PIN codes . The use of Wiegand interface provides the possibility to use the device as a reader in a third-party set.


1x Scot BT-4 surface-mounted exit button




1x Pulsar AWZ200 12V 2A buffer power supply




The buffer power supply is designed for uninterrupted power supply of alarm system devices requiring stabilized voltage of 12V DC (+/-15%). The linear stabilization circuit used in the device provides voltage with less noise and shorter response time to disturbance than in the case of using a pulse stabilizer. The power supply provides voltages at buffer operation Uout = 12.8V ÷ 13.8V DC with total current capacity:

1x Gel battery 12V 7.2Ah



The 12V 7.2Ah battery is dedicated for buffer power supplies used in security systems (CCTV, KD, SSWiN). The battery is made in AGM (Absorbed Glass Mat) technology and has the electrolyte absorbed in glass fiber separators with high porosity, located between the plates. A maintenance-free battery, it does not require water refilling and constant maintenance of the electrolyte. This type of battery can also be used as a power source in portable devices.

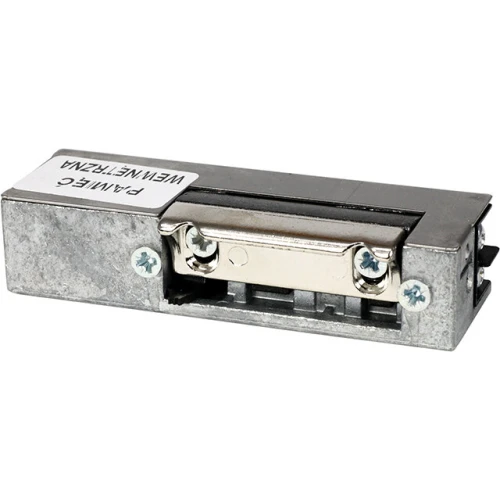

1x Electric strike with memory and lock R-3 844



The 844 lock is an electric strike designed for remote opening of doors, wickets (left, right and double-leaf). The latch is made of aluminum and is additionally powder coated. It is made of corrosion-resistant materials, so it can be installed outdoors, but it should be protected from flooding, weathering and painting with paint.


1x Flat signboard for electric door strike short 901G.
