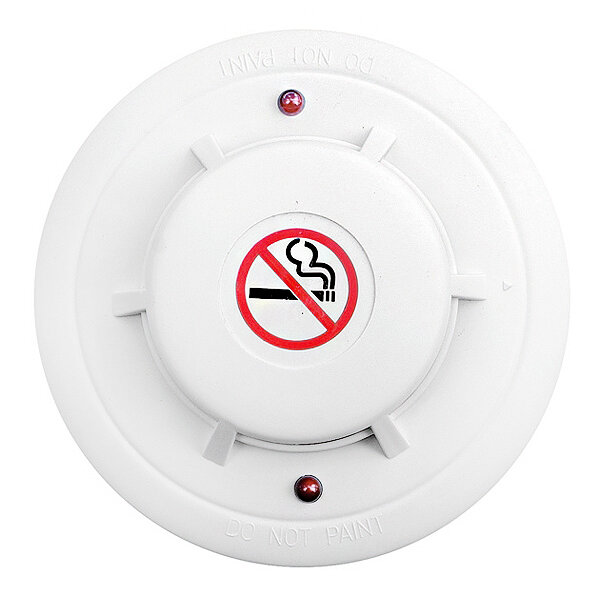

ALG-61B8 Cigarette Smoke Sensor EURA
Photo gallery
-
Manufacturer
-
Product Code
ALG-61B8
-
Warranty
24 miesiące
- Sensor type: Smoke
Ask about this product show form
Files attached to the product show files
Files for download
-
Size: 0,07 MB
-
Size: 0,11 MB
-
Size: 0,76 MB
Product Description
Eura ALG-61B9 Cigarette Smoke Detector is designed to monitor closed rooms for the presence of cigarette smoke. It is designed for indoor installation and can find its application in residential buildings, schools, hospitals, offices and wherever the smoking ban is observed.
The device is designed for use with control panels that support 4-wire smoke detectors with a power supply system in the DC 9 ~ 33V range. In addition, the control panel should be equipped with the so-called "reset function", allowing to quickly cancel any alarm triggered by the detector. The alarm device shall be equipped with a photo-optical smoke detector and a highly sensitive control system to ensure fast and accurate detection of cigarette smoke.
The device shall have a test capability and failure indication.
| Power supply voltage | 9 ~ 33 V DC (from an external control panel) |
| Sensor type | Photo-optical |
| Types of detected threats | Cigarette smoke |
| Power supply type | from another system module |
| Sensor current consumption - standby / alarm | 20 μA / 30 mA |
| Recommended place of installation | ceilings, indoors |
| Max. volume level | ---- |
| Smoke detection sensitivity | 0.03 dB/m |
| Detection range of the sensor | approx. 20-25 m² |
| Protection factor | IP20 |
| LCD display | No |
| Test button | Yes |
| Low battery (or power failure) indication | No |
| Failure indication | Yes |
| Thermometer | No |
| Relay output | Yes (N.O. - N.C.) |
| Temperature operating range of the sensor | -10ºC ~ +40ºC |
| Sensor dimensions (H x W x D) | ø100 x 48 mm |
| Net weight of the sensor | 130 g |
