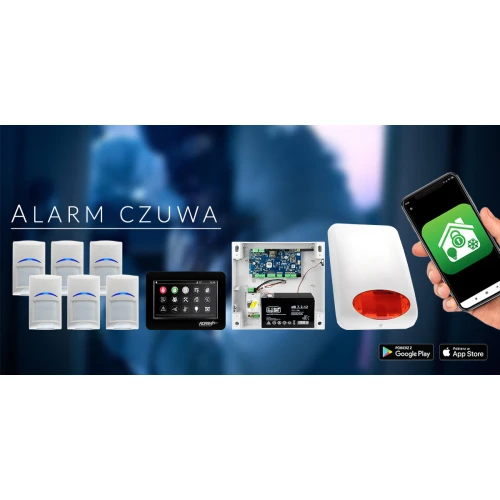

NeoGSM-IP Alarm System, White, 6x Sensor, GSM Notification, Wifi

Possibility to configure two independent zones

In the control panels, the ability to set up two zones allows independent management and control of different areas of the facility, making it possible, for example, to activate the alarm system only in a selected part of the building, while the rest remains unchanged. This allows users to flexibly adapt protection to individual needs and situations, for example, securing the office at night while the system remains disabled in the living area.

Schedule and time switches The scheduler in the control panels allows the security system to be automatically switched on and off at predetermined times, greatly enhancing user comfort and ensuring that protection is optimized without the need for manual intervention. As a result, users can rest assured about the safety of their property, even when they forget to activate the alarm system, which further contributes to saving energy and resources. In addition, the schedule also allows you to control home automation elements such as lighting, blinds, etc.

Jamming detection The jamming detection function of alarm panels is used to identify attempts to interfere with radio signals, a key aspect of ensuring uninterrupted communication and protecting against advanced attacks. When such an interference attempt is detected, the system can automatically notify owners or a monitoring station of the potential threat, allowing for a quick response and increasing the overall reliability of the alarm system.

• screen: 4.3" TFT LCD-LED, touch "TouchPanel"
• touch panel: resistive
• cooperation with control panels: OptimaGSM, NeoGSM-IP and NeoGSM-IP64
• interactive graphic menu with pictograms (icons)
• touch panel supports up to 4 screens depending on which panel it works with:
• NeoGSM-IP (2 screens)
• NeoGSM-IP-64 (4 screens)
• visualization and control of home automation
• functions: room thermostat, calendar, temperature profiles
• bar for additional information on system status
• microSD card slot
• available colors: white or black
• 2 alarm inputs
• random numeric keypad layout function
• acoustic signaling
• EIA-485 bus for communication with control panels (RopamNET protocol)
• USB micro port for firmware update
• housing anti-sabotage protection
• power supply: DC 9V~14V
• dimensions: 122.3x17x88.3mm (W/D/H)



• Full area coverage - excellent detection performance in a 12 × 12 m area,
• Dynamic temperature compensation - excellent detection performance in any conditions
• Changeable mounting height without additional adjustments - reduced installation time and fewer false alarms, increased detection efficiency,
• Self-locking housing and built-in bubble level - reduced installation time



• Acoustic signaling: piezoelectric transducer,
• optical signaling: super-bright LEDs,
• tamper protection against: suppression of the signalling unit by flooding it with mounting foam (optional: SPL-TO); detachment from the base; opening.



• power supply compatibility: PSR-ECO-2012
• compatibility: BasicGSM 2, MultiGSM 2 + VAR-1*, OptimaGSM+ EXP-I8 +AP-IP + RF-4*+VAR-1*(* mounting: self-adhesive pins)
• installation of GSM, WIFI antenna inside the housing,
• dimensions 264x253x85 [mm] (WxHxD,
• space for battery: 7Ah/12V V(SLA)
• Ropam tamper - anti-tamper microswitch,
• tamper - opening of the housing,
• material: ABS, light gray color
• locking: bolted x4 from the front of the housing,
• DIN rail (TH35) for mounting PSR-ECO power supply,
• Plexiglas mounting plate, PCB mounting with screws (easy modification, different configuration)

• frequency: dual-band, 900/1800 MHz, omnidirectional
• SMAm connector, 90° angle
• gain: 2.15 dBi
• VSWR <2.0
• impedance: 50 ohm
• polarization: vertical, omnidirectional.
• dimensions: ø 10 x 48 mm
• color: black
• operating temp: -30°C ÷ 85°C

• modern product, which is able to ensure the efficient operation of the alarm in a situation of a temporary or prolonged lack of electricitydedicated to power supply systems of control panels
• does not require topping up water and constant maintenance of electrolyte
• can operate in any position

• Power: 30VA (power supply: 230V/50Hz/0.04A).
• Output voltage (SEC): 16.5V/1.8A (wires included).
• Short circuit protection: T250mA fuse.
• Housing: ABS, resin flooded transformer.
• For mounting in O-R3D, -R4D, O-RHD enclosures interchangeably with DIN rail (or on a flat surface e.g. control cabinets).
