VGA Extender-EX-30

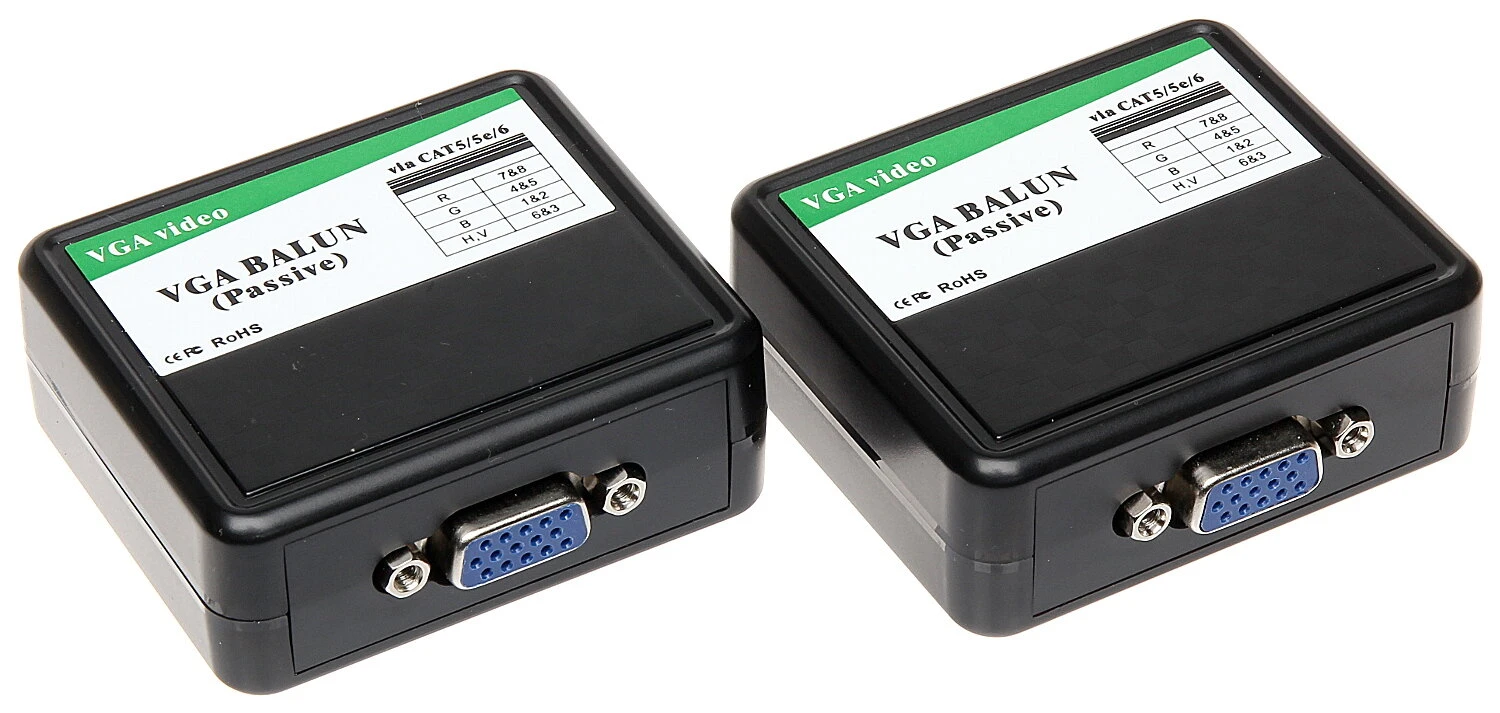

Two black VGA balun units with blue VGA connectors are shown side by side. Each unit is labeled "VGA BALUN (Passive)" and features ports for video signal transmission.

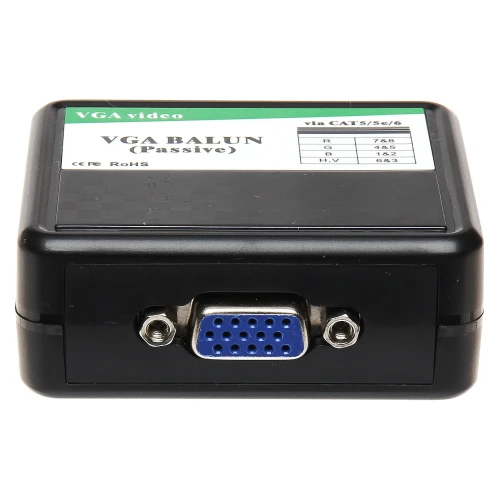

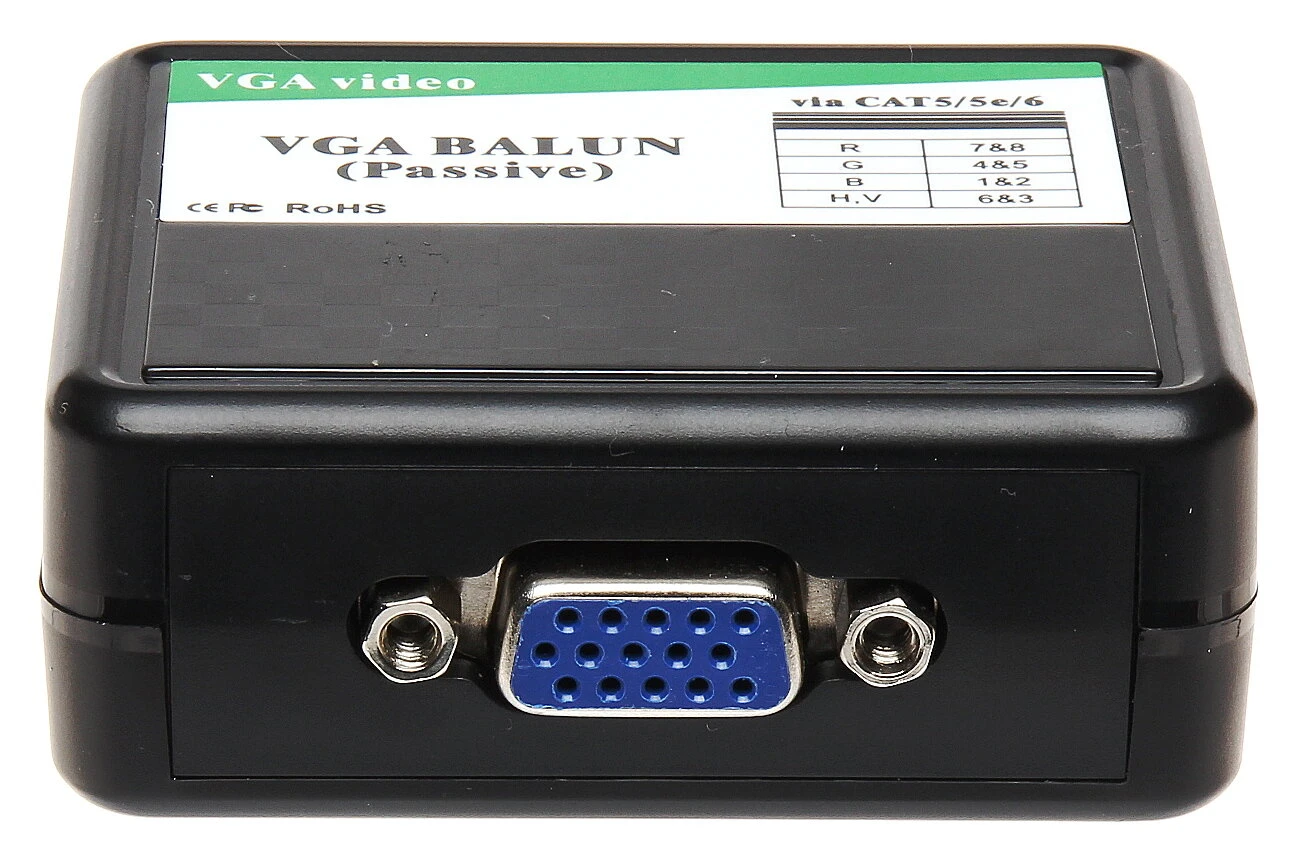

A black VGA balun with a blue VGA connector is designed for passive video transmission over CAT5/5e/6 cables. The device features labeled ports and compliance markings on its surface.

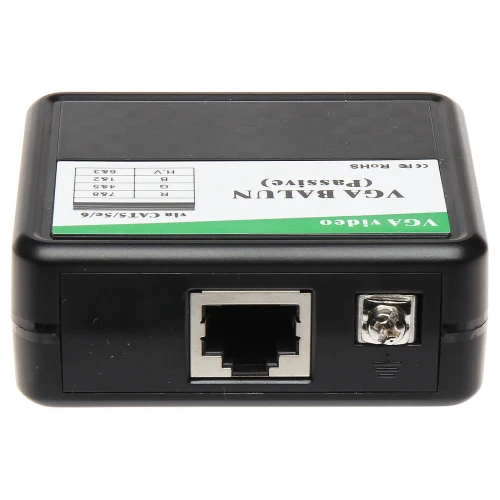

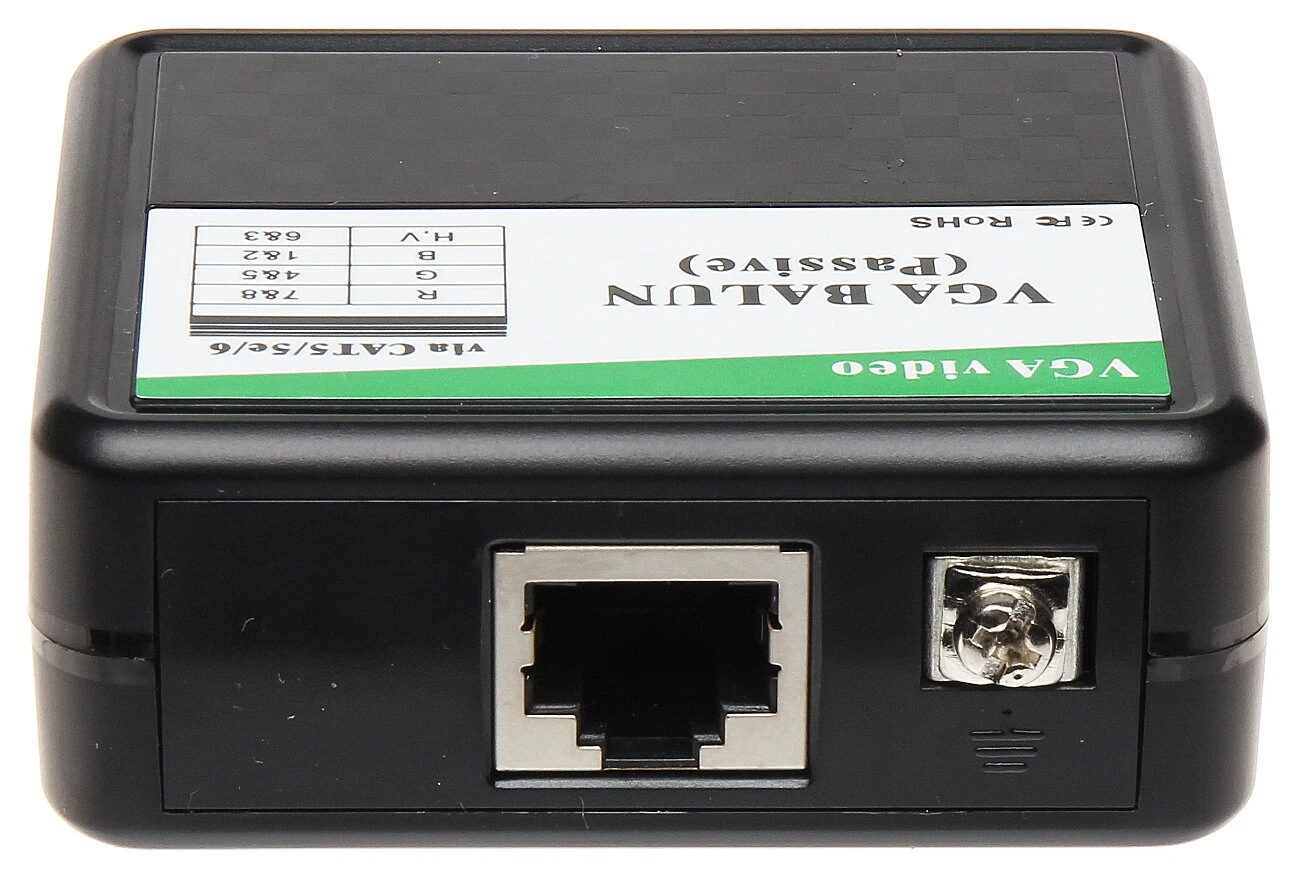

A black VGA balun with a passive design features a VGA video port and an RJ45 connector for transmitting video signals over CAT5/5e/6 cables. The compact device is labeled with technical specifications on the top surface.
The image shows a VGA Balun (Passive) designed for video transmission via CAT5/5e/6 cables. The device features a compact, rectangular black casing with labeled ports for easy connection.
The image shows a VGA extender setup using two black VGA over Ethernet adapters connected by a green FTP cable. The diagram illustrates the transmission from a computer to a monitor using VGA connections.

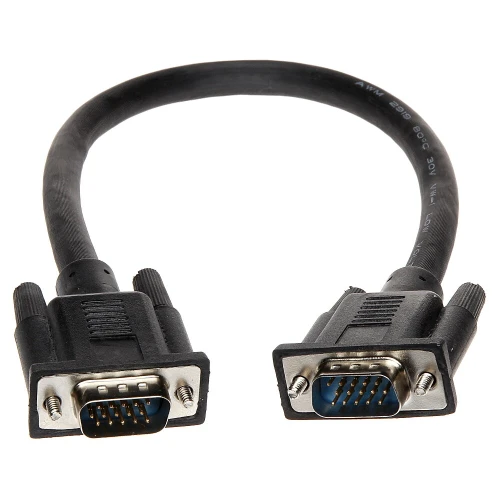

A black VGA extension cable with male connectors on both ends, featuring blue interiors and metal casings. The cable is designed for connecting video devices, providing a reliable signal transmission.

  • Product Code

    VGA-EX-30

  • Warranty

    24 miesiące

see description

Ask about this product show form

Do you have questions? Looking for answers? Are you interested?

  • Call
  • 34 341 16 30
  • We advise Mon - Fri 8 00 am to 4 00 pm
  • or send a message using the form below

Copy the code from the picture

weryfikator

Close

  • Availability: Product temporarily unavaliable

Price (Incl. VAT):

50,97 €

Add to Watchlist

Powiadom o dostępności pokaż formularz

Najniższy koszt dostawy: 12,98 zł

Do you represent a budgetary unit?
Check out the deferred payment option.

CA Raty

Product Description

The VGA-EX-30 extender allows the transmission of VGA signal over a distance of up to 180m via an FTP twisted pair cable. The transmitter performs symmetrization of the VGA signal allowing its transmission over twisted-pair cable. Three pairs are used for transmission of RGB components, while the fourth pair is used for transmission of synchronization. The transmitter and receiver are a set and both devices are required for proper operation. The set includes a transmitter and a receiver.

Note: The grounds of the devices must be connected to each other and therefore we recommend a shielded twisted pair.

Type of device:Passive
Power supply:No
Video range:Max. 180 m
Symmetrical connector impedance:100 Ω
Connectortype:
  • 1 x VGA - Socket
  • 1 x RJ-45 - socket
Resolution:
  • 1920 x 1200 px WUXGA @ 45 m (manufacturer's data) @ 30 m (our tests),
  • 1600 x 1200 px UXGA @ 45 m (manufacturer's data) @ 30 m (our tests),
  • 1280 x 1024 px SXGA @ 60 m (manufacturer's data) @ 40 m (our tests),
  • 1280 x 768 px WXGA @ 60 m (manufacturer's data) @ 40 m (our tests),
  • 1024 x 768 px XGA @ 75 m (manufacturer's data) @ 50 (our tests),
  • 800 x 600 px SVGA @ 120 m (manufacturer's data) @ 80 m (our tests),
  • 640 x 480 px VGA @ 180 m (manufacturer's data) @ 120 m (our tests)
Bandwidth:≤ 60 MHz DC
Pass-through attenuation:< 3 dB
Grounding:Via grounding screw
Operating temperature:0 °C ... 55 °C
Permissible relative humidity of the environment:≤ 95 %
Weight:0.06 kg
Dimensions:64 x 61 x 25 mm
