VGA Extender TRVGA-300-P

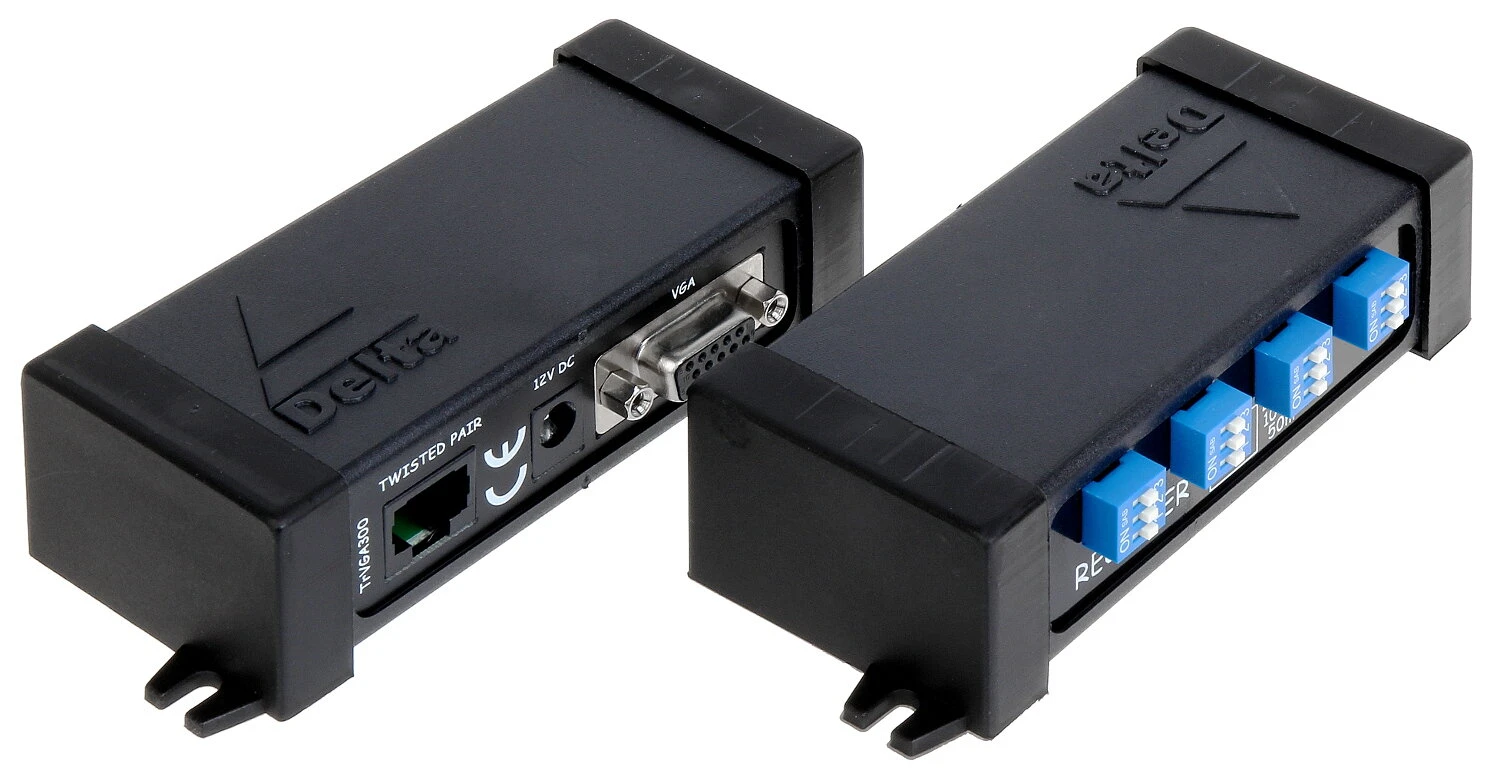

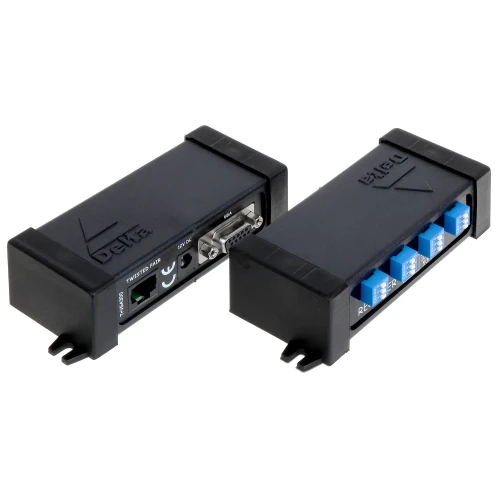

A pair of black VGA extenders with multiple connection ports, including VGA and Ethernet, designed for extending video signals over long distances. The compact design features durable casing and clear labeling for easy installation and use.

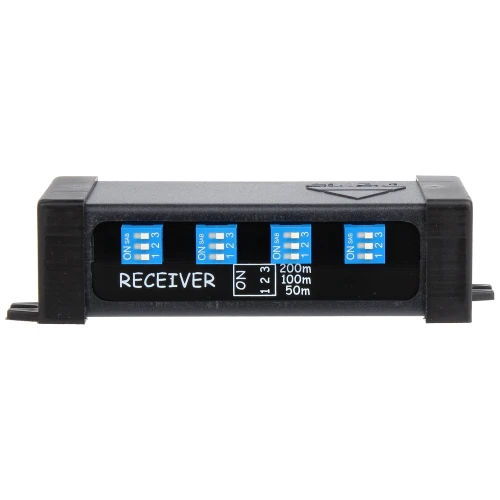

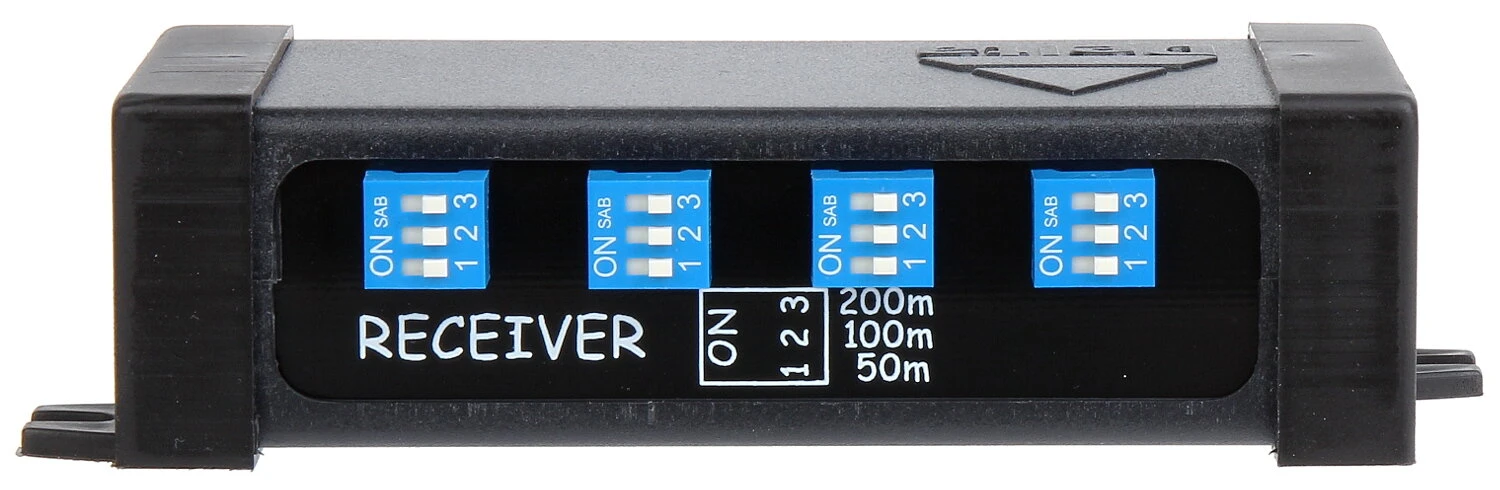

A black electronic receiver with a rectangular shape features four blue dip switches labeled 1, 2, and 3, and an "ON" switch. The front panel displays distance settings of 200m, 100m, and 50m.

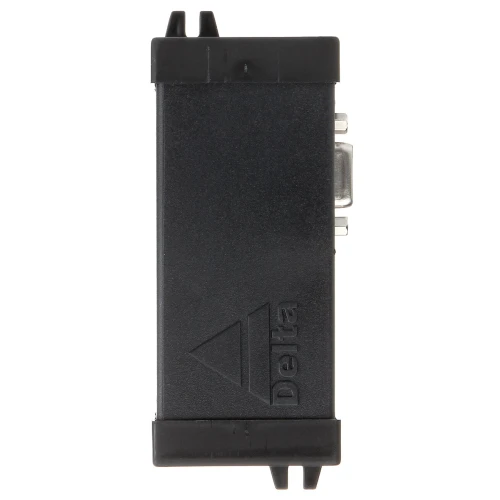

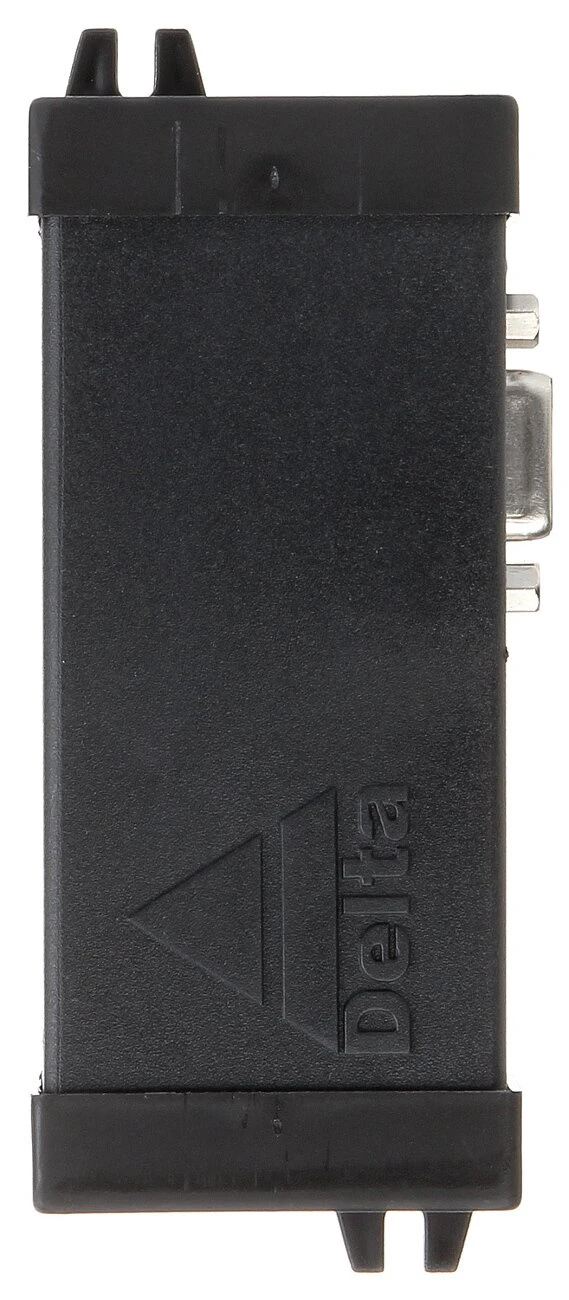

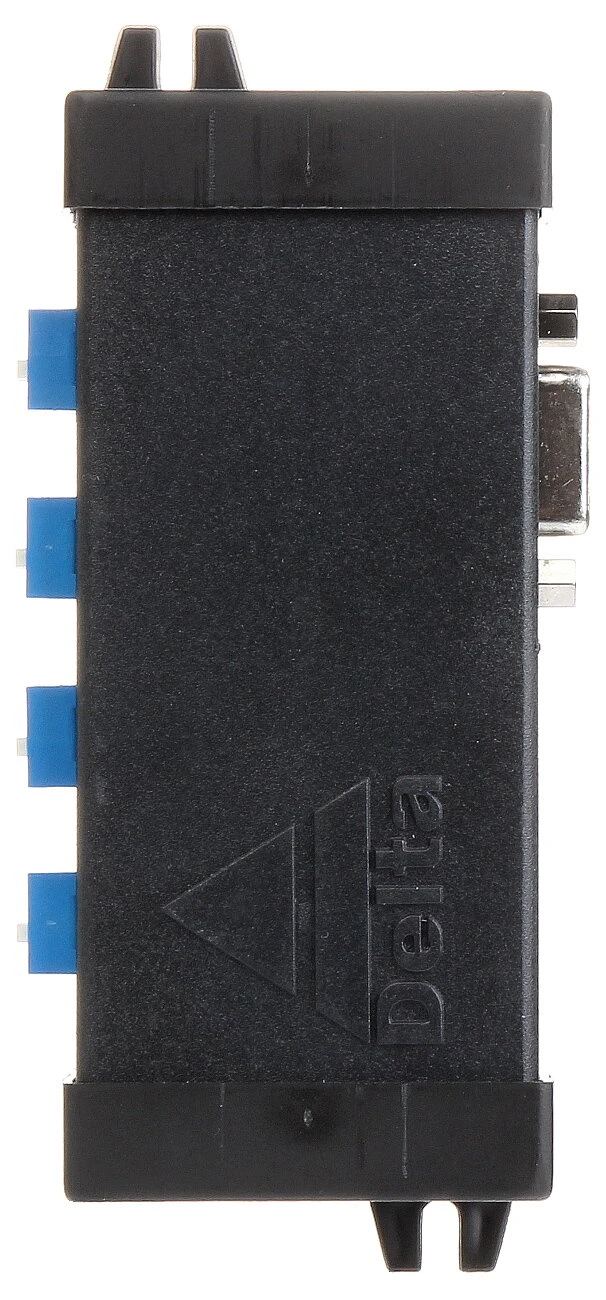

A black rectangular electronic device with a textured surface and the Delta logo embossed on it. The device features a connector on the side and two mounting tabs on the top and bottom.
A black electronic module with a rectangular shape features multiple blue connectors on one side and a USB port on the other. The product has the brand name "Delta" embossed on its surface.
Diagram showing switch positions based on cable length, with ranges from 0-300 meters. Each section displays different switch configurations for specific distance intervals.
Diagram illustrating the connection setup for the TrVGA300 transmitter and receiver, showing power requirements and UTP cable connections. The image includes labeled components: a power source, transmitter, receiver, and a monitor.

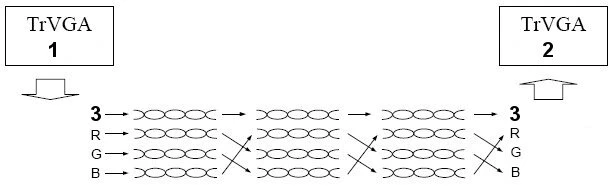

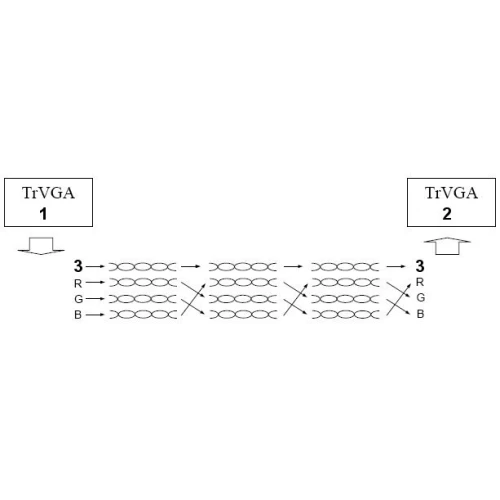

Diagram illustrating the operation of a compensating weave to balance length differences in individual pairs, featuring two TrVGA units and three color-coded lines labeled R, G, and B. The lines are interconnected with loops and arrows, demonstrating the signal flow and compensation process.

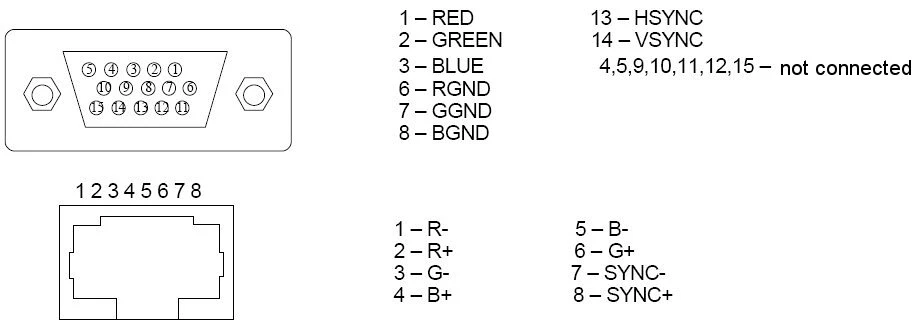

Diagram showing a 14-pin connector with labeled pins for RGB video signals, including red, green, blue, and sync connections. The illustration includes a front view of the connector and a pin assignment list for easy reference.

  • Manufacturer

    Delta

  • Product Code

    TRVGA-300-P

  • Warranty

    24 miesiące

see description

Ask about this product show form

Do you have questions? Looking for answers? Are you interested?

  • Call
  • 34 341 16 30
  • We advise Mon - Fri 8 00 am to 4 00 pm
  • or send a message using the form below

Copy the code from the picture

weryfikator

Close

  • Availability: Product temporarily unavaliable

Price (Incl. VAT):

147,97 €

Add to Watchlist

Powiadom o dostępności pokaż formularz

Najniższy koszt dostawy: 12,98 zł

Do you represent a budgetary unit?
Check out the deferred payment option.

CA Raty

Product Description

TRVGA-300-P transformer is used for active transmission of VGA signal up to 300m over twisted-pair cable. The transmitter performs symmetrization of the VGA signal, enabling its transmission over twisted-pair cable. Three pairs are used for transmission of RGB components, while the fourth pair is used for transmission of synchronization. The device is equipped with symmetrical line surge protection. The transmitter and receiver are a set, and both devices are required for proper operation. The set includes the transmitter and receiver.

Type of device:
Active / Transmitter
Number of channels:1 VGA
Power supply:12 V / 70 mA (no power supply included)
Video range:max. 300 m
Impedance of symmetrical connector:100 Ω
Connectortype:VGA Socket
Symmetrical connector type:RJ-45 (8-pin, 4 pairs) Socket.
Weight:0.078 kg
Dimensions:118 x 30 x 48 mm
Device type:
Active / Receiver.
Number of channels:1 VGA
Power supply:12 V / 170 mA (no power supply included)
Video range:max. 300 m
Impedance of symmetrical connector:100 Ω
Connectortype:VGA female socket
Symmetricalconnector type:RJ-45 (8-pin, 4 pairs) Socket.
Weight:0.078 kg
Dimensions:118 x 30 x 54 mm
Selected features:
  • Short circuit protection
  • Signal correction
Resolution:
  • 1920 x 1200 / 80 Hz @ 100 m
  • 1024 x 768 / 60 Hz @ 300 m
Manufacturer / Brand:DELTA
