2-family IP Video Intercom Set BCS-PAN2401G-S 2x 7" Monitor BCS-MON7300B-S + 6 keychains
Photo gallery
-
Manufacturer
-
Product Code
ZW12761B
-
Warranty
36 miesięcy
- Number of subscribers: 2
Files attached to the product show files
Files for download
-
Size: 5,60 MB
-
Size: 4,68 MB
Price (Incl. VAT):
Archival product
Najniższy koszt dostawy: 12,98 zł
Do you represent a budgetary unit?
Check out the deferred payment option.
Product Description

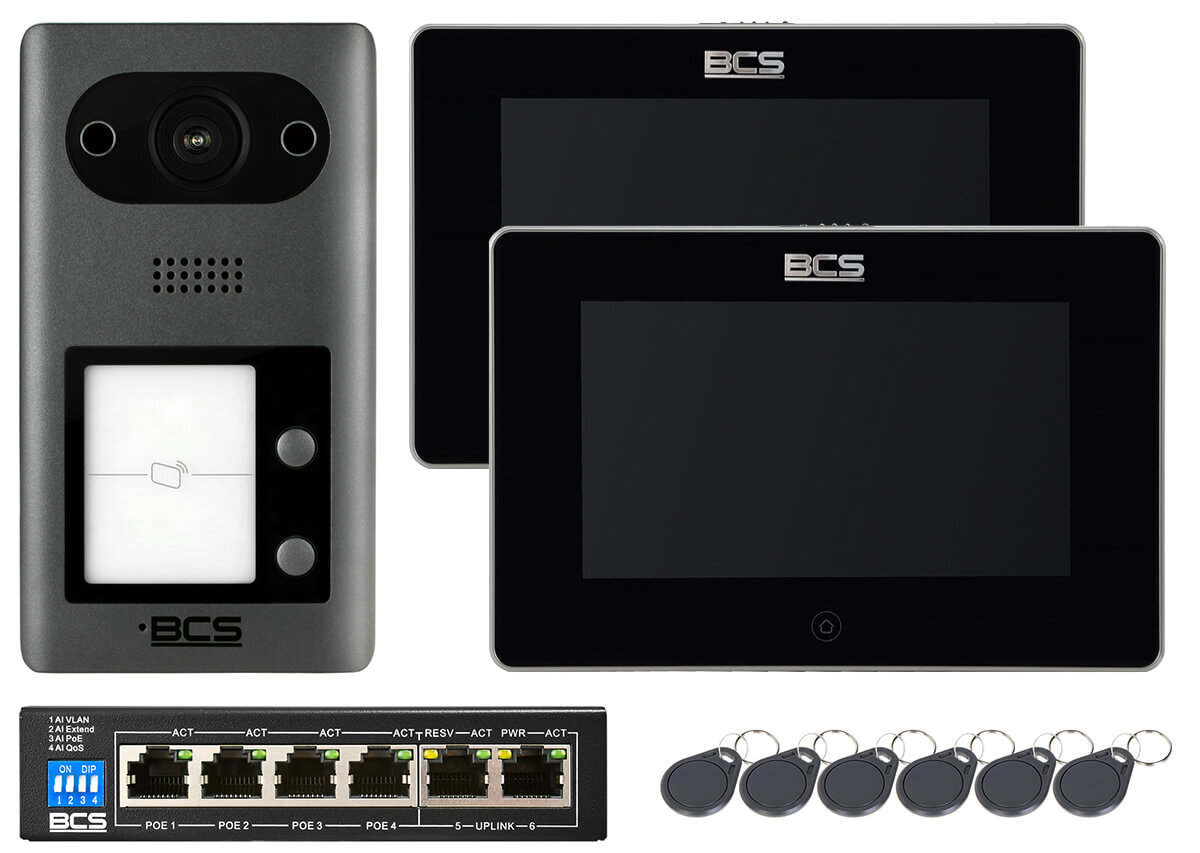

2-family IP video door entry kitBCS-PAN2401G 2x 7" Monitor BCS-MON7300B plus 6x proximity key fob

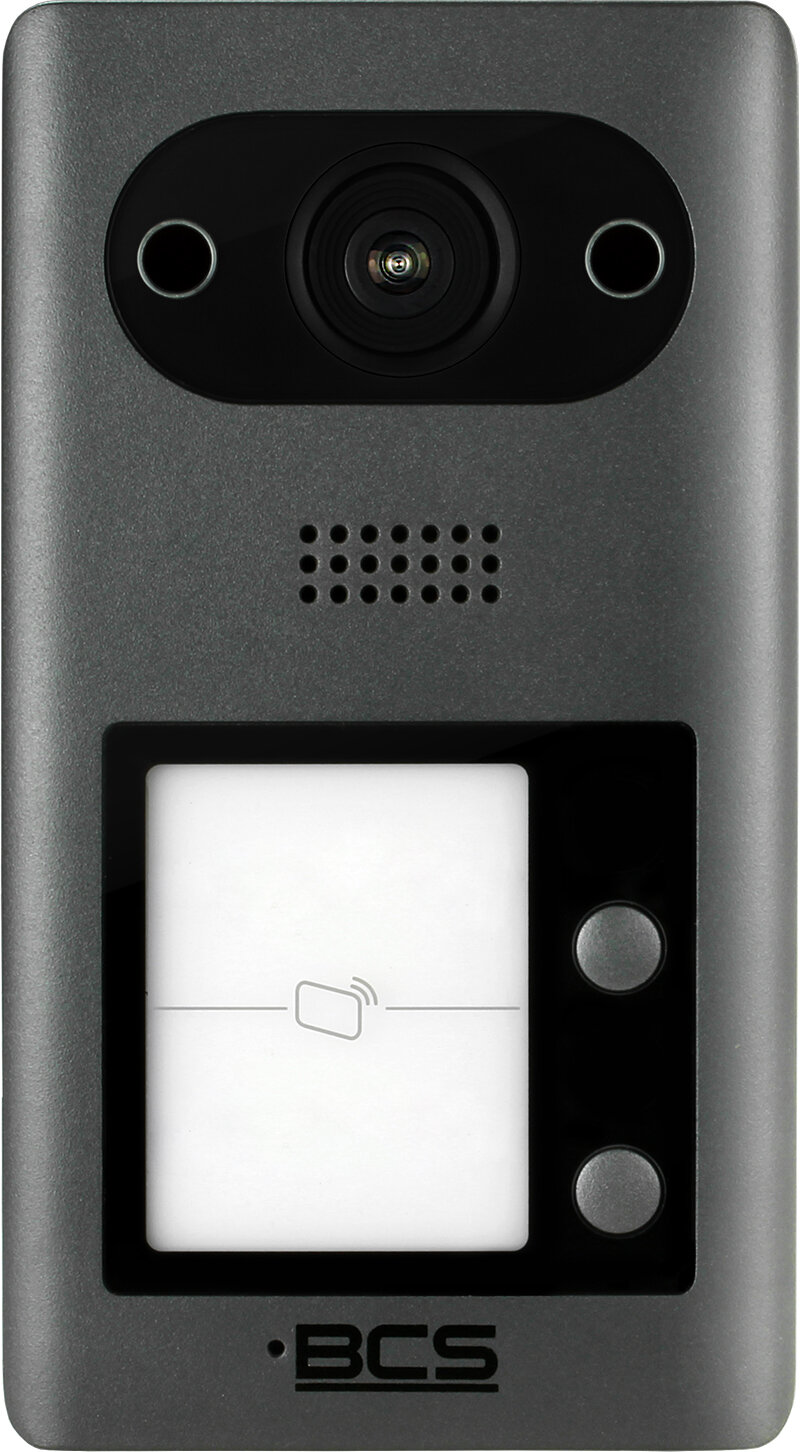

Outdoor IP video door entry panel BCS-PAN2401G
Two-family outdoor IP panel. Surface-mounted, aluminum vandal-proof housing, built-in card reader, 1.9mm wide-angle lens, 720p camera with 1/2.8mm CMOS sensor, ICR and backlit dusk-switched visitator with sensitivity adjustment, PoE (802.3af) power capability. The panel is compatible with BCS-MON7300B/W series video monitors.
Main features:
- Built-in Mifare 13.56MHz proximity reader
- Surface mounting
- 1/2.8" CMOS sensor
- Supported resolution: HD 720p, D1
- 1.9mm lens
- Camera viewing angle: 140° (horizontal)
- ICR illuminator
- Video compression: H.264
- Audio coding: G.711
- Video recording on BCS Line and Point recorders
- Management via web browser (Web Service)
- Free BCS Viewer Lite mobile app for iOS and Android - answer calls, preview intercom camera and IP cameras and DVRs from BCS Line series, open door and gate, take photo and video of caller (connection with fixed IP address recommended)
- Viewing the camera image from the Web Service level
- Two mechanical call buttons
- Visor with LED backlighting (twilight switch)
- Built-in voice messages for ease of operation - call initiation/end, opening, busy, call error, audio/video message recording assistant for tenant
- Tamper contact that activates an acoustic alarm when an attempt is made to open the housing
- Built-in relay (C, NO, NC) with adjustable operating time
- RS485 output for connecting BCS-MODKD2 relay module (module supplied separately) to control an additional device from the monitor or mobile application (e.g. gate)
- LAN connection using the included adapter
- Connecting power supply, relay, exit button and RS port using the supplied connection tape
- Time/date change from Web Service level
- DST, NTP, P2P, UPnp function
- Changing ports from the Web Service level
- Menu and voice prompts in Polish or English
- Adding IP CCTV cameras from the Web Service level
- Possibility to record audio-video message for tenant
- Automatic taking of pictures of callers
- Protection class: IP65
- Mechanical resistance class: IK08
- Power supply: 12 VDC or PoE 48V (802.3af)
- Power consumption: ≤1W, Work ≤7W
- Operating temperature:-40°C~+60°C, humidity: 10%~90%RH
- Wymiary: 182.0mm×30.0mm×101.0mm
- Weight: 0.8kg
- Graphite colored aluminum alloy housing
- Alarm input (GND IN)
- COM/NO alarm output switched on for 30 sec when alarm input is triggered

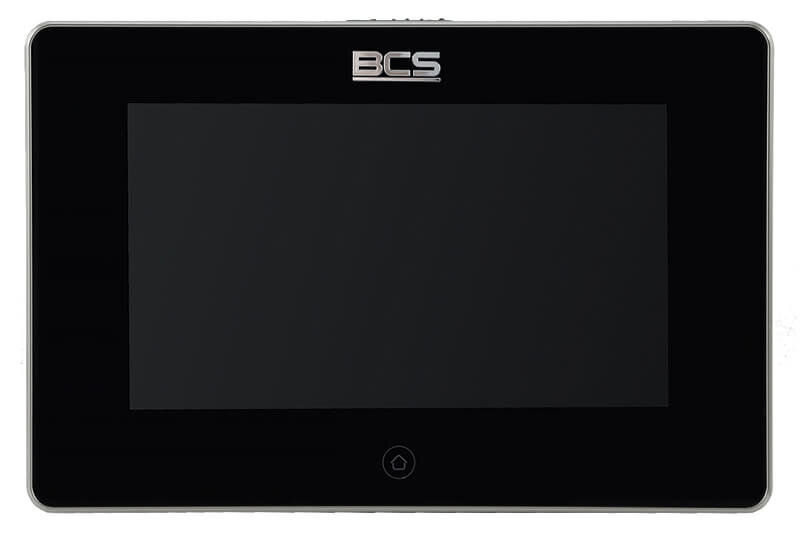

2x IP video door entry monitor BCS-MON7300B
Hands-free IP video-intercom monitor, white housing Touch capacitive TFT screen 7" diagonal Menu in Polish or English Monitor managed via graphical interface and 5 quick selection buttons Built-in tenant directory and call list Possibility to save pictures and recordings from external panels cameras Automatic recording of callers' pictures on memory card Alarm function allowing connection of 6 sensors
Main features:
- IP hands-free video door entry monitor, black housing
- 7" TFT capacitive touch screen
- Menu in Polish or English
- Monitor managed with graphical interface and 5 quick selection buttons
- Built-in tenant directory and call list
- Possibility to save pictures and recordings from external panel cameras
- Automatic recording of pictures of callers on memory card
- Alarm function allowing connection of 6 NO/NC sensors, zone division, history
- Ability to display images from IP cameras (BCS Line, Point and Onvif, 32 cameras per monitor)
- Expandable to 6 monitors and 20 outdoor panels in the same premises
- Audio intercom function between all monitors in the same building
- Surface mounting, mounting base included
- Control of a relay / two relays (applies to compatible panel with BCS-MODKD2 Relay Module) from the monitor during a call, conversation and viewing of an intercom or other IP camera
- Ability to switch during a call/conversation the image from an intercom camera to another designated IP camera and back to the intercom camera at any time
- Support for single-family and modular panels, change date and time from the monitor level
- 12VDC local power supply, 48V PoE support (802.3 af)
- Slot for micro SD memory card (max 32GB), 8GB microSD card included
- New graphical interface, screen resolution 1024*600
- Built-in alarm output COM,NO, designed for Alarm function
- Possible assignment of different ringtones for inputs (2 melodies)
- Adjustable microphone and speaker sensitivity
- Doorbell function
- LED signaling of missed calls
Set includes:
- BCS-PAN2401G outdoor panel ( 1 pc ).
- BCS-MON7300B 7" monitor ( 2 pcs ).
- PoE switch ( 1 pc ).
- Proximity key ring ( 6 pcs ).
