TVI-VIS-04 HD Video Door Phone Set
Photo gallery
-
Manufacturer
-
Product Code
TVI-VIS-04
-
Warranty
24 miesiące
- Number of subscribers: 1
Ask about this product show form
Product Description
TVI-VIS-04 Video Intercom Set.
HD video intercom kit for four wires, ideal for easy installation (Plug&Play). Offers clear HD video (720p), wide field of view (130°/70°), and one-button call and door open function. Includes door station, indoor station with 7-inch color TFT screen, 5-meter 4-wire cable and accessories. Supports up to 2 door stations and 3 indoor stations for versatility and convenience.
Contents of the TVI-VIS-04 package:
The box includes:
-
- DS-KB2412T-IM × 1
- DS-KH2230T × 1
- 5-meter 4-wire cable and other accessories
HiLook by Hikvision products are devices that focus on ease of use, literally anyone can handle their installation and configuration thanks to the included instructions.
Video intercom characteristics :
- Auxiliary lighting: IR up to 3 m
- Resolution: 1280 × 720p @60fps
- Field of view (FOV):
- Horizontal: 130°
- Vertical: 70°
- Audio input: Built-in omnidirectional microphone
- Audio output: Built-in speaker
- Lock control: Relay, max. 30V 1A
- Debug port: 1
- 4-wire interface: 1
- Button: Physical button
- Power supply: 12 VDC
- Power consumption: 4 W max.
- Operating temperature: -30°C to 60°C
- Operating humidity: 10%-90%
- Dimensions: 136 mm × 51 mm × 20 mm
- Mounting: Surface mounted
- Material: Plastic
Monitor :
- Operating method: Physical buttons
- Display screen: 7-inch TFT color screen
- Display resolution: 1024 × 600
- Audio parameters:
- Input: Built-in omnidirectional microphone
- Output: Built-in speaker
- Device capacity:
- Connected analog cameras: 1
- Connected indoor extensions: 2
- Supported intercoms: 2
- Power supply: 12V DC
- Debug port: 1
- DIP switch: 1 bit
- BNC connector: 1
- 4-wire interface: 4 (2 for indoor extensions, 2 for door stations)
- Buttons: 4 physical buttons
- Power consumption: ≤ 5 W
- Operating temperature: -10°C to 55°C
- Operating humidity: 10%-90%
- Dimensions (D × S × W): 178 mm × 132 mm × 19 mm
- Mounting: Surface-mounted

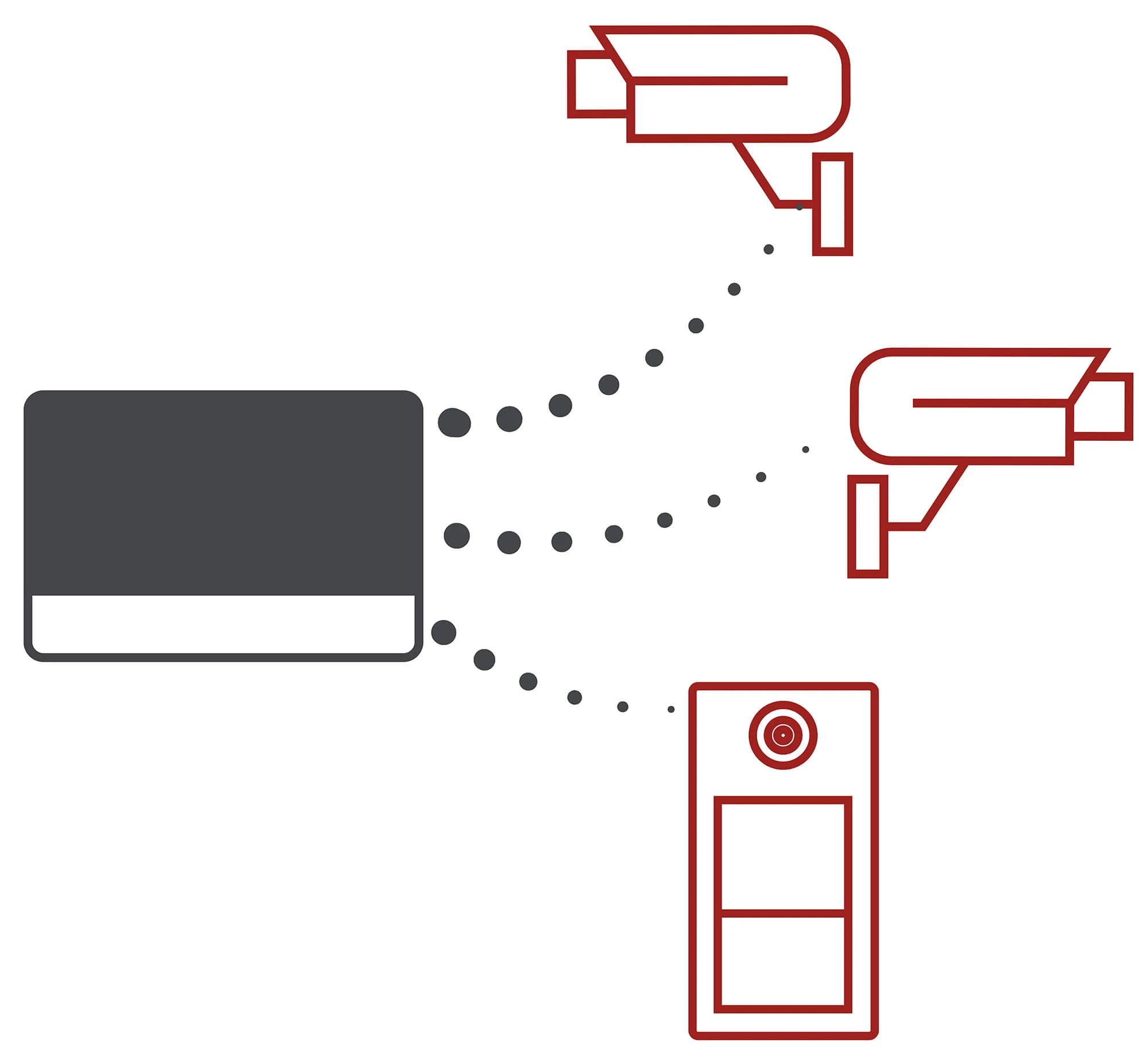

Integration with monitoring systemTVI-VIS-04 allows you to configure the monitor with CCTV cameras from the same manufacturer, so you can have your own small monitoring center. |
 |
Video intercom specifications:
| Auxiliary lighting: | IR up to 3m |
| Resolution: | 1280 × 720p @60fps |
| Field of view (FOV): | Horizontal: 130° Vertical: 70° |
| Audio input: | Built-in omnidirectional microphone |
| Audio output: | Built-in speaker |
| Lock control: | Relay, max. 30V 1A |
| Debug port: | 1 |
| 4-wire interface: | 1 |
| Button: | Physical button |
| Power supply: | 12 VDC |
| Power consumption: | 4 W max. |
| Operating temperature: | -30°C to 60°C |
| Operating humidity: | 10%-90% |
| Dimensions: | 136 mm × 51 mm × 20 mm |
| Mounting: | Surface mounted |
| Material: | Plastic |
Monitor Specifications:
| Operating method: | Physical buttons |
| Display screen: | 7-inch color TFT screen |
| Display resolution: | 1024 × 600 |
| Audio parameters: | Input: Built-in omnidirectional microphone Output: Built-in speaker. |
| Device capacity: |
|
| Power supply: | 12V DC |
| Debug port: | 1 |
| DIP switch: | 1 bit |
| BNC connector: | 1 |
| 4-wire interface: | 4 (2 for indoor extensions, 2 for door stations) |
| Buttons: | 4 physical buttons |
| Power consumption: | ≤ 5 W |
| Operating temperature: | -10°C to 55°C |
| Operating humidity: | 10%-90% |
| Dimensions (D × S × W): | 178 mm × 132 mm × 19 mm |
| Mounting: | Surface-mounted |
