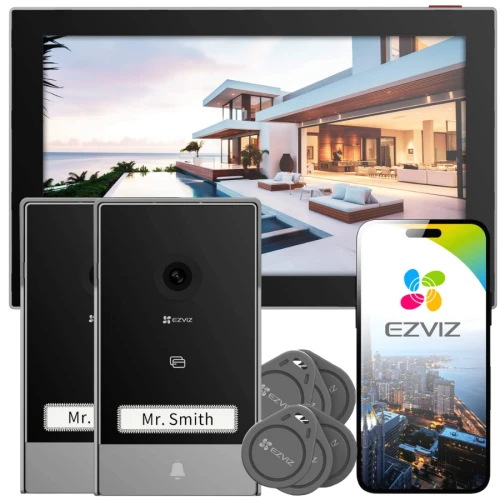

EZVIZ HP7 Video Intercom 2-Wire, WiFi, 2 Outdoor Panels (for 2 Entrances), Reader
Photo gallery
-
Manufacturer
-
Product Code
CS-HP7 (3MP,2-Entry Kit)
-
Warranty
24 miesiące
Ask about this product show form
Related products
Product Description
Key features:
- 2K Resolution
- 7" Color Touch Screen
- 2x Intercom Panel
- Remote Door/Gate Opening
- Intelligent Human Silhouette Detection
- Two-way conversation (voice change option)
- Built-in bell with selectable melody
- Intelligent Opening with RFID proximity reader (6 key fobs included)
- Waterproof housing
- 6 Name Cards included
- Supports two Wi-Fi 6 bands (2.4 and 5 GHz)
- MicroSD card support (up to 512 GB)
- EZVIZ CloudPlay cloud recording
It's time to upgrade your old intercom with Internet connectivity, remote access and app-based control. EZVIZ's first-ever HP7 video intercom gives homeowners complete convenience, allowing them to view, talk to and control the entrance for guests, even when they're not at home. It also enhances home security, as the combination of a 2-in-1 camera and intercom allows it to not only record video in 2K resolution, but also detect a person's silhouette with real-time notifications.
Designed for professional home security
The HP7 is ideal for those looking to replace a bulky, classic intercom when renovating, or for those moving into a spacious home and looking for convenient communication and reliable security. This elegant set combines an outdoor video intercom with a large indoor screen and is sure to fit in with any style of home.
The HP7 is ideal for those looking to replace a bulky, classic intercom when renovating, or for those moving into a spacious home and looking for convenient communication and reliable security. This elegant set combines an outdoor video intercom with a large indoor screen and is sure to fit in with any style of home.
Manage your entrance easily - even from a distance
Heavy, bulky keys are now history. The HP7 provides, easier passage control while offering the added security of visual visitor verification.
Heavy, bulky keys are now history. The HP7 provides, easier passage control while offering the added security of visual visitor verification.
All-in-one monitor for communication and control
A 7-inch color touchscreen allows you to efficiently set up and operate an outdoor intercom, talk to guests standing outside your home and capture meaningful video footage. When a visitor calls, the indoor screen automatically illuminates to let you know who is outside.
Remote communication easier than ever
Even when you're not at home, you won't miss a visitor thanks to the EZVIZ HP7. You can always use your phone to contact newcomers and remotely open the gate for them. In addition, the voice change function will give you anonymity and a sense of security when contacting strangers.
Even when you're not at home, you won't miss a visitor thanks to the EZVIZ HP7. You can always use your phone to contact newcomers and remotely open the gate for them. In addition, the voice change function will give you anonymity and a sense of security when contacting strangers.
Video intercom at a whole new level
The EZVIZ HP7 is designed to give you an extremely expansive and clear view all day long. With its 162-degree viewing angle and 2K lens, you can easily see the mailman from head to toe without any blurry pixels. The HP7 camera provides these night vision up to 5 meters in infrared, giving you peace of mind and security around the clock.
The EZVIZ HP7 is designed to give you an extremely expansive and clear view all day long. With its 162-degree viewing angle and 2K lens, you can easily see the mailman from head to toe without any blurry pixels. The HP7 camera provides these night vision up to 5 meters in infrared, giving you peace of mind and security around the clock.
Better protection with intelligent human motion detection
As soon as the EZVIZ HP7 video doorbell detects human activity at the gate, it will immediately send you a mobile notification of the presence of an uninvited guest. You can always fine-tune the sensitivity and set the detection zone yourself to reduce unwanted notifications.
As soon as the EZVIZ HP7 video doorbell detects human activity at the gate, it will immediately send you a mobile notification of the presence of an uninvited guest. You can always fine-tune the sensitivity and set the detection zone yourself to reduce unwanted notifications.
Thoughtful solutions for added comfort
A sleek design will beautify the entrance to your home.
The EZVIZ HP7 kit comes in classic glossy black. Its versatile and elegant design fits perfectly into any home or yard decor. The large touch surface of the indoor screen provides full user comfort.
The EZVIZ HP7 kit comes in classic glossy black. Its versatile and elegant design fits perfectly into any home or yard decor. The large touch surface of the indoor screen provides full user comfort.
Stable connection for greater productivity
To guarantee an optimal connection between devices, the indoor monitor can be connected to a 2.4 or 5 GHz Wi-Fi band. Enjoy strong Wi-Fi with lower latency, higher bandwidth and a stable signal.
To guarantee an optimal connection between devices, the indoor monitor can be connected to a 2.4 or 5 GHz Wi-Fi band. Enjoy strong Wi-Fi with lower latency, higher bandwidth and a stable signal.
Greater convenience with smaller video files
Compared to the commonly used H.264 video compression technology, H.265 technology provides a clearer experience when watching recorded video. You no longer have to worry about large files taking up too much disk space - H.265 technology reduces the size of the recording by up to 50%.
Compared to the commonly used H.264 video compression technology, H.265 technology provides a clearer experience when watching recorded video. You no longer have to worry about large files taking up too much disk space - H.265 technology reduces the size of the recording by up to 50%.
High-capacity, secure storage options you can trust
You can store your recorded videos on a local microSD card of up to 512 GB, or subscribe to EZVIZ's CloudPlay service for fully encrypted cloud storage.
You can store your recorded videos on a local microSD card of up to 512 GB, or subscribe to EZVIZ's CloudPlay service for fully encrypted cloud storage.
We go to great lengths to protect your data and privacy
We have designed our product to respectfully protect your data and privacy. You have the option to set a no-filming zone to make sure you only record when it's appropriate and allowed.
We have designed our product to respectfully protect your data and privacy. You have the option to set a no-filming zone to make sure you only record when it's appropriate and allowed.
Technical specifications:
| Outdoor gateway: | |
| Image sensor | 1/2.7" CMOS progressive scan (low light sensitivity support) |
| Lens | 2.0 mm @ F2.2, viewing angle: 162° (diagonal) |
| Day/night mode | Infrared filter with automatic switching, 850 nm infrared light × 2 (max. 6 m) |
| Max resolution | 2048 × 1296 |
| DNR | 2D / 3D DNR |
| Video compression | H.265 / H.264 |
| Frame rate | Max. 15 frames per second; auto-adaptation during network transmission |
| Connectivity and features: | |
| Connection method | Wired connection ( 2-wire, possible with 4-wire), digital signal transmission |
| Transmission distance | 2 x 0.75mm² , max. 50m 2 x 1.5mm² , max. 100m Twisted-pair, max. 120m |
| Gate opening | 2x Intercom panel provides dry contact connection without electricity, for connection with automatic gate button, switching capacity: 12V / 2A |
| Unlocking (electric door strike) | The electric door strike or lock ordered must have mechanical memory; the power supply of the electric door strike or lock must not exceed 12V / 1.1A, otherwise follow the Operating Instructions. |
| Opening the door | 1. using RFID reader (6 key fobs included) 2. remote unlocking via app 3. using internal screen |
| External doorphone interface: | |
| Audio input | Built-in high-sensitivity microphone |
| Audio output | Built-in high-power speaker |
| Intercom button | Features an intercom button. Ability to turn the backlight on and off. |
| Name plate | Includes 3 name cards (one is on the intercom panel). Possibility to turn the backlight on and off. |
| Inputs and outputs | Two ports for screen connection. Two ports for gate control. Two ports for connecting an electric door strike. |
| Features: | |
| Intelligent alarm | Intelligent human motion detection, fixed detection |
| Anti-theft alarm | Supports |
| Video intercom | Two-way video conversation at a distance |
| General Specifications: | |
| Operating conditions | Temperature from -30°C to 60°C , humidity up to 95% (non-condensing) |
| IP degree of protection | Waterproof, with covers |
| Replacements | 161 × 87 × 20 mm (6.34 × 3.42 × 0.79 in.). |
| Internal screen: | |
| Display size | 7-inch touchscreen |
| Resolution | 1024 × 600 |
| Interface: | |
| Audio input | Built-in high-sensitivity microphone |
| Audio output | Built-in high-power speaker |
| Button | Screen on/off button |
| Inputs and outputs | Two ports for connecting the first external videophone Two ports for connecting the second external videophone Two ports for connecting an additional internal screen (additional screen not included). |
| Memory | Support for microSD cards up to 512 GB Support for EZVIZ CloudPlay cloud recording |
| Network parameters: | |
| Protocycle | Patented EZVIZ Cloud service protocol |
| Interface Protocycle | Patented EZVIZ Cloud service protocol |
| Protocycle | EZVIZ Connect Protocycle |
| Wi-Fi Parameters: | |
| Wi-Fi standard | IEEE802.11b, 802.11g, 802.11n, 802.11ac |
| Frequency range | 2.4G: 2.4 GHz ~ 2.4835 GHz 5G: 5.15 GHz ~ 5.25 GHz |
| Channel bandwidth | Supports 20MHz |
| Security | 64 / 128-bit WEP,WPA / WPA2, WPA-PSK / WPA2-PSK |
| Transmission speed | 11b: 11Mbps, 11g: 54Mbps, 11n: 150Mbps, 11ac: 433.3Mbps |
| Features: | |
| Selectable ringtones | Up to 20 ringtones. |
| Features | Live viewing, playback, two-way call, video call |
| General information: | |
| Operating conditions | Temperature from -30°C to 60°C , humidity up to 95% (non-condensing) |
| Weight | Net weight: 855 g (30.16 oz) Weight with packaging: 1825 g (64.37 oz) |
| Size | 180 × 111 × 15 mm (7.09 × 4.37 × 0.59 in) |
| Power source | DC 24V / 1.5A power supply, adapter (100- 240Vac) |
| Power consumption | 8W, max. 24W |
| Package contents: | 1. Screen 2. Wall mount for the screen 3. Power adapter for the screen 4. Drilling template for screen installation 5. Doorphone panel (x2) 6. Drilling template for doorphone installation 7. Screwdriver 8. Key fob/proximity card (x6) 9. Screw set (x2) 10. Name cards (x6) 11. Wires and connectors 12. Legal Information (x2) 13. User Manual 14. Cetificates |
| Certifications: | CE / REACH / WEEE / RoHS |
