HiLook by Hikvision IP-VIS-ULTRA Video Intercom
- Save -11%
Do you represent a budgetary unit?
Check out the deferred payment option.
Product Description

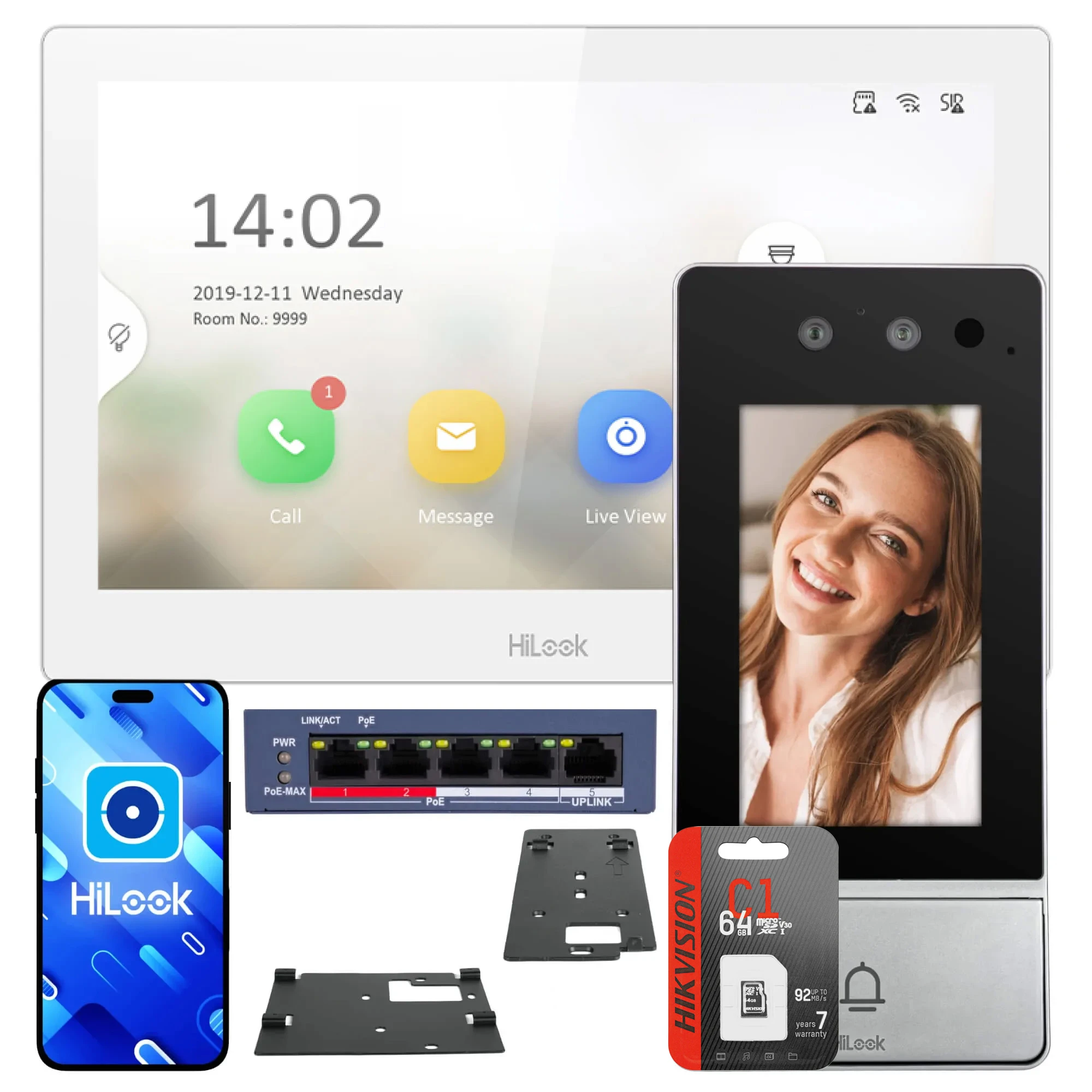

IP-VIS-ULTRA package contents:
In the box, in addition to the complete IP-VIS-ULTRA video intercom kit, you will also find useful instructions and installation accessories to speed up the entire video intercom installation process.
The box includes:
- HiLook monitor DS-KH8520-WTE1 (1pc).
- DS-KV9503-WBE1 outdoor panel (1pc).
- DS-3E0105P-E/M 4-port PoE switch (1pc).
- Power supply (1pc)

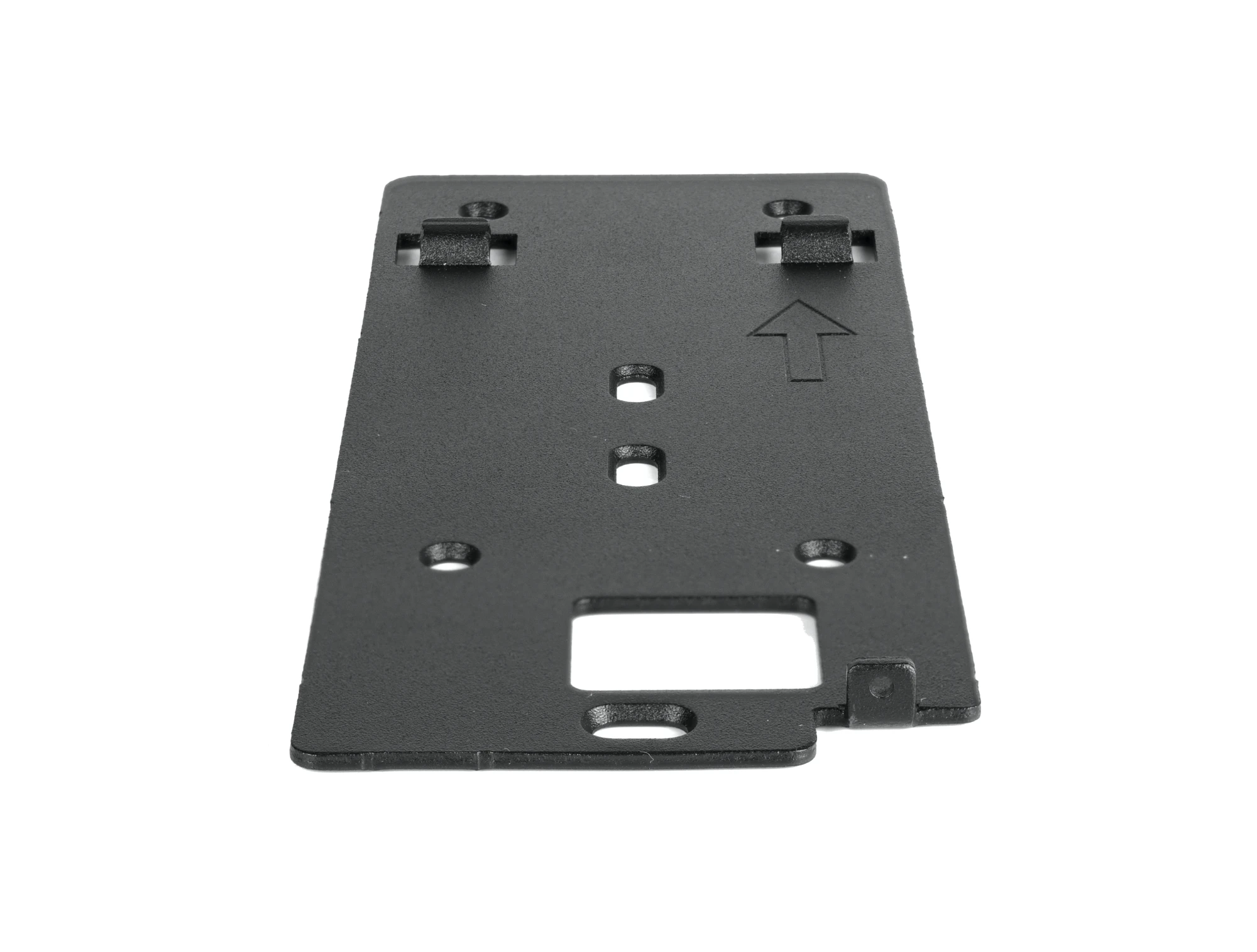

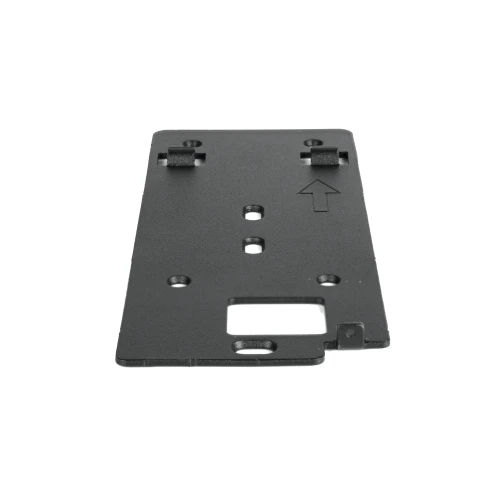

- Mounting adapters
- Mounting screws
HiLook by Hikvision products focus on ease of use, literally anyone can handle their installation and configuration thanks to the included instructions.

Characteristics of IP-VIS-ULTRA video intercom:
- Two high resolution FullHD cameras
- Viewing angle for one camera - 88° horizontally
- Wide range of authentication methods - Face Recognition, PIN, Proximity Card/Tag, QR Code, Bluetooth
- Hands-free touchscreen monitor - 10.1-inch LCD screen for easy operation and communication.
- Control of two locks
- Tamper detection - alarm system activated when the device is detached from the ground.
- IP surveillance cooperation - allows integration with a video surveillance system.
- Internal memory of 128MB - for storing pictures automatically taken in case of no answer to the bell.
- Possibility to power devices via PoE
- Built-in WiFi module - allows for easy and fast connection to a home wireless router.
- Operation via the Hik-Connect mobile app - allows remote control and monitoring of the device using a phone.

The IP-VIS-ULTRA video intercom allows remote control via the Hik-Connect / HiLook App mobile app, which is compatible with both Android and iOS. The app offers a number of features:
- Remote viewing of video from the video intercom in real time.
- Playback of stored recordings and receipt of notifications.
- The ability to chat with visitors, such as couriers or guests.
- Controlling access to the entrance.
- Archiving the history of events in the system.
- In addition, the app allows you to manage other systems, such as video surveillance or an alarm system, making it a versatile tool for managing the security of your home or office.

Wireless connectivityThe IP-VIS-ULTRA video intercom monitor with WiFi module offers several advantages. First, it allows wireless transmission of video and audio, which gives you the flexibility to place the monitor anywhere in your home without pulling cables. Secondly, by connecting to a WiFi network, users can remotely monitor their doors and interact with people outside via a mobile app, adding convenience and security. In addition, a monitor with a WiFi module often also offers additional features, such as saving video to a memory card or the cloud, which increases the functionality and usability of the device. |
![]() |

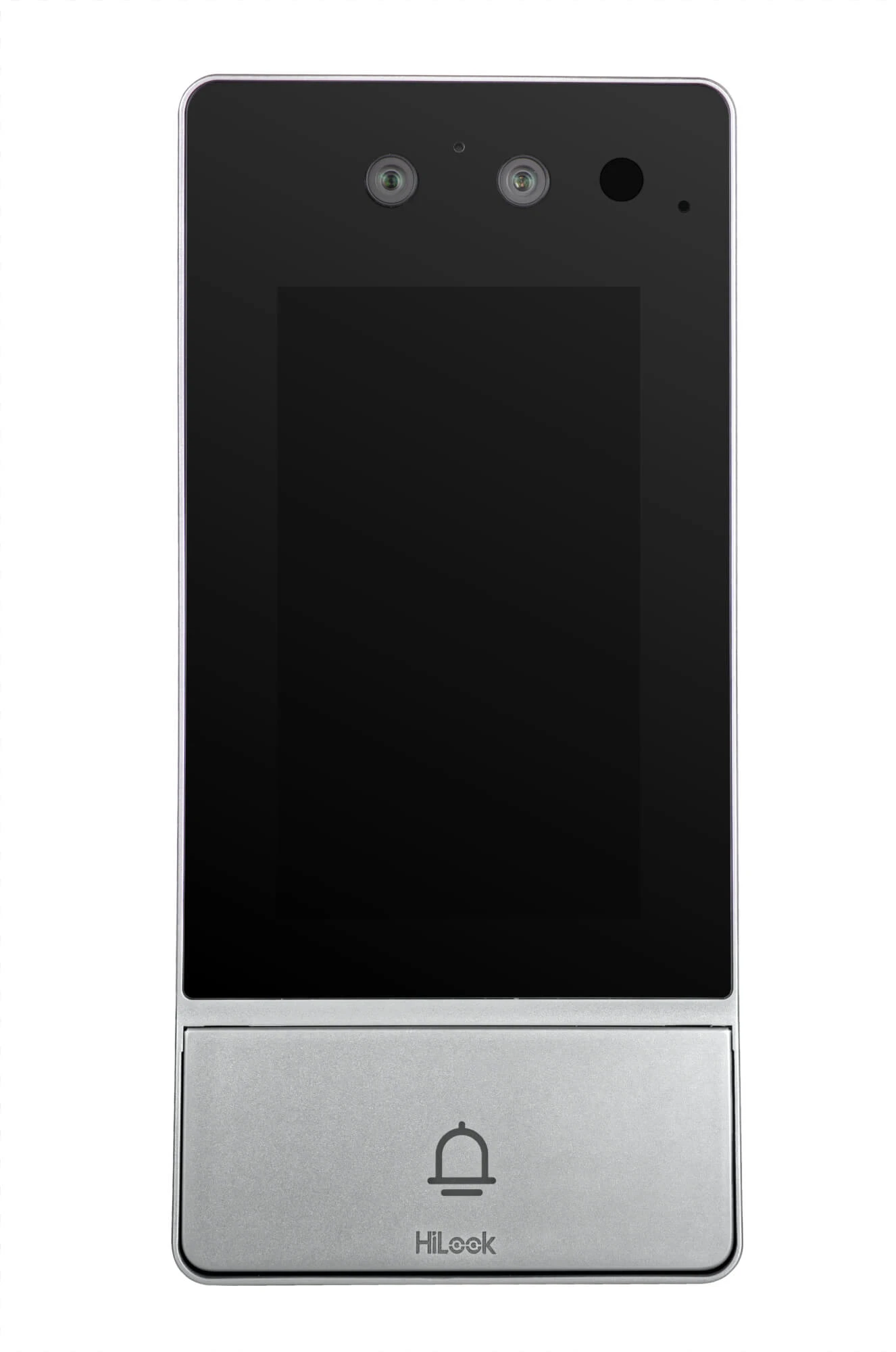

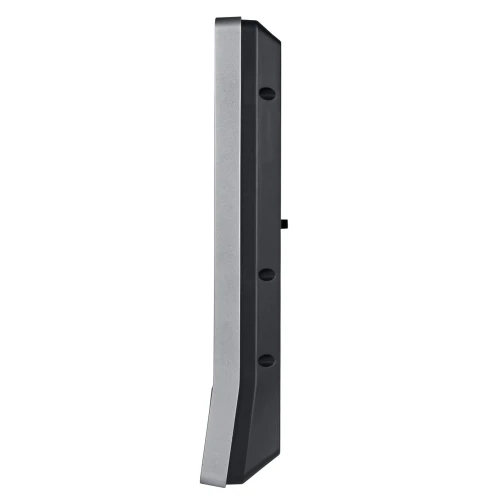

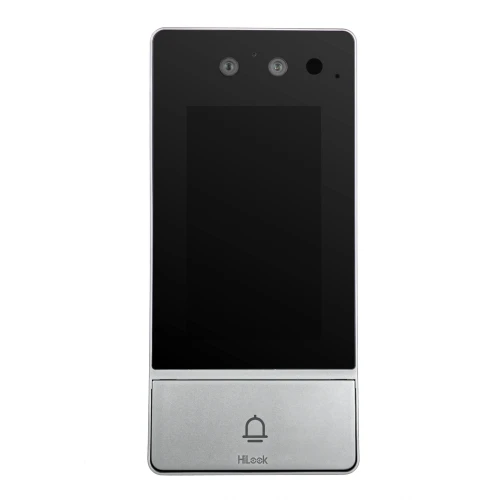

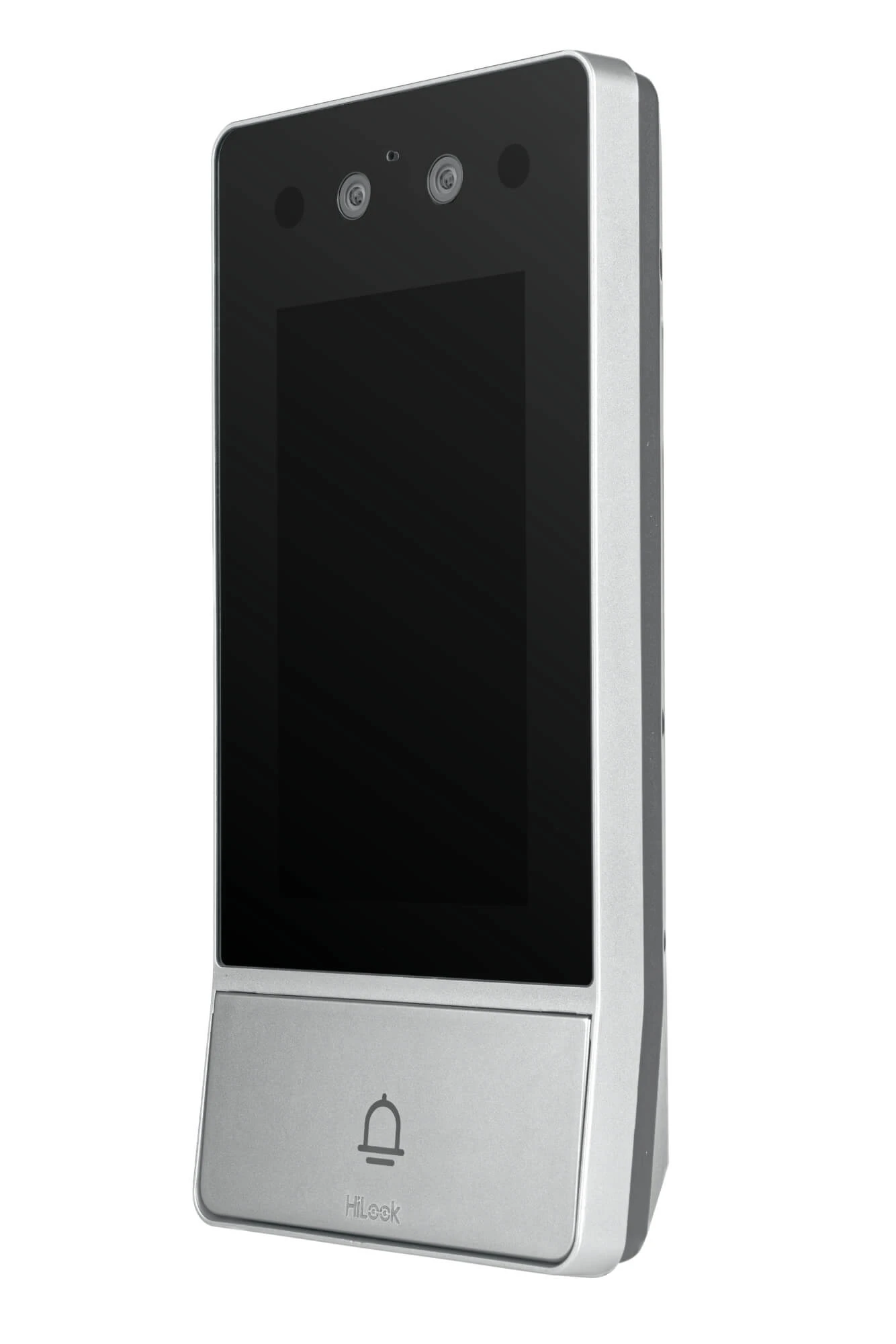

DS-KV9503-WBE1 outdoor panel:
- 4.3" color LCD display with 800x480 resolution
- Two fullHD cameras with IR illumination
- Physical call button
- IP65 and IK08 protection
- Access methods: Face recognition, PIN code, Card/proximity key fob, QR code, Bluetooth
- Control of two locks
- Full support via network : WiFi / LAN,
- Tamper detection - detachment from the ground

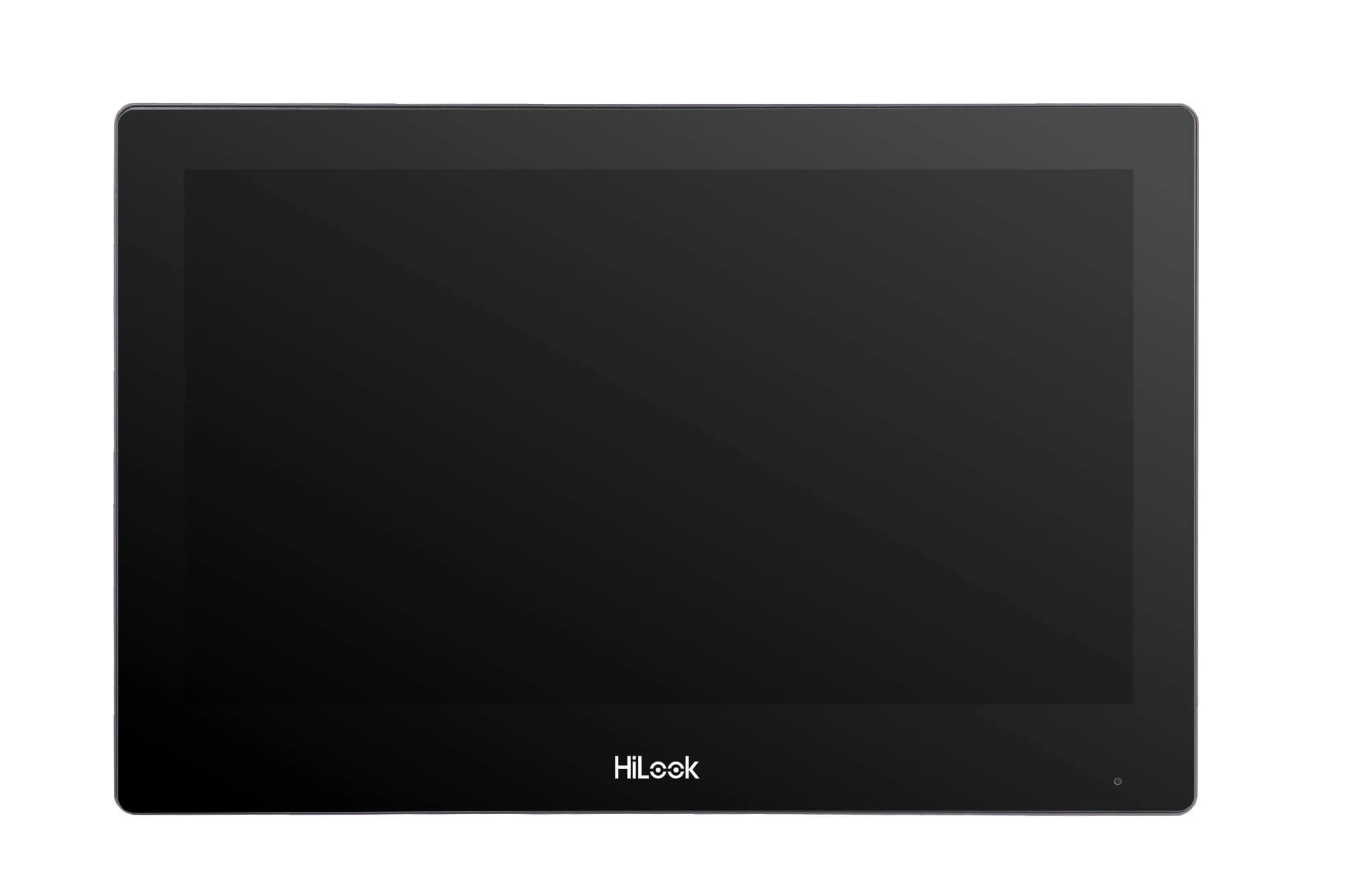

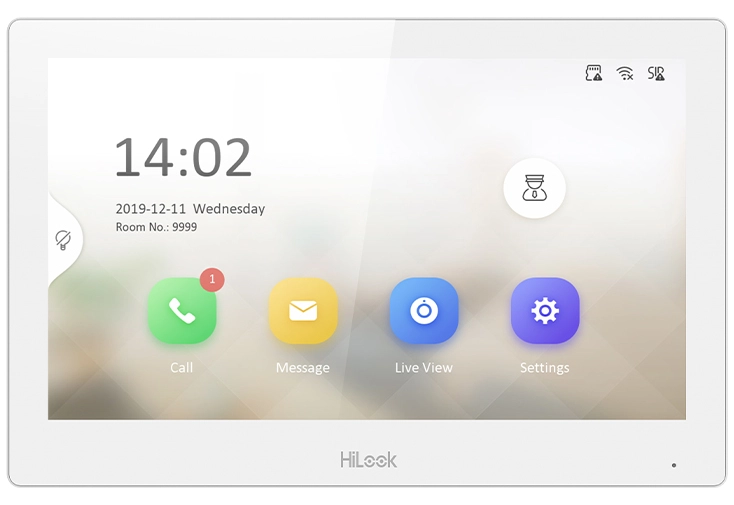

HiLook DS-KH8520-WTE1 monitor:
- 10.1" diagonal
- Wi-Fi - IEEE 802.11 b/g/n,
- Built-in microphone,
- Built-in speakers,
- Two-way communication,
- Infinitely adjustable monitor parameters: brightness
image, ring and call volume, - Automatic picture taking and saving in case of
no answer to the call button, - Cooperation with Hikvision IP cameras,
- Possibility of direct communication between two or
more panels, - Recording a short voice message in case of
no answer to the call button - Supports photo capture during video calls
- Support for microSD cards max. 32 GB (not included)
- The device is fully configurable using
iVMS4200 software. - In addition, the device has the ability to work with the
Hik-Connect application for mobile devices


Integration with monitoring systemIP-VIS-ULTRA allows you to configure the monitor with CCTV cameras from the same manufacturer, so you can have your own small monitoring center. |
![]() |

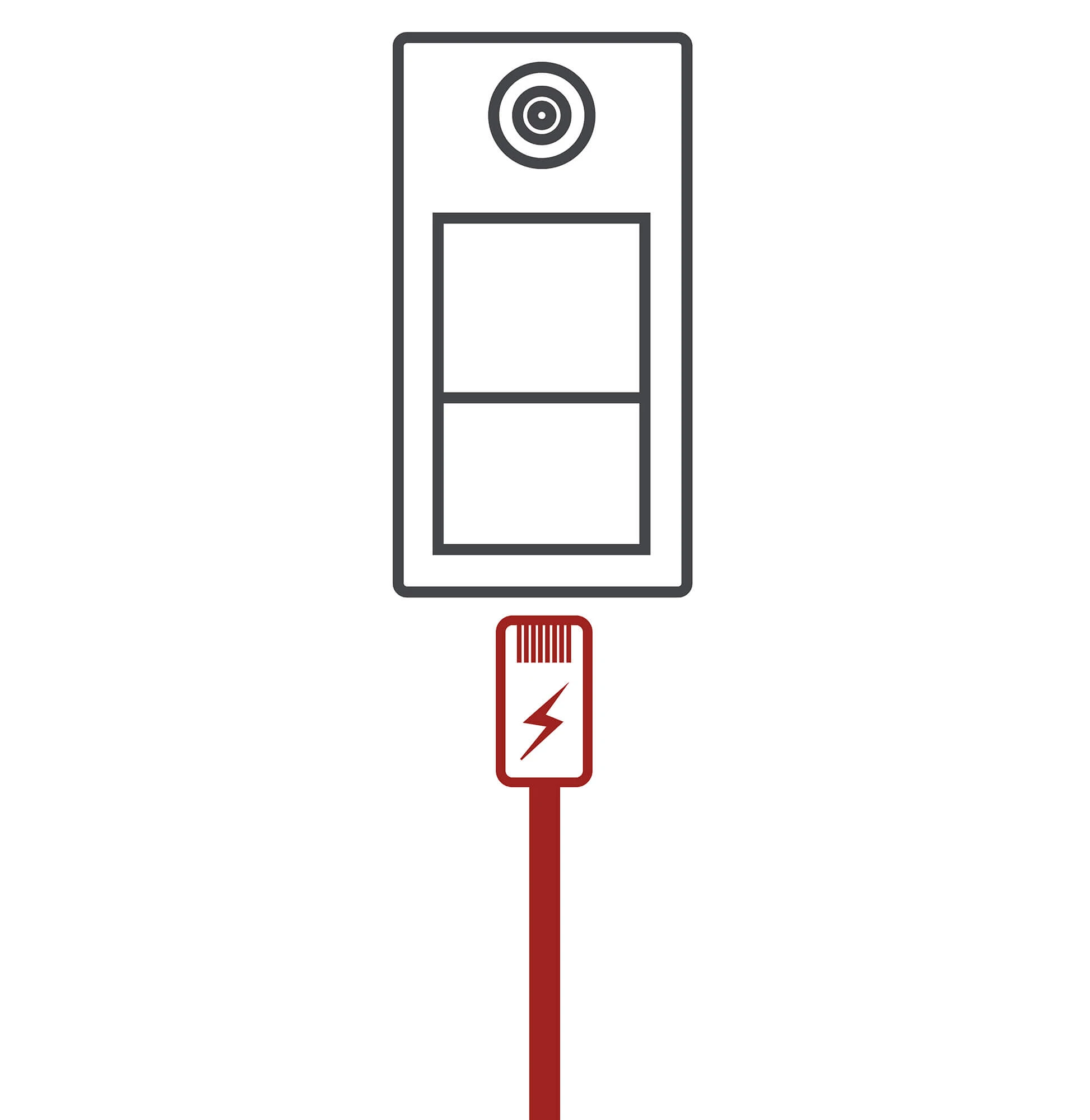

Power Over EthernetIP-VIS-ULTRA video intercom devices with Power over Ethernet (PoE) offer several advantages. First, they eliminate the need for additional power cables, which will simplify installation and reduce costs. Second, they allow data and power transmission over a single Ethernet cable, which increases reliability and ease of system maintenance. |
![]() |
DS-KV9503-WBE1 Bell Module:
Model | DS-KV9503-WBE1 |
---|---|
System parameters | |
Operating system | Linux |
ROM | 4GB |
RAM memory | 1GB |
Processor | Built-in high performance processor |
Display parameters | |
Screen size | 4.3 inches |
Operation method | Capacitive touch screen |
Type | IPS |
Resolution | 800 × 480 |
Brightness | 425 cd/m² |
Video parameters | |
Lens | 2 |
Resolution | 2 × 2 MP |
Viewing angle (FOV) | Horizontal: 88°, Vertical: 44° |
Wide dynamic range (WDR) | Supports 120 dB |
Backlight | IR light, up to 3m |
Audio parameters | |
Microphone | Built-in omnidirectional microphone |
Audio compression standard | G.711u, G.711a, Opus, AAC-LD, AAC-LC, G.726, G.722.1 |
Audio output | 1 speaker |
Audio compression bit rate | G.711u, G.711a, Opus: 64kbps; G.722.1, G.726: 32kbps; AAC-LD, AAC-LC: 16kbps |
Audio quality | Noise suppression and echo cancellation |
Volume control | Adjustable |
Capacity | |
User capacity | 20000 |
Face capacity | 10000 |
Card capacity | 100000 |
Internal station connection capacity | 500 |
Sub-door station capacity | 16 |
Network parameters | |
Network protocol | TCP/IP, RTSP |
Wi-Fi: | IEEE802.11b, IEEE802.11g, IEEE802.11n |
Bluetooth | Supports 2.0 |
Authentication | |
Card reading frequency | 13.56 MHz |
Face recognition distance | 0.3 to 2 m |
Face recognition time | < 0.2 s per person |

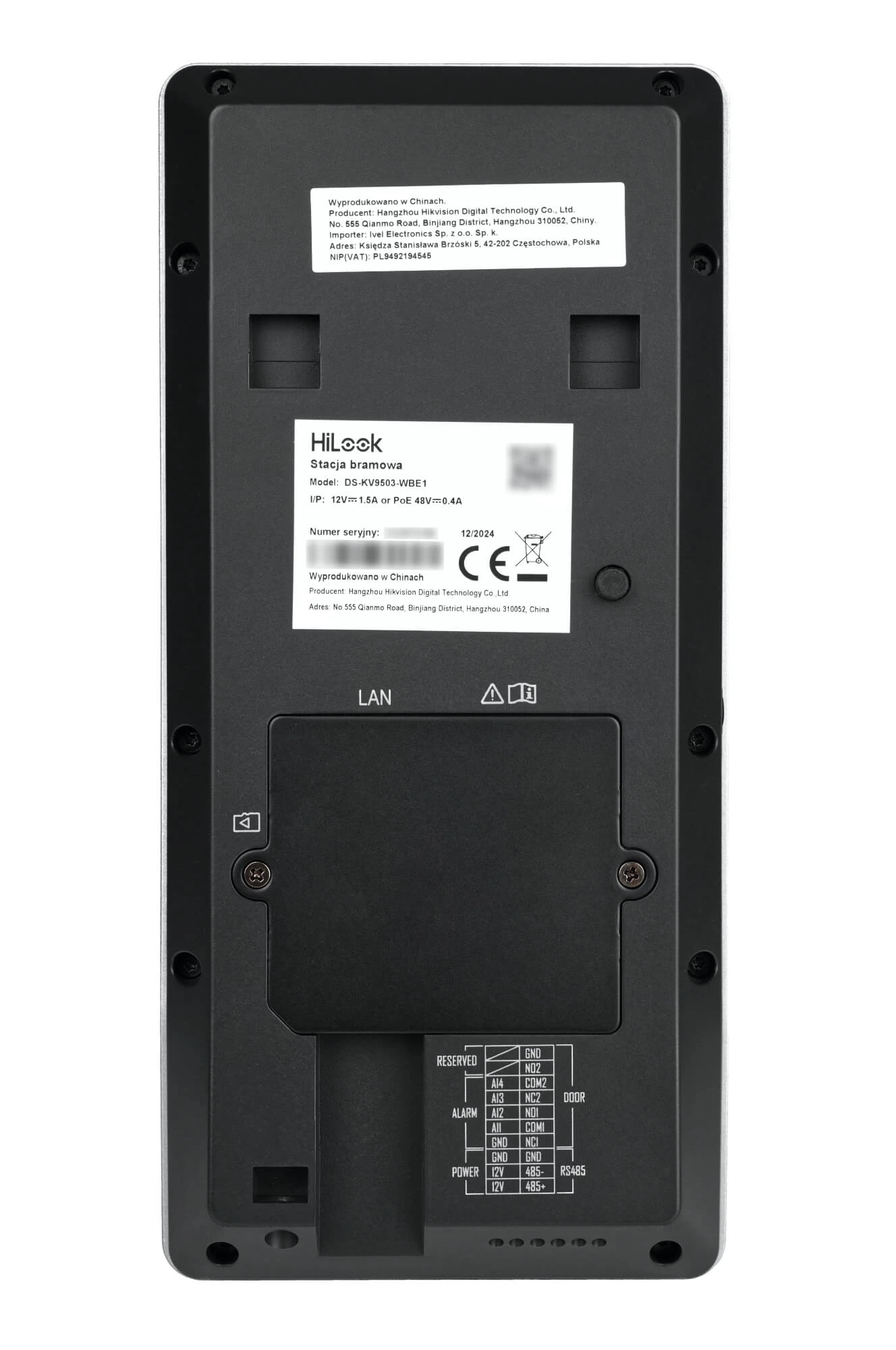

Interfaces of the device | |
Alarm input | 4 (2 exit buttons and 2 door contacts by default) |
Network interface | 1 RJ-45, 10/100 Mbps self-adaptive |
Tamper | 1 |
Exit button | 2 |
RS-485 | 1 |
Lock control | 2 relays, max. 30 VDC 2 A, lock requires security module |
Door contact input | 2 |
General | |
Button | 1 physical button |
Installation | Surface mounting |
Weight | Net weight: 0.405 kg, Gross weight: 0.752 kg |
Protection level | IP65, IK08 |
Operating temperature | -40°C to 60°C (-40°F to 140°F) |
Operating humidity | 10% to 90% (non-condensing) |
Dimensions (S × W × D) | 182 mm × 85 mm × 26 mm (7.16" × 3.34" × 1.01") |
Power supply | 12 VDC, 1.5 A, IEEE802.3af, PoE standard |
Application environment | Outdoor |
Power consumption | ≤ 6 W |
Language | English, French, Brazilian Portuguese, Spanish, Russian, German, Italian, Polish, Turkish, Vietnamese, Arabic, Czech, Hungarian, Dutch, Romanian, Bulgarian, Ukrainian, Croatian, Serbian, Greek |
Monitor DS-KH8520-WTE1:
Model | DS-KH8520-WTE1 |
---|---|
System parameters | |
Memory | 128MB |
Flash | 32MB |
Operating System | Built-in Linux operating system |
Display parameters | |
Screen | 10.1-inch color TFT screen |
Display resolution | 1024 × 600 |
Operating method | Capacitive touch screen |
Audio parameters | |
Audio input | Built-in microphone |
Audio output | Built-in speaker |
Audio compression standard | G.711 U |
Audio compression speed | 64 Kbps |
Audio quality | Noise suppression and echo cancellation |
Network parameters | |
Wired network | 10/100 Mbps self-adaptive |
Wireless network | Wi-Fi 802.11b/g/n |
Network protocol | TCP/IP, SIP, RTSP |
Network interface | 1 RJ-45 10/100 Mbps self-adaptive |
Alarm input | 8 alarm inputs |
Relay output | 2 |
Memory card | Max 32 GB, SD 2.0 or older version |
RS-485 | 1 |
General | |
Power supply | IEEE802.3af, PoE standard, 12 VDC/1 A |
Power consumption | ≤ 6 W |
Operating temperature | -10°C to 55°C (14°F to 131°F) |
Operating humidity | 10% to 90% |
Material | PC + ABS |
Dimensions | 254 mm × 166 mm × 14.7 mm (10.0" × 6.5" × 0.58") |
Weight | 1118 g (with packaging), 660 g (without packaging) |
