EZVIZ HP5 Video Doorbell, Wi-Fi Control (Android / iOS), 2-Wire Installation

The image features an EZVIZ smart home security system, including a sleek video doorbell, a modern smartphone interface, and a large display screen showcasing a luxurious home. The system is designed for enhanced security and convenience, integrating advanced technology with stylish design.
A sleek, black smart display with a minimalist design and a thin bezel, featuring a small orange accent on the top edge. The screen is large and flat, ideal for modern home or office environments.
The image shows the back view of a black electronic device featuring a green terminal block connector in the center. The device has multiple mounting points and a sleek, rectangular design.
A sleek, rectangular smart doorbell camera with a black front panel and a silver frame, featuring a prominent lens at the top. The device includes a bell icon at the bottom, indicating its doorbell functionality.
The image shows a sleek, black electronic device with a rectangular shape, featuring a small green display and several buttons below it. The device is mounted with screws at each corner, suggesting it is designed for secure installation.
  • Manufacturer

    EZVIZ
  • Product Code

    CS-HP5

  • Warranty

    24 miesiące


Ask about this product show form

Files attached to the product show files

  • Availability: in stock Shipping 24h

Price (Incl. VAT):

169,77 €

Add to Watchlist

Najniższy koszt dostawy: 20,68 zł

Do you represent a budgetary unit?
Check out the deferred payment option.

CA Raty

Related products

Product Description

Main features:


  • 1080p resolution
  • 7' color touch screen
  • Remote door and gate opening
  • 2-wire installation
  • Remote control via EZVIZ app
  • Sleek and elegant design
  • Two-way conversation with voice change for added privacy
  • Built-in doorbell with various notification sounds
  • Smart RFID key fob unlocking (2 key fobs included)
  • Weather resistant
  • Support for microSD memory cards, up to 512GB (card not included)
  • Supports two Wi-Fi bands: 2.4Ghz and 5GHz

The HP5 intercom is designed to make it easier to enter spacious homes and secure doors from strangers. The device is even slimmer than previous models so that installation is possible in any home. HP5 is a 3-in-1 device: a doorbell, a camera and a system that opens the door and gate - you can hear the visitor, see him and then let him in - all remotely.

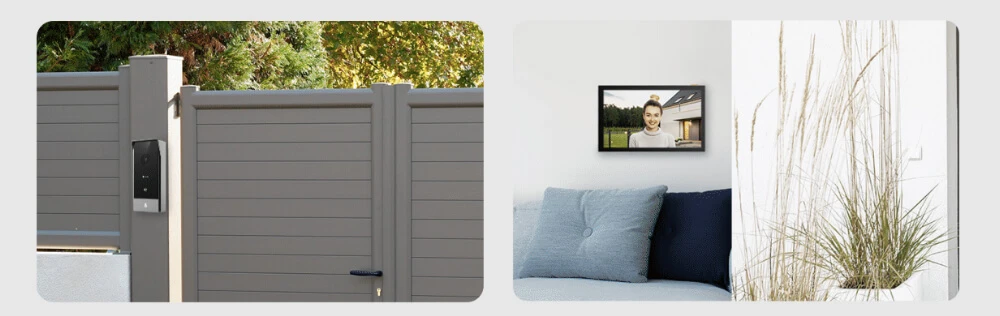

Designed for reliable operation in homes and villas


If you're looking to refresh your intercom, or you're moving into a new home where you want an efficient communication and security system, the EZVIZ HP5 will be perfect - it's a 2-in-1 kit that combines an outdoor video doorbell with a large indoor screen.

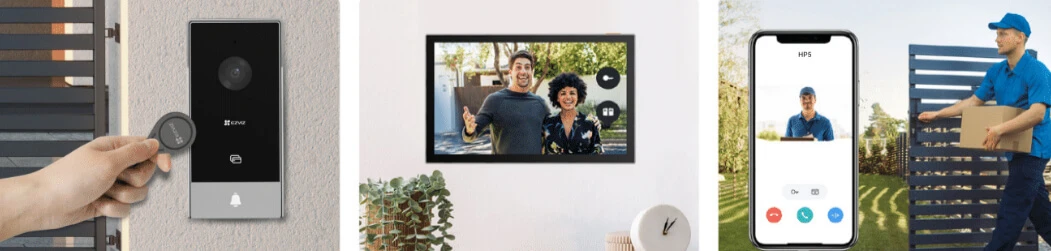

Easy door management - even remotely


Bunches of heavy keys are a thing of the past - HP5 provides much easier access control and extends it with a security camera to verify visitors.


  • RFID key fob opening
  • Opening via internal monitor
  • Opening via the EZVIZ app

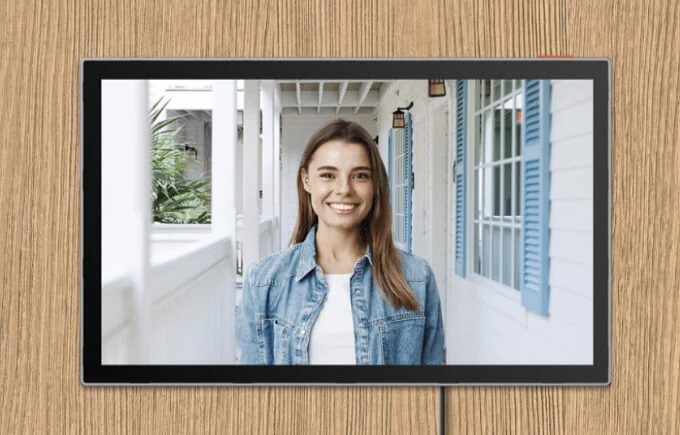

Versatile Touchscreen Monitor for Communication and Control

Use the 7-inch color touchscreen to set up and manage your outdoor intercom, answer visitors and record important video footage. When a visitor rings your doorbell, the indoor screen lights up automatically and shows you who is waiting outside.

  • Clear live view
  • Two-way conversation
  • Unlocking the gate/door
  • History and file storage

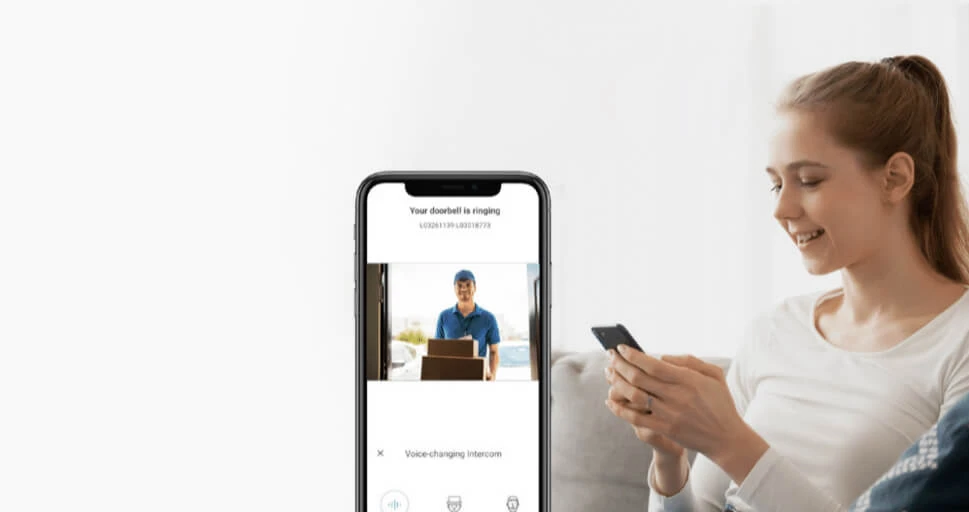

Receiving guests is easier than ever

With HP5 you can always receive a guest - even if you yourself are not at home. When you press the bell, you get a notification on your phone with the option to call the guest and even open the door for them. In case of messy visitors, you have the option to change your voice tone to remain anonymous.

  • Two-way conversation
  • Remote control
  • Privacy protection by changing the tone of voice

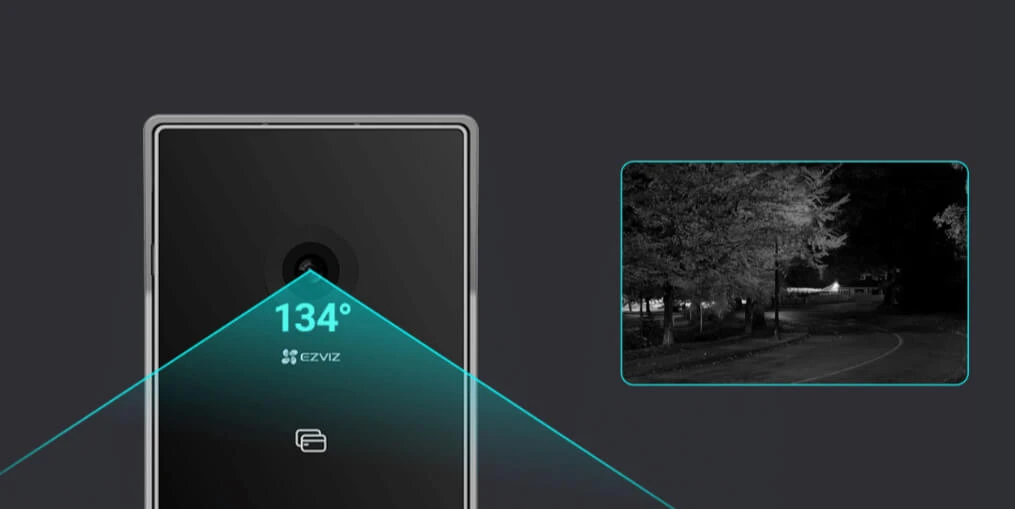

Clear 1080p video regardless of the time


The HP5 generates a sharp, wide-angle image so you can clearly see your visitor from top to bottom. The lens also provides infrared night vision with a range of 5 meters.



Sleek, slim design to fit any front door


Z estaw HP5 has a sophisticated, minimalist design - uniform, glossy black for the entire set. The HP5 stands out from conventional intercoms and adds a modern touch to interiors. The outdoor doorbell has a very slim housing, making it easy to install and use even in tight spaces.



Stable connection ensures high performance



To maximize connectivity quality, you can connect your indoor monitor in the 2.4 or 5 GHz band. Enjoy a strong Wi-Fi signal with low latency, high throughput and stable signal.



Get more convenience with smaller video files


Compared to the commonly used H.264 video compression technology, H.265 technology provides a clearer experience when watching recorded video. You no longer have to worry about large files taking up too much disk space - H.265 technology reduces the size of the recording by up to 50%⁴.


Large, secure and reliable video storage

You can secure your recorded videos on a local microSD card of up to 512GB, or use EZVIZ CloudPlay subscription for encrypted cloud storage.



Technical specifications:



Videophone CS-HP5
External bell
Image sensor CMOS 1/2.7 inch with progressive scan (suitable for low light operation)
Lens 2.0 mm / F1.6, viewing angle: 134° (diagonal)
Day/night mode Infrared filter with automatic switching, 850 nm infrared light x 2 (max. 6m)
Maximum resolution 1920 × 1080 (1080p)
Digital noise reduction (DNR) 2D / 3D DNR
Video compression H.265 / H.264
Frame rate Max: 15 fps; adaptive during network transmission
Connection and functions
Connection method Wired connection (2-wire, compatibility with 4-wire), digital signal transmission

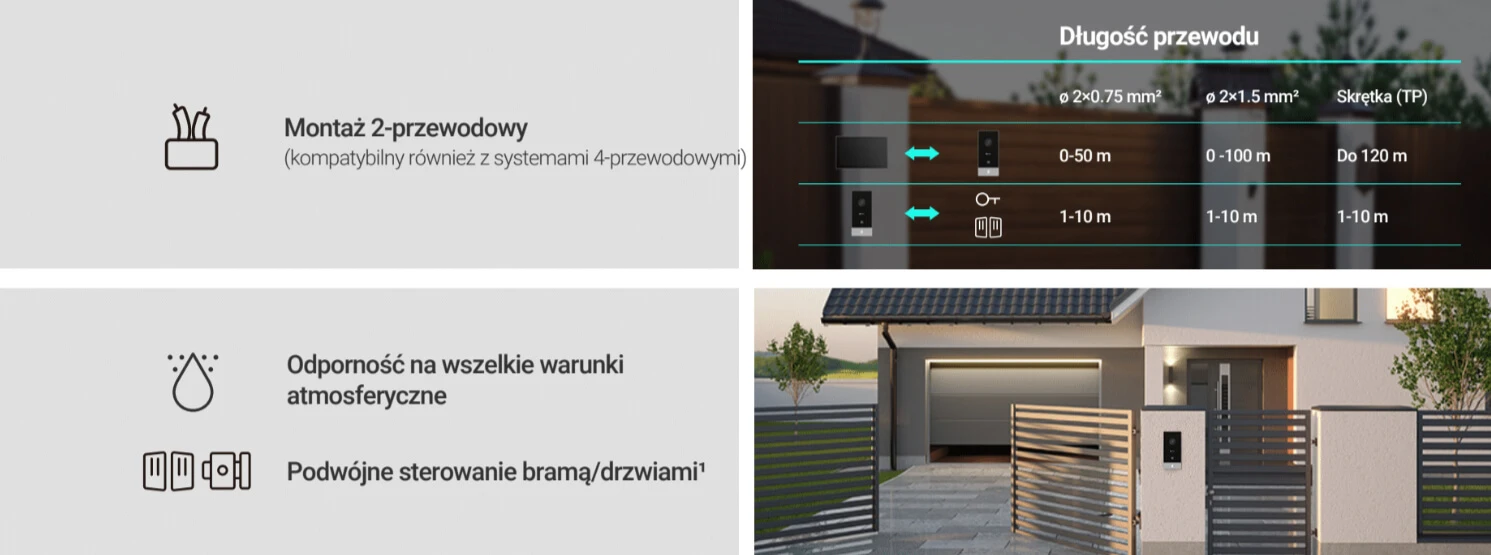

Transmission distance Φ 2 x 0.75 mm² , max. 50 m / Φ 2 x 1.5 mm² , max. 100 m / Twisted-pair, max. 120 m
Door (gate) opening Support for 2 cable connectors. 1-10 m distance. Intercom panel supports currentless contact, so that the automatic gate button can be connected; interrupting capacity: 12V / 2A
Unlocking (electric door strike). Support for 2 cable connectors. 1-10 m distance. The electric strike or lock must have a mechanical memory; the power supplied to the electric strike or lock must not exceed 12 V / 1.1 A, follow the instructions in the manual.
Door opening methods 1. unlocking with RFID badge (card, 2 pcs.)
2. remote unlocking via app
3. unlocking via internal screen
External bell interface
Audio input Built-in high-sensitivity microphone
Audio output Built-in high-power speaker
Bell button 1 doorbell button (can be set to be illuminated or not).
Terminal Two connection ports for screens.
Two connection ports for the gate.
Two connection ports for the electric door strike.
Features
Tamper alarm Supported
Video intercom Remote audio-video communication
General specifications
Ambient conditions (use) From -30°C to 60°C, humidity up to 95% (non-condensing)
IP degree of protection Waterproof with cover installed
Size 153 × 70.4 × 22.5 mm


Videophone CS-HP5
Indoor display
Display diagonal 7" touch screen
Resolution 1024 x 600
Interface
Audio input Built-in high-sensitivity microphone
Audio output Built-in high-power speaker
Button Screen on/off button
Terminal Two wiring ports for connecting an external doorbell
Data storage MicroSD card support up to 512GB (card not included)
EZVIZ CloudPlay cloud storage support (subscription required)
Network specifications
Protocol EZVIZ proprietary cloud service protocol
Features
Multiple ring tones Up to 20 sounds
Other Live viewing, playback, two-way conversation, video calls
Wi-Fi network specifications
Wi-Fi standard IEEE802.11b, 802.11g, 802.11n, 802.11ac
Frequency range 2.4G: 2.4 GHz ~ 2.4835 GHz
5G: 5.15 GHz ~ 5.25 GHz
Channel bandwidth 20MHz support
Security 64 / 128-bit WEP,WPA / WPA2, WPA-PSK / WPA2-PSK
Transmission speed 11b: 11Mbps, 11g: 54Mbps, 11n: 150Mbps, 11ac: 433.3Mbps
General specifications
Ambient conditions (use) From -10°C to 45°C, humidity up to 95% (non-condensing)
Size 180 × 111 × 15 mm
Power supply DC 24V 1.5A power supply, adapter (100-240Vac)
Power consumption 8 W, max. 24 W
Product weight 1505g

Szczegóły dotyczące zgodności produktu z przepisami: Osoba odpowiedzialna za produkt

Similar products in this category

A digital door viewer set featuring a sleek, round camera unit and a large display screen, designed for modern home security. The system is compatible with smartphones, allowing remote monitoring and control.

in stock Shipping 24h

Electronic door viewer EZVIZ CS-DP2C with infrared camera and PIR sensor

  • Resolution: 1080p
  • Built-in: motion sensor, microphone, speaker
  • Power supply: 4600 mAh battery
  • Connectivity: wireless
  • Support: Android, iOS

114,63 €

pcs.

Add to Watchlist

HiLook IP-VIS-Pro-W Video Intercom

in stock Shipping 24h

HiLook IP-VIS-Pro-W Video Intercom

  • Technology: IP
  • Resolution: fullHD
  • Lens: viewing angle of approximately 129°
  • Built-in: proximity reader
  • Support: Android iOS; iVMS4200

174,36 €

pcs.

Add to Watchlist

IP Video Intercom Hikvision 6x Monitor DS-KH9510-WTE1(B), Flush-Mounted, Panel, Keyboard, Reader

in stock Shipping 24h

IP Video Intercom Hikvision 6x Monitor DS-KH9510-WTE1(B), Flush-Mounted, Panel, Keyboard, Reader

  • 7” Touchscreen
  • Resolution: FullHD
  • Support for contactless cards and PIN codes
  • 3-module housing
  • PUSH notifications to your phone

2 191,59 €

pcs.

Add to Watchlist

HiLook by Hikvision IP-VIS-ULTRA Video Intercom

in stock Shipping 24h

HiLook by Hikvision IP-VIS-ULTRA Video Intercom

  • Technology: IP
  • Resolution: FullHD
  • Lens: viewing angle approx. 88°
  • Access: Face, PIN, RFID, QR, BT
  • Support: Android iOS; iVMS4200

334,25 €

pcs.

Add to Watchlist

IP Video Intercom Hikvision 2x Monitor DS-KH6320-WTE1, Surface-Mounted, Panel, Keyboard, Reader

in stock Shipping 24h

IP Video Intercom Hikvision 2x Monitor DS-KH6320-WTE1, Surface-Mounted, Panel, Keyboard, Reader

  • 7” touchscreen
  • Resolution: FullHD
  • Support for proximity cards and PIN codes
  • 3-module housing
  • PUSH notifications to your phone

758,10 € 843,10 €

pcs.

Add to Watchlist

  • Save -10%
2-wire Video Intercom Hikvision 2x Monitor DS-KH6320Y-WTE2 Black, Surface-Mounted Panel, Keypad, Reader

in stock Shipping 24h

2-wire Video Intercom Hikvision 2x Monitor DS-KH6320Y-WTE2 Black, Surface-Mounted Panel, Keypad, Reader

  • 7” touchscreen
  • Resolution: FullHD
  • Support for contactless cards and PIN codes
  • 3-module housing
  • PUSH notifications to your phone

934,99 €

pcs.

Add to Watchlist

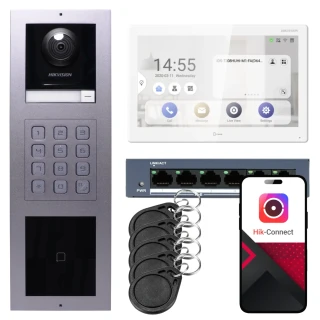

IP Video Intercom Hikvision 1x Monitor DS-KH9510-WTE1(B), Surface-Mounted, Panel, Keyboard, Reader
