Electromagnetic lock R-3 812 12VAC/DC

Electromagnetic lock R-3 812 12VAC/DC
Electromagnetic lock R-3 812 12VAC/DC

  • Manufacturer

    ŁUCZNIK

  • Product Code

    R-812

  • Warranty

    24 miesiące

see description

Ask about this product show form

Do you have questions? Looking for answers? Are you interested?

  • Call
  • 34 341 16 30
  • We advise Mon - Fri 8 00 am to 4 00 pm
  • or send a message using the form below

Copy the code from the picture

weryfikator

Close

Files attached to the product show files

Files for download

Close

  • Availability: in stock Shipping 24h

Price (Incl. VAT):

12,04 €

Add to Watchlist

Najniższy koszt dostawy: 12,98 zł

Do you represent a budgetary unit?
Check out the deferred payment option.

CA Raty

Product Description

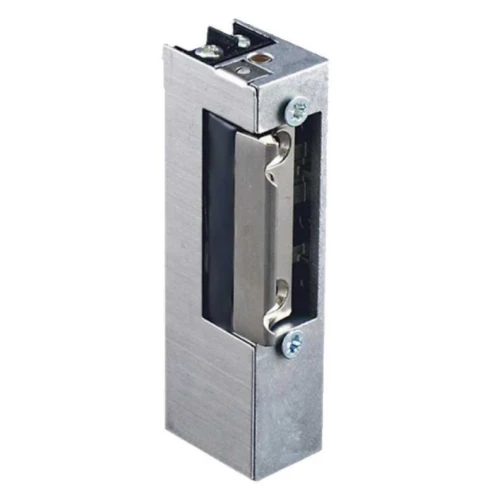

Electromagnetic door strike 812 is used for remote opening of doors and wickets, left and right and double-leaf. Model 812 is made of aluminum alloys, powder coated.

The electromagnetic door strike is designed for doors and wickets made of metal profiles, to work with a latch and bolt lock or a ratchet lock.

The strike can work with an intercom system in the entrance door. The latch is made of corrosion-resistant materials, so it can be installed outdoors, but it should be protected against flooding, paint and adverse weather conditions.
The electric door strike has an adjustable tongue. The latch without voltage is in the closed state, when voltage is applied it goes into the open state and remains in this state until the "door" is closed.

Technical specifications:
  • Tolerance: 7-14V
  • Current: 0.35-0.7A
  • Resistance: 15.5 Ohms
