Outdoor PTZ IP Camera PTZ12230F-IRB-N Full HD 6... 180mm Dahua

Outdoor PTZ camera with a sleek white and black design, featuring a robust housing for enhanced durability. Equipped with a high-resolution lens, it offers advanced zoom and rotation capabilities for comprehensive surveillance coverage.
The image shows a Dahua security camera with a robust, weather-resistant housing and a prominent lens for high-quality surveillance. The camera is mounted on a sturdy base, designed for reliable outdoor use.
Side view of a sleek, white security camera with a sturdy mounting base and a black accent. The camera features a modern design, suitable for outdoor surveillance.
The image shows an open black security camera housing with visible internal components, including a circuit board and cooling fan. The housing is mounted on a white bracket, highlighting its robust design for outdoor surveillance.
The image shows a close-up of a green circuit board featuring a memory card slot and various electronic components. Black wires are neatly organized with a cable tie, highlighting the board's connectivity features.
The image shows a round, white security camera with a mounting bracket, featuring a central bolt and visible wiring. The dimensions of the camera are marked, indicating a diameter of 200 mm and a length of 156 mm.
Technical diagram of a surveillance camera with detailed measurements, showcasing its dimensions and design. The camera features a robust housing and adjustable mounting bracket for versatile installation.
The image shows a set of multicolored camera connectors and cables with various plug types, designed for versatile connectivity. The cables are bundled together, featuring labeled wires for easy identification and installation.
The image shows a bundle of multicolored cables with labeled connectors, each indicating specific functions such as audio and RS485. The cables are organized and secured with a black protective sleeve at the junction point.
The image shows a high-speed positioning system kit, including an installation manual, a power adapter, white gloves, hex keys, and mounting screws. This comprehensive set is designed for precise installation and maintenance of the positioning system.
  • Manufacturer

    Dahua
  • Product Code

    PTZ12230F-IRB-N

  • Warranty

    36 miesięcy

  • Technology: IP
  • Resolution: 2Mpx
  • Enclosure: Rotating
  • Night visibility: up to 300 m
  • Connectivity: Wired
  • Memory card slot: Yes
  • Audio: Yes
  • Color: White

Ask about this product show form

  • Availability: Product temporarily unavaliable

Price (Incl. VAT):

3 603,26 €

Add to Watchlist

Do you represent a budgetary unit?
Check out the deferred payment option.

CA Raty

i-Raty - raty online
i-Leasing - leasing online

Product Description

Intelligent 3D positioning system. The camera's greatest asset is its x30 optical zoom lens, which, combined with a high-powered illuminator, allows 24-hour monitoring without additional illumination of even several hundred meters of terrain. This makes it ideal for monitoring systems where identification of people or vehicles is required. The range of the illuminator given by the manufacturer depends on the environmental conditions (air transparency, environment, color of the walls, so called scene reflectance). In the case of several IP cameras operating at a resolution ≥ 1920 x 1080, we recommend using a network with a bandwidth of 1Gbps.


Standard:TCP/IP
Sensor:1/1.9 " Progressive Scan Exmor CMOS
Resolution:1920 x 1080
Matrix size:2.0 Mpx
Resolution:1920 x 1080 - 1080p
1280 x 720 - 720p
Scanning system:Progressive
Lens:6 ... 180 mm
Viewing angle:61.2 ° ... 2.1 ° (manufacturer's data)
59 ° ... 3.2 ° (our tests)
Optical zoom:x 30
Digital zoom:x 16
IR illuminator range:300 m
Signal-to-noise ratio (S/N):> 55 dB (AGC off)
Video output:1 Vpp / 75 Ω
Speed at presets:max. 160 °/s
Speed (manual control):0.1 °/s ... 160 °/s (horizontal)
0.1 °/s ... 60 °/s (vertical)
Horizontal rotation range:360 ° continuous
Vertical rotation range:-90 ° ... 45 °
RS-485 interface:Yes
Protocols:Pelco-D, Pelco-P, DH-SD Automatic recognition.
Number of presets:300
Horizontal scanning:Yes
Adjustable motion routes:8
Video compression method:H.264 / MPEG-4 / MJPEG
Bitrate:56 ... 8192 kbit/s - H.264
56 ... 20480 kbit/s - MJPEG
Alarm inputs / outputs:7 / 2
Audio:
  • 1 Audio Input
  • 1 Audio output
  • Audio detection
Main stream bit rate:1 ... 25 fps - 1080p
1 ... 50 fps - 720p
Network interface:10/100 Base-T (RJ-45)
Network protocols:IPv4/ IPv6, HTTP, HTTPS, SSL, TCP/IP, UDP, UPnP, ICMP, IGMP, SNMP, RTSP, RTP, SMTP, NTP, DHCP, DNS, PPPOE, DDNS, FTP, IP Filter, QoS, Bonjour, 802.1x
WEB Server:Built-in, NVR Compatibility.
Max. number of online users:20
ONVIF:2.41 - Profiles S, G, ONVIF CGI
Cell phone access:Port 37777
Memory card slot:Supports Micro SD cards up to 64GB (local recording possible)
Selected features:
  • Intelligent 3D positioning system
  • ICR - Mechanical infrared filter
  • Day/night mode (color/b&w/auto)
  • WB - White balance (ATW/AWB/manual/internal/external)
  • WDR - Wide Dynamic Range of illumination
  • F-DNR (Defog) - Reduction of precipitation noise
  • 3D-DNR - Digital image noise reduction
  • Configurable privacy zones - 24
  • BLC/HLC - Background light / strong light compensation
  • Audio detection
  • face detection
  • Sharpness - Sharpening of image contours
  • Mirror - Mirroring the image
  • IVS analysis - Object tracking
  • Multicast - Unlimited number of recipients
  • The device has a built-in heater
  • Wiper - Control of the wiper via TCP/IP
Power supply:
  • 24 V AC / 5 A (power supply included)
Housing:Metal
Color:White / Black
Operating temperature :-40 °C ... 70 °C
Leakage class:IP66
Weight:10.43 kg (with handle)
Dimensions:200 x 391 mm x 473 mm (with handle)
Supported languages:English
Manufacturer/Brand:Dahua

Szczegóły dotyczące zgodności produktu z przepisami: Osoba odpowiedzialna za produkt

Similar products in this category

BCS Line IP Bullet Camera BCS-L-TIP14FCL5-Ai1, 4MP, NightColor 2.0, WhiteLight

in stock Shipping 24h

BCS Line IP Bullet Camera BCS-L-TIP14FCL5-Ai1, 4MP, NightColor 2.0, WhiteLight

  • Technology: IP
  • Resolution: 4MP
  • Night vision: up to 50m
  • Lens: 2.8mm
  • Connectivity: wired

151,39 € 324,60 €

pcs.

Add to Watchlist

  • Save -53%
The image shows a sleek, white security camera with a black front panel, designed for outdoor surveillance. It features a sturdy mounting bracket and multiple connection cables for versatile installation.

in stock Shipping 24/48h

Camera 4in1 HAC-HFW1809TLM-A-LED Full-Color 8.3Mpx, 4K Dahua

  • Technology: AHD, HD-CVI, HD-TVI, CVBS
  • Resolution: 8Mpx
  • Night range: up to 40m LED
  • Lens: 3.6mm
  • Connectivity: wired

120,84 €

szt

Add to Watchlist

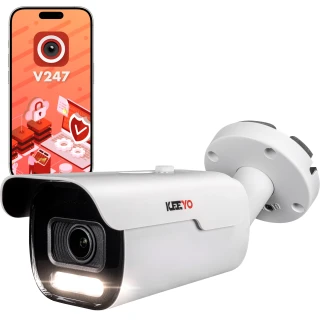

IP Bullet Camera KEEYO LV-V-IP5M5AF-DL 5Mpx, motorized zoom
