Curtain PIR Sensor DS-PDC15-EG2 Hikvision

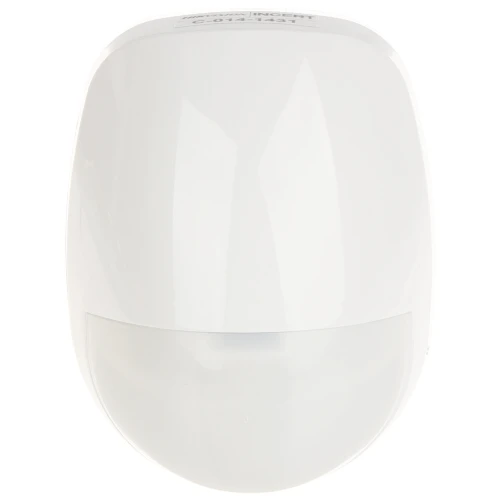

The image shows a sleek, white, dome-shaped PIR motion detector designed for discreet wall or ceiling installation. Its smooth surface and compact design make it suitable for modern security systems.

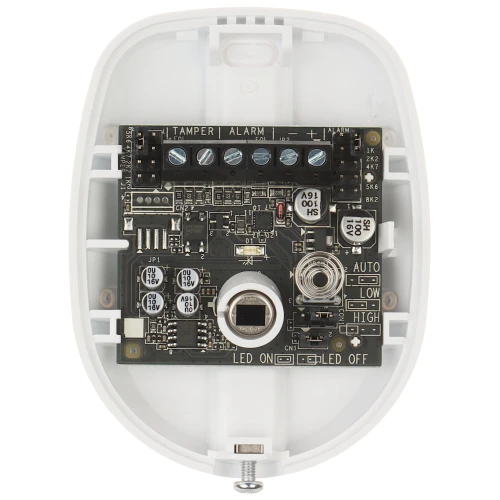

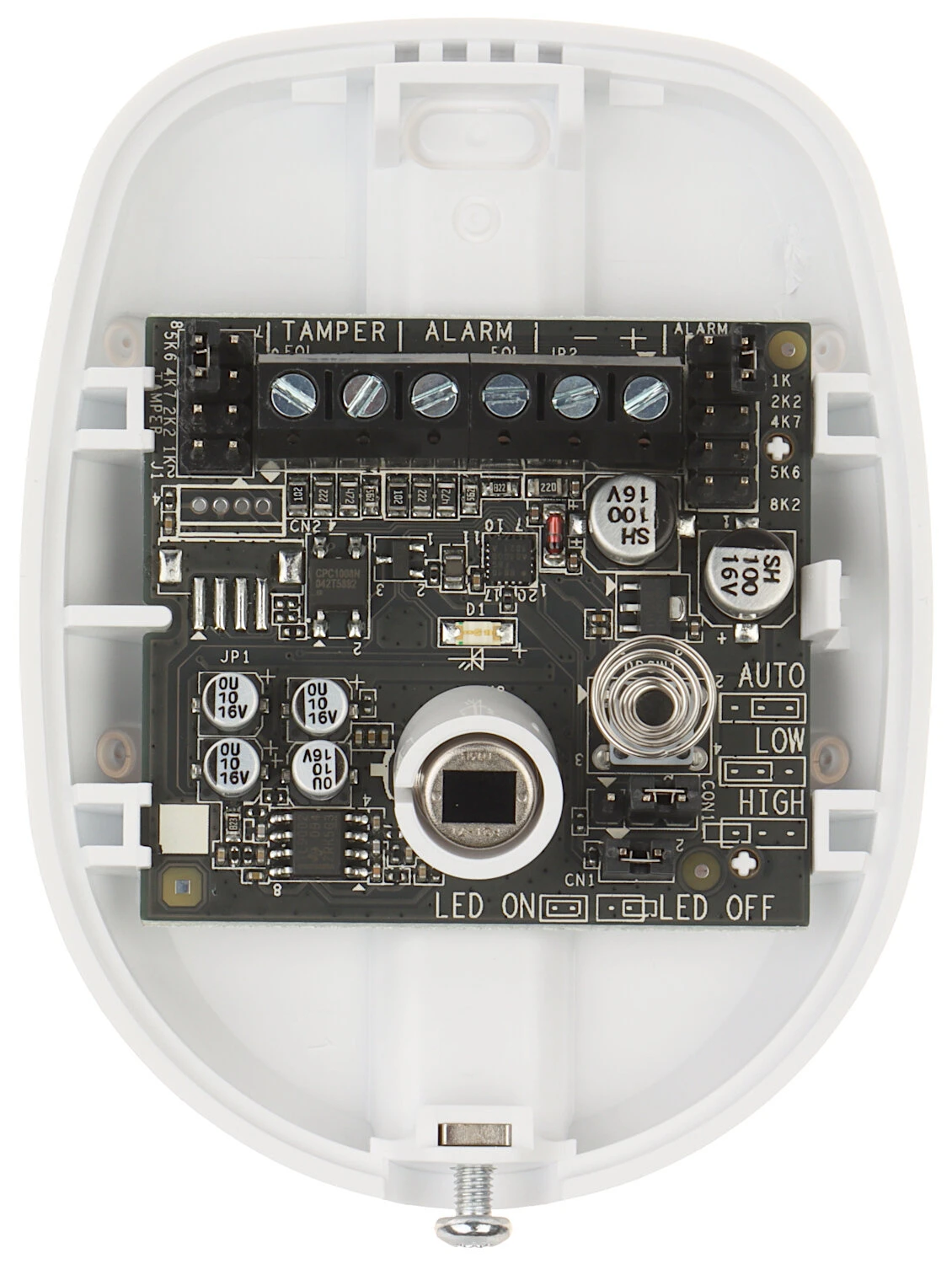

The image shows the interior of a white electronic device featuring a circuit board with various components, including capacitors, resistors, and connectors. The device is designed for security purposes, with labeled sections for tamper and alarm functions.

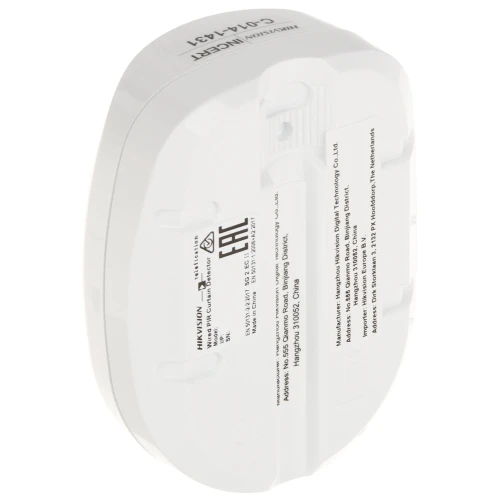

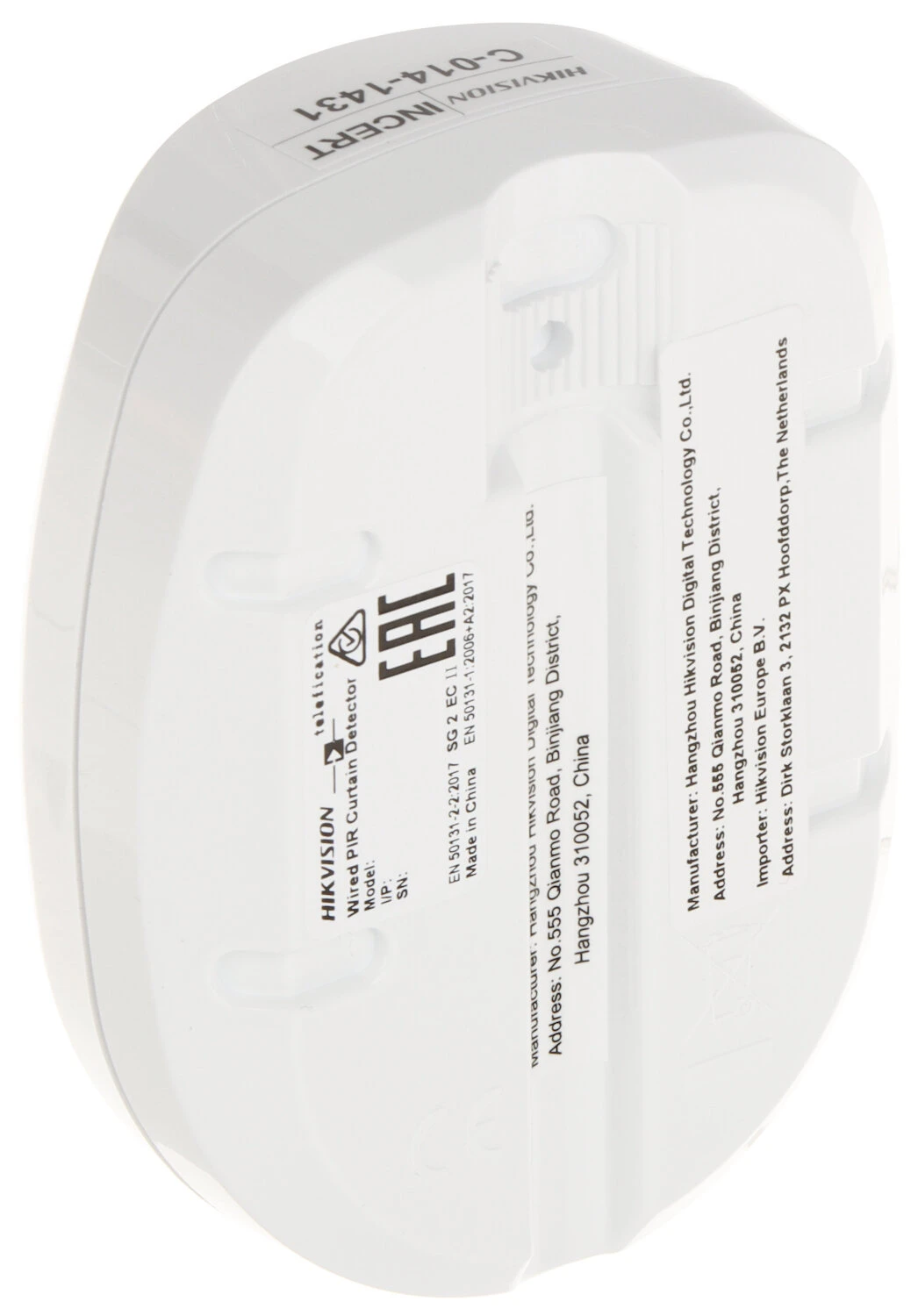

The image shows the back view of a white Hikvision wall mount bracket, designed for secure camera installation. The bracket features multiple mounting holes and detailed product information printed on its surface.

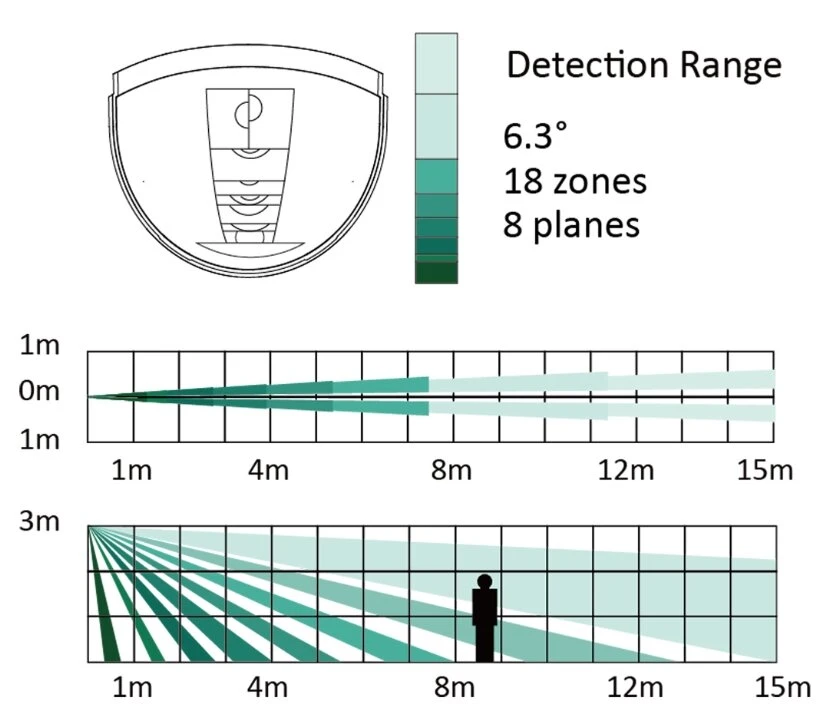

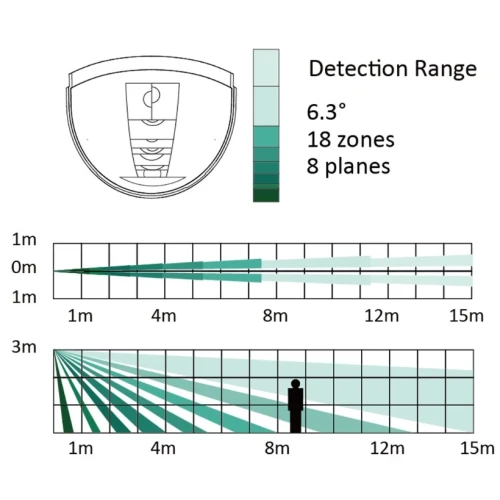

Diagram illustrating the detection range of a sensor, featuring a 6.3-degree field of view across 18 zones and 8 planes. The graphic includes top and side views, showing coverage extending up to 15 meters.

  • Manufacturer

    HIKVISION

  • Product Code

    DS-PDC15-EG2

  • Warranty

    24 miesiące

see description

Ask about this product show form

Do you have questions? Looking for answers? Are you interested?

  • Call
  • 34 341 16 30
  • We advise Mon - Fri 8 00 am to 4 00 pm
  • or send a message using the form below

Copy the code from the picture

weryfikator

Close

  • Availability: Product temporarily unavaliable

Price (Incl. VAT):

21,59 €

Add to Watchlist

Powiadom o dostępności pokaż formularz

Najniższy koszt dostawy: 20,68 zł

Do you represent a budgetary unit?
Check out the deferred payment option.

CA Raty

Product Description

The curtain detector provides a narrow detection angle.


Application:Internal
Pyroelement:Dual
Sensor type:Passive infrared (PIR).
Range:15 m / 6.3 °
Sensitivity adjustment:
  • Automatic
  • 2-step manual
Pet immunity:No
Digital temperature compensation:Yes
Alarm output:NC / EOL-NC / 2EOL-NC
Power supply:9 ... 16 V DC / 11 mA @ 12 V (max)
Detectable motion speed:0.3 ... 2.0 m/s
Degree of protection (Grade):Grade 2
Selected features:
  • EN 50131-2-2:2017, EN50131-1:2006+A1:2009, EN50131-1:2006+A2:2017
  • Full digital control based on microprocessor technology
  • Temperature-compensated digital detection algorithm for high false alarm immunity and parameter repeatability
  • Resistance to changes in environmental conditions
  • Electrical interference filtering technology (IFT)
  • Tamper detection - opening of the housing
  • Mounting : 2.4 m ... 3.6 m
  • LED indication : Blue - Alarm indication
Operating temperature:-10 °C ... 55 °C
Weight:0.072 kg
Dimensions:87 x 65 x 46 mm
Manufacturer/Brand:Hikvision
SAP Code:314300094
