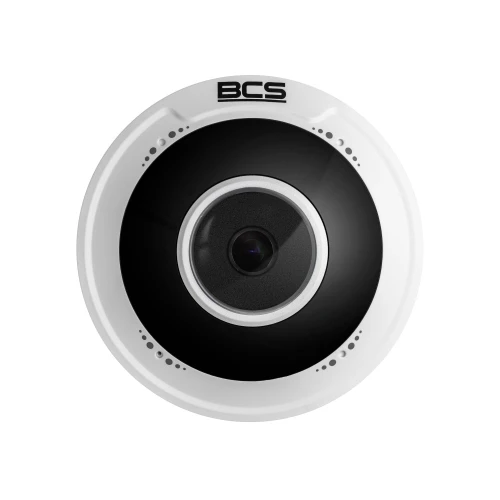

Fisheye camera BCS-P-FIP25FWR1 5Mpx with a 1.4mm lens, 1/2.8'' sensor
Photo gallery
-
Manufacturer
-
Product Code
BCS-P-FIP25FWR1
-
Warranty
36 miesięcy
- Technology: IP
- Resolution: 5Mpx
- Enclosure: Dome
- Night visibility: up to 10m
- Connectivity: Wired
- Memory card slot: Yes
- Audio: Yes
- Color: White
Ask about this product show form
Related products
Product Description
Main features:
- 1/2.8" 5Mpx PS CMOS sensor
- H.265/H.264/MJPEG encoding
- Support for three encoding streams
- Mechanical infrared filter ICR
- Built-in web service, compatibility with BCS-NVR,
- CMS(BCS Manager), BCS mobile application(iOS, android), P2P, Onvif
- Features AWB, AGC, BLC, HLC, ROI, Defog, 2D/3D DNR, WDR(120dB)
- 1.4mm F2.0 lens with H:360° viewing angle
- Infrared illuminator with a range of up to 10m
- IP66, IK10 outdoor housing
- Support for microSD cards up to 256GB
- Built-in microphone
- 1 alarm input and 1 alarm output
- 1 audio input and 1 audio output
- DC12V / PoE(802.3af) power supply
| Device Name | BCS-P-FIP25FWR1 |
| Product line | BCS Point |
| Camera type | Fisheye |
| Resolution | 5 Mpx |
| Sensor | 1/2.8'' |
| Scanning system | Progressive Scan |
| Pixels | 2880(H)×1620(V) |
| Lens | Fisheye |
| Focal length | 1.4 mm |
| Aperture | F2.0 |
| Focus | Fixed |
| Iris | Fixed |
| Viewing angle | H:360° |
| DORI | Detect 31m / Observe 13m/ Recognize 6m/ Identify 3m |
| Sensitivity of the camera | 0.01Lux(F2.0,AGC) 0Lux(F1.4,B/W,IR) |
| S/N ratio | 55dB |
| White balance | (AWB) Auto / manual |
| WDR | 120dB |
| Backlight compensation | BLC / HLC / WDR(120dB) |
| Shutter | Auto / manual 1~1/100000s |
| Gain control | (AGC) Auto / manual |
| Noise reduction | 2D/3D DNR |
| Motion detection | 4 |
| Privacy masks | 8 |
| Image rotation | Mirror, flip 180° |
| Number of streams | 3 |
| Resolutions | 5M(2880×1620) / 4M(2560×1440) / 3M(2304×1296) / 2M(1920×1080) / 720P(1280×720) / D1(704×576) / (640×360) / 2CIF(704×288) / CIF (352×288) |
| Main stream | 2880×1620/2560×1440/2304×1296/1920×1080/1280×720(30fps) |
| Second stream | 1920×1080/1280×720/640×360(30fps) |
| Third stream | 704×576/640×360/704×288/352×288(30fps) |
| Bitrate | 128Kbps~6144kbps |
| Video compression | H.265 / H.265+ / H.264 / H.264+ / MJPEG |
| Day/Night | ICR |
| IR illuminator | 10m |
| Microphone | Yes |
| Audio compression | G.711 |
| Memory card slot | microSD 256GB |
| Support | Web Service, CMS BCS Manager (Windows/Linux/MAC), Mobile App(iOS, android) |
| Networking | RJ-45 10/100Mbps |
| Compatibility | ONVIF(S/G/T) |
| Protocols | IPv4, IGMP, ICMP, ARP, TCP, UDP, DHCP, PPPoE, RTP, RTSP, RTCP, DNS, DDNS, NTP, FTP, UPnP, HTTP, HTTPS, SMTP, 802.1x, SNMP, QoS, RTMP, SSH |
| Power supply type | DC12V / PoE(802.3af) |
| Power consumption | max 8.5W |
| Housing color | White |
| IP class | IP66 |
| IK10 | Yes |
| Operating conditions | -30°C~+60°C max 95% RH |
| Dimensions | Ø125mm×43.7mm |
| Weight | 0.36kg |
