Monitoring for self-assembly - set: 8 BCS-TIP3501IR-E-G-V 5Mpx cameras, BCS-L-NVR0801-4KE 8Mpx lite recorder, 1TB disk, twisted pair

Main features:

• Complete set BCS 8 channel DVR with 8 BCS IP cameras.
• High image quality 2592 × 1944 pixels 5Mpx

• Camera with outdoor indoor mounting capability
• Night visibility up to30meters
• Day/night ICR camera

• Motiondetection
• Overwrite function
• High capacityhard drive
• Viewing via the internet on your computer, cell phone, tablet
• P2P(cloud) support - function that allows remote access without port forwarding and public IP address
• Software included
• Polish manual for operation, configuration and installation

IP 8 channel DVR

• Model: BCS-L-NVR0801-4KE
• 4 Channel Network NVR
• Quad-Core processor for simultaneous viewing, recording and remote management
• H.265+ / H265 / H.264+ / H.264 / MJPEG dual stream encoding
• Recording of max. 4 camerasIP@8Mpx,6Mpx,5Mpx,4Mpx,3Mpx,1080p,1.3Mpx,720p
• Max bitrate 80 Mbps
• Synchronous playback of all channels
• Simultaneous operation of HDMI 4K and VGA outputs
• Search for IP cameras in the network, PTZ support over the network
• Advanced video detection: motion detection, obstruction, video loss
• Intelligent functions: line crossing, area intrusion, disappearance/objects left behind,
  face detection, audio detection, people counting
• Hard drive: 1TB, support up to 10 TB
• Built-in web server, CMS support (DSS/Smart PSS/BCS Manager), DMSS
• Viewing on mobile devices:
  Android: Free gDMSS Lite app
  iOS (iPhone): Free iDMSS Lite app
• Viewing on computer: web browsers: e.g. IE, Firefox and using CMS software: Smart PSS
• P2P(cloud) support - a function that allows remote access without port forwarding and public IP address
• Included : mouse, power adapter, Ethernet cable, manual, CD

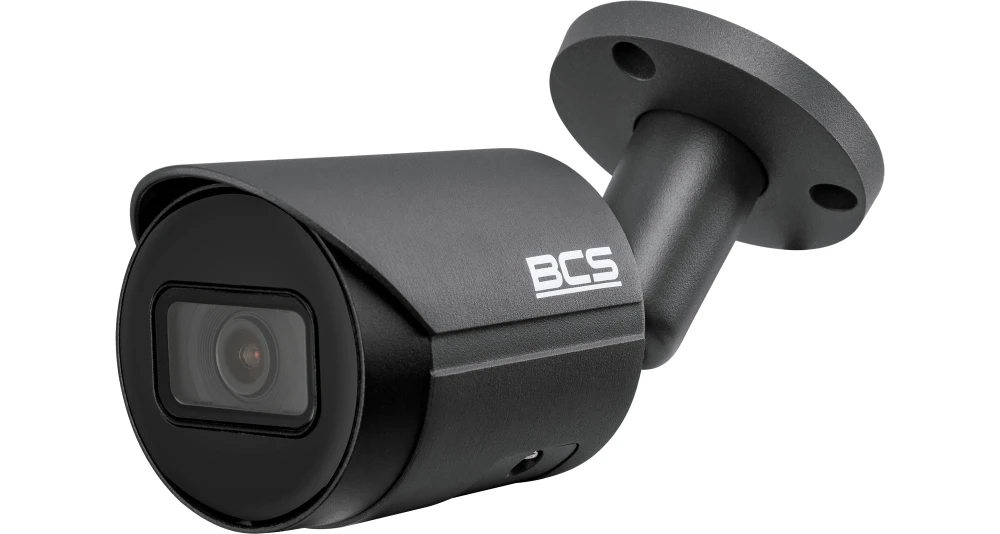

8x IP 5Mpx BCS IR 30m horn camera

• Model: BCS-TIP3501IR-E-G-V
• 1/2.7" 5Mpx PS CMOS sensor
• H.265+/H.264+/MJPEG encoding
• Support for two encoding streams
• Mechanical infrared filter ICR
• Functions AGC, AES, AWB, BLC, HLC, WDR(120dB), ROI, 3DNR
• Fixed lens 2.8mm F1.6
• Infrared illuminator with a range of up to 30m
• Built-in web service, compatibility with BCS-NVR, CMS(BCS Manager), BCS mobile app(iOS, android), P2P, Onvif
• Motion detection, privacy zones
• Smart functions: line crossing, area intrusion
• IP67 outdoor metal housing
• Memory card slot microSD max. 256GB (card not included)
• 12V DC and PoE power supply

Accessories:

Who will this monitoring kit be suitable for?

This is a modern solution with a wide range of applications. Reach for this versatile kit if you are interested, for example, in monitoring rooms, grounds or objects both indoors and outdoors. It will prove useful wherever you can run a cable installation.

With its help it is possible, among other things:

• monitoring of a store,
• monitoring of a wholesale and warehouse, as well as a production hall,
• monitoring of a school, monitoring of a kindergarten or other educational institutions,
• monitoring of a backyard, sports field or playground,
• monitoring of a private home,
• monitoring of a bar and restaurant,
• monitoring of a parking lot.

Choose this set if you need a professional monitoring system that will not let you down.

The set includes:

• BCS-L-NVR0801-4KE DVR( 1pc ).
• BCS-TIP3501IR-E-G-V camera ( 8pcs ).
• Rj-45 connector ( 18pcs).
• Hard drive 1TB ( 1pcs ).
• Camera cable with power supply ( 40m. ).
• Switch for camera ( 1pcs )
• Sticker "Attention Object Monitored" ( 1pc ).
• Set of signal and power connectors
