KEEYO Monitoring Kit 14x LV-V-IP8M25TF-E, 4K, IR25m

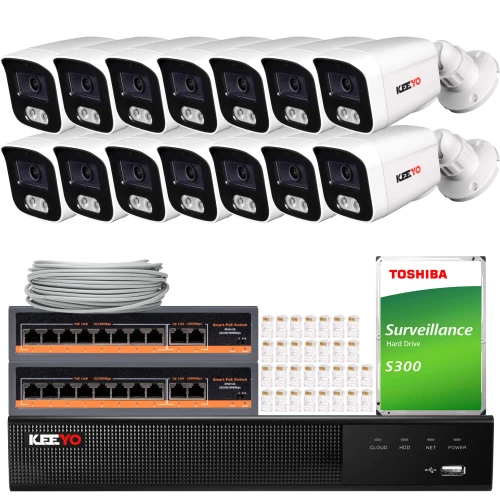

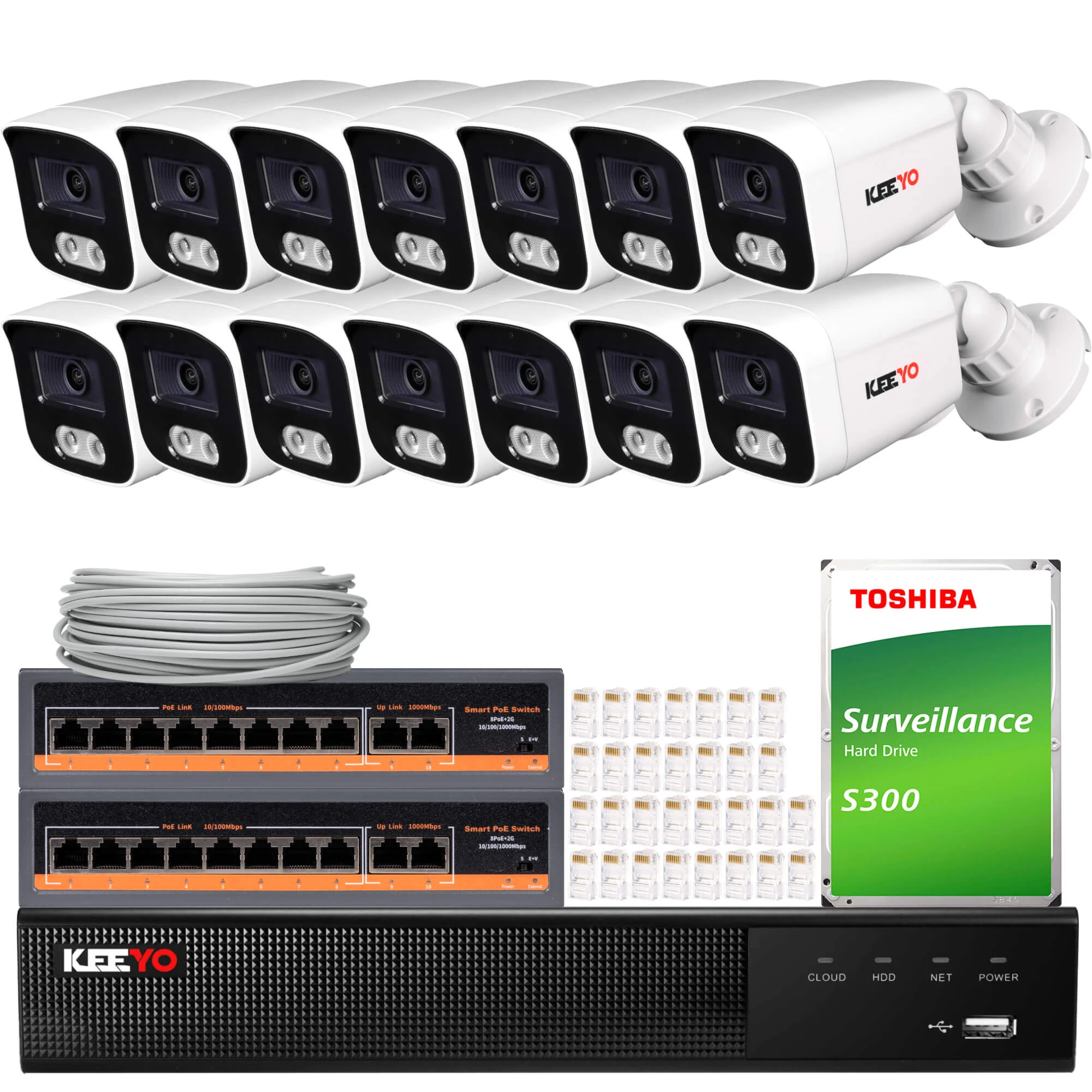

Set contents:

• 14x 4K horn camera - KEEYO LV-V-IP8M25TF-E
• 1x network video recorder LV-V-NVR-16CH
• 2x 8-port PoE switch
• 1x Toshiba S300 1TB hard drive from Surveillance series, dedicated to CCTV solutions
• 70 meters of UTP cat.5e cable
• A set of signal connectors
• Sticker "ATTENTION MONITORED OBJECT".

• Focal length of 2.8mm - Optical property of the lens that guarantees a wide angle of view.
• 4K resolution matrix - Video footage is recorded at a high resolution of 3840 x 2160.
• Night illumination with a range of 25 meters - Two high-power IR LEDs to accurately illuminate the space of your property.
• Mobile app - Free app for mobile devices. The Bitvision app is available on the Google Play Store and Apple App Store.
• Enhanced dynamic range - Even on the sunniest day, video will not lose detail in harsh light or in heavily shadowed patios of the frame.
• PoE power - A twisted-pair UTP cable connected to the power supply is all you need to run the camera.
• 12V power supply - In addition to PoE, the camera can also be powered by an optional 12V power supply.
• AI features

  • intruder detection
  • people and vehicle detection
• Wide viewing angle - The diagonal field of view is 110°.
• Built-in microphone - In addition to the image, the camera also captures the audio track.
• Weatherproof - The camera is IP67-rated, which means it can work in the harshest conditions.
• Snow reduction - In harsh conditions, digital cameras tend to generate noise. The IP5M25TF-II reduces this noise, leaving the image smooth and detailed.
• Privacy Masks - There may be objects or other properties in the frame that you can exclude from monitoring with privacy masks. Draw a black rectangle in the frame to obscure a portion of the image.
• HLC function - That is, compensation of the image when the light falls straight into the lens. This allows the camera to see the whole scene even under the sun.
• WEB interface supporting popular browsers - You will log in to the camera in well-known browsers like Google Chrome, Mozilla Firefox and Safari.
• ONVIF support - The camera is remarkably versatile. With ONVIF support, it interoperates with devices from many other brands.

The LV-V-IP8M25TF-E is a camera built for quality surveillance. It is a network camera which means that the video signal is transported in digital form, so it is of much better quality than in analog cameras. In addition, it is equipped with digital WDR, this allows the image to retain detail in dark and brightened areas. It has two infrared LEDs, which are more than enough to illuminate most properties.

Main features of KEEYO DVR LV-V-NVR-16CH:

• Support for IP cameras from other manufacturers
• Possibility to connect up to 16 IP cameras
• H.265+ video compression
• Live viewing, recording and playback of footage from cameras up to 8 Mpx
• 1 SATA interface for recording and backup
• 1 10/100Mbps network card with automatic speed selection
• Simultaneous HDMI/VGA output
• In-app support via mobile devices with systems: Android, iOS
• Web browser support: Chrome, Firefox, Safari, Microsoft Edge, Internet Explorer 8-11
• Modern casing
• Built-in web server, support via CMS or mobile client
• ONVIF support

Surveillance DVR, supporting 16 network cameras, enables comprehensive video surveillance in various locations. It is an ideal solution for security systems, combining advanced functionality with simple installation.

Main features of Toshiba S300 hard drive:

• Capacity: 1TB
• Drive type: HDD (hard disk drive)
• Format: 3.5 inches
• Interface: SATA III (6 Gb/s)
• Rotational speed: 5700 RPM
• Cache memory (Cache): 64 MB
• Continuous 24/7 operation: The drive is designed for continuous operation, which is important in surveillance systems where video recording takes place continuously.
• Support for up to 64 cameras: The drive can simultaneously support recording from up to 64 video cameras.
• Performance: The drive provides stability and reliability in data-intensive read/write situations.

The Toshiba S300 Surveillance 1TB hard drive is designed for video surveillance systems. Its performance and features are optimized for continuous 24/7 operation, making it suitable for CCTV surveillance applications.

Remote access from desktops and smartphones

Bitvision is a quick and easy way to operate your property's surveillance system, with it you will be able to:

✅Access video previews and playback stored footage

✅Save video snippets to your smartphone's memory
✅Configure time frames for motion detection
✅Receive notifications from motion detection or other events
✅Share your devices with other smartphones with the mobile app, such as family members or employees

Power Over Ethernet (PoE)

The LV-V-IP8M35AF's Power over Ethernet (PoE) function is a technology that allows data and electrical power to be transmitted to a network device via a single Ethernet cable. With this solution, cameras can be installed in locations where access to power sources is limited or non-existent. PoE simplifies installation, reducing the need for additional cables and power supplies. In addition, surveillance systems using PoE are easier to scale, as adding a new camera only requires connecting it to a PoE network. This increases the flexibility and cost-effectiveness of surveillance systems.

Support for popular browsers

WEB server in KEEYO cameras is supported by popular browsers like Google Chrome, Mozilla Firefox or even Safari.

Accurate notifications without false alarms

The LV-V-IP8M25TF-E's human and car silhouette detection feature offers significant advantages, such as increased monitoring efficiency and accuracy. It allows automatic recognition and tracking of specific objects, which minimizes false alarms and facilitates rapid response to real threats or suspicious events, improving the overall security and performance of surveillance systems.

Built-in microphone

The LV-V-IP8M25TF-E's built-in microphone enables audio recording, which greatly enhances surveillance and situation analysis capabilities. With the audio recording feature, you can better understand the context of events, identify voices, detect disturbing sounds, and monitor spaces for not only visual, but also acoustic, supporting a more comprehensive approach to security and real-time intervention.

High-quality image

The latest technologies used in the camera's sensor and sensor, combined with advanced optics, deliver high quality images with excellent sharpness compared to lower resolution cameras. The device records in 4K resolution ensuring that even the smallest detail is captured in the footage.

Automatic Day/Night mode

Adapted to work in all lighting conditions with visibility up to 25m even in total darkness. In addition, the Day/Night sensor switches the video mode automatically based on the amount of light reaching the lens.

Wide dynamic range: DWDR

The use of Wide Dynamic Range (WDR) takes care of the quality of recordings by detecting and making lighting corrections in areas of overexposure and lack of light. Thanks to this solution, the device is able to capture details of contrasting images.

Weatherproof

The IP67 waterproof rating means that the camera can be placed anywhere. Even during the harshest weather conditions, the device guarantees trouble-free operation thanks to the high-quality materials of the device's housing.

Recording performance at the highest level

H.265 encoding, also known as High Efficiency Video Coding (HEVC), works by compressing video data more efficiently than its predecessor H.264, allowing for smaller file sizes while maintaining high image quality. H.265 achieves this through advanced techniques such as adaptive splitting of video into blocks of different sizes, more complex motion prediction algorithms and improved entropy models. This allows surveillance DVRs to store longer recordings on the same storage medium and transmit higher resolution video streams while using less network bandwidth.


Technical specifications LV-V-IP8M35AF:

Model	LV-V-IP8M25TF-E
Camera
Image sensor	1/2.7" Progressive Scan CMOS
Resolution	8MP
Effective pixels	3840(H)x2160(V)
Compression	H.264/H.265/JPEG/AVI/MPEG
Video Format	PAL/NTSC
Electronic shutter speed	1/3-1/10000 second
Minimum illumination	Color: 0.02 Lux (F2.0, AGC ON), B/W: 0 Lux with IR
S/N ratio	60dB
Lens
Focal length & FOV	Horizontal FOV 45°, vertical FOV 45°, angular FOV 110°
Lens type	Fixed focal length lens 2.8mm
Focus control	Fixed
Aperture	F2.0
Pixels	8MP
Night visibility
Backlight	42x IR LED
Range of assist light	25m
Power supply for the assist light	Auto Control, Smart, Manual & Timed Mode
Network
Ethernet	RJ-45 (10/100 Base-T)
Protocol	TCP/IP, IPv4, ICMP, HTTP, FTP, DHCP, DNS, DDNS, RTP, RTSP, NTP, SMTP, UDP, QoS, 802.1x
ONVIF	Supports ONVIF 19.12 (Profile S/T)
P2P	Yes
PoE	Yes, 802.3af
Video	H.264
Main streams	Main stream 1: 3840x2160@20fps Main stream 2: 2880x1620@30fps Main stream 3: 1920x1080@30fps Secondary stream: 352x288@30fps
Browser	IE8-11, Google Chrome, Firefox , Mac Safari
Bitvision mobile app	iPhone, Android
AI functions
Intelligent analysis	Intruder detection (based on human detection), motion detection based on human detection
Camera functions
Day/Night	Color / B/W (IR-CUT)
Image configuration	Saturation / Brightness / Contrast / Sharpness / Mirroring / 3D NR / White balance / Anti-flicker / HLC / Distortion
FullColor	Yes
BLC	Yes
WDR	DWDR
Motion detection	Human and vehicle detection
Privacy masking	3 rectangular zones
Recording mode	NVR/CMS/Web
Language	Simplified Chinese, Traditional Chinese, English, Russian, Korean, Polish, French, Japanese, Spanish, Portuguese, Italian, Hebrew, Ukrainian, Arabic, Vietnamese, Thai, Hungarian
Interface
Audio	Built-in microphone
General
Housing	Front: Metal, Rear: Plastic, IP67
IR filter	Yes
Operating temperature	-20°C ~ +60°C, RH 95% Max
Storage temperature	-20°C ~ +60°C, RH 95% Max
Power source	DC12V±10%, 700mA
Dimensions	176.64(W) × 57(H) × 69.81(D) mm
Weight	600g
