DL2-60-24-U Switching Power Supply

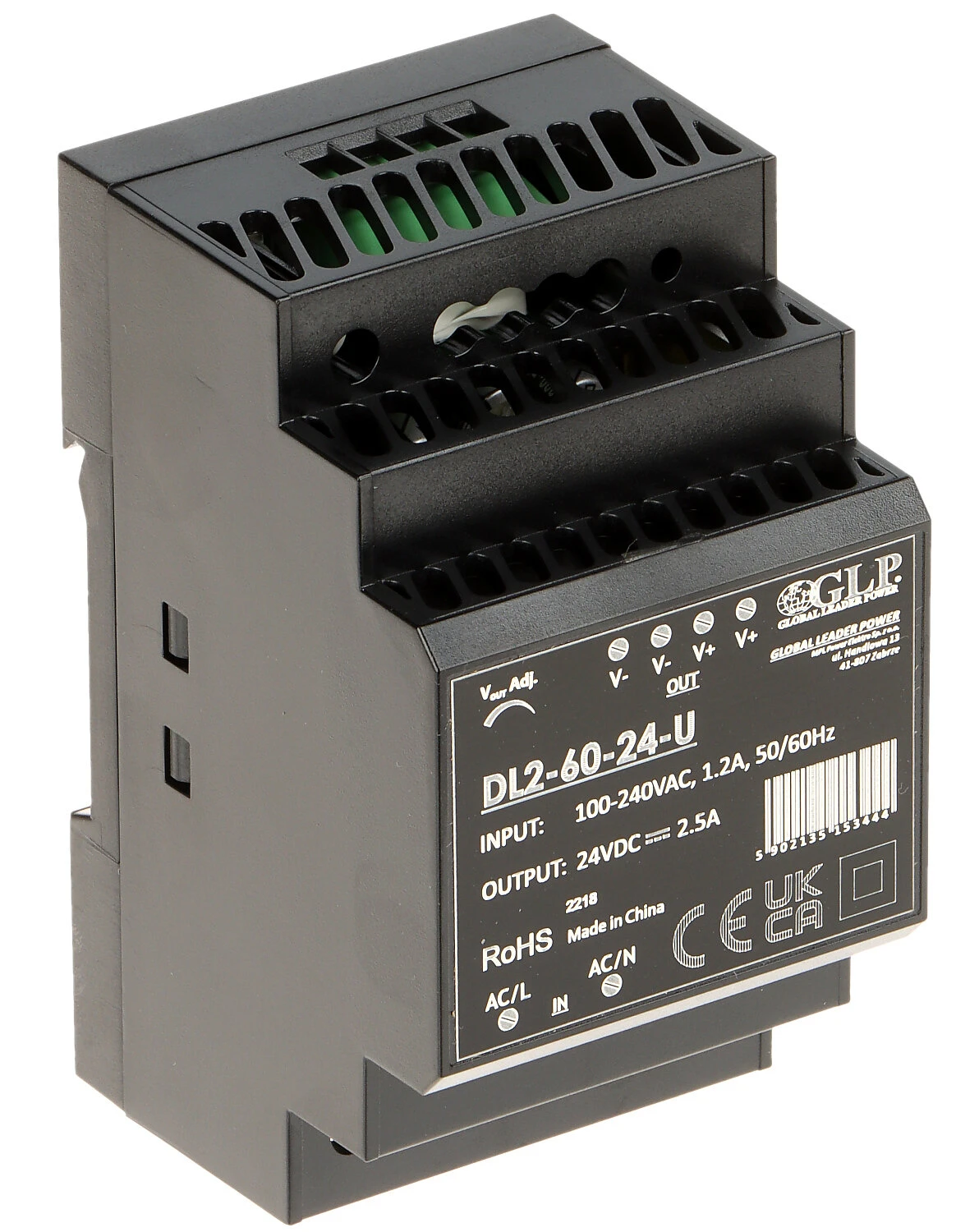

The image shows a black, compact DIN rail power supply with multiple connection terminals and a labeled front panel. It features input specifications of 100-240VAC and output of 24VDC, suitable for various electronic applications.
The image shows a black power supply unit with input specifications of 100-240VAC and output of 24VDC, 2.5A. The unit features a durable casing with ventilation slots and is labeled with compliance and manufacturing details.
A black, rectangular DIN rail power supply unit with ventilation slots and labeled input/output specifications on the top surface. The unit features green terminal connectors for easy installation and wiring.
The image shows a black GLP power supply unit with model DL2-60-24-U, featuring input specifications of 100-240VAC and output of 24VDC at 2.5A. The unit is designed for efficient energy conversion and includes various certification marks for safety and compliance.
A black DIN rail mounting panel designed for secure and efficient installation of electrical components. The panel features multiple slots for ventilation and connectivity.
A black electrical component with a rectangular shape and a smooth surface, featuring a central slot and engraved numbers on the top. The design is minimalistic, with a focus on functionality and durability.
DL2-60-24-U Switching Power Supply

  • Product Code

    DL2-60-24-U

  • Warranty

    24 miesiące

  • Time for return

    30 days

see description

Ask about this product show form

Do you have questions? Looking for answers? Are you interested?

  • Call
  • 34 341 16 30
  • We advise Mon - Fri 8 00 am to 4 00 pm
  • or send a message using the form below

Copy the code from the picture

weryfikator

Close

  • Availability: Product temporarily unavaliable

Price (Incl. VAT):

29,16 €

Add to Watchlist

Powiadom o dostępności pokaż formularz

Shipping from: 13,25 €

Do you represent a budgetary unit?
Check out the deferred payment option.

CA Raty

Product Description

DL2-60-24-U switching power supply

Switching power supply installed on TS35/7.5 or 15 DIN rail, resistant to high operating temperatures (up to 70°C).


Technical specifications:



Power supply type:Impulse
Power supply voltage:
  • 85 ... 264 VAC
  • 120 ... 370 VDC
Output voltage:24 VDC
Output voltage adjustment:21.6 ... 29 VDC
Current capacity of the power supply:2.5 A
Power supply capacity:60 W
Number of outputs:2 pcs.
Efficiency:90 %
Housing type:DIN
Protections:
  • Short circuit
  • Overload
  • Surge protection
Operating temperature / relative humidity:-40 °C ... 70 °C / 10 ... 95 %
Weight:0.18 kg
Dimensions:92.7 x 52 x 58 mm
