MEAN WELL HDR-15-24 SWITCHING POWER SUPPLY

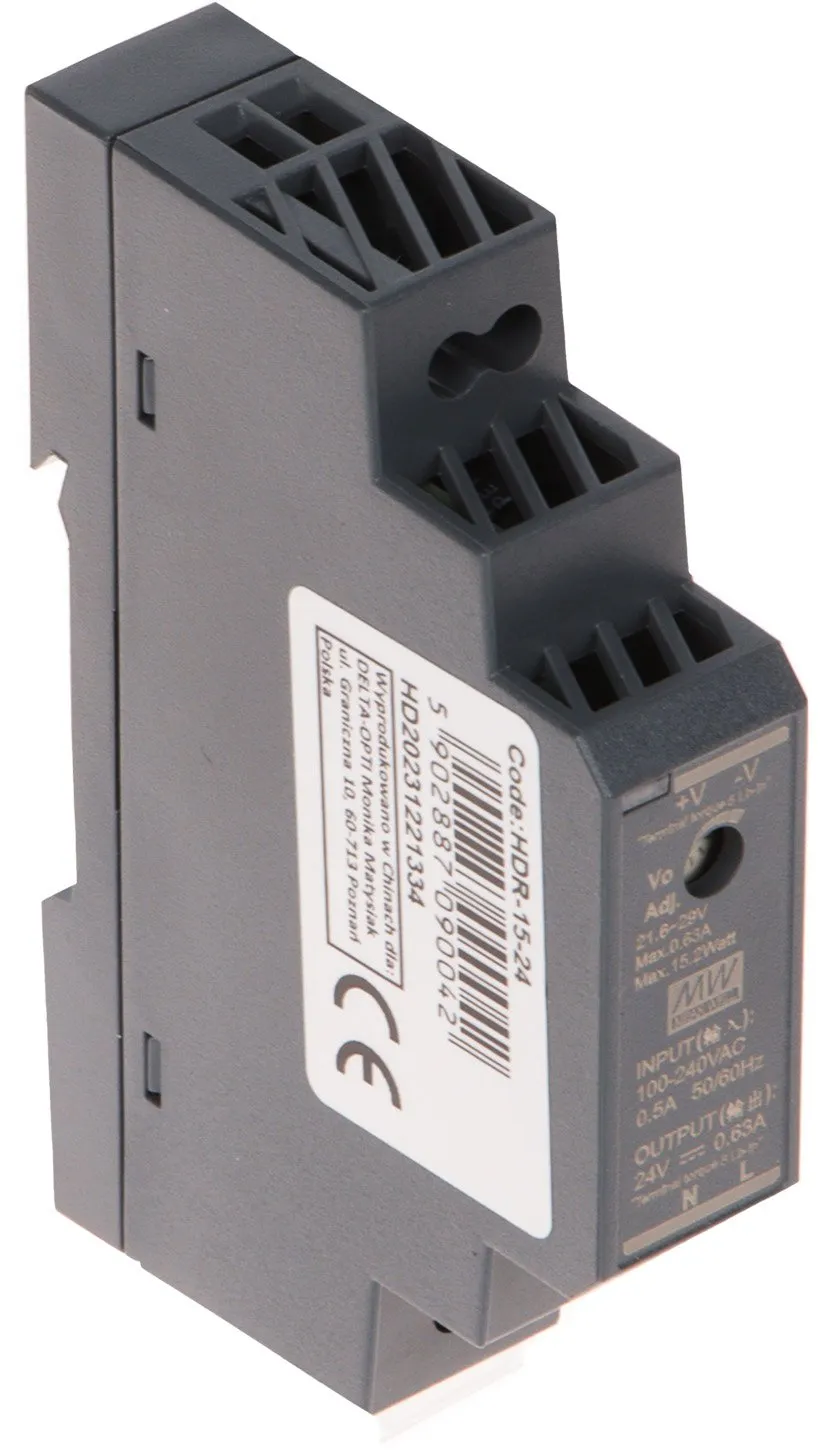

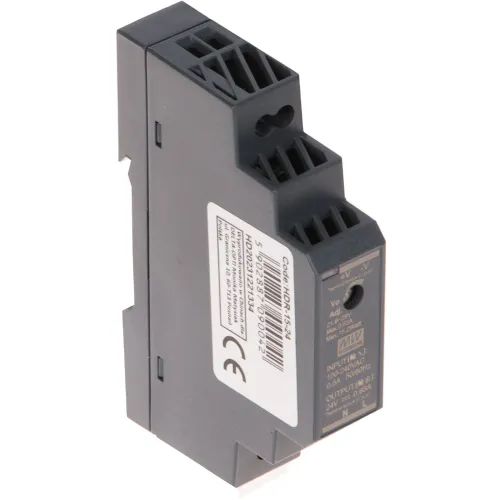

The image shows a compact, black Mean Well HDR-15-24 power supply with a DIN rail mounting design. It features labeled input and output specifications on the side, suitable for industrial applications.
A compact, rectangular power supply module with input and output terminals, featuring a black casing and labeled specifications for voltage and current. The device is designed for efficient energy conversion, suitable for various electronic applications.

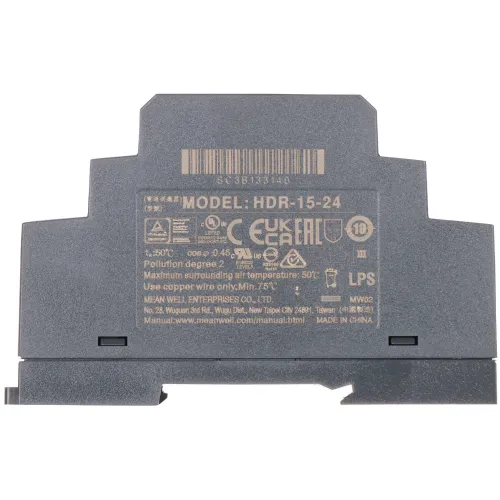

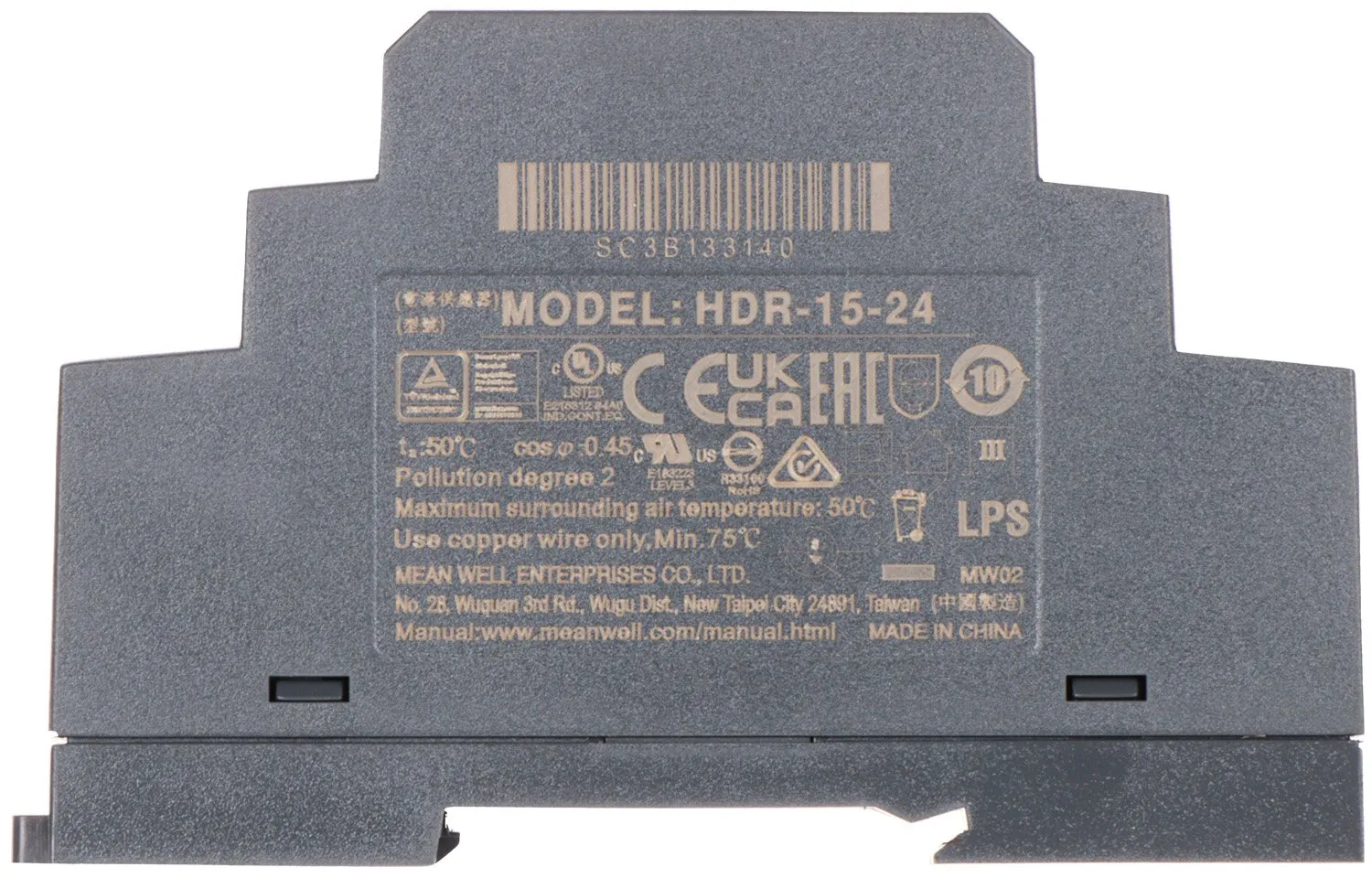

The image shows a gray Mean Well HDR-15-24 power supply unit with detailed specifications and safety certifications printed on its side. The unit is designed for DIN rail mounting and features a compact, industrial design suitable for various electrical applications.

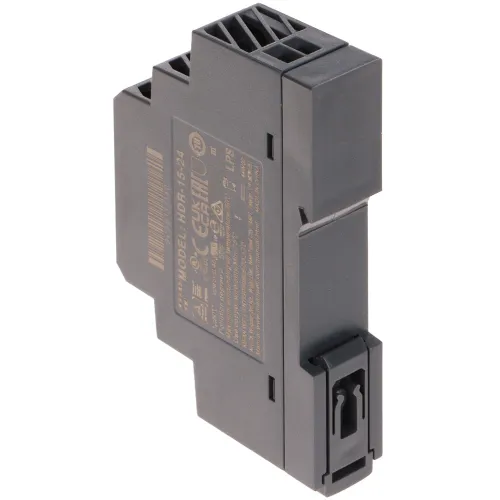

The image shows a compact, dark gray electrical module designed for DIN rail mounting, featuring a secure clip mechanism at the bottom. The module has detailed specifications printed on its side, indicating its compliance with various standards.

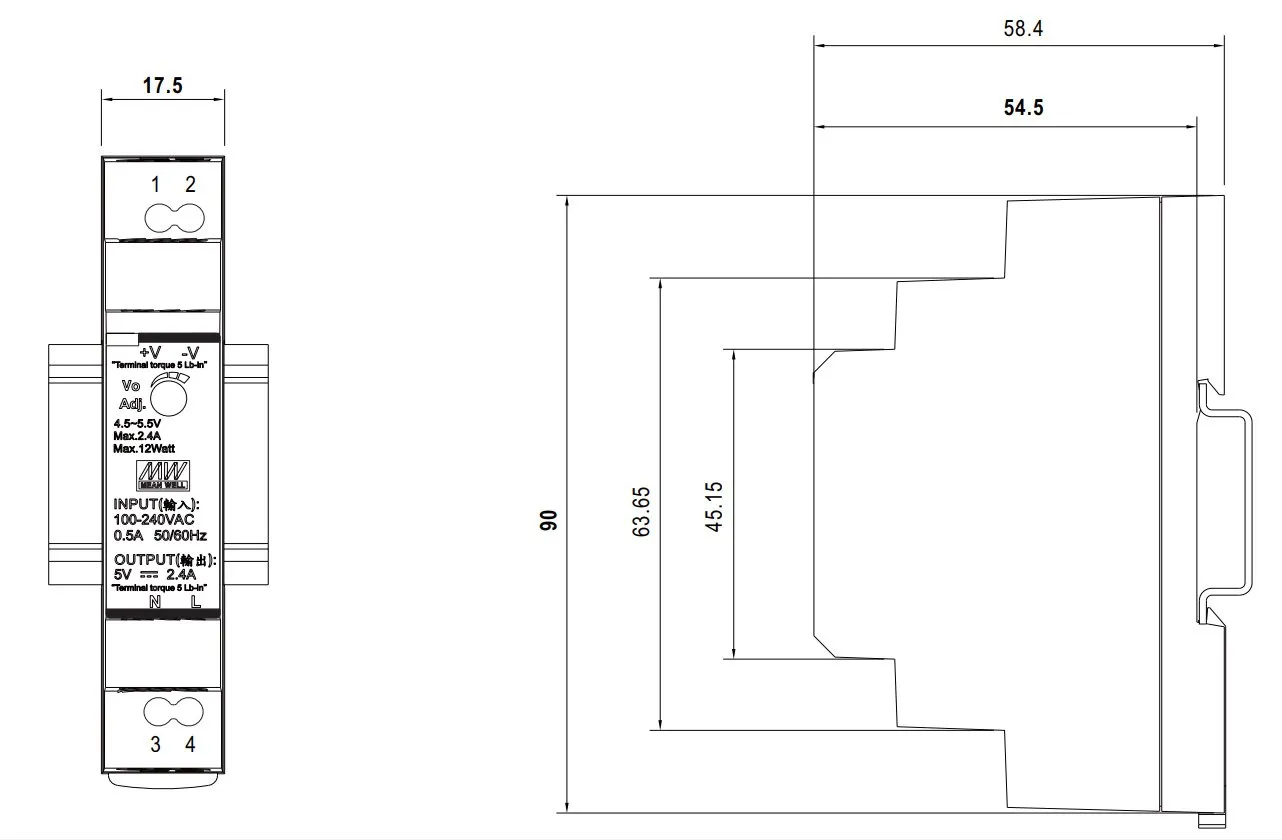

The image shows technical drawings of a compact electrical device with dimensions labeled, featuring a slim profile suitable for mounting on a DIN rail. The front view displays input and output specifications, while the side view highlights the depth and height measurements.

  • Manufacturer

    MEAN WELL

  • Product Code

    HDR-15-24

see description

Ask about this product show form

Do you have questions? Looking for answers? Are you interested?

  • Call
  • 34 341 16 30
  • We advise Mon - Fri 8 00 am to 4 00 pm
  • or send a message using the form below

Copy the code from the picture

weryfikator

Close

  • Availability: in stock Shipping 24/48h

Price (Incl. VAT):

17,70 €

Add to Watchlist

Najniższy koszt dostawy: 12,98 zł

Do you represent a budgetary unit?
Check out the deferred payment option.

CA Raty

Product Description

Switching power supply installed on TS35/7.5 or 15 DIN rail, resistant to high operating temperatures (up to 70°C)

Power supply type:Impulse
Power supply voltage:
  • 85 ... 264 V AC
  • 120 ... 370 V DC
Output voltage:24 V DC
Output voltage adjustment:21.6 ... 29 V DC
Current capacity of the power supply:0.63 A
Power supply output:15.2 W
Number of outputs:1 pcs.
Efficiency:86 %
Housing type:DIN
Protections:
  • Short circuit
  • Overload
  • Surge protection
Operating temperature / relative humidity:-30 °C ... 70 °C / 20 ... 90 %
Weight:0.07 kg
Dimensions:93 x 18 x 58 mm
Manufacturer/Brand:MEAN WELL
