Switching power supply PMT-48V150W1AA

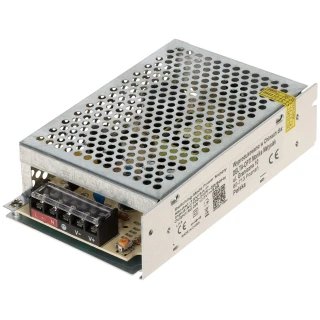

A compact, metal-cased power supply unit with a perforated top for ventilation and multiple connection terminals. The design features clear labeling for easy installation and integration into various electronic systems.

  • Product Code

    PMT-48V150W1AA

  • Warranty

    24 miesiące

see description

Ask about this product show form

Do you have questions? Looking for answers? Are you interested?

  • Call
  • 34 341 16 30
  • We advise Mon - Fri 8 00 am to 4 00 pm
  • or send a message using the form below

Copy the code from the picture

weryfikator

Close

  • Availability: Product temporarily unavaliable

Price (Incl. VAT):

55,22 €

Add to Watchlist

Powiadom o dostępności pokaż formularz

Najniższy koszt dostawy: 12,98 zł

Do you represent a budgetary unit?
Check out the deferred payment option.

CA Raty

Product Description

Switching-mode power supply PMT-48V150W1AA

Power supply with two pairs of output terminals

Note: If the power supply is designed for continuous operation (24H), the rated current of the power supply should not exceed 80% of the maximum current


Technical specifications:


Power supply type:Pulsed
Power supply voltage:switch selectable
  • 90 V ... 132 V AC,
  • 180 V ... 264 V AC
Output voltage:48 V DC
Output voltage adjustment:45.6 ... 52.8 V
Current capacity of the power supply:3.3 A
Power supply output:158.4 W
Efficiency:89 %
MTBF (mean time between failures):> 700000 h - Telcordia SR-332
Number of outputs:2 pcs.
Operating temperature / relative humidity:-10 °C ... 70 °C / 5 % ... 90 %
Weight:0.48 kg
Dimensions:178 x 97 x 38 mm
