Handheld thermal imager, monocular TPC-M40-B25-G 25mm Dahua

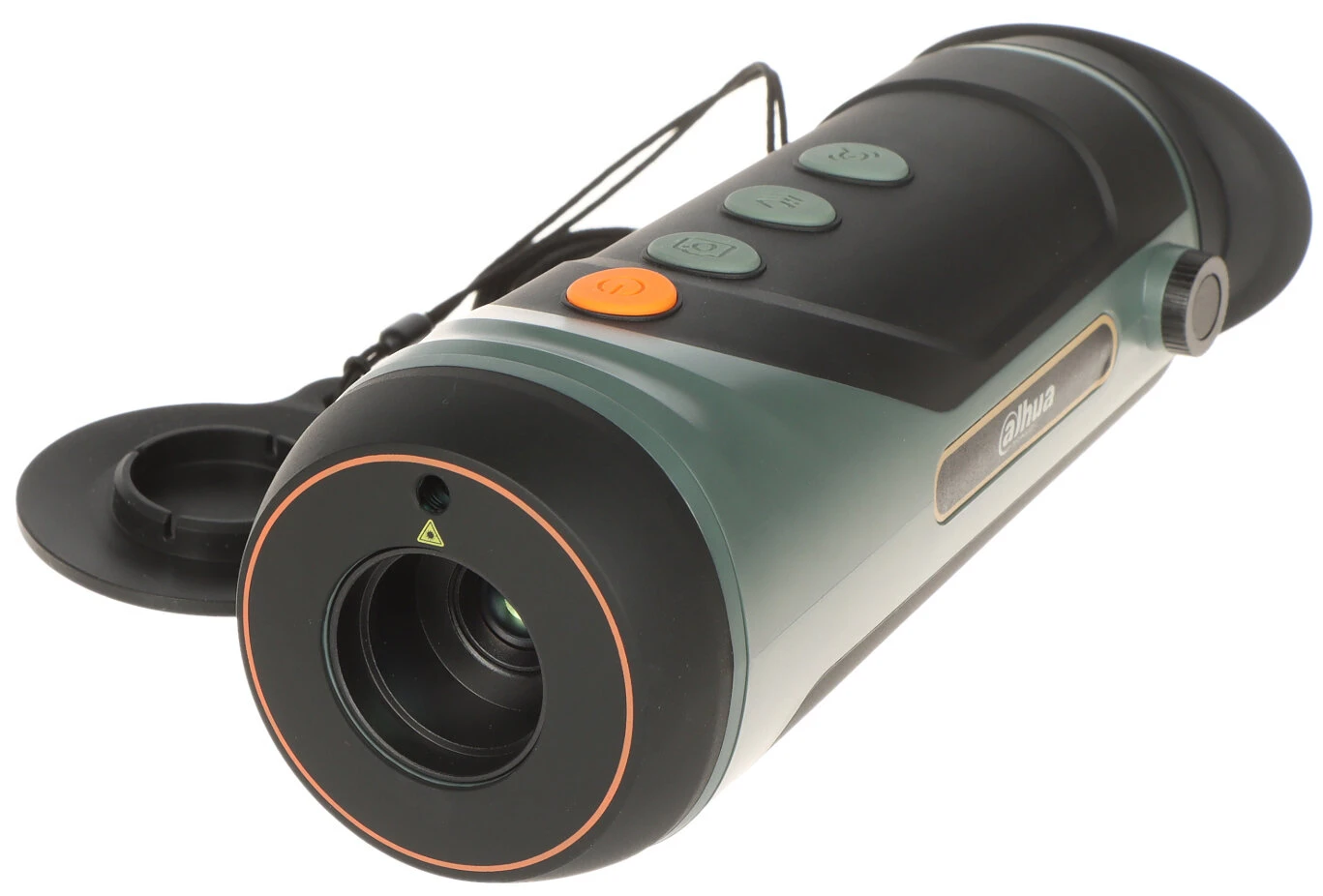

A handheld thermal monocular with a sleek, ergonomic design features a prominent lens and easy-to-use control buttons on top. The device includes a wrist strap for secure handling and a protective lens cover.
  • Manufacturer

    Dahua
  • Product Code

    TPC-M40-B25-G

  • Warranty

    36 miesięcy


    Price (Incl. VAT):

    Archival product

    Najniższy koszt dostawy: 20,68 zł

    Do you represent a budgetary unit?
    Check out the deferred payment option.

    Product Description

    A thermal imager (monocular) is a hand-held thermal imaging camera designed primarily for observing animals in their natural habitats, and as a support device in rescue, physical protection and hunting


    A great advantage of the thermal imager is its built-in fire detection mode, which allows immediate localization of the initial phase of a fireThanks to the use of a high-performance processor, the thermal imager also makes it possible to measure the distance to the observed object (rangefinder function) using intelligent video analysisThe use of a Wi-Fi module allows integration with a mobile application, which significantly affects the comfort of useThe device uses a built-in Li-Ion battery for operation, guaranteeing up to 5 hours on a single charge

    Transducer:Uncooled VOx microbolometer
    Array size:400 x 300 px
    Spot size:17 µm
    Display:0.4 " LCOS, 1280 x 960 px
    Thermal sensitivity (NETD):≤ 35 mK @ F1.0
    Spectral range:8 µm ... 14 µm
    Color palettes:4
    Lens:25 mm
    Viewing angle:15.5 °
    Video output:CVBS
    Memory card slot:Supports Micro SD cards up to 256GB (local recording possible)
    Video compression method:H.265
    Network interface:Wi-Fi
    Access from cell phone:
  • Android: Free DH Thermal app
  • iOS (iPhone): Free DH Thermal app
  • DRI detection distance:900 m
    Selected features:
  • Built-in fire detection mode,
  • Distance measurement - rangefinder function - determining the approximate distance to the observed object based on intelligent image analysis,
  • Tracking of the warmest or coldest points in the image,
  • Built-in laser pointer,
  • Connectivity to an external monitor via CVBS port,
  • 4 color palettes: IRON RED - mode for long-term observation, especially at night; BLACK HOT - for observation of active, moving objects - higher temperature - darker color; WHITE HOT - for observation of active, moving objects - higher temperature - lighter color; ALARM - instant detection of high temperature areas, e.g. fire ignition
  • Wi-Fi hotspot
  • Possibility to take pictures, videos and configure parameters using mobile application and cell phone,
  • Micro USB connector (battery charging)
  • D-ZOOM - Digital zoom : 2x, 3x, 4x
  • Battery life:≤ 5 h
    Typical battery charging time:< 3 h
    Power supply:
  • Li-Ion rechargeable battery,
  • 5 V DC / 500 mA (power adapter included)
  • Power consumption:< 2.2 W
    Housing:Compact - Plastic + Rubber
    Color:Gray
    Operating temperature :-20 °C ... 55 °C
    Leakage class:IP67
    Weight:0.45 kg
    Dimensions:193.4 x 66.4 x 68.7 mm
    Supported languages:English
    Manufacturer/Brand:Dahua

    Szczegóły dotyczące zgodności produktu z przepisami: Osoba odpowiedzialna za produkt
