Dahua Surveillance Kit 6x IPC-HFW3841E-AS-0280B-S2 8MP IR 30m WDR 120dB SMD 4.0 IVS

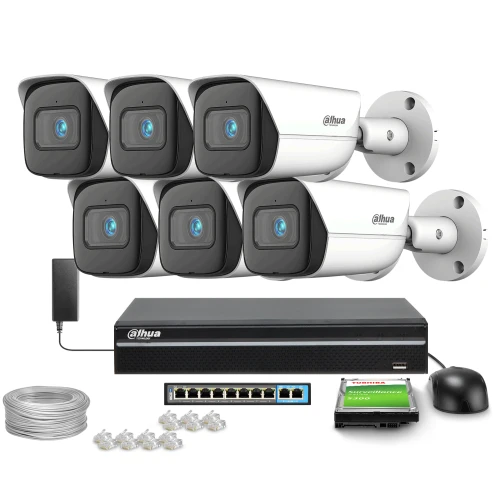

The image shows a complete surveillance system featuring six high-resolution security cameras and a digital video recorder. Included are necessary accessories such as cables, connectors, and a hard drive for storage.

A sleek, white Dahua Technology security camera is mounted on a sturdy wall bracket, featuring a prominent lens for high-quality surveillance. The camera's modern design and durable construction make it ideal for both indoor and outdoor monitoring.

Front view of a sleek black Dahua Technology electronic device with a perforated panel and USB port. The device features indicator lights on the right side for easy monitoring.

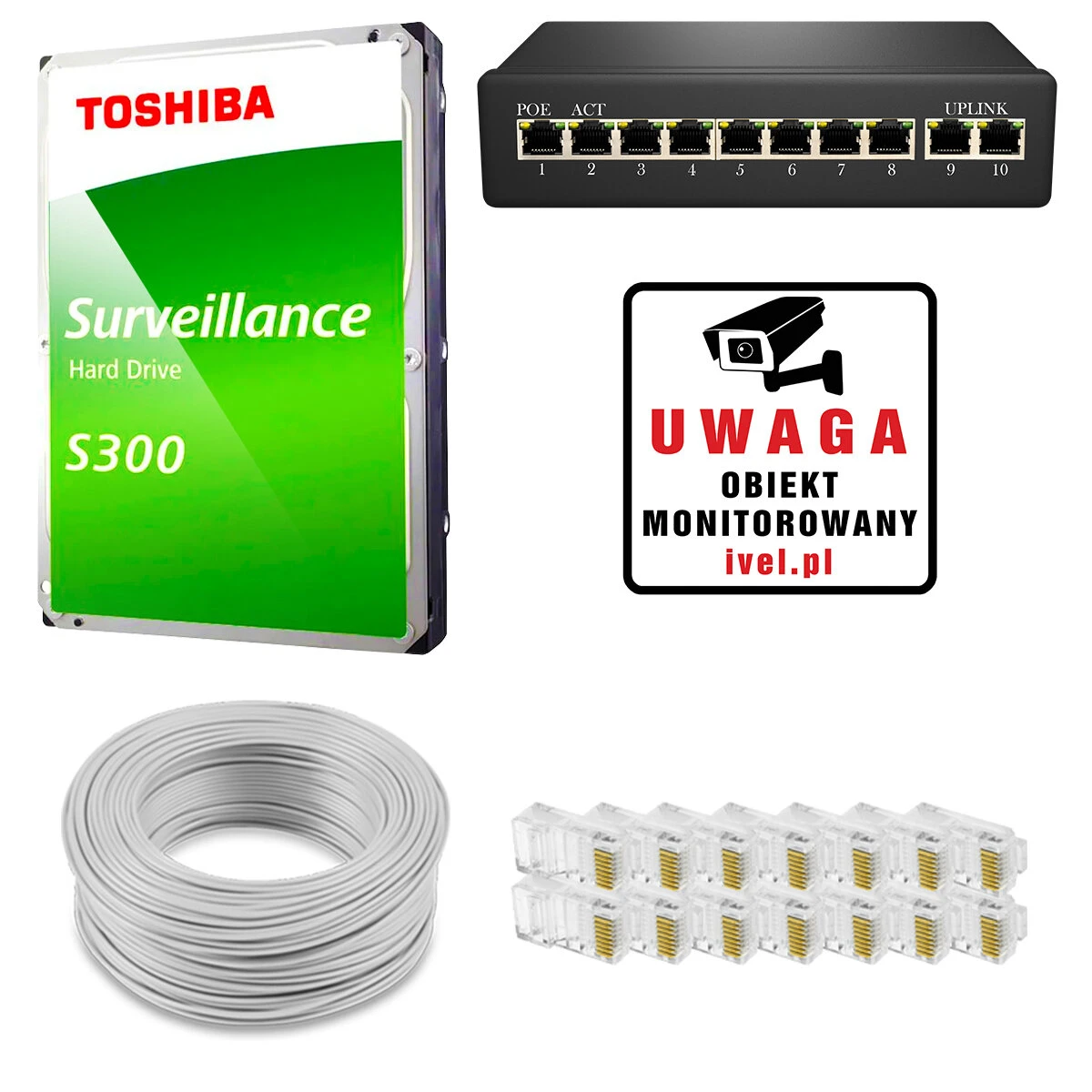

The image features a Toshiba Surveillance S300 hard drive, a network switch with multiple Ethernet ports, a coil of network cable, and a set of RJ45 connectors. Additionally, there is a warning sign indicating monitored premises.

Manufacturer
Product Code

ZM26264
Warranty

36 miesięcy

Technology: IP
Resolution: 8Mpx
Enclosure: Tube
Number of cameras: 6
Connectivity: Wired

see description

Ask about this product show form

Availability: in stock Shipping 24h

Price (Incl. VAT):

1 102,46 €

Add to Watchlist

Do you represent a budgetary unit?
Check out the deferred payment option.

The kit includes:

DVR DHI-NVR4108HS-4KS2/L ( 1pc ).
IPC-HFW3841E-AS-0280B-S2 camera ( 6pcs ).
8 port external PoE switch ( 1pcs ).
Toshiba S300 1TB hard drive from Surveillance series, dedicated to CCTV solutions ( 1pc ).
UTP cat.5e cable ( 30m )
Sticker "Attention Object Monitored" ( 1pc ).
Set of RJ45 plugs

Main features:

Complete monitor kit with 6 cameras IPC-HFW3841E-AS-0280B-S2, DVR and all necessary accessories.
High image quality 3840x2160 pixels (8Mpx)
Starlight - low light operation technology
Outdoor/indoor mountable camera
Enhanced recording performance with H.265+ codec
SMD 4.0 - Search for object classified as: human, motor vehicle - increased detection distance and false alarm immunity
Support for NAS servers
Built-in microphone with audio detection
Infrared light range - 30m
Cameras meeting IP67 waterproof rating
120dB hardware WDR
1TB hard drive dedicated for video surveillance systems
External switch with 8 PoE ports
Possibility of remote monitoring via web browser, PC application and mobile device application.
P2P (cloud) support - a feature that allows remote access without port forwarding and public IP address

Remote access from phone and desktop computer

Dahua systems allow you to configure, control and view using DMSS and SmartPSS applications that will provide you with constant access to the IPC-HFW3841E-AS-0280B-S2 from anywhere on earth with internet access. The above programs allow you to:

Access the video preview and play back the recorded footage
Save portions of the video to smartphone memory
Configure time frames for motion detection
Receive notifications from motion detection or other events
Share your device with other smartphones with the mobile app, such as family members or employees

DMSS - Free app for iOS and Android smartphones
SmartPSS - Free app for desktop computers

Zestaw do monitoringu 6x IPC-HFW3841E-AS-0280B-S2 8Mpx IR 30m WDR 120dB SMD 4.0 IVS Dahua

P2P function

In IPC-HFW3841E-AS-0280B-S2 cameras is a technology that allows direct communication between the camera and an end device (such as a smartphone or computer) without the need for an external server. Here are the main features and principles of this function:

Direct Connection: P2P allows a direct connection between the camera and the user's device. This means that video data can be transmitted directly, without having to go through an intermediary server.
Ease of Setup: One of the main advantages of P2P is the ease of setup. Users often only need to scan a QR code or enter a camera ID to establish a connection.
Remote Access: The user can access the camera's video from anywhere in the world, provided both the camera and the end device have Internet access.

Compatibility with NAS servers

The IPC-HFW3841E-AS-0280B-S2 's NAS (Network Attached Storage) server recording enables centralization of video data storage in a single location, making it easier to manage and access recordings from multiple cameras. In addition, the use of NAS servers can enhance data security through redundancy and the ability to use advanced protection and backup mechanisms, minimizing the risk of losing important recordings.

Zestaw do monitoringu 1x IPC-HFW3841E-AS-0280B-S2 8Mpx IR 30m WDR 120dB SMD 4.0 IVS Dahua

Power Over Ethernet (PoE)

The IPC-HFW3841E-AS-0280B-S2 's Power over Ethernet (PoE) function is a technology that allows data and electrical power to be transmitted to a network device via a single Ethernet cable. With this solution, cameras can be installed in locations where access to power sources is limited or non-existent. PoE simplifies installation, reducing the need for additional cables and power supplies. In addition, surveillance systems using PoE are easier to scale, as adding a new camera only requires connecting it to the PoE network. This increases the flexibility and cost-effectiveness of surveillance systems.

Zestaw do monitoringu 1x IPC-HFW3841E-AS-0280B-S2 8Mpx IR 30m WDR 120dB SMD 4.0 IVS Dahua

High-quality image

A light-sensitive sensor and a high-quality sensor combined with advanced optics deliver high-quality images with excellent sharpness. The device records at 8Mpx resolution, giving it a significant advantage over typical FullHD models. It guarantees that even the smallest detail will be captured on the footage.

A: 1280x720p ( 1Mpx )
B: 1920x1080p ( 2Mpx )
C: 2048x1536p ( 3Mpx )
D: 2560x1440p ( 4Mpx )
E: 2560x1960p ( 5Mpx )
F: 3840x2160p ( 8Mpx )

Efficient storage

H.265+ encoding, also known as High Efficiency Video Coding (HEVC+), is an advanced video compression technology used in modern surveillance systems. It is an extension of the H.265/HEVC standard, providing even higher compression efficiency than its predecessors. The main features of H.265+ coding in surveillance DVRs are:

Higher Compression Efficiency: H.265+ makes it possible to significantly reduce the size of video files while maintaining the same image quality. This saves disk space and increases the storage time of recordings.
Energy Savings: More efficient compression reduces the CPU load, resulting in lower power consumption of surveillance equipment.

Human and vehicle detection - SMD 4.0

Motion detection with silhouette recognition of people and vehicles in IPC-HFW3841E-AS-0280B-S2 is an advanced feature that allows to increase the precision and efficiency of monitoring systems. It allows the camera to classify notifications according to the type of silhouette detected. At the same time providing more detailed information, but also completely filtering out irrelevant ones such as: Moving trees and bushes.

IPC-HFW3841E-AS-0280B-S2 horn camera

Interface: Ethernet 10/100 Base-T PoE 802.3af
Compression: AI H.265/ AI H.264/ H.265+/ H.265/ H.264+/ MJPEG
Pixel count: 8Mpx
Sensitivity: 0.007lux/F1.4 (color, 30IRE), 0lux (IR on)
Lens: 2.8mm
Illuminator: 1 IR LED (range 30m)
Support for microSD / microSDHC / microSDXC cards up to 256GB
Built-in microphone
SMD 4.0 - object classification with false alarm filtering
Starlight - low light operation technology
AI functions: perimeter protection, AI SSA, Quick Pick, object classification (human/vehicle)
Automatic infrared filter ICR
Systems: motion detection, privacy zones
Audio inputs/outputs: 1/1
Alarm inputs/outputs: 1/1
Compatible with: ONVIF, CGI, Milestone, Genetec, RTSP, P2P
Bitrate: 3Kbps ~ 8192Kbps (H.264), 3Kbps ~ 8192Kbps (H.265)
Video preview:
Smart PSS, DSS Express, DSS PRO
web browsers: IE, Firefox, Chrome
mobile devices with systems: iOS, Android
Housing: waterproof class (IP67)
Power supply: 12V DC or PoE 48V (802.3af)

Video and audio recording

The audio recording function of the IPC-HFW3841E-AS-0280B-S2 allows audio to be recorded along with video, greatly enhancing the capabilities and efficiency of surveillance systems. The main advantages of such a solution are:

Comprehensive surveillance: Audio recording enables the collection of more detailed information about the monitored environment, which can be helpful in analyzing events or identifying people.
Situation analysis: Audio can provide additional information that is not visible on video, such as conversations, background noises, or other sounds, which can be important for understanding the context of an event.
Increased monitoring effectiveness: Integrating audio into a visual surveillance system increases the overall effectiveness of the system, enabling faster and more accurate responses to incidents.

Automatic day/night mode

Adapted to work in all lighting conditions with visibility up to 30m even in total darkness. In addition, the Day/Night sensor switches the video mode automatically based on the amount of light reaching the lens.

IP67-compliant housing

Such an enclosure protects the IPC-HDBW2541E-S-0280B from external factors such as dust, dirt and moisture, which is especially important in industrial or dusty environments. IP67-enclosed cameras can be installed in a variety of locations, from industrial to marine, without worrying about environmental damage.

Wide dynamic range - That is, high quality in difficult conditions

The WDR (Wide Dynamic Range) function of the IPC-HFW3841E-AS-0280B-S2 is a technology that improves image quality in difficult lighting conditions, especially when there are very bright and very dark areas in the camera's field of view at the same time. Key aspects of the WDR function are:

Exposure balancing: WDR helps produce clear images in situations where there is strong backlighting or underexposure, such as when filming from inside a building overlooking a brightly lit exterior.
Preservation of detail: With WDR, cameras can better capture details in the dark and bright parts of the image. This allows clear recognition of faces, vehicle license plate numbers and other important elements that might not be visible under standard conditions.
Image processing technology: WDR achieves its effects by quickly switching between different exposure levels or by combining several images taken with different exposure settings to create a single, balanced image.
Usefulness in security monitoring: This feature is particularly important in security monitoring systems, where it is important to get clear images in a wide variety of lighting conditions, both indoors and outdoors.

LED illumination and color images after dark

The white light illumination function of the IPC-HFW3841E-AS-0280B-S2 is used to improve image quality in low-light conditions. Here are some key aspects of this technology:

Improving nighttime visibility: When natural light levels are low, white light illumination produces a colorful and clear image that is typically of better quality than images obtained using infrared (IR).
Preventive effect: Bright light can act as a deterrent to potential intruders or criminals, as it signals that the area is being monitored and well lit.

For whom will this surveillance kit be suitable?

This is a modern solution with a wide range of applications. Reach for this universal set if you are interested, for example, in monitoring rooms, grounds or objects both indoors and outdoors. It will prove useful wherever you can run a cable installation.

With its help it is possible, among other things:

monitoring of a store,
monitoring of a wholesale and warehouse, as well as a production hall,
monitoring of a school, monitoring of a kindergarten or other educational institutions,
monitoring of a backyard, sports field or playground,
monitoring of a private home,
monitoring of a bar and restaurant,
monitoring of a parking lot.

Choose this set if you need a professional monitoring system that will not let you down.
