Perfecta 32 LTE SET-A Alarm System Set
Photo gallery
-
Manufacturer
-
Product Code
PERFECTA 32 LTE SET-A
-
Warranty
24 miesiące
Ask about this product show form
Product Description
PERFECTA 32 LTE control panel complete with ANT-LTE-I antenna and OPU-4 P enclosure (without transformer)
SATEL PERFECTA 32 LTE SET-A :
|
 |
|---|
PERFECTA 32 LTE SET-A (set) is an ideal solution to create a traditional wired system. The set is composed of the PERFECTA 32 LTE control panel, OPU-4 P housing and GSM ANT-GSM-I antenna, as well as the necessary mounting accessories.
 |

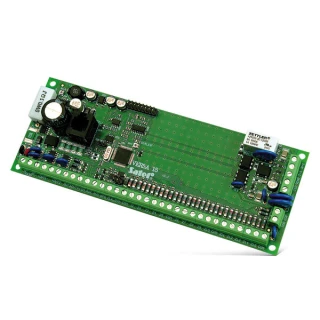

PERFECTA 32 LTE control panel
|
|---|
 |
The alarm control panels of the PERFECTA series are designed for protecting small and medium-sized objects, such as apartments, single-family houses, segments in terraced houses, offices, small businesses, etc. They provide protection in accordance with the requirements of Grade 2 EN 50131. The functions of the alarm system can also be controlled remotely using the PERFECTA CONTROL mobile device application and remote controls operating in the 433 MHz frequency band (after attaching the INT-RX-S module). The PERFECTA 32 LTE model uses a cell phone that supports LTE data transmission. It allows cooperation with a mobile application with PUSH messaging support, remote system configuration using PERFECTA Soft, event monitoring, voice notification, SMS control and audio verification. Supports two nano-SIM cards, which ensures continuity of communication: in the absence of communication with the network of the first operator, the second card is automatically selected.
|
|---|
|
LTE ANTENNA ANT-LTE-I
|
|---|
|
ANT-LTE-I antenna is designed for use with PBXs and modules equipped with cellular communicators. Applications: PERFECTA 16, PERFECTA 16-WRL, PERFECTA 32, PERFECTA 32-WRL, PERFECTA 32 LTE, PERFECTA 32-WRL LTE, VERSA Plus, INTEGRA 128-WRL, GSM-X, GSM-X LTE, INT-GSM, INT-GSM LTE and MICRA.
|
 |
|---|
|
OPU-4 P ENCLOSURE
|
|---|
 |
OPU-4 P is a rugged surface-mounted enclosure, made of polystyrene in white. Thanks to its aesthetic appearance, it is possible to use it in utility rooms, in plain sight. The base of the housing can be built into the wall, making the housing itself occupy less space. The universal nature and dimensions of the housing allow it to house SATEL alarm control panels, their expansion modules, communication modules, controllers and many other devices. OPU4 P is equipped with double tamper protection: against opening the cover and detaching from the wall.
|
|---|
 |
MOBILE ACCESS
|
|---|
 |
The PERFECTA CONTROL application not only allows remote control of alarm system functions. It also provides constant insight into current events recorded by the PERFECTA control panel, so you can even more effectively watch over what matters most to you - the safety and comfort of your loved ones.
|
|---|---|
Free app available for download |
  |
|
|
|
Technical specifications:
| Power supply voltage | 18V AC ±15%, 50/60Hz |
| Recommended transformer | 40VA |
| Standby current consumption | 170 mA |
| Maximum current consumption | 570 mA |
| Standby current consumption from battery | 130 mA |
| Maximum current consumption from battery | 430 mA |
| Power supply output voltage | 12V DC ±15% |
| Output voltage range | 10.5V ~ 14V DC |
| Output current of the PSU | 2A |
| Battery charging current | 500 mA |
| Battery fault notification voltage | 11V ±10% |
| Battery cut-off voltage | 10,5V ±10% |
| High-current programmable outputs | 1000 mA / 12 V DC |
| Low-current programmable outputs | 25 mA / 12V DC |
| KPD output | 500 mA / 12 V DC |
| AUX output | 500 mA / 12 V DC |
| Programmable wire inputs | 8 |
| Maximum number of programmable inputs | 32 |
| Wired programmable outputs | 4 |
| Maximum number of programmable outputs | 12 |
| Power supply outputs | 2 |
| Communication buses | 1 |
| Manipulators | Up to 4 |
| Zones | 2 |
| Telephone numbers for notification | 8 |
| Voice messages | 16 |
| Users | 15 |
| Timers | 8 |
| Event memory | 3584 |
| Security level according to EN 50131 | Grade 2 |
| Operating temperature | -10°C ~ 55°C |
| Maximum humidity | 93±3% |
| Weight | 145 g |
| Dimensions (width/height) | 160x68mm |
