Access control set with fingerprint reader and proximity reader with emergency power supply VIDI-AC-F007

Main features of the kit:

• Fingerprint
• Card reader
• Housing:Metal
• Lock Protection class: IP66
• Button waterproof class: IP44
• Purpose: Indoor/Outdoor

Access control set with card reader. Includes 5 proximity key fobs. The set is ready to connect. In case of a power outage, a buffer power supply with a battery guarantees proper uninterrupted system operation.

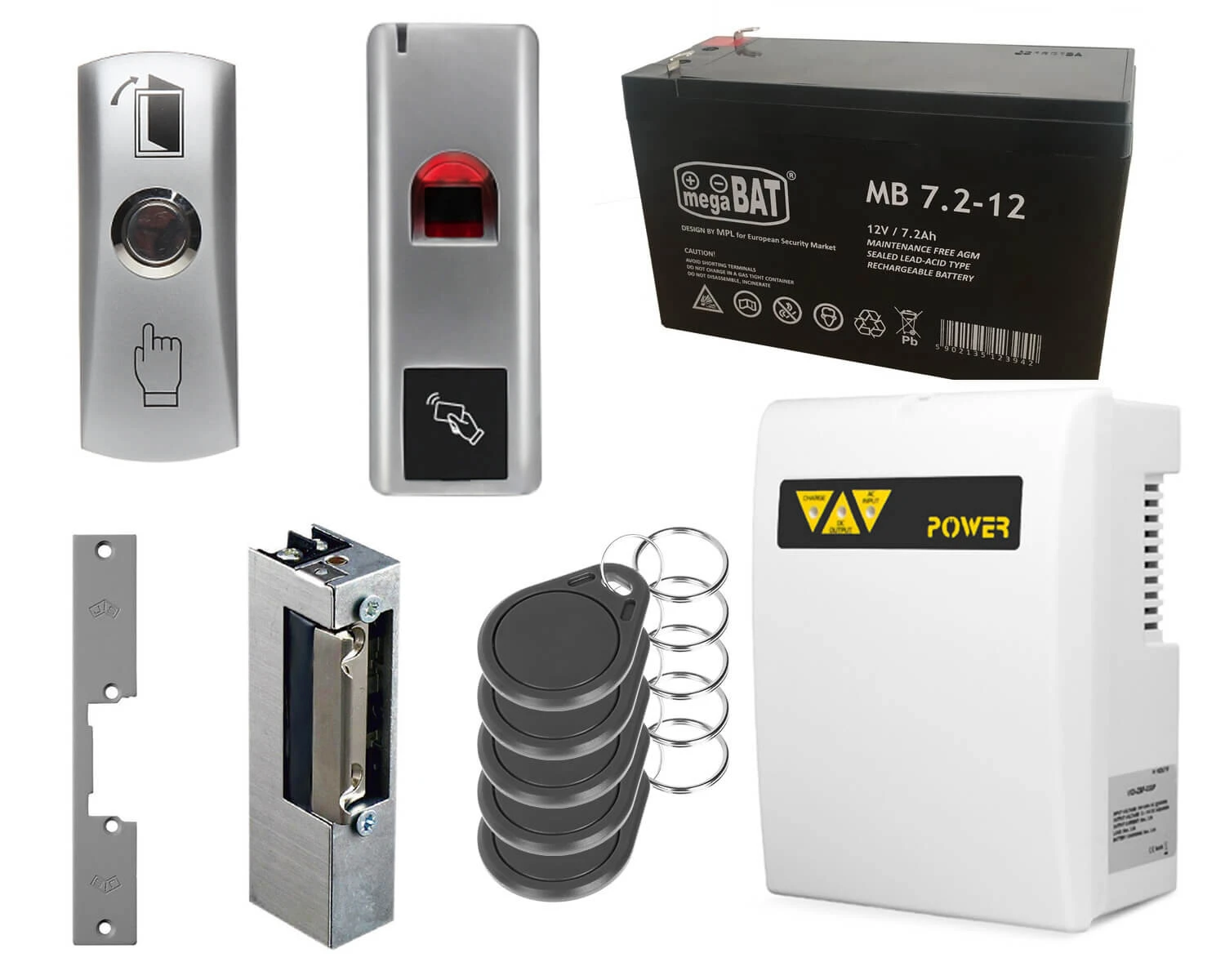

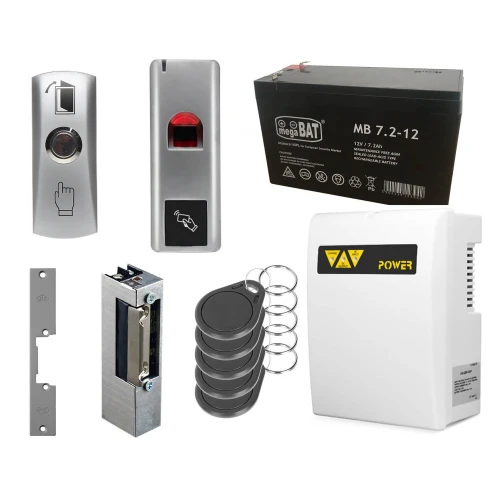

The set includes:

• Fingerprint reader with VidiLine card/key fob reader VIDI-AC-F007 ( 1 piece ).
• Surface-mounted exit button ATLO-PB-2 ( 1 pc ).
• VIDI-ZBF-015P buffer power supply ( 1 pc ).
• Electric strike 812 ( 1 pc ).
• Rechargeable battery 7.2Ah (optional) ( 1 pc. )
• 125 kHz key fobs ( 5 pcs.) " color may vary depending on product availability"
• Short signboard 901G ( 1 pc. )

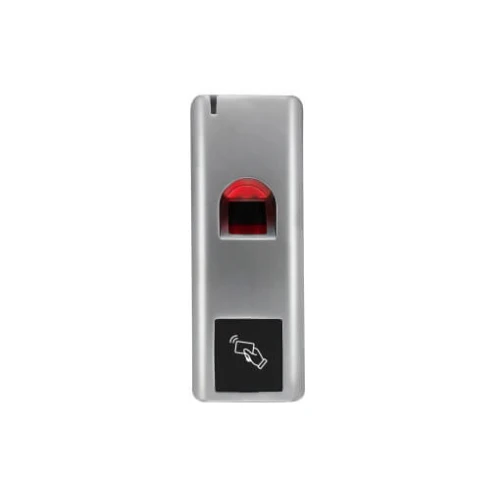

Fingerprint lock with card reader VidiLine VIDI-AC-F007. Main features:

Waterproof metal standalone fingerprint reader with EM reader. With IP66-compliant water resistance, the device is ideal for outdoor installation. The slim case provides mounting options on the door frame. The device supports up to 1,000 fingerprints and 2,000 card users. The use of Wiegand interface provides the possibility to use the device as a reader in a third-party set.

Surface-mounted exit button ATLO-PB-2 Main features:

• Contact type: NO, monostable
• Contact load capacity: 3 A / 36 V DC
• Material of construction: Stainless steel
• Color: Silver
• Protection class: IP44
• Weight: 0.1 kg
• Dimensions: 83 x 32 x 25 mm
• Warranty: 2 years

Exit button for triggering door opening signal in access control systems.

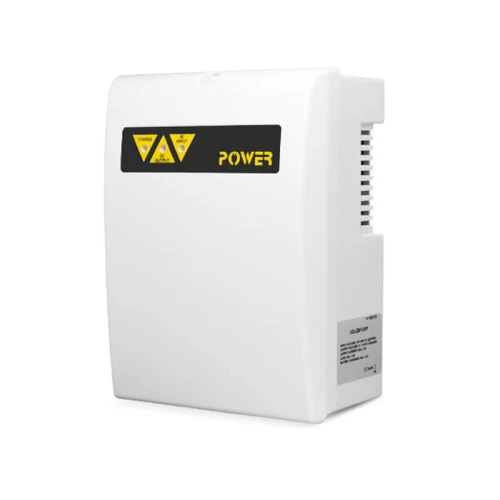

VIDI-ZBF-015P 1.5A buffer power supply. Main features:

VIDI-ZBF-015P 1.5A buffer power supply with a separate 0.8A battery landing path. The device is characterized by very compact dimensions, but it will still fit a 7Ah or 7.2Ah battery inside. The power supply has lights indicating the status of its operation. The housing is made of plastic equipped with ventilation holes and wall-mounting brackets.

7,2Ah battery. Main features:

Gel battery with a capacity of 7.2Ah and a voltage of 12V. It has a hermetic design and can work in any position. The advantages of the device are fireproof, long life, maintenance-free as well as a wide range of applications and high quality.

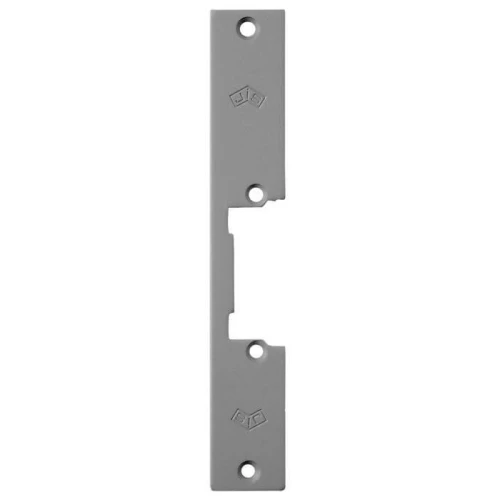

R-3 812 12VAC/DC electric strike. Main features:

Electric strike 812 is used for remote opening of doors and wickets, left and right and double-leaf. Model 812 was made of aluminum alloys, powder coated. The electromagnetic catch is designed for doors and wickets made of metal sections, for cooperation with a latch or a ratchet lock. The catches can work with intercom systems in the entrance doors of multi-family buildings. They are made of corrosion-resistant materials, so they can be installed outdoors, but they should be protected against flooding, weather and paint...
