Extralink POE-48-24W | PoE Power Supply | 48V, 0.5A, 24W, cable included
Photo gallery
Product Description

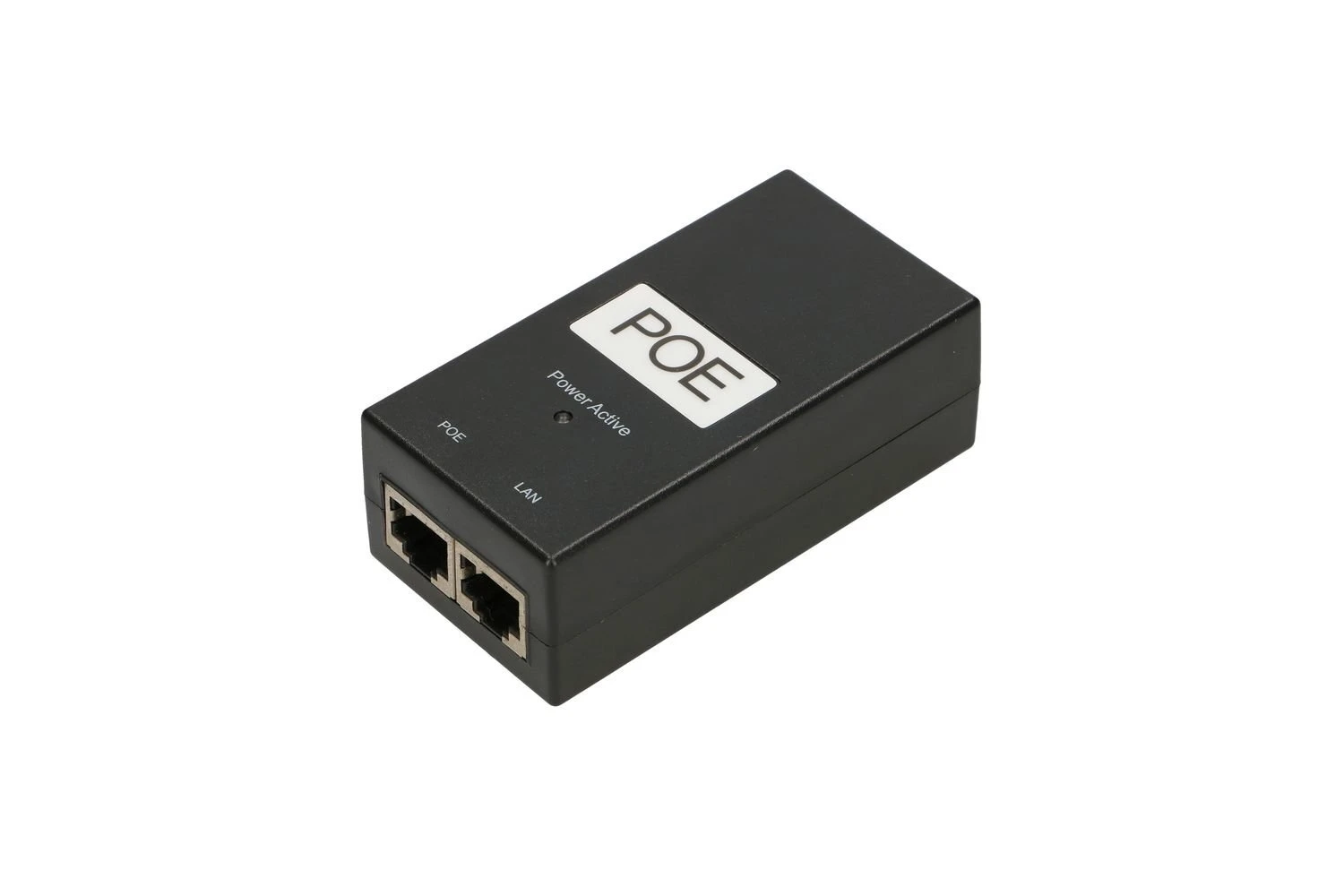

Extralink 48V 24W PoE power adapter.
The Extralink PoE power adapter (power adapter) supplies power through selected strands of twisted-pair cable to network devices such as media converters, access points, cameras, etc. The 48V 0.5A PoE power adapter allows Fast Ethernet network data transfer while providing power over a single cable. This model is a Passive PoE solution that allows transmission at Gigagbit Ethernet speeds, and is not compatible with the IEEE 8023at/af standard. Unlike power supplies with a 5.5/2.1mm jack connector, the presented PoE adapter directly powers 100Mbps PoE devices without the use of additional network accessories.
The power supply is equipped with a 1.2-meter long power cable terminated with a cloverleaf connector and two RJ45 ports, one is used to connect the device to be powered and the other socket is used to connect a patchcord to a switch or router. The device can be installed in residential, tele-technical rooms or rack cabinets.
An LED indicates proper operation of the device. If the short circuit or overload protection is triggered, the PoE power supply cuts the voltage to the device, and restores the voltage automatically after the failure is over.
Technical specifications:
| Input data frequency | 50/60 |
| LEDs | Yes |
| Power protection functions | Overcharging, Short circuit |
| Quantity per package | 1 |
| Number of RJ-45 ports | 2 |
| Product color | Black |
| Easy installation | Yes |
| Actual power | 24 |
| Voltage | 230 |
| Operating voltage | 48 |
| Output current | 0,5 |
| Wired LAN | Yes |
| Purpose | PoE adapter |
| Cooling type | Passive |
| Type of current | AC to DC |
| Power supply type | Internal |
| Built-in fan | No |
| Built-in display | No |
| Power supply included | Yes |
| Removable power connectors | Yes |
