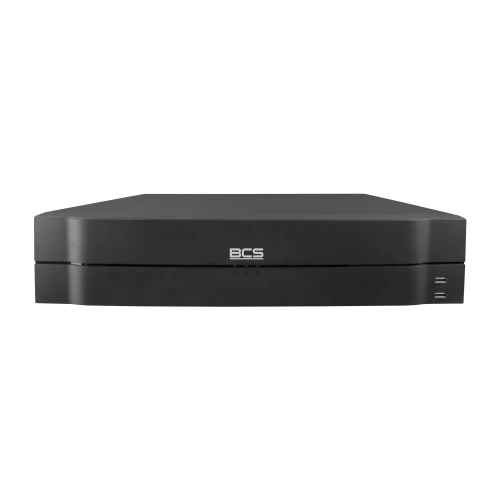

IP Recorder 64-channel BCS-L-NVR6408-A-4K support up to 32Mpx

Main features:

• IP DVR with support for 64 channels, ideal for surveillance systems requiring a large number of connected cameras.
• Supports cameras with resolutions up to 32Mpx, ensuring high image quality.
• Pentaplex function for simultaneous live viewing, recording, playback, archiving and remote access to recorded material.
• Equipped with 8 disks with a total capacity of 16TB and support for RAID 0/1/5/6/10 types for secure data storage.
• The maximum recording resolution is 32 Mpx, allowing for detailed and clear video recordings.
• Input and output bandwidth of 384 Mbps (200 Mbps Ai) ensures smooth data transmission.
• Display performance in various configurations depending on the number of channels and resolution.
• Supports H.265+, H265, H.264+, H.264, MJPEG video compression for efficient compression of video files.
• HDMI 4K/2xVGA video outputs enable connection of high-resolution monitors for convenient viewing.
• Outputs can be split in different configurations such as 1/4/8/9/16/25/36/64 for flexible viewing.
• Playback in 1/4/9/16 modes for easy viewing of recorded footage.
• Ability to archive footage to external media, such as USB FLASH or USB HDD, and eSATA.
• Rich interfaces, including 2xUSB 2.0, 2xUSB 3.0, eSATA, RS232, 2xRS485, allowing connection of various peripherals.
• Audio input and output, supporting audio compression in G.711A, G.711U, G.726, PCM formats.
• Large number of alarm inputs (16) and alarm outputs (8), allowing integration with alarm system.
• Support for local software, web service and mobile application, allowing convenient management and access to the monitoring system.
• Compatible with ONVIF(S/G/T) protocols and support for third-party cameras for system flexibility and compatibility.
• Mains power supply of 100~240V AC, allowing use in different regions.
• Low power consumption (max. 13W) without drives, which contributes to energy saving.
• Operation in a variety of climatic conditions from -10°C to +55°C with a maximum humidity of 93% RH.
• Robust 2U chassis of 440×454×95mm for durability and easy installation.
• Weight without drives of 6.4kg, making it a robust and stable device.
• Support for advanced intelligent functions such as face detection, face identification, perimeter protection, SMD Plus, which enhances security and monitoring effectiveness.

IP DVR 64 channel BCS-L-NVR6408-A-4K support up to 32Mpx

The BCS-L-NVR6408-A-4K 64 channel IP DVR is an advanced surveillance device that supports cameras with up to 32Mpx resolution, with intelligent functions, RAID support, rich interfaces and external media archiving, ideal for professional surveillance systems.

Technical specifications:
