KEEYO LV-E-XVR-4CH-II 4-channel hybrid recorder

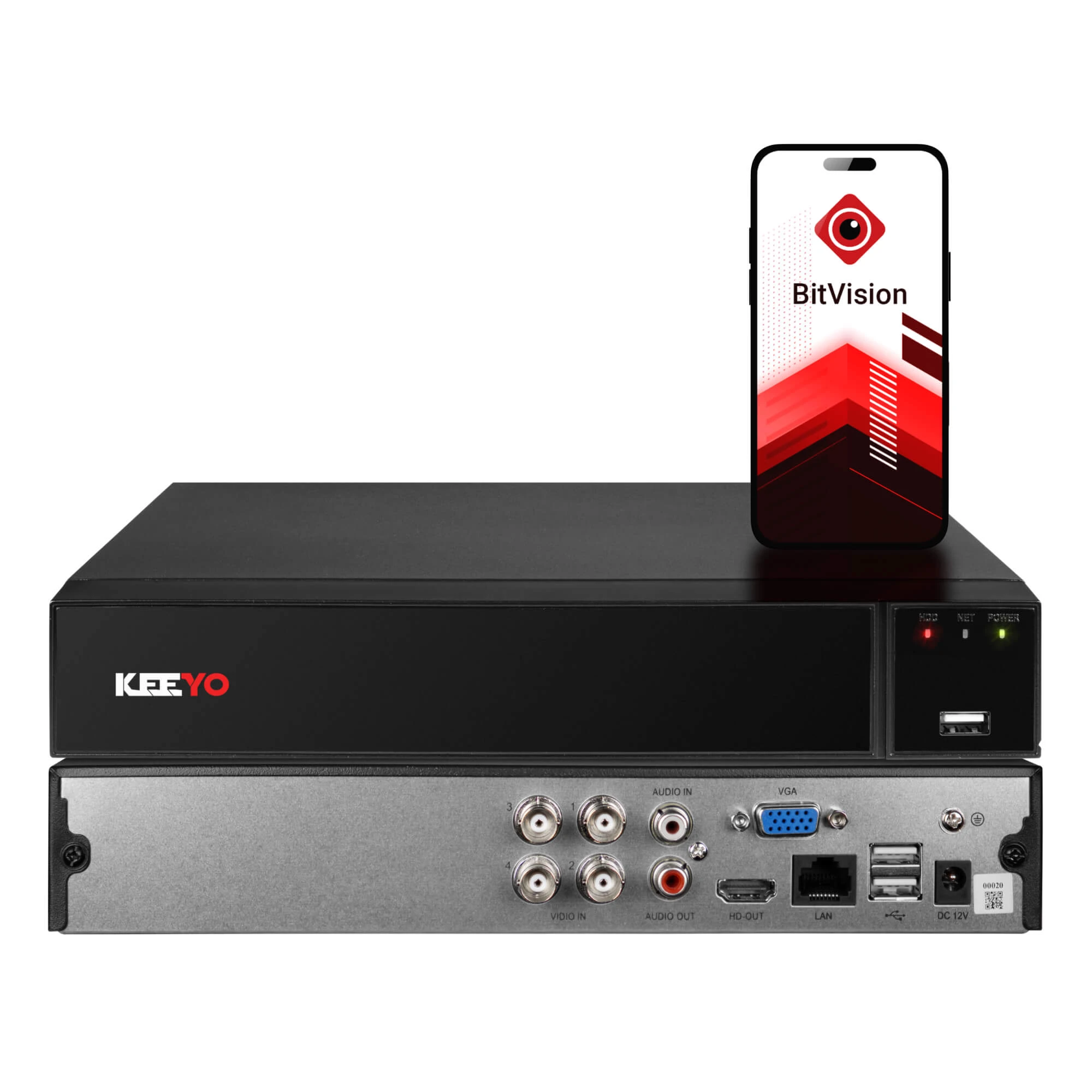

The image shows a Keeyo hybrid recorder with multiple input ports on the back, including VGA, HDMI, and USB connections. A smartphone displaying the BitVision app is positioned above the recorder, highlighting its compatibility with mobile monitoring.
A sleek black 4-channel hybrid recorder with a minimalist design, featuring a USB port on the front panel. The device is branded with the KEEYO logo and has indicator lights for status monitoring.

  • Manufacturer

    KEEYO

  • Product Code

    LV-E-XVR-4CH-II

  • Warranty

    24 miesiące

  • Technology: AHD/HD-CVI/HD-TVI/IP
  • Number of channels: 4
  • Built-in POE switch: No

see description

Ask about this product show form

Do you have questions? Looking for answers? Are you interested?

  • Call
  • 34 341 16 30
  • We advise Mon - Fri 8 00 am to 4 00 pm
  • or send a message using the form below

Copy the code from the picture

weryfikator

Close

  • Availability: in stock Shipping 24h

Price (Incl. VAT):

70,56 €

Add to Watchlist

Najniższy koszt dostawy: 12,98 zł

Do you represent a budgetary unit?
Check out the deferred payment option.

CA Raty

Product Description

Package contents:


  • 1x KEEYO LV-E-XVR-4CH-II DVR
  • 1x User manual
  • 1x Wired mouse
  • 1x Power adapter

Main features of the recorder KEEYO LV-E-XVR-4CH-II:

  • Support for AHD/TVI 3.0/CVI/CVBS cameras from other manufacturers
  • Ability to connect up to 4 analog cameras
  • H.265+ video compression
  • Live viewing, recording and playback of footage from cameras up to 5Mpx Lite
  • 1 SATA interface for recording and backup
  • 1 10/100Mbps network card with automatic speed selection
  • Simultaneous HDMI/VGA output
  • In-app support via mobile devices with systems: Android, iOS
  • Support for web browsers: Chrome, Firefox, Safari, Microsoft Edge, Internet Explorer 8-11
  • Modern housing
  • Built-in web server, support via CMS or mobile client

Remote access from desktops and smartphones


Bitvision is a simple and fast way to operate your property monitoring system, thanks to it you will be able to:

✅Access video previews and playback stored footage


✅Save video snippets to your smartphone's memory
✅Configure timeframes for motion detection
✅Receive notifications from motion detection or other events
✅Share your devices with other smartphones with the mobile app, such as family members or employees.



Support popular browsers


KEEYO LV-E-XVR-4CH-II DVR supports popular web browsers such as Chrome, Mozilla Firefox and Safari. This allows users to enjoy convenient and seamless access to the surveillance system from different platforms and devices, providing full flexibility and convenience.




Recording Performance at the Highest Level

H.265 encoding, also known as High Efficiency Video Coding (HEVC), works by compressing video data more efficiently than its predecessor H.264, allowing for smaller file sizes while maintaining high image quality. H.265 achieves this through advanced techniques such as adaptive splitting of video into blocks of different sizes, more complex motion prediction algorithms and improved entropy models. This allows surveillance DVRs to store longer recordings on the same storage medium and transmit higher-resolution video streams while using less network bandwidth.


Technical specifications:

Model LV-E-XVR-4CH-II
System
Main processor MC6630
Operating system Embedded LINUX
Video
Input Analog: 4*(TVI/AHD: 5M@12fps; AHD/TVI/CVI: 4M@15fps; AHD/TVI/CVI: 1080P/720P@30fps; Analog: 960H)

Analog + Network: 2analog (5MP) + 4network (max. 5MP)

Network: 9*5MP/4MP/3MP/1080P/960P/720P (Total input bandwidth ≤48M)
Input 4CH BNC
Signal type Analog/AHD/CVI/TVI 2.0/TVI 3.0/Network.
Output 1x HDMI, 1x VGA
Audio
Input 4CH BNC
Two-way audio No
Output 1 RCA channel
Alarm
Sensor input No
Output No
Motion detection 4 channels (max. 9 channels in network mode)
Alarm events Recording, email, screen notifications, beep, push notifications (motion detection)
E-mail alert Sending video to a designated email address
AI functions
Human detection Yes
Display
VGA Resolutions: 1920×1080P, 1280×1024, 1280×720, 1024×768
HD output Resolutions: 1920×1080P, 1280×1024, 1280×720, 1024×768
Screen division 1/4/8/9
Privacy masking 3 rectangular zones (for each camera)
OSD Camera title, time, video loss, motion detection, recording
Recording
Video compression H.265/H.264
Audio compression G.711U/G.711A
Resolution 5MP_Lite (1280×1952)

4MP_Lite (1280×1440)

1080N (960×1080)

720P (1280×720)

960H (960×480)
Video quality Lowest/Low/Medium/Good/Better/Best
Recording speed Analog

PAL: 5MP_Lite (1296×1944 412fps), 4MP_Lite (1280×1440 415fps), 1080N (960×1080 425fps), 720P (1280×720 425fps), 960H (960×480 4*25fps)

NTSC: 5MP_Lite (1296×1944 412fps), 4MP_Lite (1280×1440 415fps), 1080N (960×1080 425fps), 720P (1280×720 430fps), 960H (960×480 4*30fps)

Network

PAL: 5MP@8×25fps, 4MP@9×25fps, 3MP@9×25fps, 1080P@9×25fps, 960P@9×25fps, 720P@9×25fps, D1@9×25fps

NTSC: 5MP@8×30fps, 4MP@9×30fps, 3MP@9×30fps, 1080P@9×30fps, 960P@9×30fps, 720P@9×30fps, D1@9×30fps
Recording mode Manual / Schedule / Motion Detection / Intelligent.
Playback and backup
Decoding capability 2*1080P@30fps
Playback Synchronization Analog: 3CH 5MP_LITE @12fps, 3CH 4MP_LITE @15fps, 4CH 1080N@25fps, 4CH 720P@30fps

Mixed mode: 1CH 5MP@30fps, 2CH 5M_LITE@12fps, 2CH 1080p@25fps

Network: 1CH 5MP @30fps, 1CH 4MP @30fps, 2CH 1080P@30fps, 4CH 720P@30fps
Remote playback 4 channels / 1 channel
Search modes All, Channel, Manual, Time, Date, Motion detection, Human detection, Tag
Playback functions Playback, Pause, Stop, Accelerated playback, Slow playback, Rewind, Next file, Previous file, Next camera, Previous camera, Full screen, Backup selection, Digital zoom
Smartphone playback 4 channels
Backup mode USB device (FAT 32 file system) / Network / FTP
Network
Interface 1x RJ-45 10M/100M self-adaptive Ethernet
Network functions TCP/IP, HTTP, HTTPS, SMTP, DHCP, FTP, DDNS, RTP, RTSP, RTCP, NTP, UPnP
DDNS Supported services: Dyndns, Changeip, No-IP, Oray, A-PRESS, MYQSEE, SKDDNS, SMART-EYES, ZEBEYE, HDPROVN, DYNAMIC_PLANET, EASY_PLANET
Web browsers Edge, IE8-11, Google Chrome, Firefox, Safari
CMS software Supports Windows 7/8/10/11 and MAC OS
Secondary stream CIF/D1 (1-30fps)
Smartphone iPhone, Android
Hard drive
Interface type 1x SATA
Capacity 1x SATA drive (2.5"/3.5" SATA, max. 8TB)
General
Language Polish
UTC control Yes
USB interface 2x USB 2.0
Power consumption DC 12V/1.5A ≤ 7W (without hard drive)
Operating environment -10~55℃/10~90%
Dimensions (S×G×W) 260 × 23 × 43 mm
Weight 0.86 kg (without HDD)
