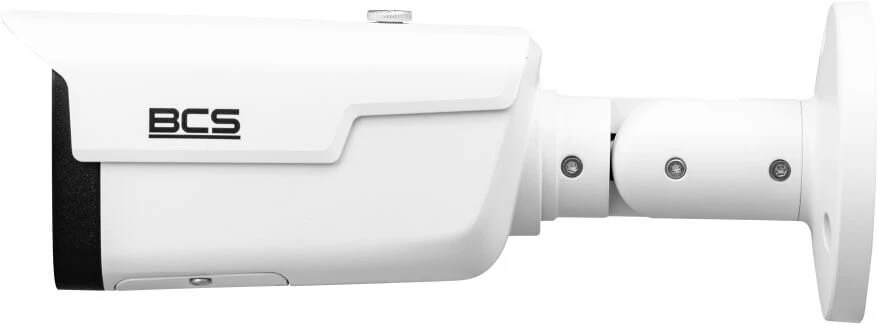

IP camera BCS-L-TIP58VSR6-AI1 tubular 8 Mpx, 1/2.8" sensor with motozoom lens 2.7-13.5 mm.

Main Features of BCS-L-TIP58VSR6-Ai1(2) Camera:

1. Product Line: BCS Line
2. Camera Type: Tube
3. Resolution: 8 Mpx
4. Sensor: 1/1.8'' CMOS with Progressive Scan system
5. Lens: Motozoom, focal length 2.7~12 mm
6. Aperture: F1.6
7. Zoom:
   • Optical zoom: 4×
   • Digital zoom: 16×
8. Viewing Angle:
   • Horizontal: 113°~47°
   • Vertical: 60°~26°
   • Diagonal: 133°~53°
9. DORI:
   • Detect: 83~190m
   • Observe: 33~76m
   • Recognize: 17~38m
   • Identify: 8~19m
10. Camera Sensitivity:
    • 0.003 Lux (Color, F1.6, 30 IRE)
    • 0.0005 Lux (B/W, F1.6, 30 IRE)
    • 0 Lux (IR)
11. WDR: 120 dB
12. Noise Reduction: 3D DNR
13. Image Stabilization: Electronic (EIS)
14. Illuminator: IR LED, range up to 60m
15. Audio:
    • Built-in microphone
    • 1 audio input
    • 1 audio output
    • Compression: G.711A / G.711Mu / G.723 / G.726 / PCM
16. Interfaces:
    • 1× RJ-45 10/100 Mbps
    • MicroSD memory card slot up to 256GB
17. Video Streams:
    • Main: 3840×2160 (1~25/30fps)
    • Second: 704×576 (125fps) / 704×480 (130fps)
    • Third: 1920×1080 (1~25/30fps)
18. Video Compression: H.265+, H.265, H.264+, H.264, MJPEG, Ai Coding
19. Power supply: 12VDC / PoE(802.3af), Power consumption max 10.5W
20. Operating Conditions: -30°C~+60°C, max 95% RH
21. IP Class: IP67
22. Dimensions: 244.1×79×75.9 mm
23. Weight: 0.8 kg
24. AI - Built-in Intelligent Functions:
    • Perimeter Protection: Intrusion into the area, crossing the line
    • Object Recognition: Person/mechanical vehicle recognition for area intrusion, line crossing (false alarm reduction)
    • SMD 4.0: Smart Motion Detection

The BCS-L-TIP58VSR6-Ai1(2) camera is an advanced 8 Mpx resolution tube camera that offers excellent image quality, a wide zoom range, and advanced AI smart features that make it ideal for outdoor surveillance in various lighting conditions.
