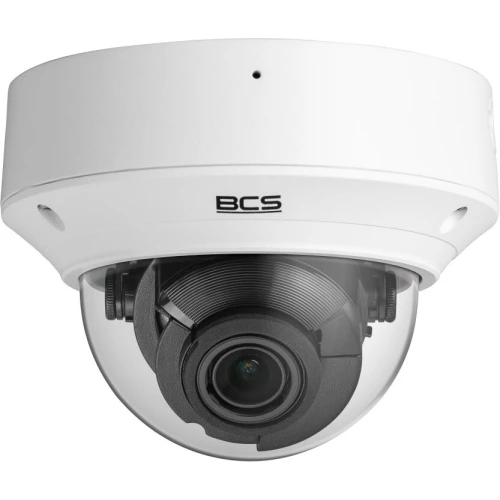

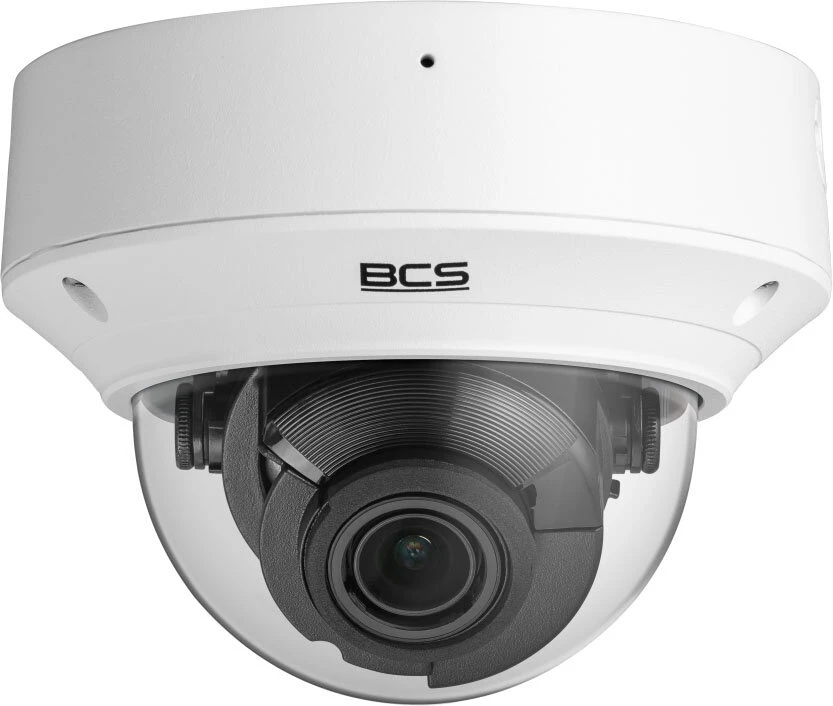

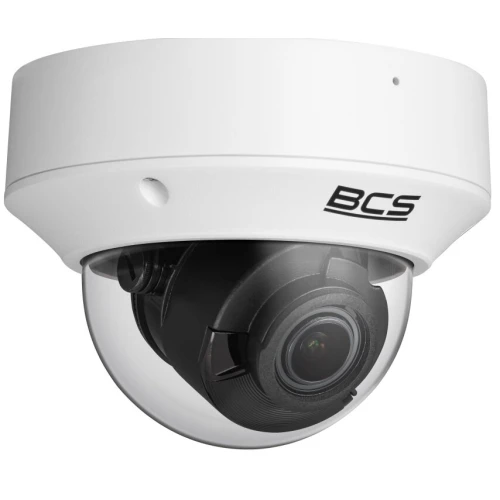

BCS Point BCS-P-DIP54VSR4-Ai2 4Mpx IR 30m Dome Network IP Camera
Photo gallery
-
Manufacturer
-
Product Code
BCS-P-DIP54VSR4-AI2
-
Warranty
36 miesięcy
- Technology: IP
- Resolution: 4Mpx
- Enclosure: Dome
- Night visibility: up to 30m
- Memory card slot: Yes
- Audio: No
- Color: White
Ask about this product show form
Files attached to the product show files
Product Description
Main Features:
|
|
The BCS-P-DIP54VSR4-Ai2 camera is an advanced model with 4 Mpx resolution, featuring low light sensitivity (0.002 lux in color), varifocal lens, motion detection and night recording capabilities with up to 40m IR. It supports H.265+ and H.264 video compression, has DC 12V or PoE power supply, and is suitable for harsh weather conditions and vandalism protection.
Technical specifications:
| Model: | BCS-P-DIP54VSR4-Ai2 |
| Scanning system: | Progressive Scan |
| Sensor: | 1/3" 4 Mpx CMOS |
| Pixel count: | 2688 × 1520 |
| Sensitivity: | In color: 0.002 lux, F1.2 In B/W: 0 lux (IR on) |
| S/N ratio: | over 56 dB |
| Lens: | 2.7-13.5 mm MOTOZOOM, F1.2 Viewing angle: 98,3-31,3° / 54,8-18,5° |
| DORI (Detect / Observe / Recognize / Identify): | 2.7 mm: 61 m, 24 m, 12 m, 6 m 13.5 mm: 304 m, 121 m, 61 m, 30 m |
| White Balance (AWB): | Auto / Manual |
| Background compensation: | BLC, HLC, WDR 120dB |
| Shutter: | 1-1/100000 sec Auto / Manual |
| Gain Control (AGC): | Auto / manual |
| Noise reduction: | 2D / 3D NR |
| Motion detection: | 4 areas |
| Privacy Zone: | 4 areas |
| Image rotation: | reflection, rotation |
| Day / Night function: | ICR mechanical filter |
| Infrared illuminator: | range up to 40 meters |
| Video compression: | H.265+, H.265, H.264+, H.264, MJPEG |
| Resolution: | 4 Mpx - 2688 × 1520 px, 2560 × 1440 px 1080p - 1920 × 1080 px 720p - 1280 × 720 px D1 - 704 × 576 px 2CIF - 704 × 288 px CIF - 352 × 288 px |
| Main stream: | 4 Mpx / 1080p / 720p - 30 fps |
| Second stream: | 720p / D1 / 2CIF / CIF - 30 fps |
| Stream three: | D1 / 2CIF / CIF - 30 fps |
| Network connection: | 1x RJ-45 (10/100 Mbps) |
| Audio: | 1 input, 1 output, Built-in microphone |
| Alarm: | 1 input / 1 output |
| Protocols: | IPv4, IGMP, ICMP, ARP, TCP, UDP, DHCP, PPPoE, RTP, RTSP, RTCP, DNS, DDNS, NTP, FTP, UPnP, HTTP, HTTPS, SMTP, 802.1x, SNMP, P2P |
| Compatibility: | ONVIF Profile S, G, T |
| Users: | 10 logged on maximum |
| Mobile users: | iOS, android |
| Memory card slot: | microSD up to 256 GB |
| Power supply: | DC 12 V, PoE 802.3af |
| Power consumption: | 7 W |
| Operating conditions: | -30 °C ~ 60 °C |
| Housing: | protection class: IP67 vandal resistance class: IK10 |
| Weight: | 970 g |
| Dimensions: | Ø 148 × 111 [mm]. |
