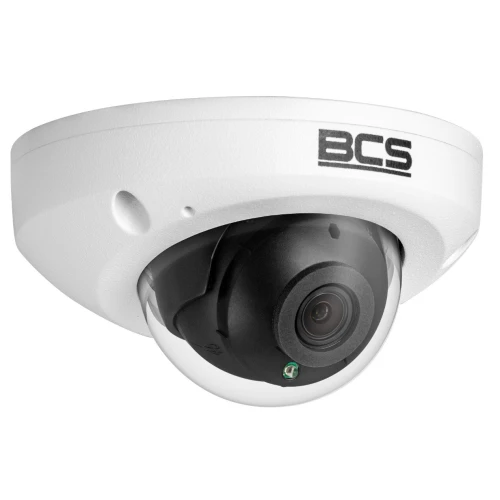

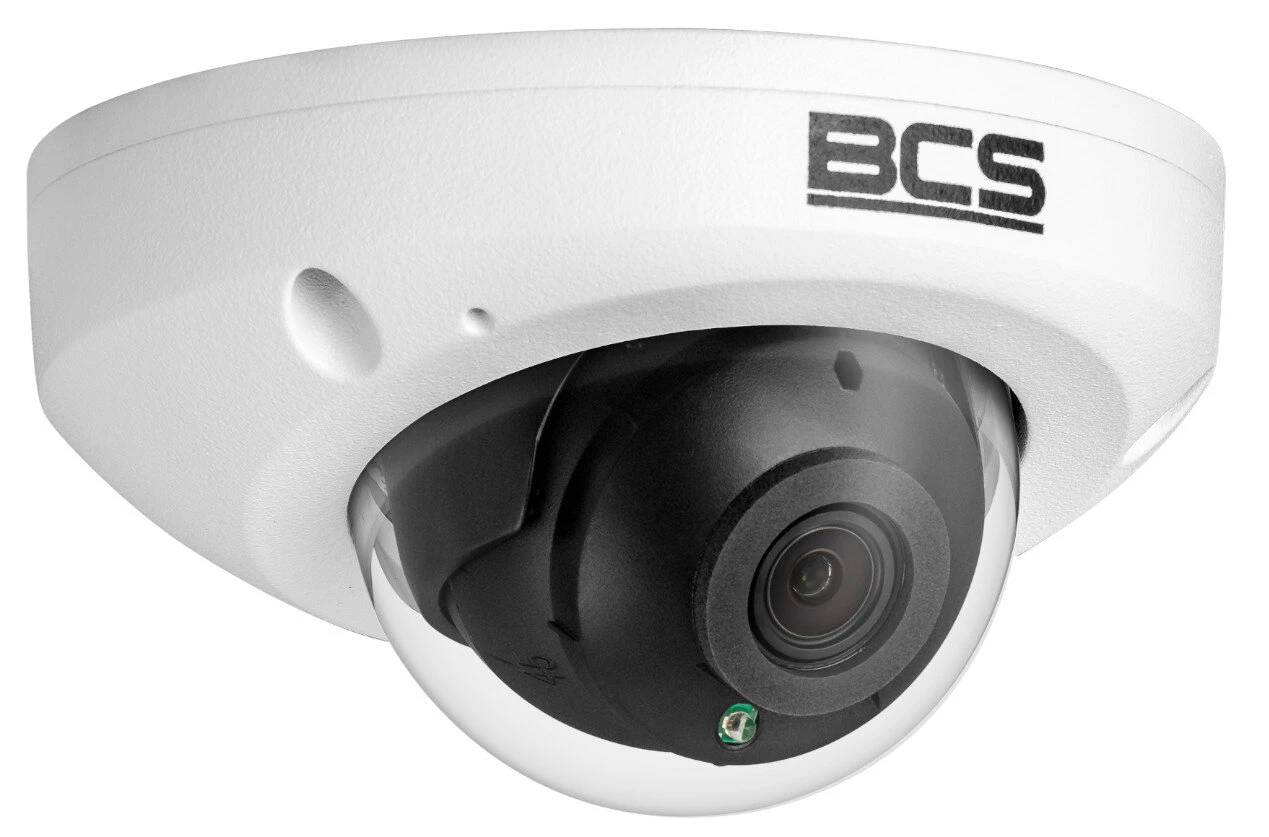

IP Dome Camera 2Mpx BCS-P-DMIP22FSR3-Ai1 BCS Point
Photo gallery
-
Manufacturer
-
Product Code
BCS-P-DMIP22FSR3-AI2
-
Warranty
36 miesięcy
- Technology: IP
- Resolution: 2Mpx
- Enclosure: Dome
- Night visibility: up to 30m
- Memory card slot: Yes
- Audio: Yes
- Color: White
Ask about this product show form
Product Description
Main features:
|
|
BCS-P-DMIP22FSR3-Ai2 is a 2 Mpx dome camera with advanced features such as intelligent image analysis, perimeter protection, face recognition and people counting. It features 16x digital zoom, excellent sensitivity in a variety of lighting conditions, and support for a 256GB microSD memory card. The camera also offers network communication, support for ONVIF protocols, and is weatherproof with IP67 and IK10 rating.
Automatic day/night mode
The camera automatically switches to night and day mode during the day when the amount of light in the environment changes. For example, when the sun goes down. The infrared range is VALUE meters.
High-quality image
A light-sensitive sensor and a high-quality sensor combined with advanced optics provide images of high quality, and excellent sharpness. The device records at W VALUE W Mpx resolution, so it has a significant advantage over typical FullHD models. It guarantees that even the smallest detail will be captured on the footage.
- A: 1280x720p ( 1Mpx )
- B: 1920x1080p ( 2Mpx )
- C: 2048x1536p ( 3Mpx )
- D: 2560x1440p ( 4Mpx )
- E: 3840x2160p ( 8Mpx )
Motion detection
MODEL has a built-in algorithm for detecting motion in images. In addition, it allows you to send notifications to your phone or computer. In addition, you can freely set the area you are interested in, so that, for example: you can receive notifications only about motion from the entrance gate. In addition to 24/7 recording, the cameras can also record only fragments when motion is detected, which will translate into lower hard drive consumption."
BCS products are devices that focus on ease of use, literally anyone can handle their installation and configuration thanks to the included instructions.
Technical specifications:
| Device Name | BCS-P-DMIP22FSR3-Ai2 |
| Product line | BCS Point |
| Camera type | Dome |
| Resolution | 2 Mpx |
| Sensor | 1/2.8'' CMOS |
| Scanning system | Progressive Scan |
| Pixels | 1920(H)×1080(V) |
| Lens | fixed |
| Focus | fixed |
| Iris | fixed |
| Focal length | 2.8 mm |
| Aperture | F1.6 |
| Digital zoom | 16× |
| Viewing angle | H: 106.7° V: 57.1° |
| DORI | Detect 43m / Observe 17m / Recognize 9m / Identify 4m |
| Sensitivity of the camera | 0.001Lux(F1.6,AGC) 0Lux(B/W,IR) |
| S/N ratio | 52dB |
| White balance | (AWB) Auto / manual |
| WDR | 120dB |
| Backlight compensation | BLC / HLC / WDR(120dB) |
| Shutter | Auto / manual 1~1/100000s |
| Gain control | (AGC) Auto / manual |
| Noise reduction | 2D/3D DNR |
| Image rotation | Mirror, Flip 0°/90°/180°/270° |
| Number of streams | 3 |
| Resolutions | 2M(1920×1080) / 720P(1280×720) / D1(720×576) / (640×360) / 2CIF(704×288) / CIF(352×288) |
| Main stream | 1920×1080/1280×720(30fps) |
| Second stream | 1280×720/720×576/640×360/704×288/352×288(30fps) |
| Third stream | 720×576/640×360/704×288/352×288(30fps) |
| Bitrate | 128Kbps~16Mbps |
| Video compression | H.265 / H.265+ / H.264 / H.264+ / MJPEG |
| Day/night | ICR |
| Illuminator type | IR |
| Illuminator | 30m |
| Microphone | Yes |
| Audio input | 1 |
| Audio output | 1 |
| Audio compression | G.711 |
| Memory card slot | microSD 256GB |
| Support | Web Service, CMS BCS Manager (Windows/Linux/MAC), Mobile App(iOS, android) |
| Motion detection | 4 |
| Privacy masks | 4 |
| Networking | RJ-45 10/100Mbps |
| Compatibility | ONVIF(S/G/T) |
| Protocols | IPv4, IGMP, ICMP, ARP, TCP, UDP, DHCP, PPPoE, RTP, RTSP, RTCP, DNS, DDNS, NTP, FTP, UPnP, HTTP, HTTPS, SMTP, 802.1x, SNMP, QoS |
| Power supply type | 12VDC / PoE(802.3af) |
| Power consumption | max 6W |
| Housing color | White |
| IP protection class | IP67 |
| IK10 | Yes |
| Operating conditions | -30°C~+60°C max 95% RH |
| Dimensions | Ø110×61mm |
| Weight | 0.37kg |
| Ai - Built-in intelligent functions | Built-in intelligent image recognition and analysis algorithms |
| Ai - Perimeter protection | Intrusion into the area, crossing the line |
| Ai - Object recognition | Person/vehicle recognition for area intrusion, line crossing reduces false alarm triggering. |
| Ai - Face detection | Face detection and tracking, face photo |
| Ai - People counting | Person counting for line trespassing/area intrusion, entrance counting, exit counting |
