Switch PoE IP-5-11-M2 5-Port ATTE

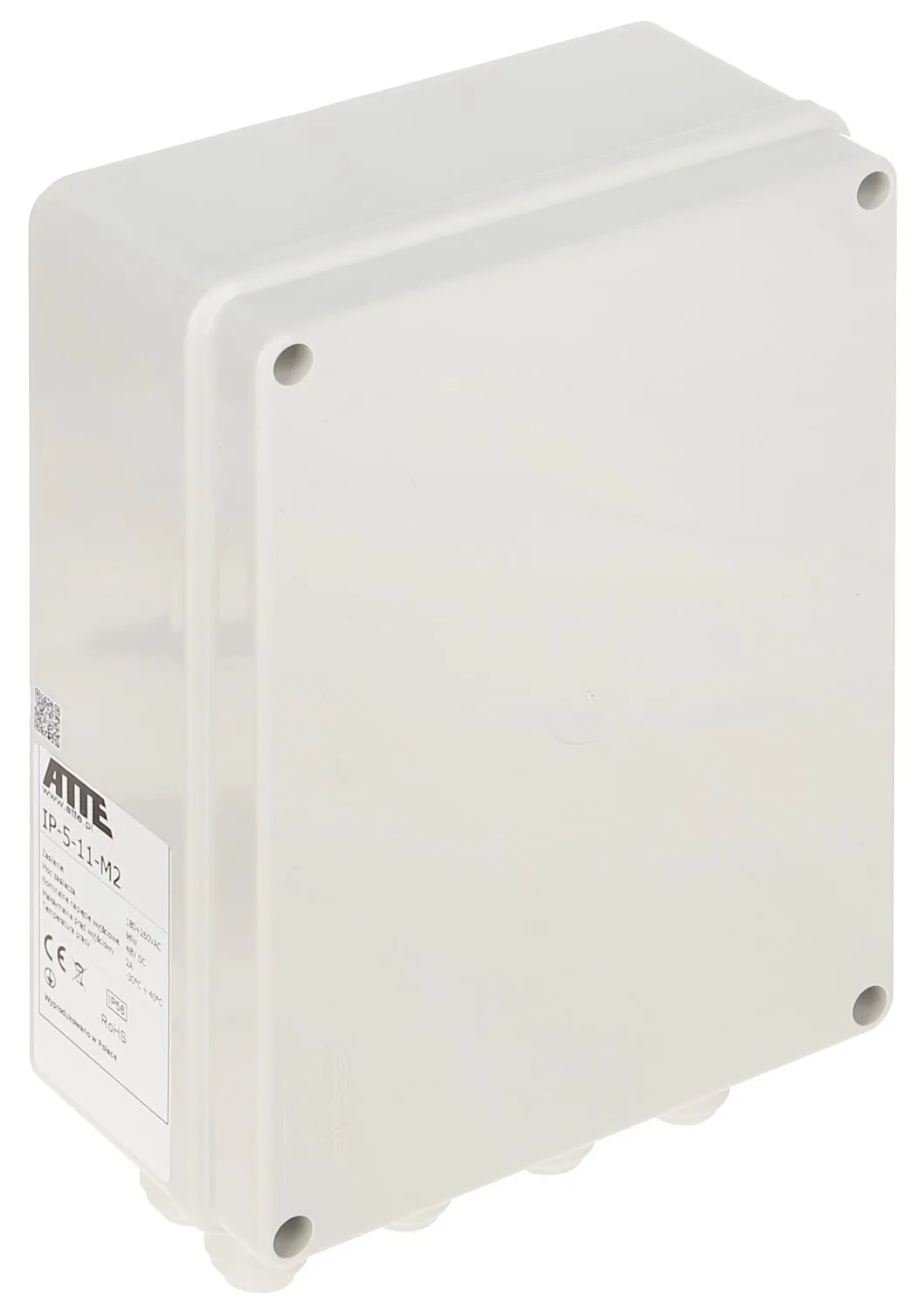

A white, rectangular PoE switch with a durable, weather-resistant casing designed for outdoor use. The device features multiple ports and is labeled with technical specifications on the side.

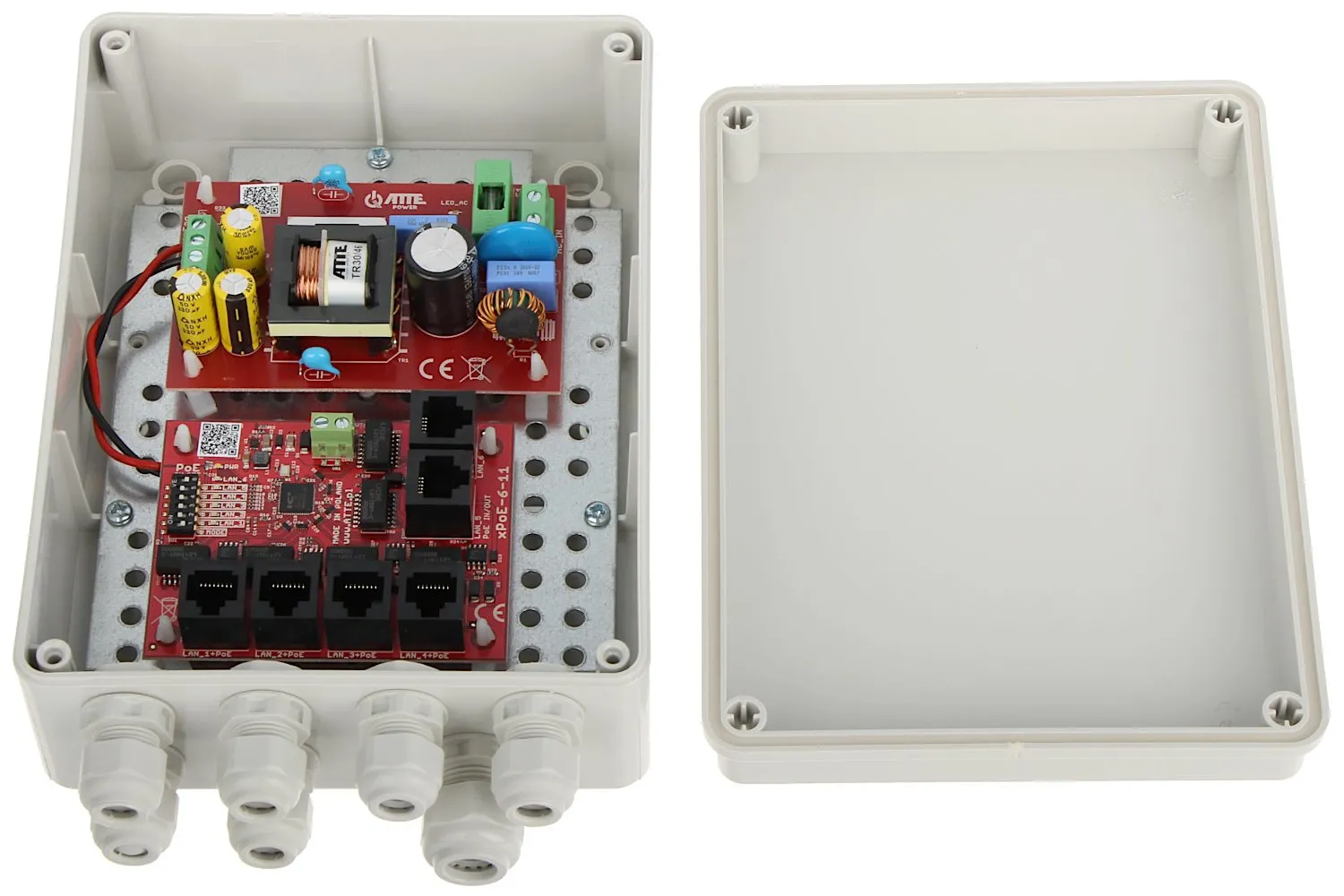

The image shows an open electrical enclosure containing a red circuit board with multiple ports and components. The enclosure has a removable lid and several cable entry points at the bottom.

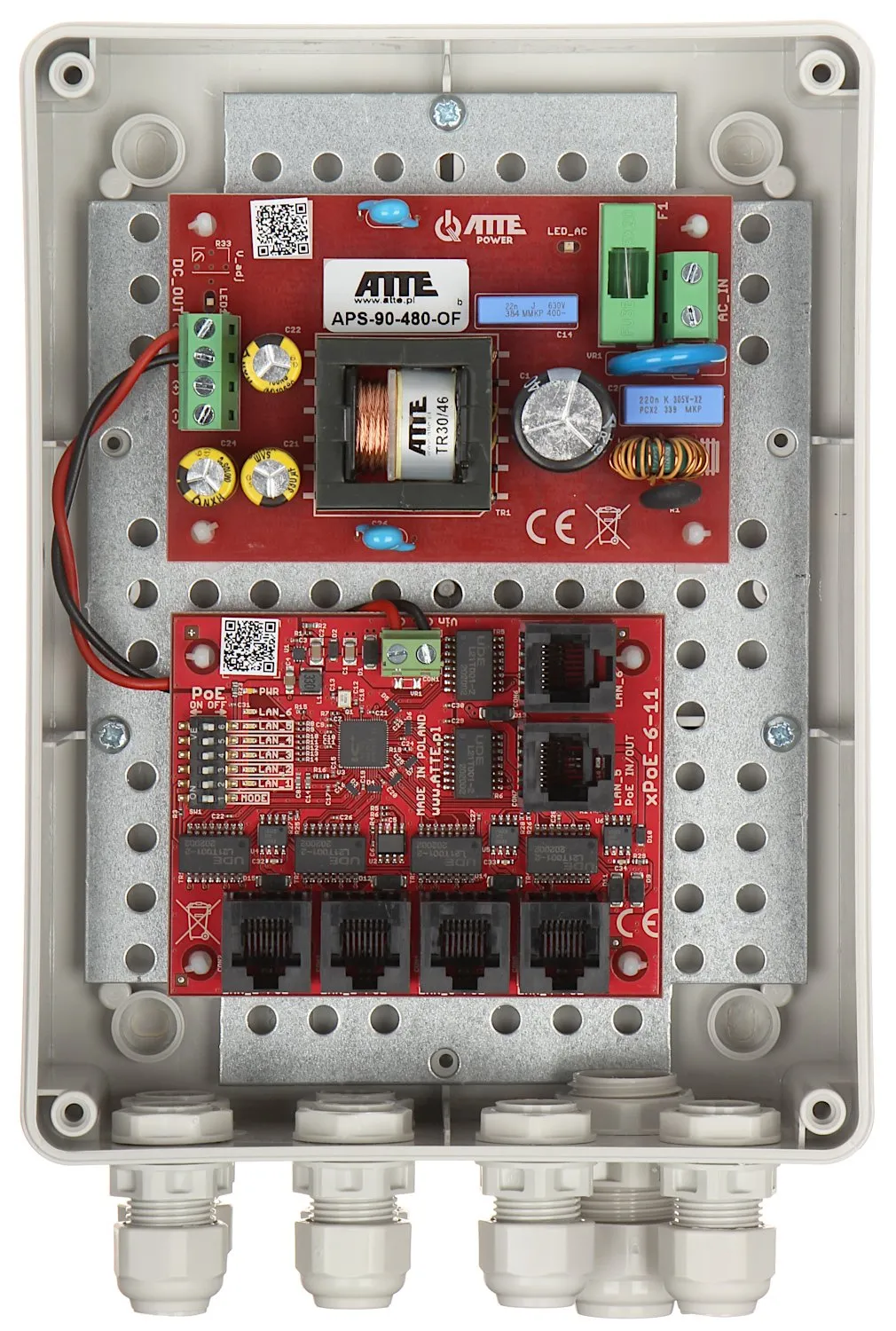

The image shows a red electronic circuit board housed in a gray, rectangular enclosure with multiple connection ports at the bottom. The board features various components, including capacitors, resistors, and connectors, designed for power distribution and network management.

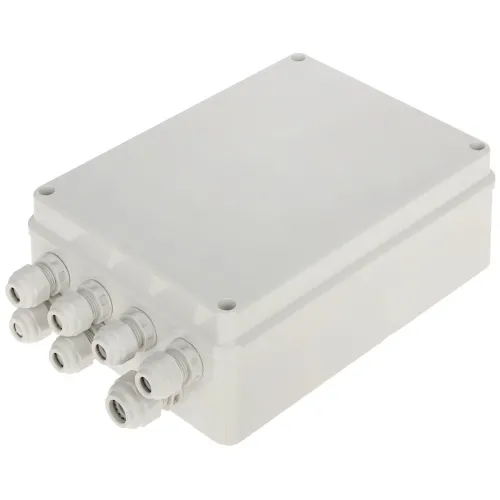

A rectangular, gray electrical junction box with multiple cable glands on one side for secure wiring connections. The box is designed for outdoor use, providing protection against environmental elements.

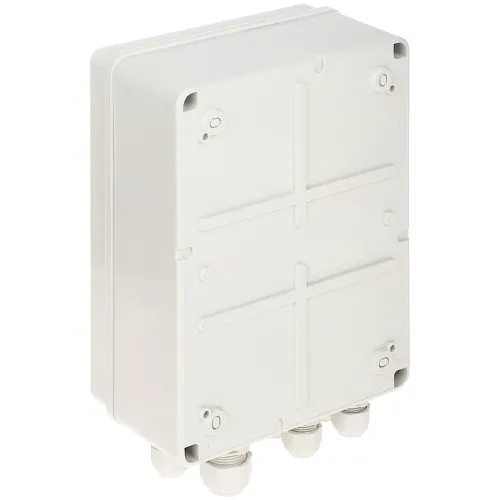

A white, rectangular electrical junction box with a smooth surface and multiple cable entry points at the bottom. The box features a secure lid with four corner screws for easy access and installation.
The image shows a set of white plastic mounting brackets accompanied by screws, wall plugs, and cable ties. These components are designed for secure installation and organization of various fixtures.

  • Manufacturer

    ATTE

  • Product Code

    IP-5-11-M2

see description

Ask about this product show form

Do you have questions? Looking for answers? Are you interested?

  • Call
  • 34 341 16 30
  • We advise Mon - Fri 8 00 am to 4 00 pm
  • or send a message using the form below

Copy the code from the picture

weryfikator

Close

  • Availability: in stock Shipping 24/48h

Price (Incl. VAT):

138,06 €

Add to Watchlist

Najniższy koszt dostawy: 12,98 zł

Do you represent a budgetary unit?
Check out the deferred payment option.

CA Raty

Product Description

IP-5-11-M2 set consists of XPOE-6-11-OF switch module and APS-90-480-OF switching power supply enclosed in ABOX-M2 outdoor enclosure with IP56 protection class. The LONG RANGE operation mode allows to increase the transmission range of power and data for LAN ports 1 ... LAN 4 to 280m while limiting the network bandwidth for these ports to 10Mbps

LAN ports:
  • 1 x RJ45 10/100 Base-T - Uplink
  • 5 x RJ45 10/100 Base-T + PoE (802.3af/at) / Passive PoE
Management:No
LEDs:Power, LAN
Transmission speed:10 / 100 Mbps : 1 LAN Port + 5 LAN & PoE Ports.
Maximum output power:
  • 40 W @ Passive PoE - Ports 1 ... 4,
  • 70 W @ Passive PoE - Port 5,
  • 30 W @ PoE (802.3af/at) - Ports 1 ... 5
Maximum total power:96 W
Operating modes:
  • Normal : 100 m @ 10/100 Mbps - Ports 1 ... 5
  • Long Range : 280 m @ 10 Mbps - Ports 1 ... 4 ; 100 m @ 10/100 Mbps - Port 5
  • LAN port 6 - Uplink
Selected features:
  • Ability to cascade devices (power transfer between devices using Passive PoE via LAN port 5).
  • Ability to independently enable and disable PoE power for each LAN port 1 ... LAN 5
  • Modular design streamlines maintenance tasks and enables quick, easy system expansion
  • Raster module mounting system makes it easy to expand the device with additional modules
  • ABOX-M2 mounting enclosure is equipped with 7 cable penetrations with cable glands in the arrangement of 6 x M16 + 1 x M20
Power supply:230 V AC - cable terminals
Weight:0.65 kg
Dimensions:226 x 148 x 80 mm
Manufacturer / Brand:ATTE
